Item Name: UHF-F to UHF-F DC-2500MHz Thunder Arrestor Female to Female Connector Adapter. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Description:
Surge protector is a kind of arrester with coaxial structure. It aims to absorb the thunder surge on the antenna at the top of the building and ground it, so as to provide comprehensive thunder protection for transceivers, receivers, etc.
Feature:
1. Designed with a stress on high safety,it has a built-in gas-charging surge arrestor element.
2. This device makes the actions of surge discharge discharge and restoration repeatedly. No replacement is practically needed.
3. The coaxial construction of this device assures excellent high frequency characteristics,wide bandwidth,and low loss and VSWR.
Specification:

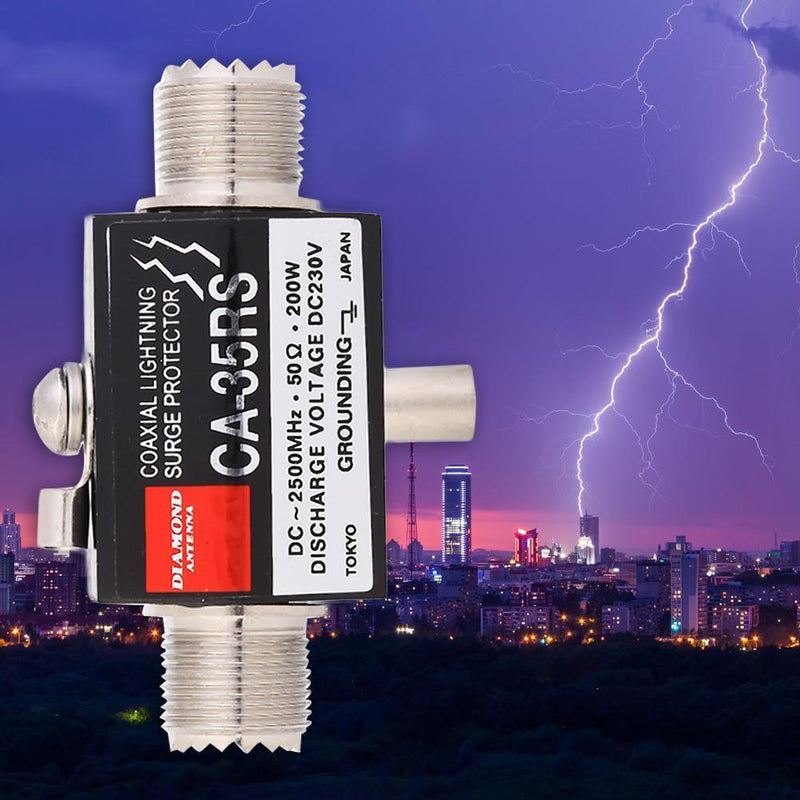

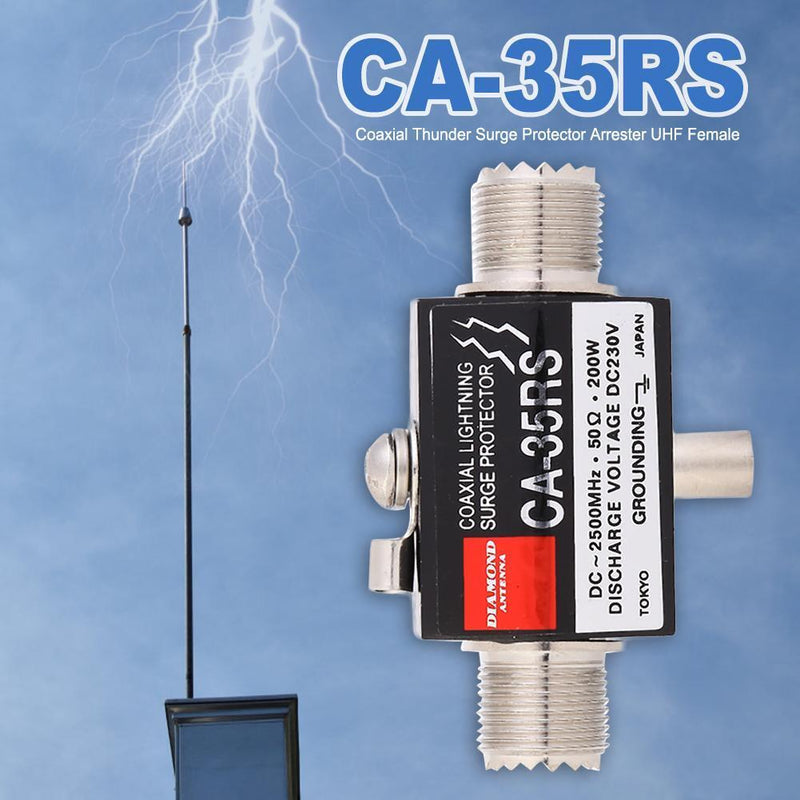

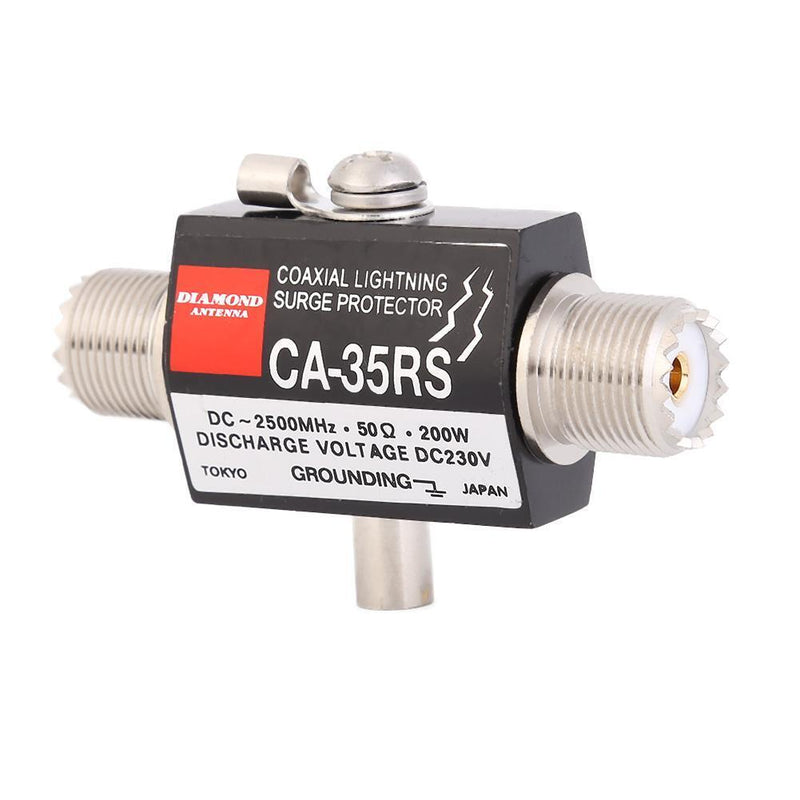

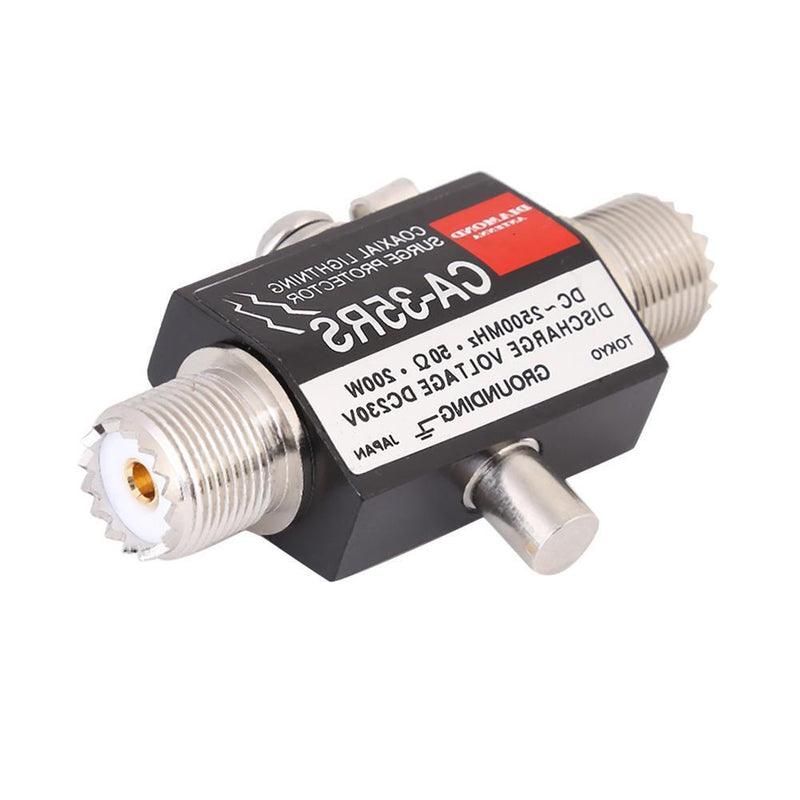

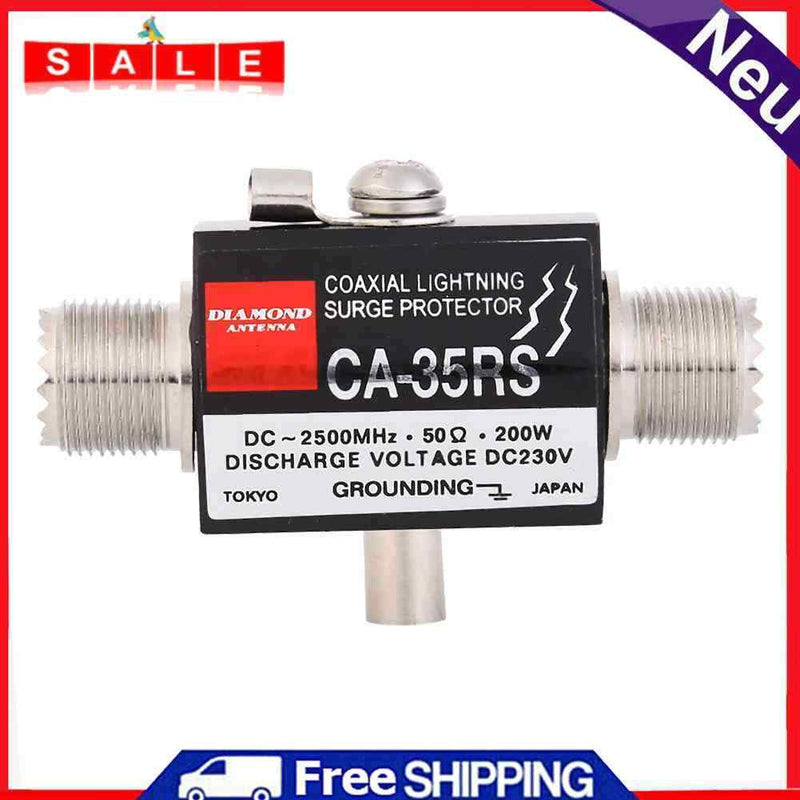

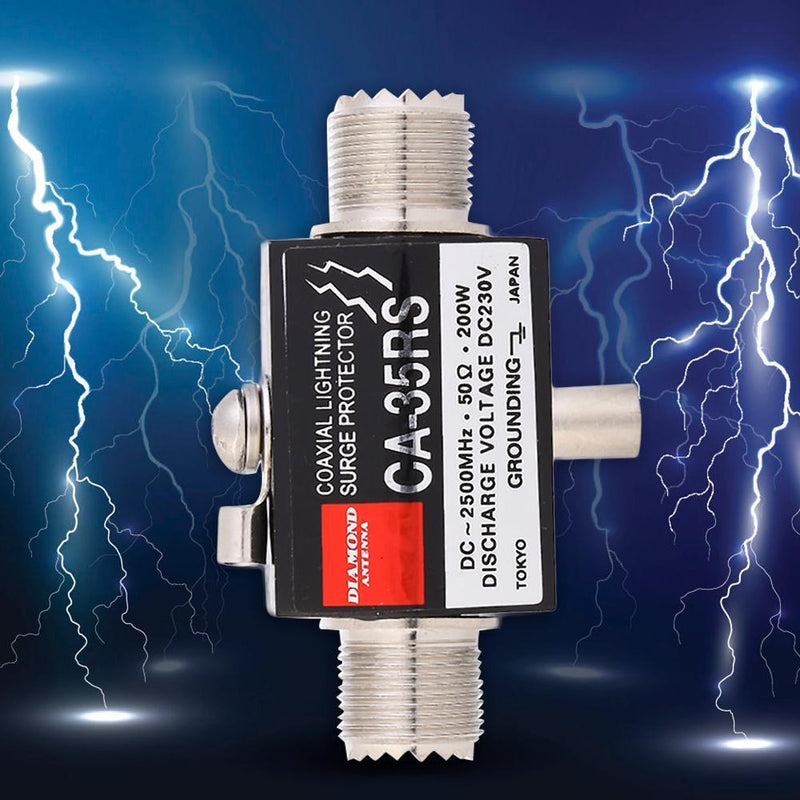

Model: CA-35RS
Type: M Type
Plug: Female to Female
Color: Black
Material: Metal
Frequency range: DC-2500MHz
VSWR: Less than1.1
Withstand Power: 400W PEP
Crest value power: 200W
Voltage: DC 230V
Impedance: 50 ohms
External dimension: 77 * 41 * 21mm/3.03*1.61*0.82''
Weight: 104g
Operation:
1. When using the for thunder surge protector under the eaves,connect it with an antenna cable.For connection,mount a plug(male) connector on both ends of the antenna cable.
2. Clinch or solder a copper wire,2.5 to 3.2mm diameters, and connect top ens of the wire to for thunder escape ground buried deep in the soil ground. It is recommended to connect the for thunder surge protector and the ground short enough.
3. Be sure to ground for thunder protector firmly by taking the following Precautions into account.
(1). Use isolated independent groud.
(2). Make ground resistance small.
(3). Make ground plate area wide as possible to allow the plate to contact with earth soil as wide area as possible by burring wide copper plate. (4). Isolate the ground far away with other grounding.
4. It isn't waterproof, locate it on the place where is not expose to direct rain fall.
Note:
Please allow 1-3mm differs due to manual measurement.
