Item Name: XH-M401 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 Board Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
M401 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 PWM Adjustable Step Down Board
Feature:
Chip: the switch regulator XL4016 has a protective current protection, over temperature protection, short circuit protection.
When the maximum output current is 8A, the fan is added and the long-term working current is about 5A.
Specification:
The way of depressurization: PWM modulation

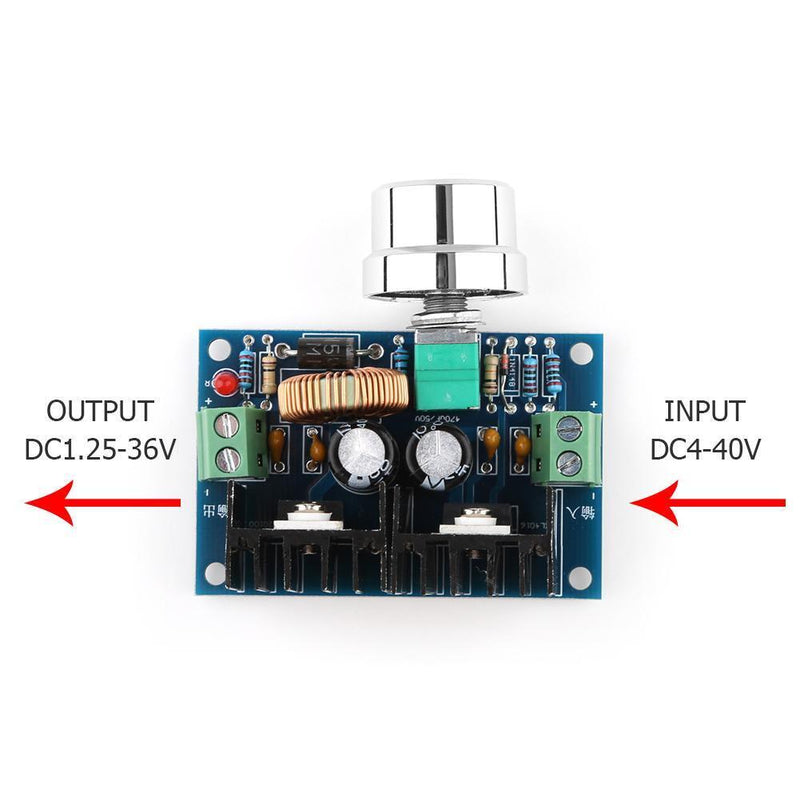

Input voltage: DC4-40V
Output voltage: DC1.25-36V
Maximum output current: 8A
Maximum power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHz

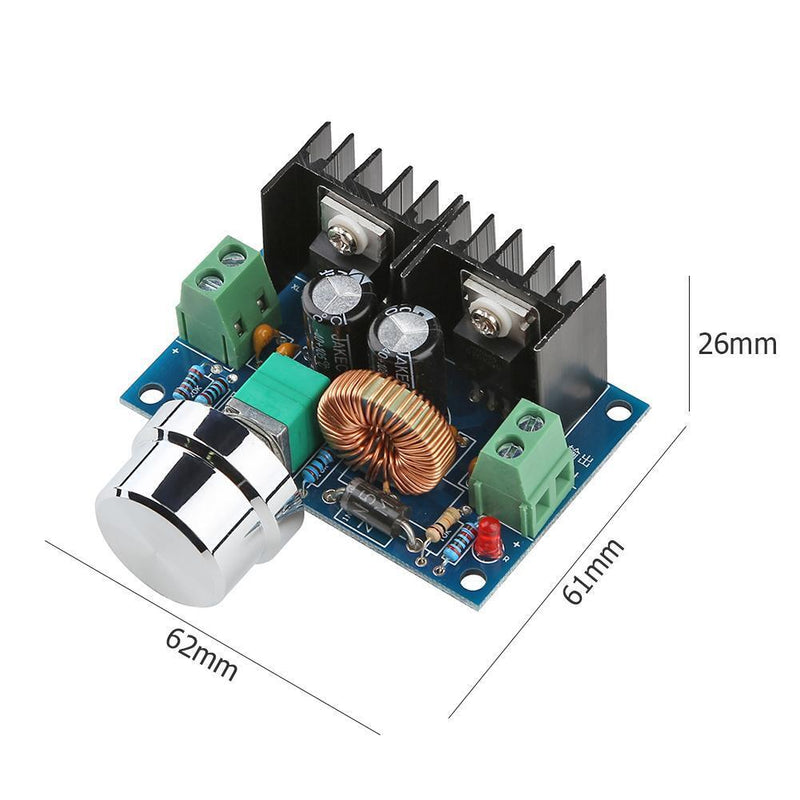

Size: 62*61*26mm/2.44*2.4*1.02''
Note:
Please allow slight size differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.
