Specifications:
| Brand |
XINWEI |
| Model |

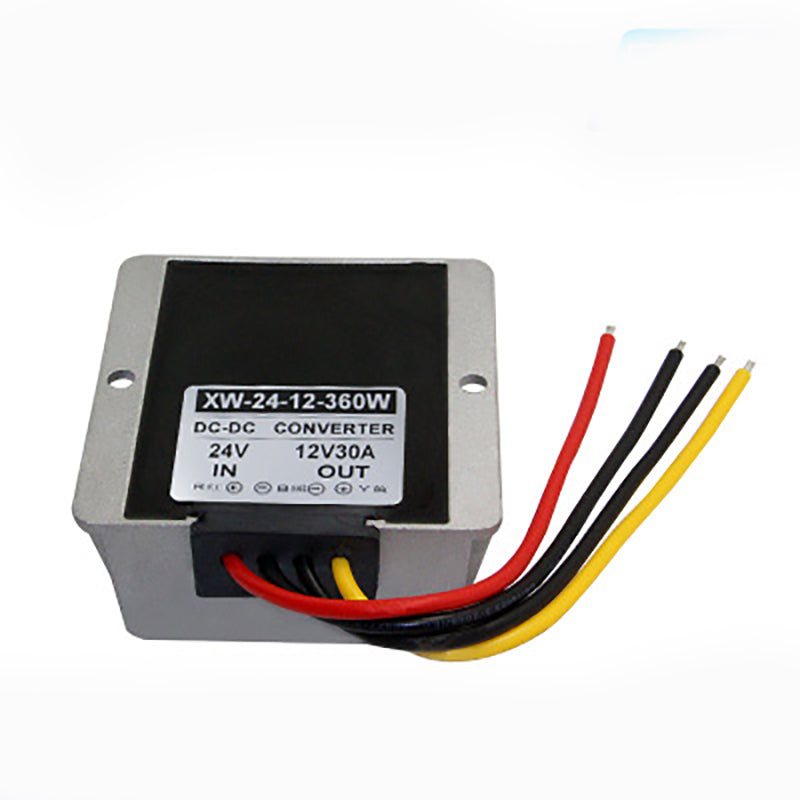

XW-24-12-360W |
| Module nature |
Non-isolated BUCK |
| Input voltage |
DC 24V |
| Output voltage |
DC 12V |
| Output current |
30A |
| Output power |
360W |
| Conversion efficiency |
>93% |
| Working temperature |
-40℃~+85℃ |
| Pitch of holes |
65mm |
| Hole Diameter |
5mm |
| Installation line length |
13-14cm |
| Waterproof rating |
IP67 |
| Shell size (L*W*H) |
74* 74 * 32mm |
Features:

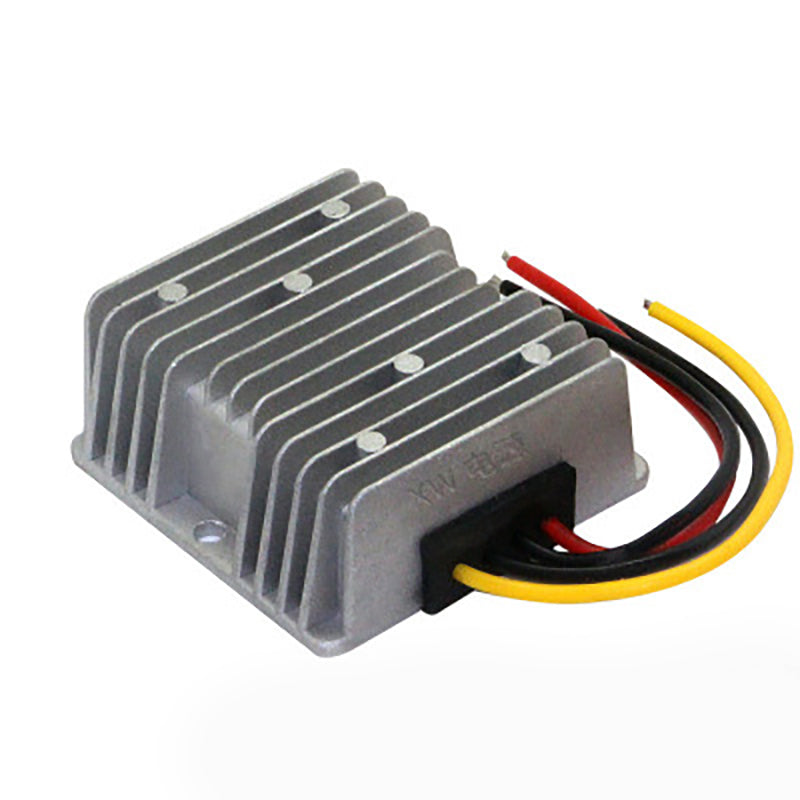

-- DC 24V to 12V step-down converter
-- Die-cast aluminum shell natural heat dissipation
-- Protective function: overload protection, high voltage protection, over temperature protection, short circuit protection.
-- Applied voltage range of electrical appliances: Electric motor, audio, navigation, surveillance, LED display screen, air conditioner, electric fan, solar, photovoltaic energy source, DVD, LED lights, motors, pumps, and industrial electrical equipment etc
Package included:

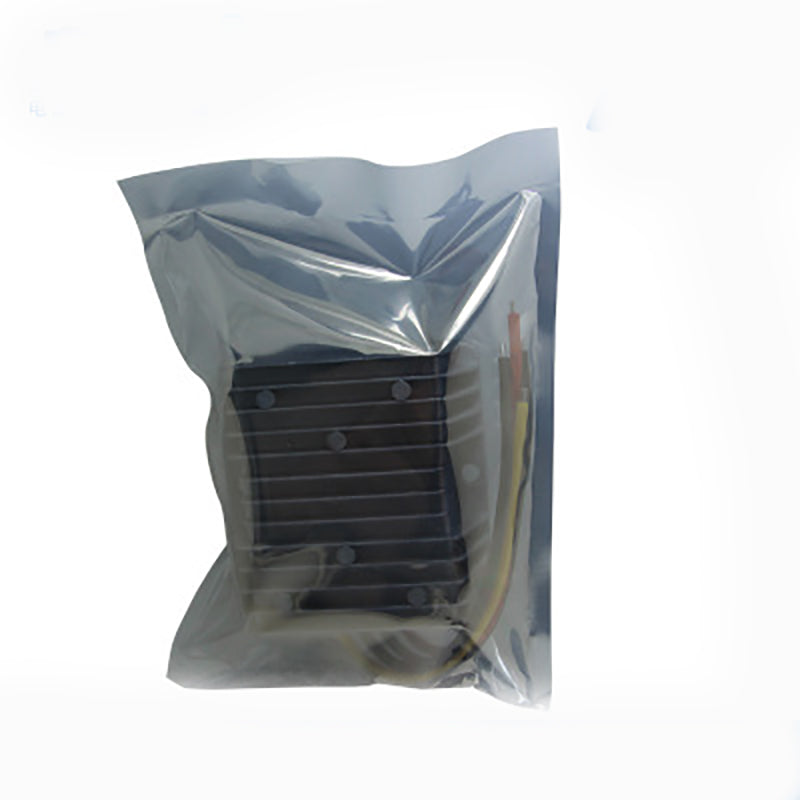

1 X DC/DC Converter Regulator
