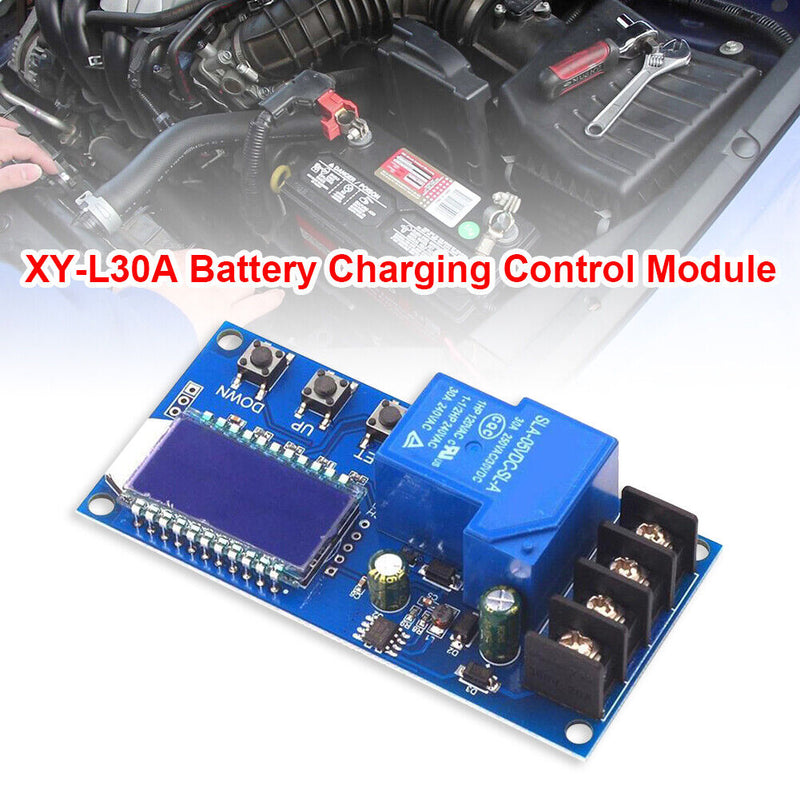

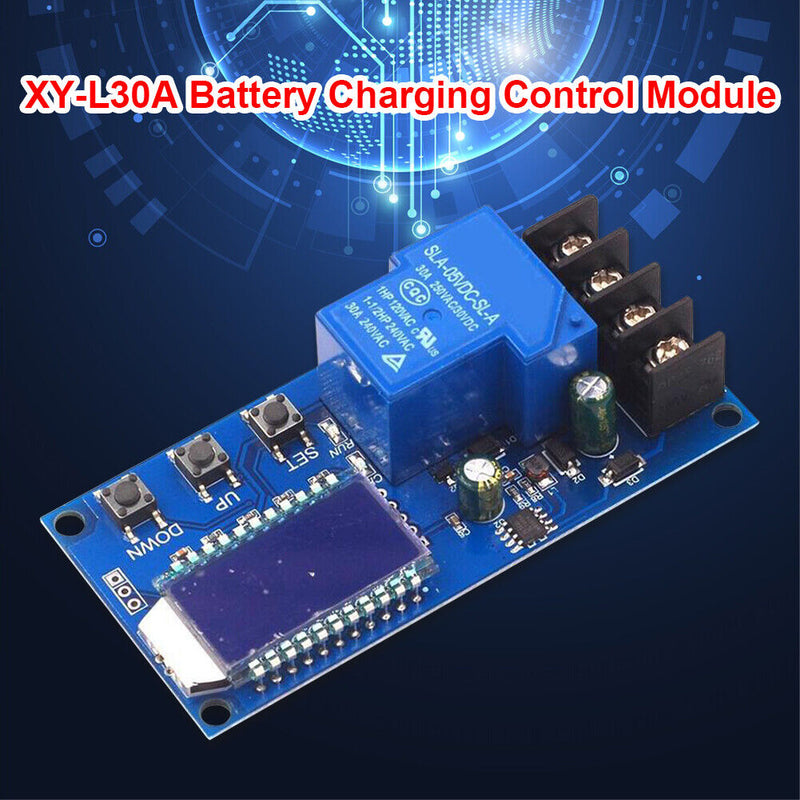

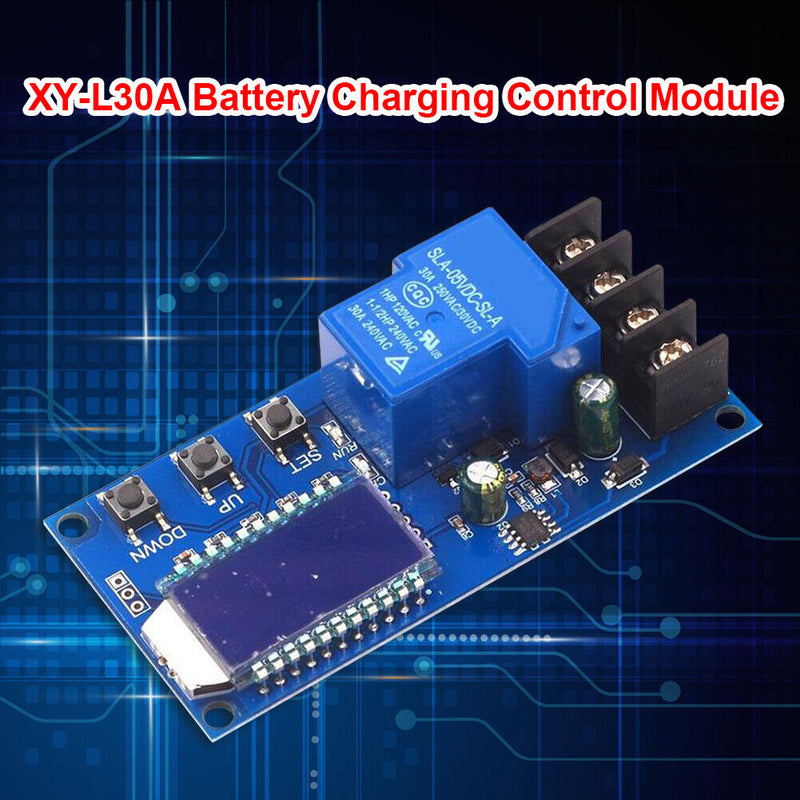

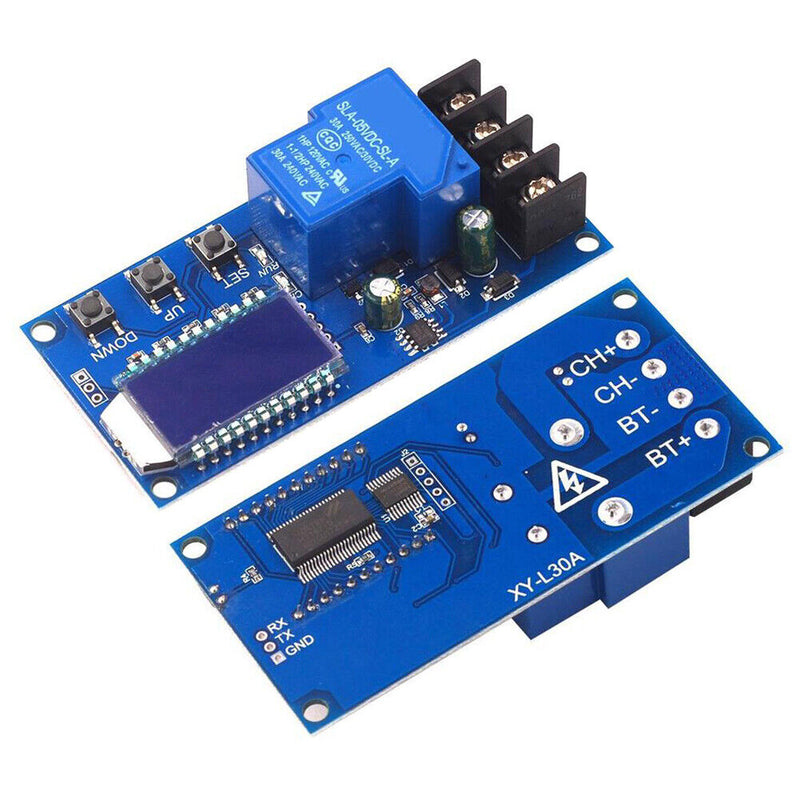

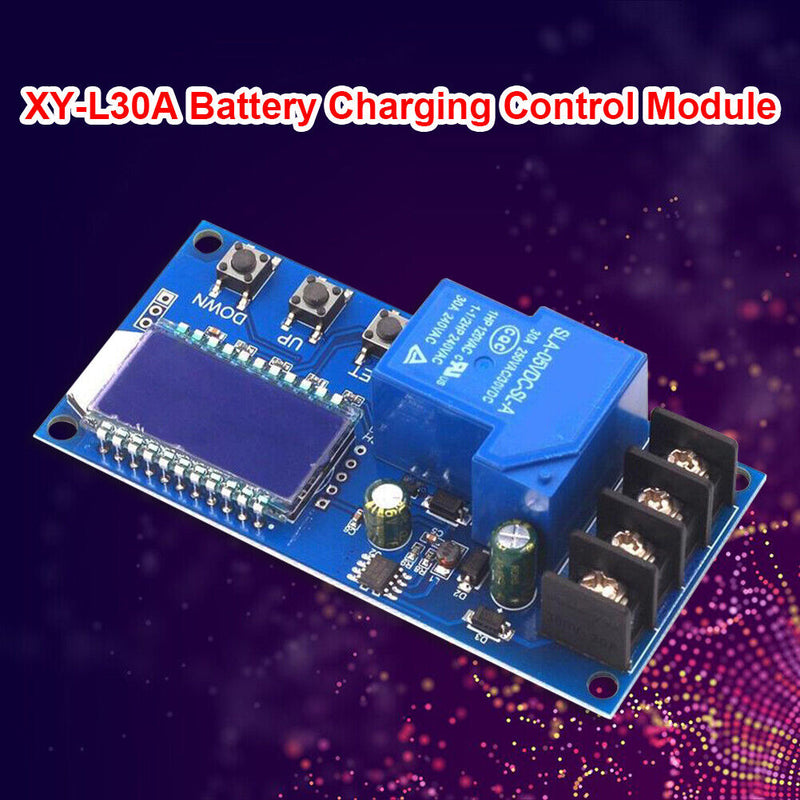

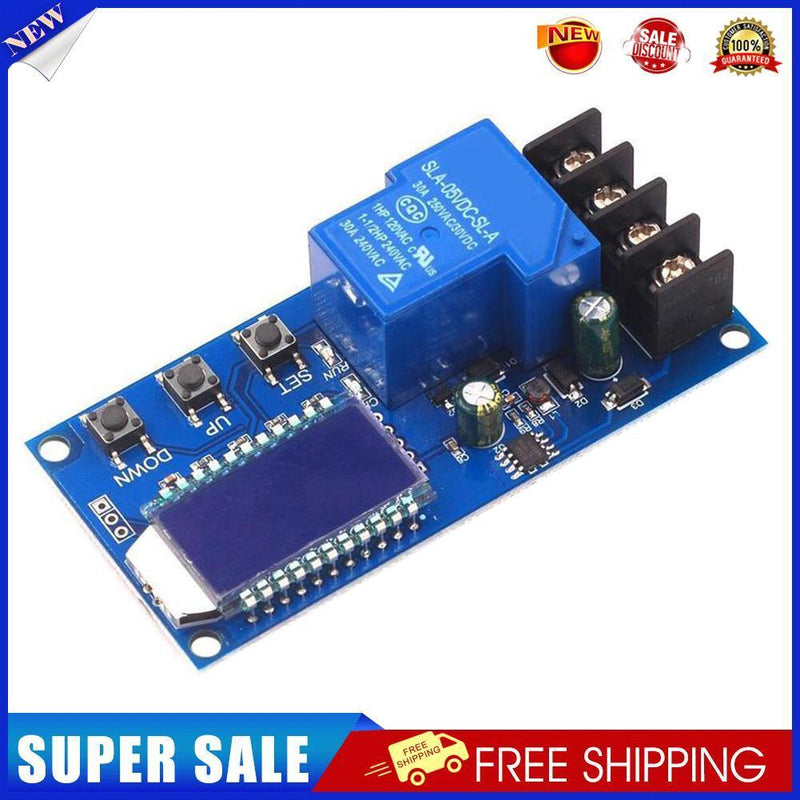

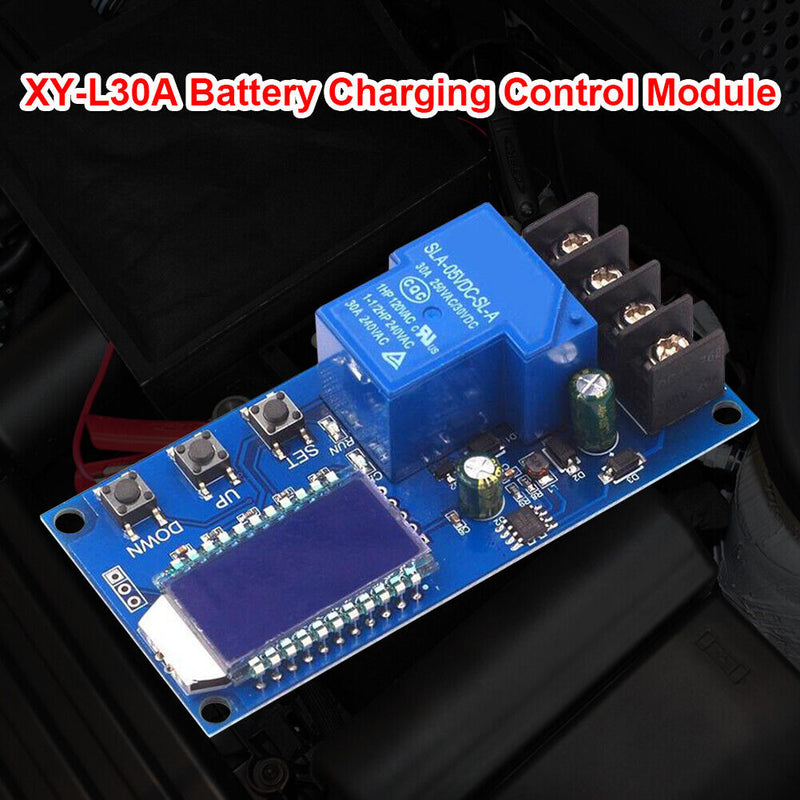

XY-L30A 30A 6-60V Lead-Acid Lithium Battery Charger Control Module with LCD Automatic Charging Control Overcharge Protection Board
Feature:

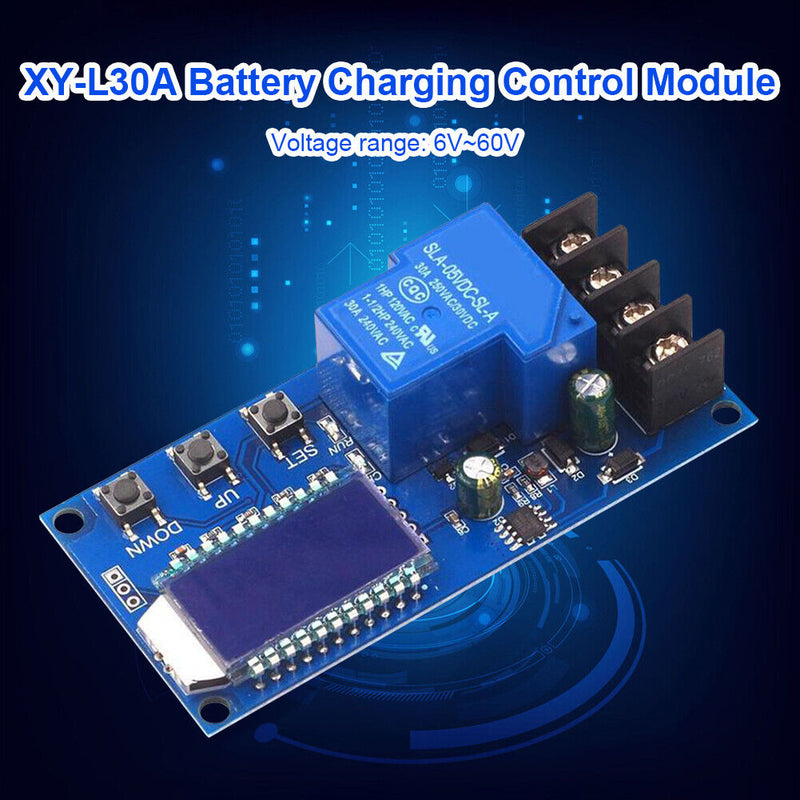

1. Support lead-acid battery and lithium battery, voltage range: 6V~60V
2. The voltage, battery percentage, and charging time can be displayed simultaneously through the LCD
3. The function is very powerful, realizing automatic charging control, controlling the charging time, and uploading the corresponding parameters through the serial port settings
Instruction:
Parameter settings
a. Long press the SET button to enter the setting interface
b. Short press SET to switch the parameters you want to set
c. After the parameter is selected, it can be set through the UP/DOWN key, which supports short press and long press (rapid increase or decrease), and other parameter settings repeat steps b and c.
After all the parameters are set, long press the set button to exit and save
Key functions
In the running interface (main interface):
Short press the SET key to display the current setting parameters, short press the UP key to switch to display the charging percentage and charging time
Short press the DOWN button to select the enable/disable relay. If the relay can be turned off, it will display "OFF" as a reminder
Long press the UP button to switch the low battery state
ON: No operation within 10 minutes to turn off the backlight
Off: the backlight is always on
Long press the SET button to enter the parameter setting.
Additional functions
a) Charging time recording function: if the charging time control is not turned on, the product will record a full time. When entering the time display interface, the charging time flashes and then exits the time display interface or the next time charging is turned on (relay is turned on)
b) Automatic parameter detection: exit after setting parameters, if volt-LI dn>= volt-HI UP, the system will flash and display'ERR' as a reminder
c) Battery access test: This product is connected to the battery. If it is not connected to the battery, the system will display'NbE' as a reminder in the bottom line
Specification:
Color: blue
Product weight: 56g
Product size: 79*42*10mm
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
