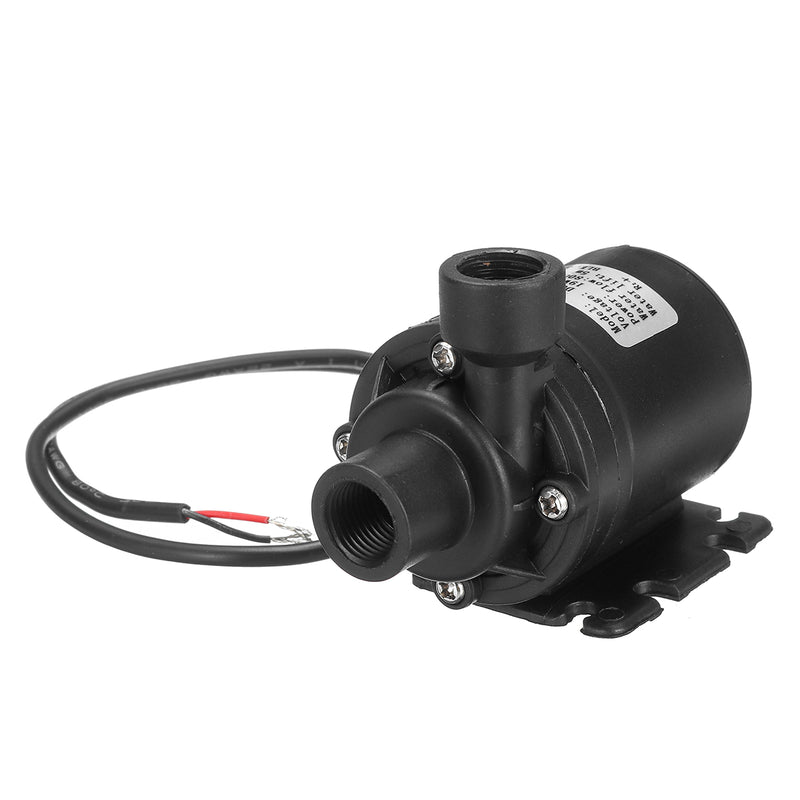

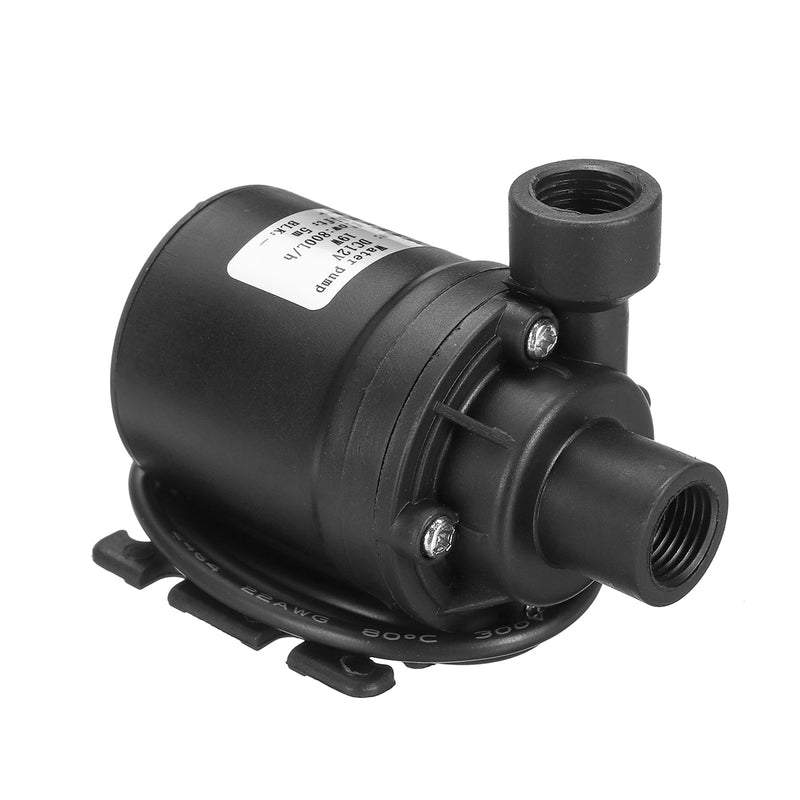

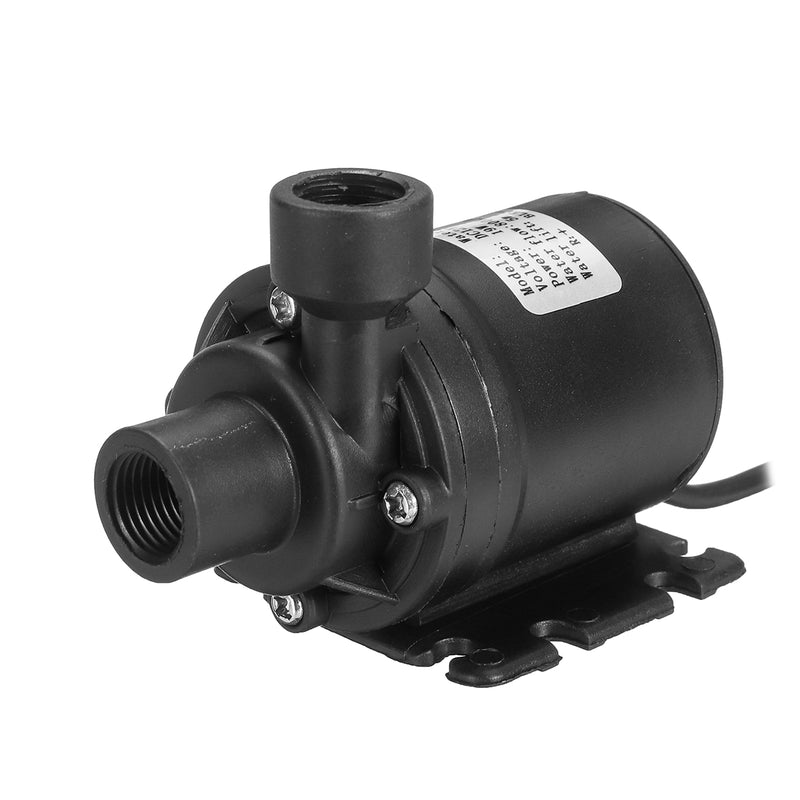

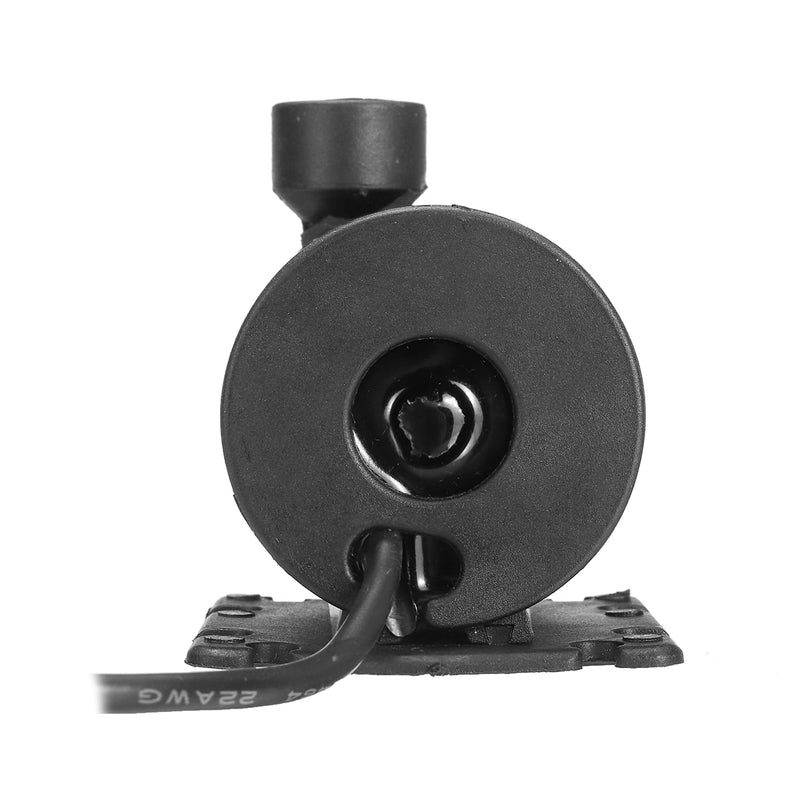

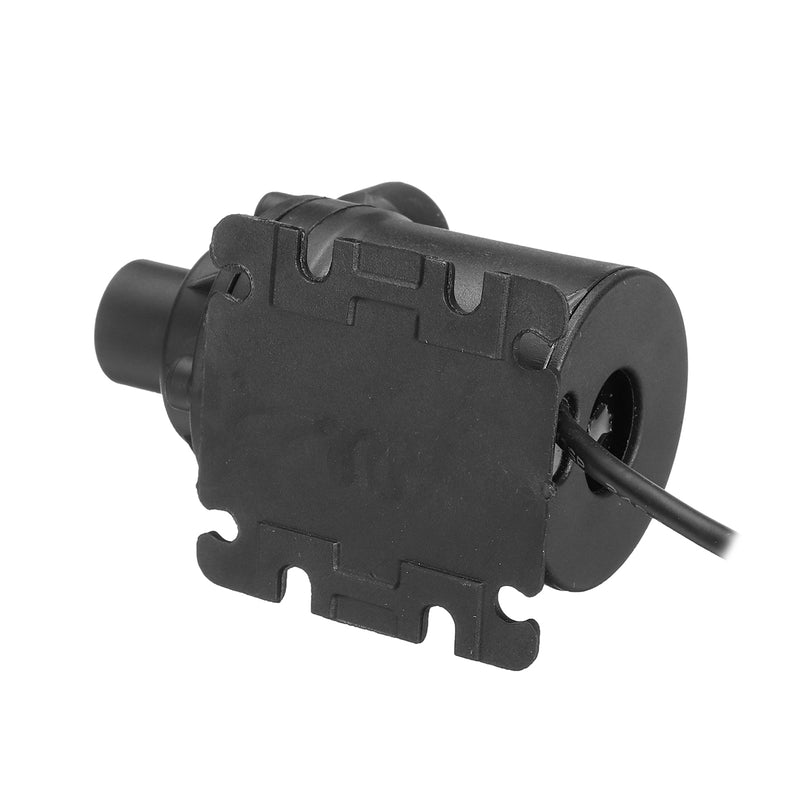

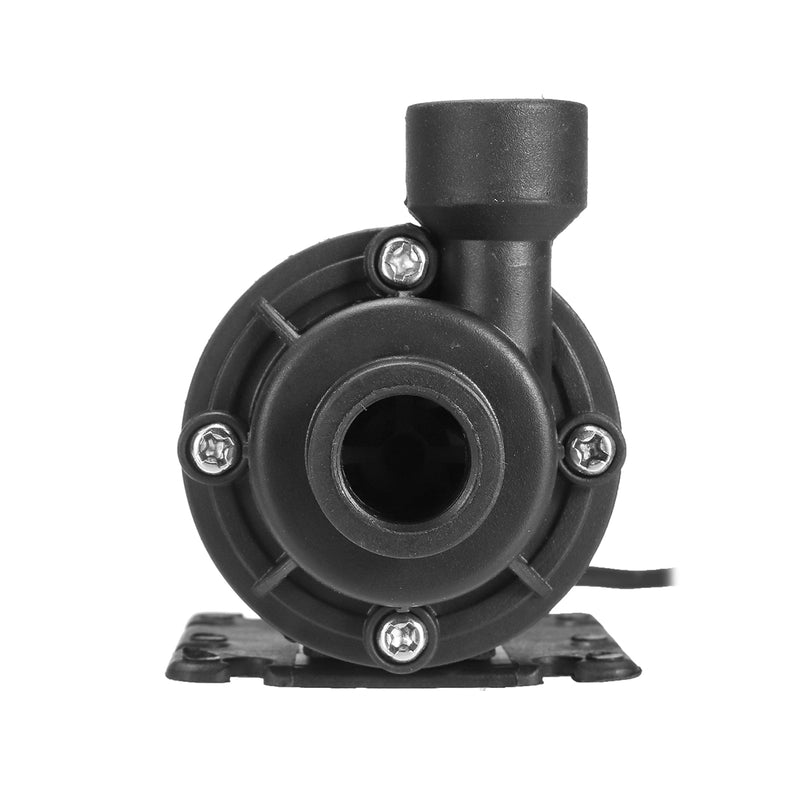

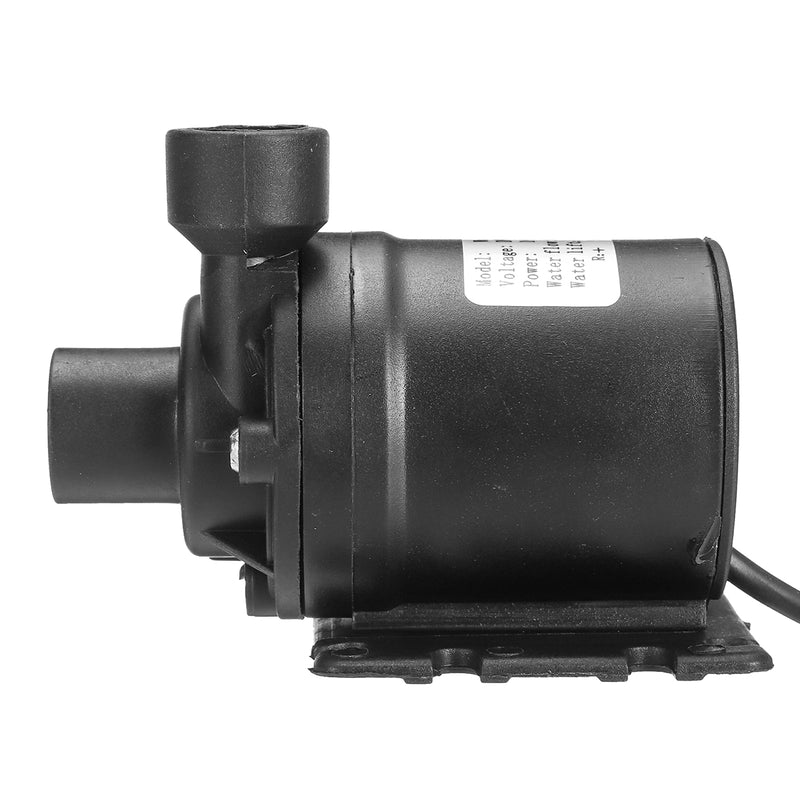

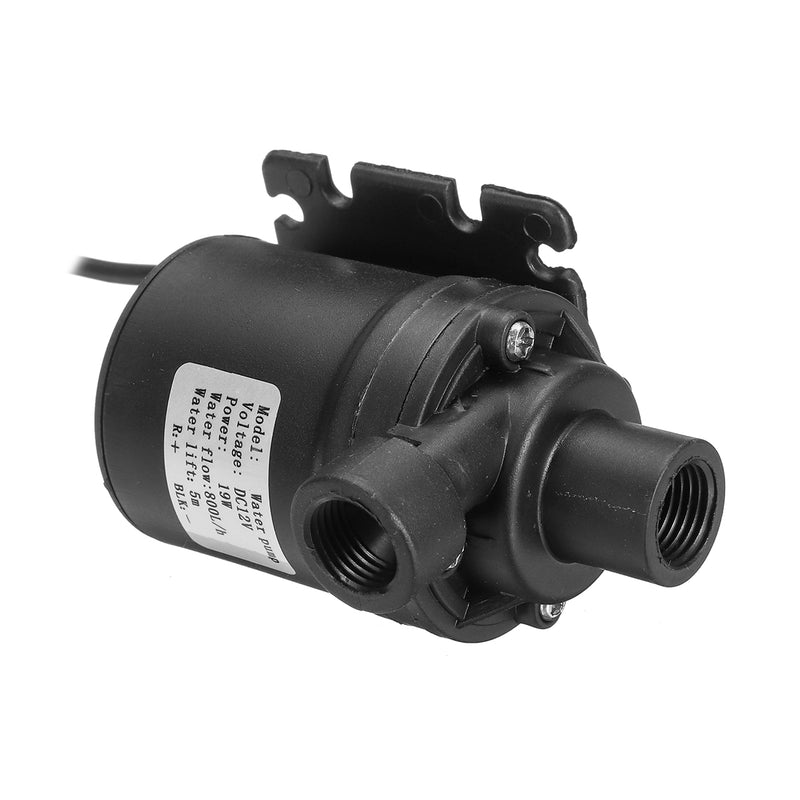

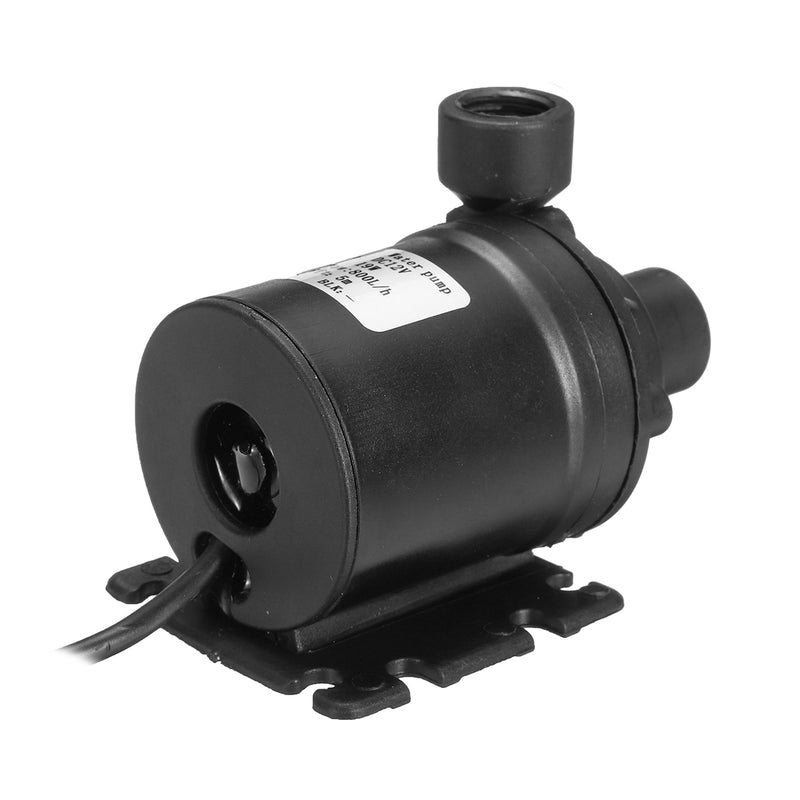

ZYW680 Ultra Quiet Mini DC 24V 5.5m Lift Brushless Motor Submersible Water Pump
Features:
- Uses advanced electronic components and high-quality wear-resistant shaft
- Long working life, continuous power-on working time of more than 10,000 hours.
- It is smooth operation, high efficiency, good performance.
- Small volume, low noise, safety and environmental protection.
Specifications:
Name: Water Pump
Model: ZYW680
Housing material: ABS
Pump shaft material: zirconia ceramic
Rotor material: ferrite, POM
Inlet/Outlet:1/2 Threaded port
Voltage: DC 24V
Power: 19W
Maximum Rated Current: 1000MA
Flow Rate: 800L/h(Max.)
Water lift: 2.5-5.5m
Maximum speed: 8000rpm
Pump outlet diameter: ID: 12mm, OD:17.8mm
Pump inlet diameter: ID:12mm, OD: 17.8mm
Working environment temperature: 1-70 ℃
Noise: < 35 db (water) under operation
Drive mode: Brushless, magnetic isolation
Conveying medium: Water, oil, and other acid-base solutions
Pump shaft position: horizontal
Impeller structure: open impeller
Impeller suction method: single suction type
Waterproof rating: IP68 (dive installation)

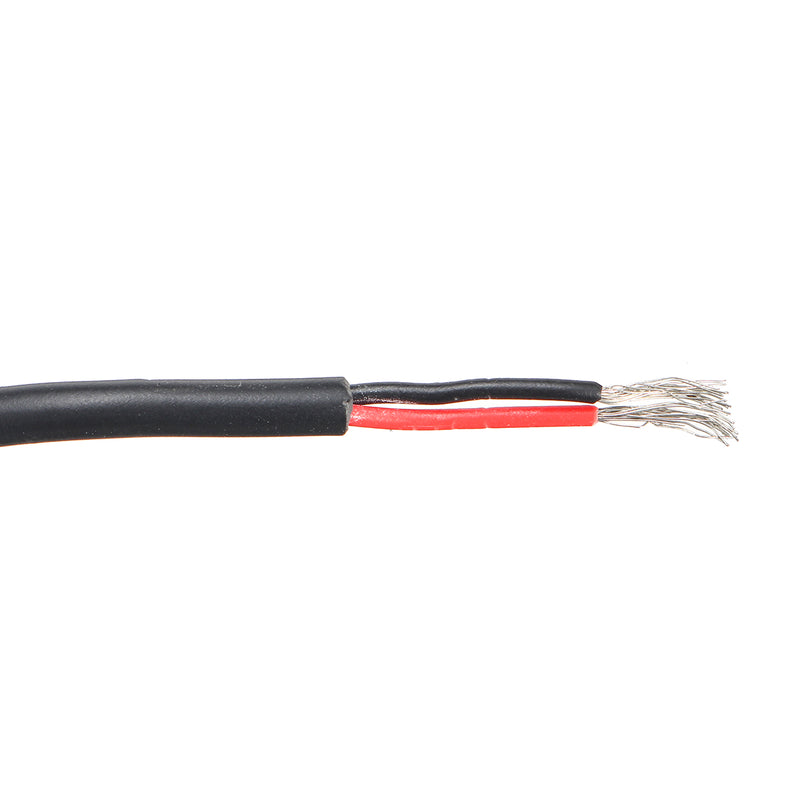

Cable line: 50cm
Sizes:About 7.7x4.2x6cm/3x1.7x2.4in
Package include:
1 x Brushless Motor Water Pump
Usage:
The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)
Common Troubleshooting:
1.The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).
2. When the pump does not run water. (There is air in the pump or in the pipeline.)
Note:
1.Do not take the wrong pump positive and negative.
2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.
3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
4.The pump is suitable for medium temperature 1 ℃ -60 ℃.
