Name: 14Pcs Universal FPC/LVDS Display Cable Support For 10-65 Inch Screen LCD Controller Board
Brand: Banggood
SKU: U2I-BG-1144074
Price: 3,812.00 INR
Availability: InStock

SKU: U2I-BG-1144074

Share this product

Specifications:

Fit For: 10-65 inch screen
Color: as pictures
Socket Length: 20mm, 30mm
Name: Screen cable
Model: 602368

Features:

1. Drive board common, support 10-65 inch screen monitor repair, commonly used LCD LVDS screen line.
2. The general board LVDS interface 30 pin is basically defined as follows:
1 2 3 power supply
4 5 6 ground wire
7 8 9 10 11 12 Three sets of data lines (00- 00+ 01- 01+ 02- 02+)
13 14 ground line
15 16 clock lines (0C- 0C +)
17 18 (03 - 03+)
Here is a single 8 commonly used five groups.
19 20 21 22 23 24 Three sets of data lines (0E- 0E + E1-E + E2- E2 +)
25 26 ground wire
27 28 clock line (EC-EC +)
29 30 data lines (E3- E3 +)

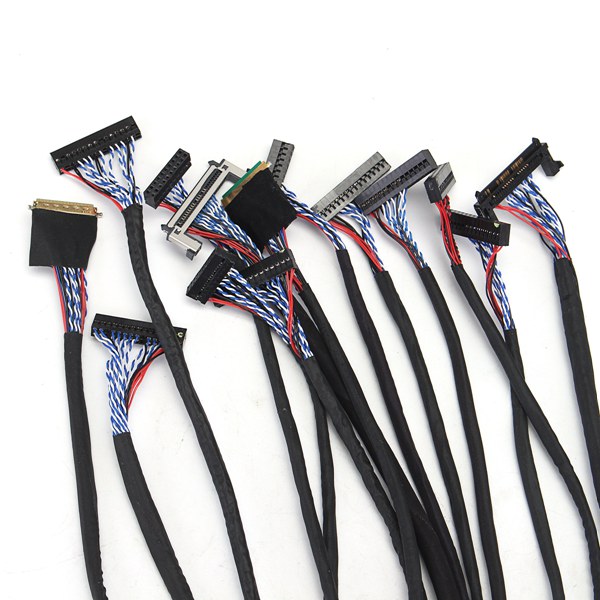

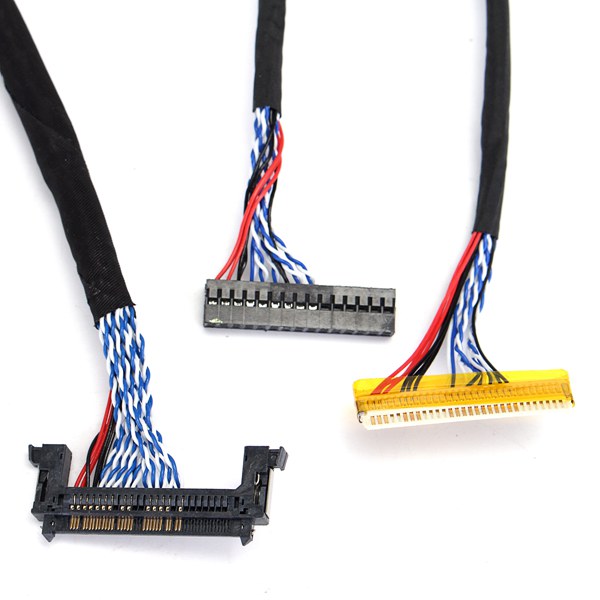

Model:

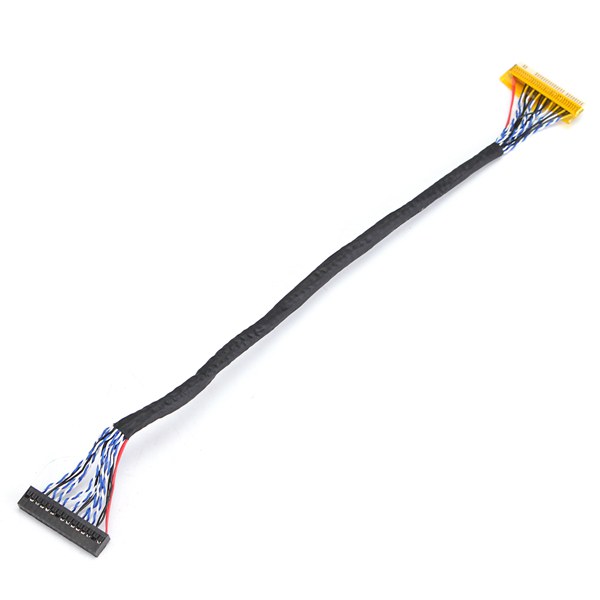

1 x DF14-20Pin-S6
1 x DF14-20Pin-S8
1 x FIX-30Pin-S8 (power on left) bit
1 x FIX-30Pin-S8 (power on right) bit
1 x FIX-30Pin-D6 (power on left) bit
1 x FIX-30Pin-D8 (power on left) bit
1 x FIX-30Pin-S8 (power on left) bit (for 17''-42'' screen)
1 x FIX-30Pin-S8 (power on right) bit (for 17''-42'' screen)
1 x FPC-LVDS-30Pin-S8 (power on left) bit
1 x FPC-LVDS-30Pin-S8 (power on right) bit
1 x LP-40Pin-S6 (LED laptop SD)
1 x LP-40Pin-D6 (LED laptop HD)
1 x FIX-51Pin-D8 (power on left) bit (Most universal LVDS cable for 32''-65'' screen)
1 x FIX-51Pin-D8 (power on right) bit (Most universal LVDS cable for 32''-65'' screen)

Note: Due to the manual measurement, there might be some error.

Package included:

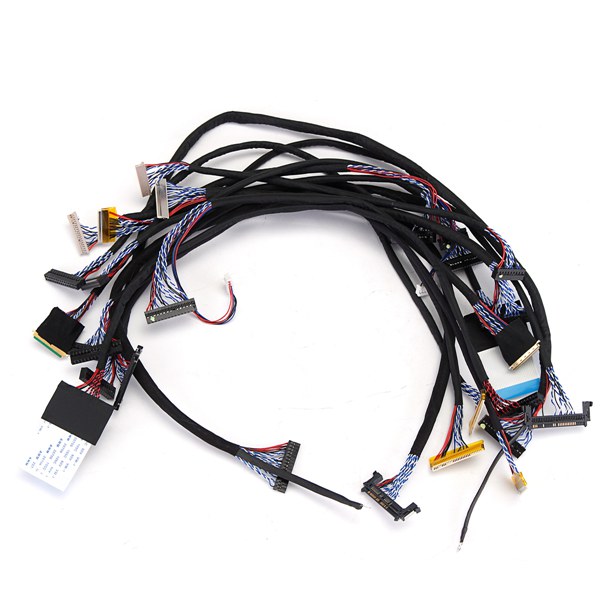

14 x screen cable
