Feature:

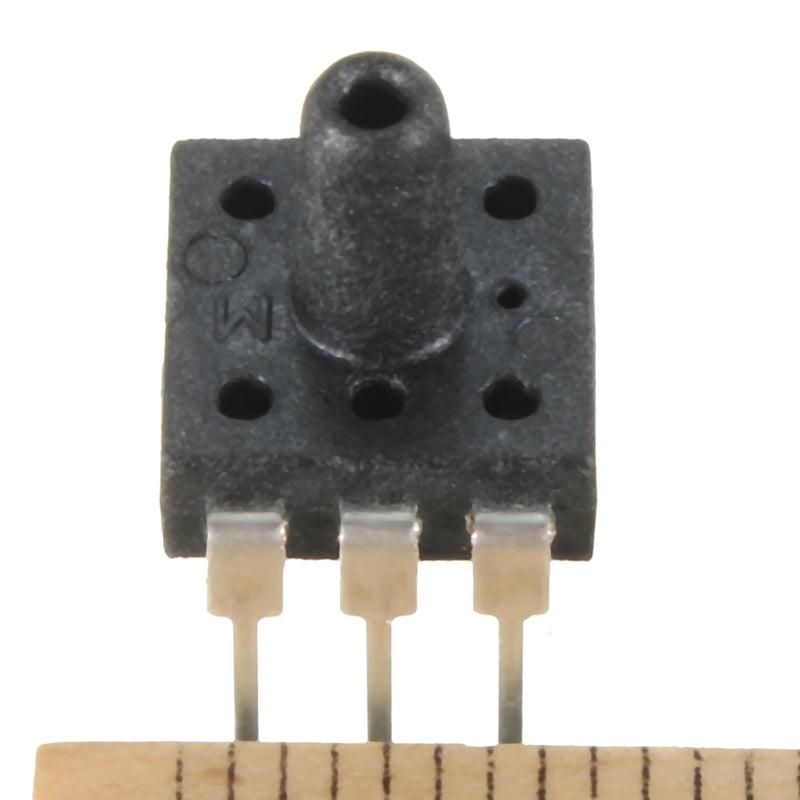

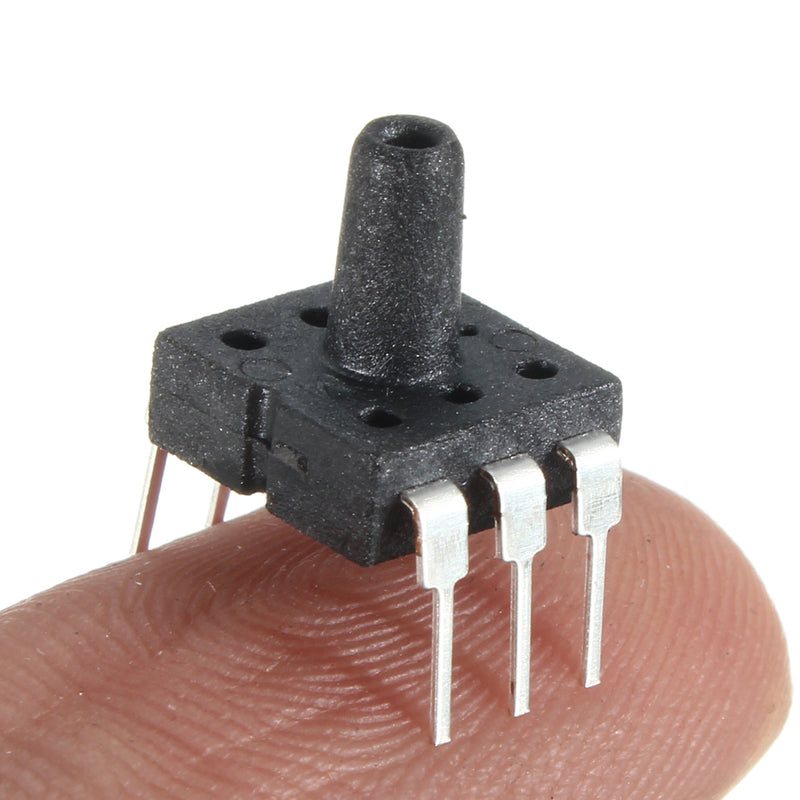

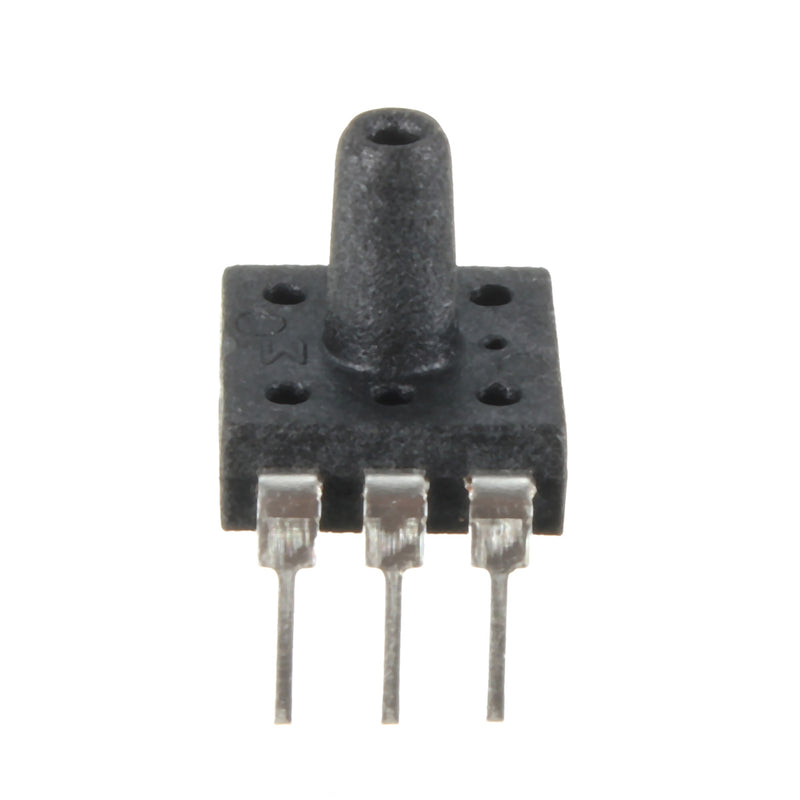

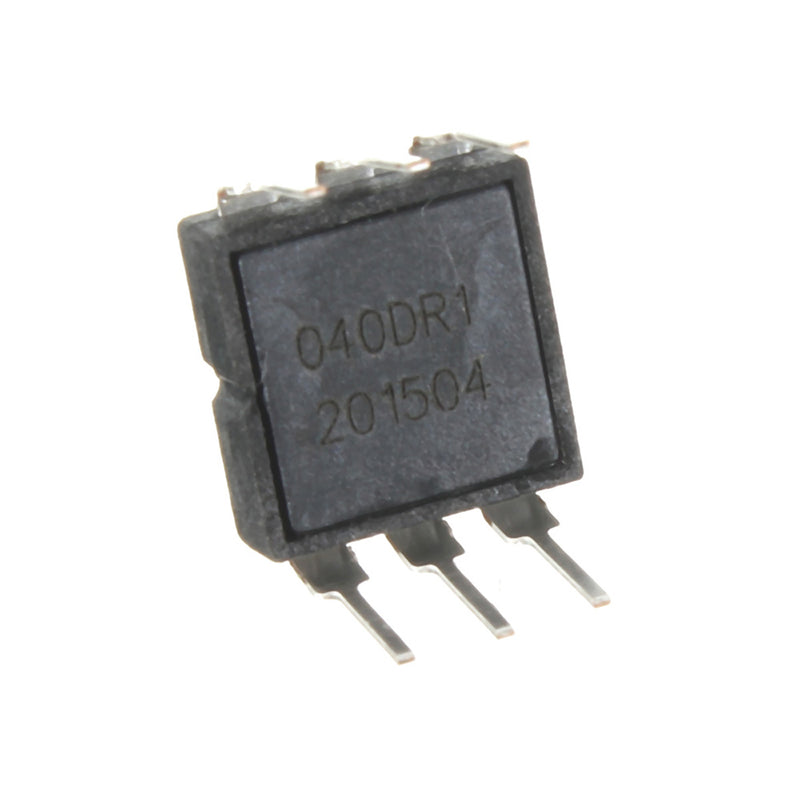

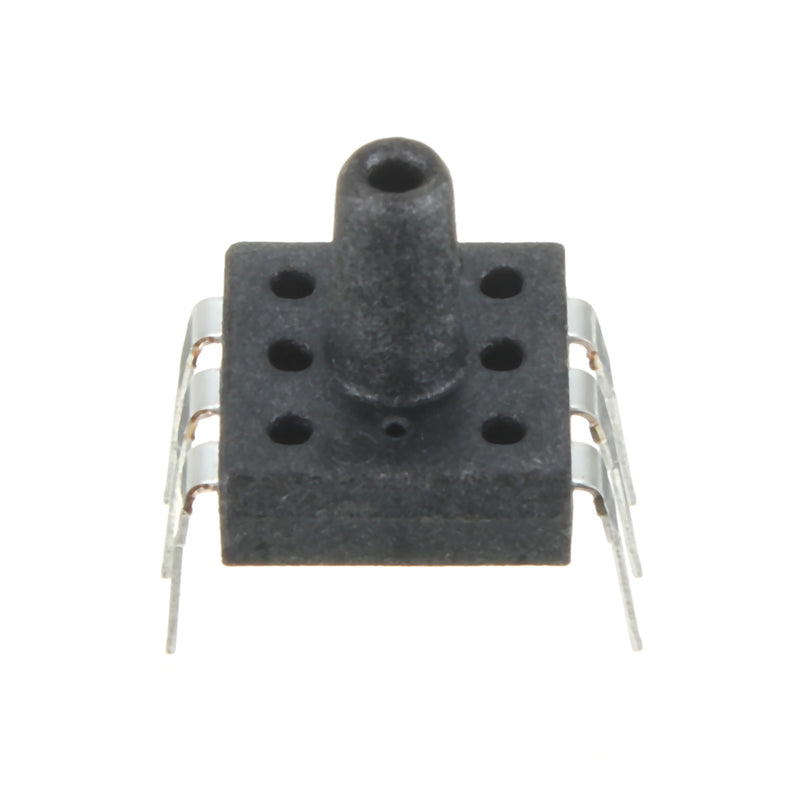

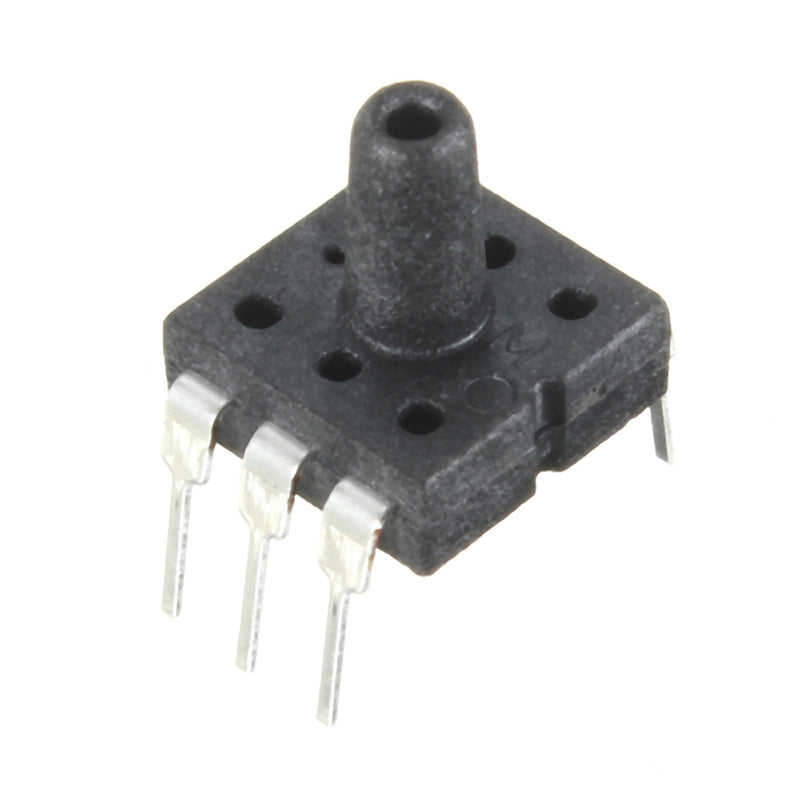

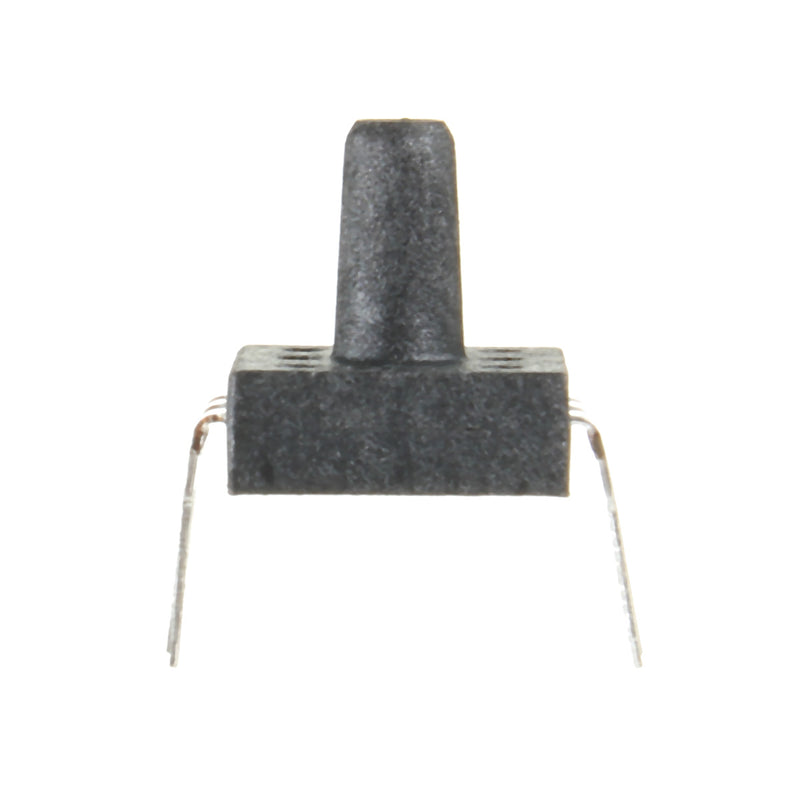

This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.
With wide applicable temperature range.
Easy to use and install.
Fits for the following types:
Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.
Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.
Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.
Specification:
Measuring medium: air
Measuring range: 0-40kPa
Operating temperature range: -40 ℃ ~ + 125 ℃
Storage Temperature: -40 ℃ ~ + 150 ℃
Humidity: (50% ± 10%) RH
Ambient temperature: (25 ± 1) ℃
Medium temperature: (25 ± 1) ℃
Output impedance: 4kΩ ~ 6kΩ
Zero output: -15mV~+15mV
Hysteresis: +-0.7%F.S.
Power supply: ≤10V DC or ≤2.0mA DC
Insulation resistance: 100MΩ, 100VDC
Package Includeed:
20 x DIP Air Pressure Sensor
