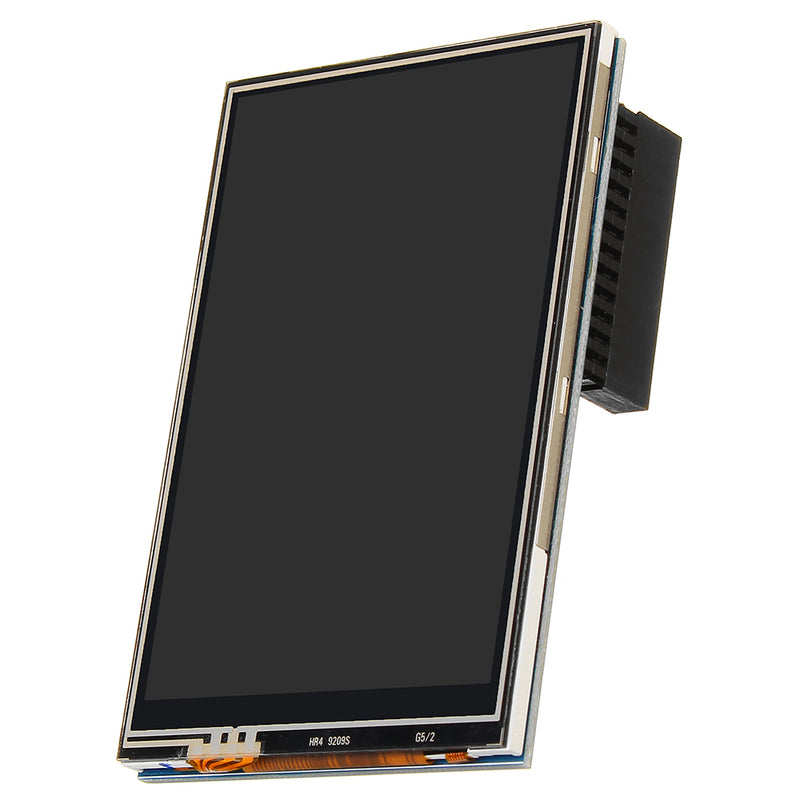

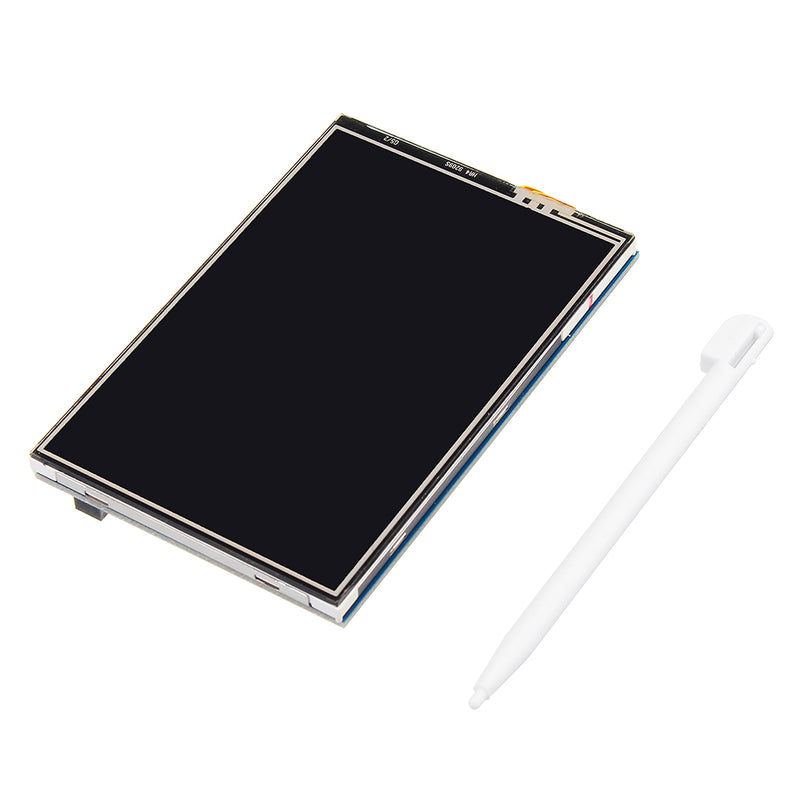

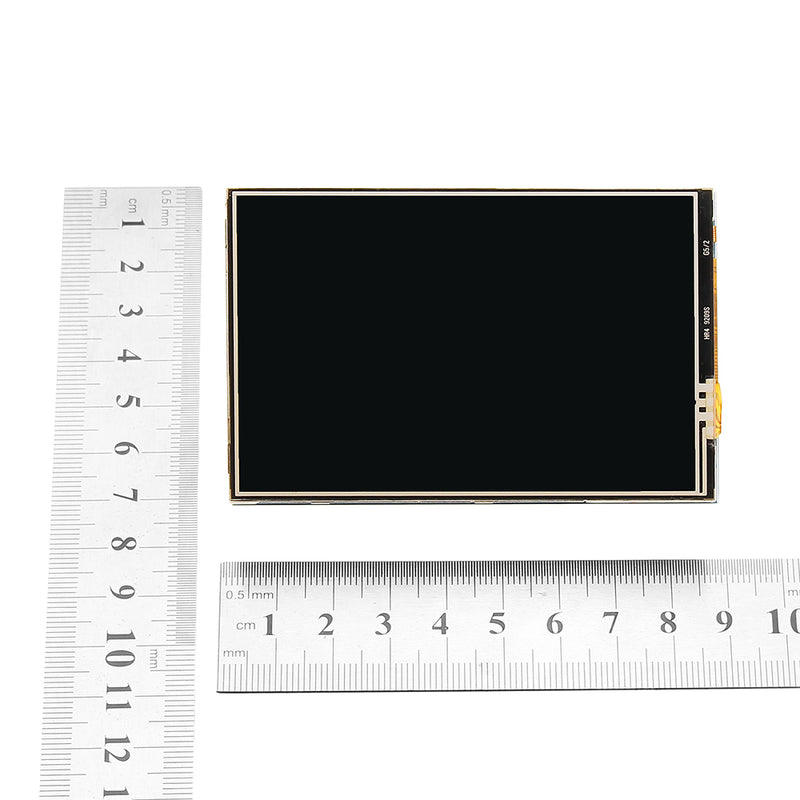

3.5 inch TFT LCD Touch Screen + Protective Case + Touch Pen + 16G Micro SD Card Kit For Raspberry Pi
Save 0
SKU: U2I-BG-1392189
Share this product
Description
Features:

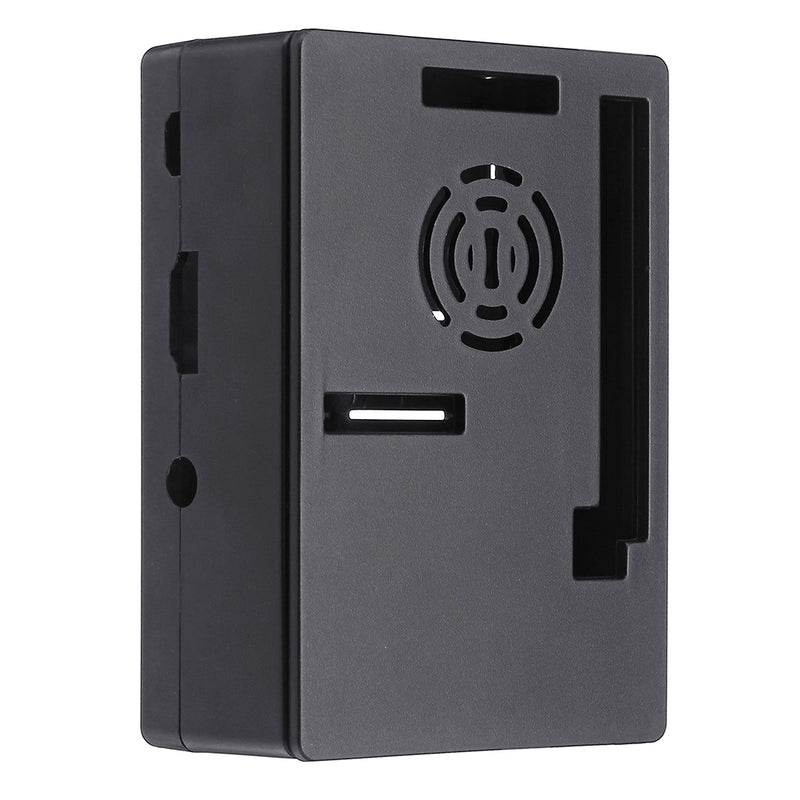

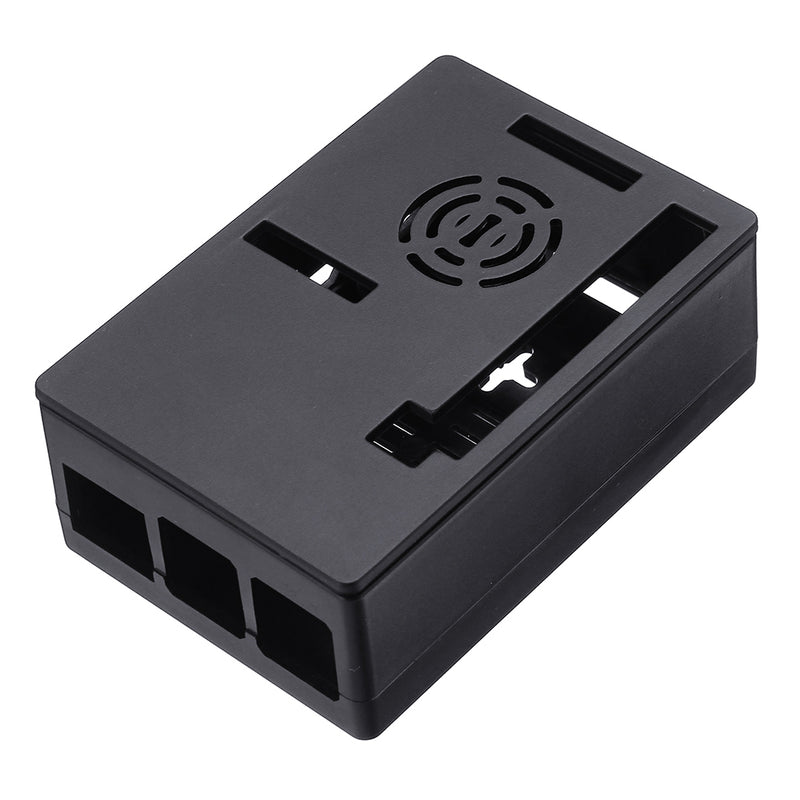

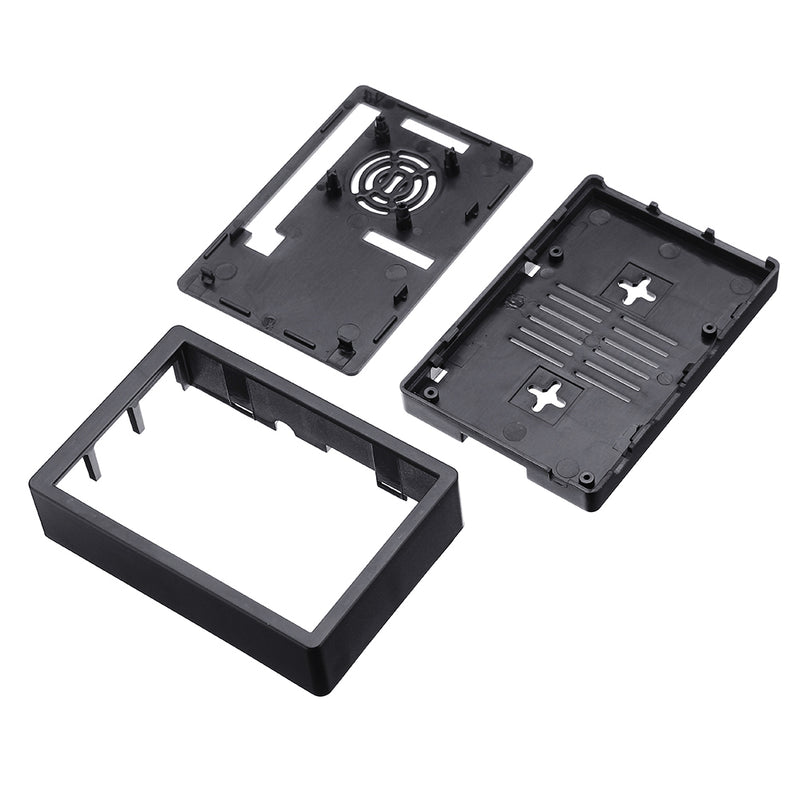

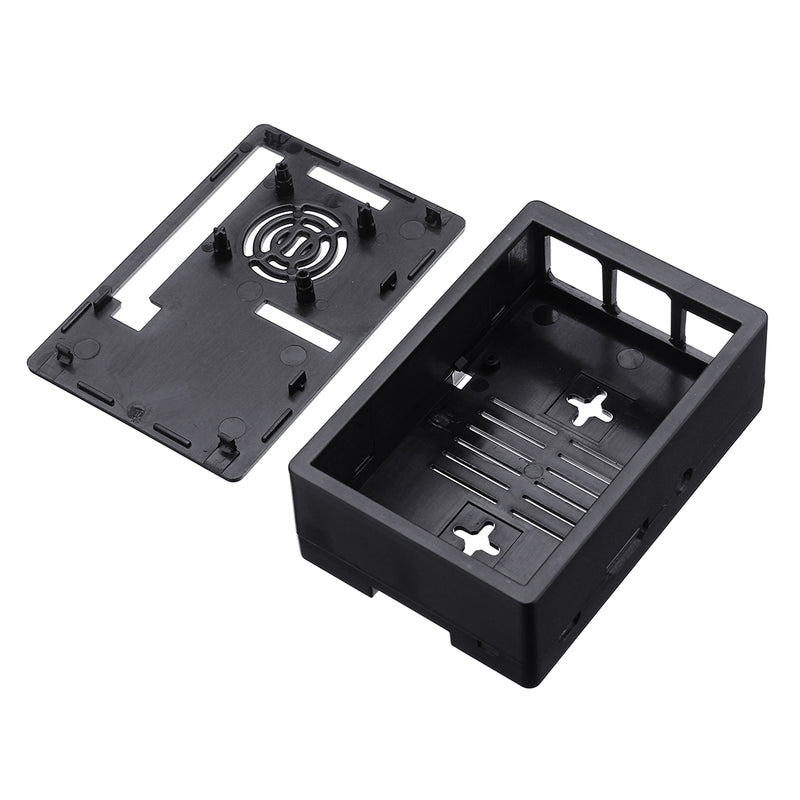

-Take photos by touch pen. -480×320 pixel resolution, better display. -Driver provided (works with custom Raspbian directly). -Supports any revision of Rasp Pi (directly-pluggable). -Designed for Raspberry Pi, an ideal alternative solution for monitor. -Support software keyboard (system interaction without keyboard/mouse). -The protective case can support cooling fan or display screen (notes: can not support assemble at the same time) -Provides the best available protection/accessibility for Model B, Protect and secure your Rasp Pi from shocks, scratches and dust.
Parameter:

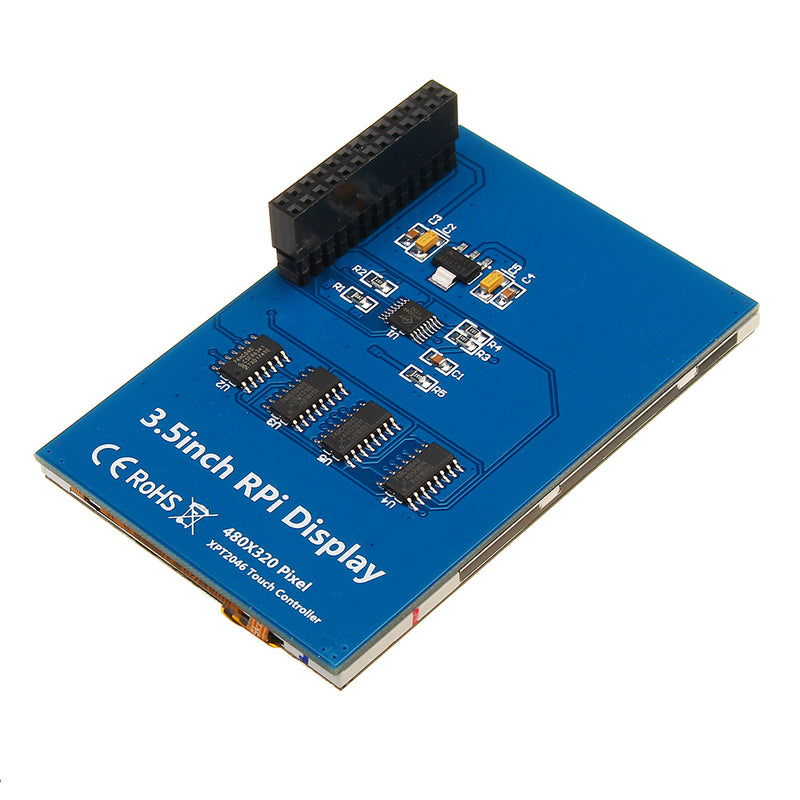

LCD Type
TFT
LCD Interface
SPI
Touch Screen Type
Resistive
Touch Screen Controller
XPT2046
Colors
65536
Backlight
LED
Resolution
320*480 (Pixel)
Aspect Ratio
8:5
Power Consumption
TBD
Backlight Current
TBD
Operating Temp. (Centigrade)
TBD
Interface Definition:
PIN NO.
SYMBOL
DESCRIPTION
1, 17
3.3V
Power positive (3.3V power input)
2, 4
5V
Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16
NC
NC
6, 9, 14, 20, 25
GND
Ground
11
TP_IRQ
Touch Panel interrupt, low level while the Touch Panel detects touching
18
LCD_RS
Instruction/Data Register selection
19
LCD_SI / TP_SI
SPI data input of LCD/Touch Panel
21
TP_SO
SPI data output of Touch Panel
22
RST
Reset
23
LCD_SCK / TP_SCK
SPI clock of LCD/Touch Panel
24
LCD_CS
LCD chip selection, low active
26
TP_CS
Touch Panel chip selection, low active
Package included:

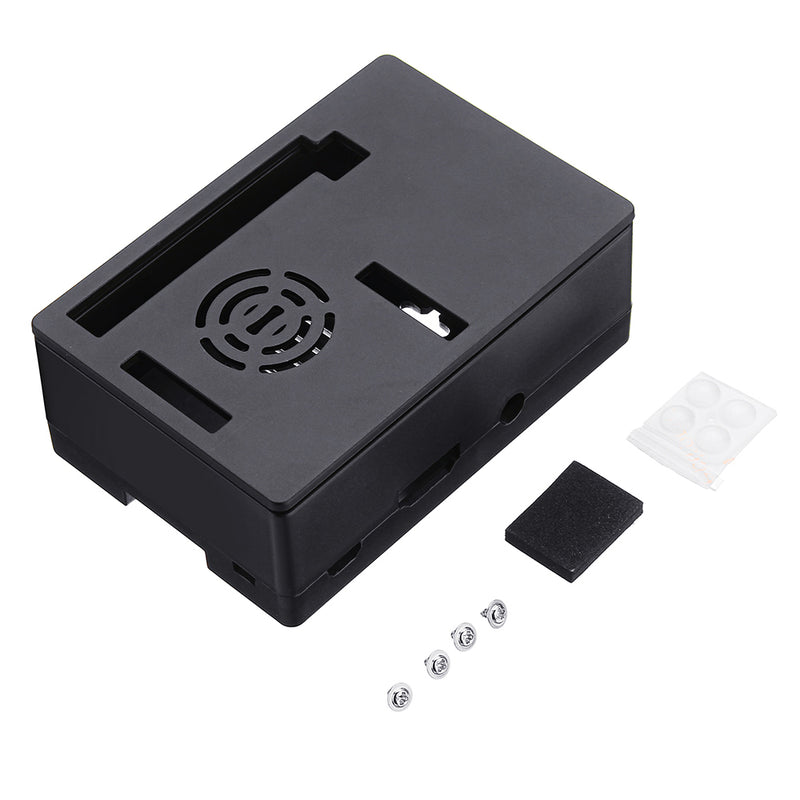

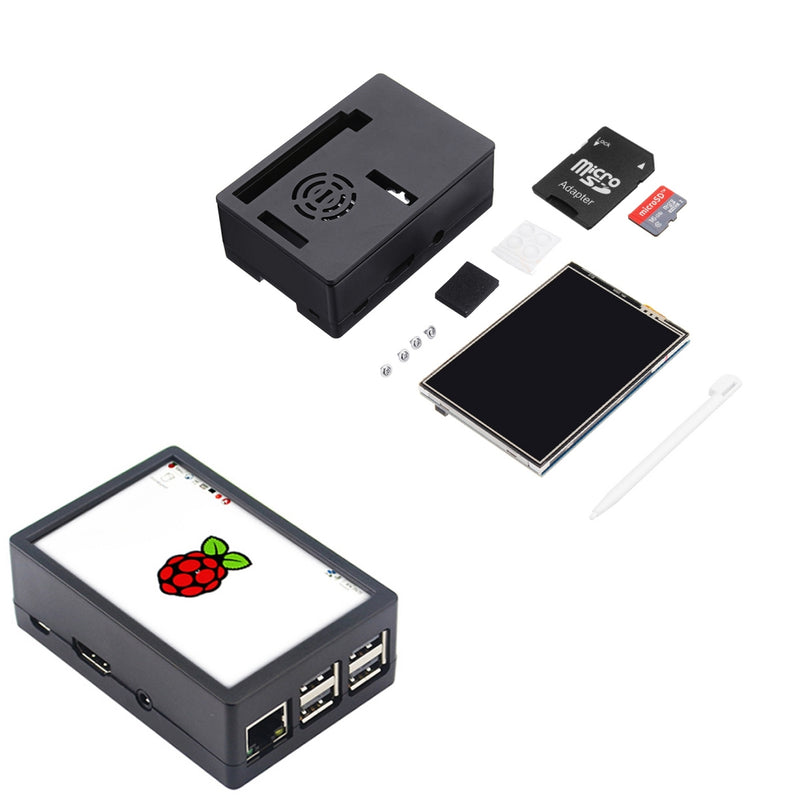

1 x Touch Screen LCD 1 x Protective Case 1x 16G SD Card 1x Card Adapter 1 x Touch Pen 4 x Non-slip mat 4 x Screws
