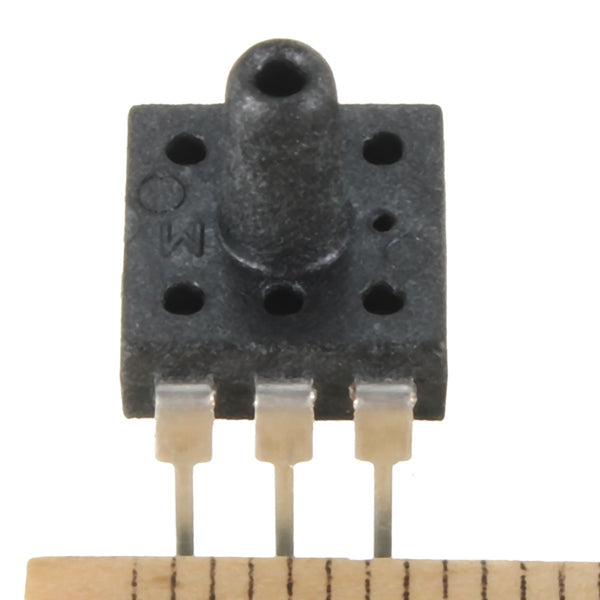

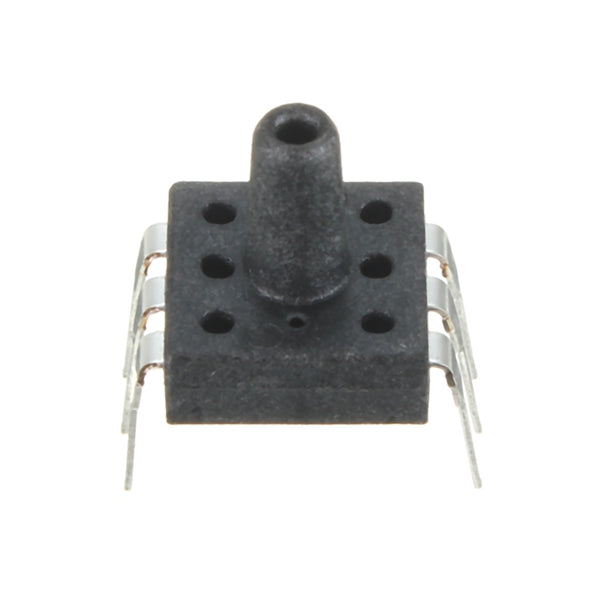

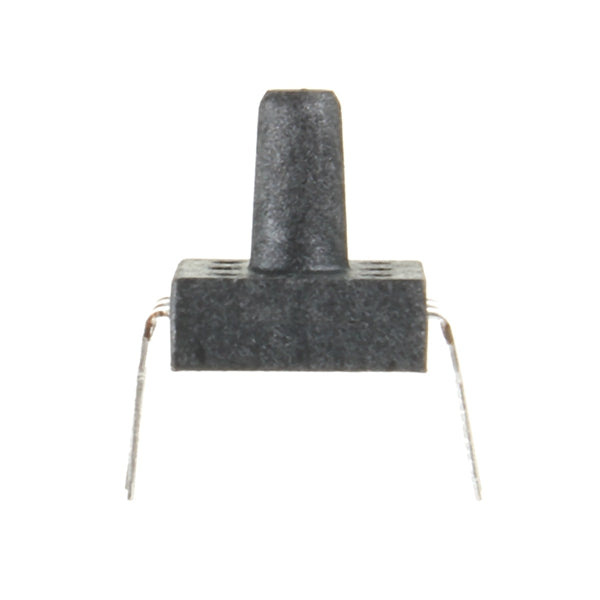

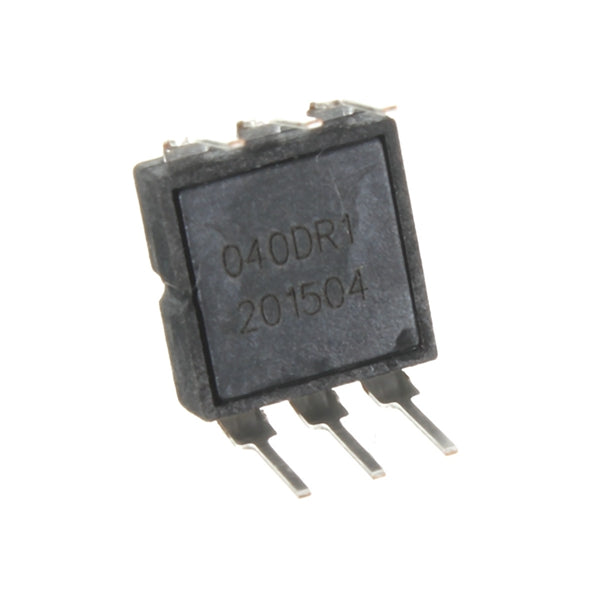

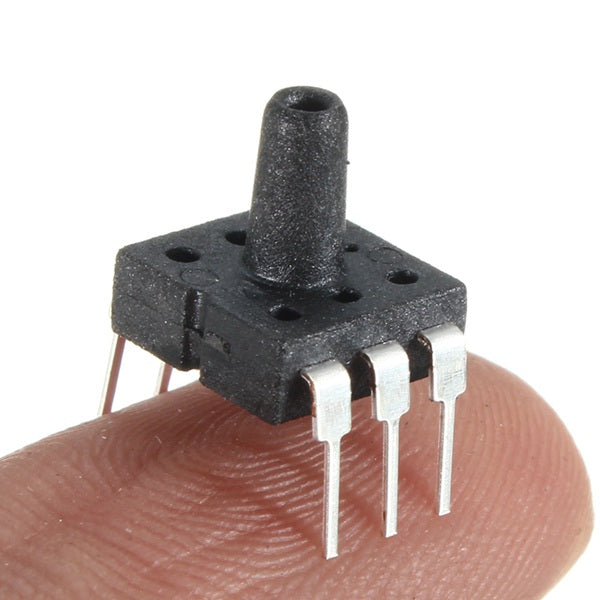

3Pcs DIP Air Pressure Sensor 0-40kPa DIP-6 For

Feature:

- This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.

- With wide applicable temperature range.

- Easy to use and install.

- Fits for the following types:

1. Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.

2. Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.

3. Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.

Specification:

- Measuring medium: air

- Measuring range: 0-40kPa

- Operating temperature range: -40 ℃ ~ + 125 ℃

- Storage Temperature: -40 ℃ ~ + 150 ℃

- Humidity: (50% ± 10%) RH

- Ambient temperature: (25 ± 1) ℃

- Medium temperature: (25 ± 1) ℃

- Output impedance: 4kΩ ~ 6kΩ

- Zero output: -15mV~+15mV

- Hysteresis: +-0.7%F.S.

- Power supply: ≤10V DC or ≤2.0mA DC

- Insulation resistance: 100MΩ, 100VDC

Package Includeed:

3 x DIP Air Pressure Sensor
