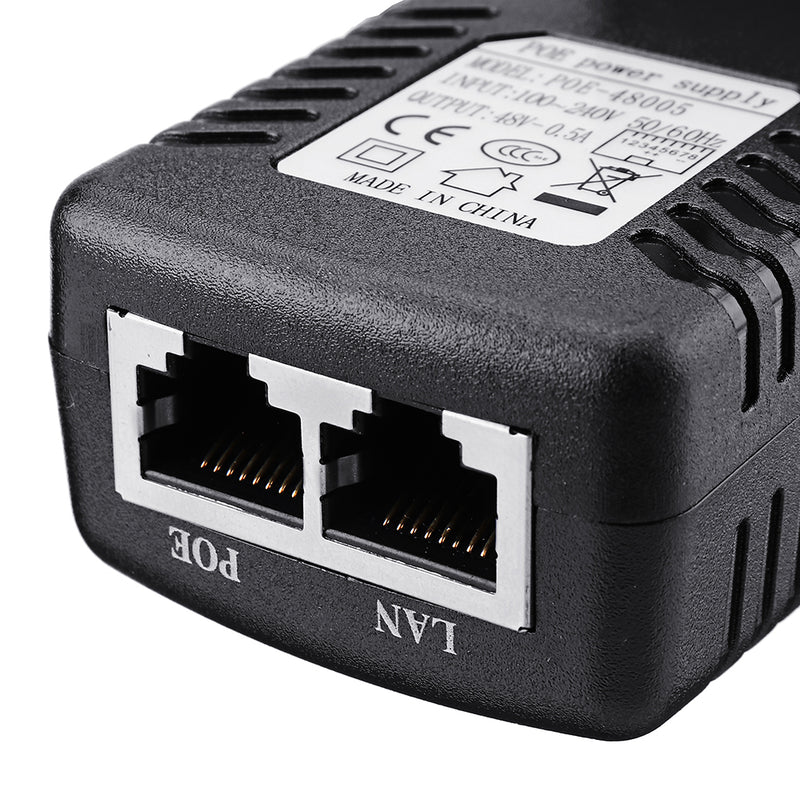

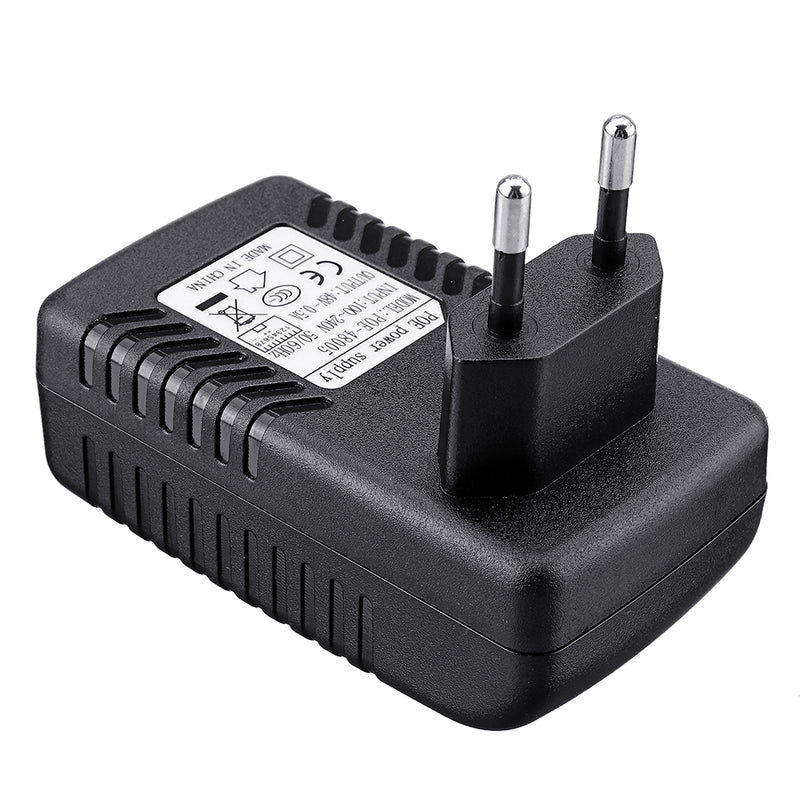

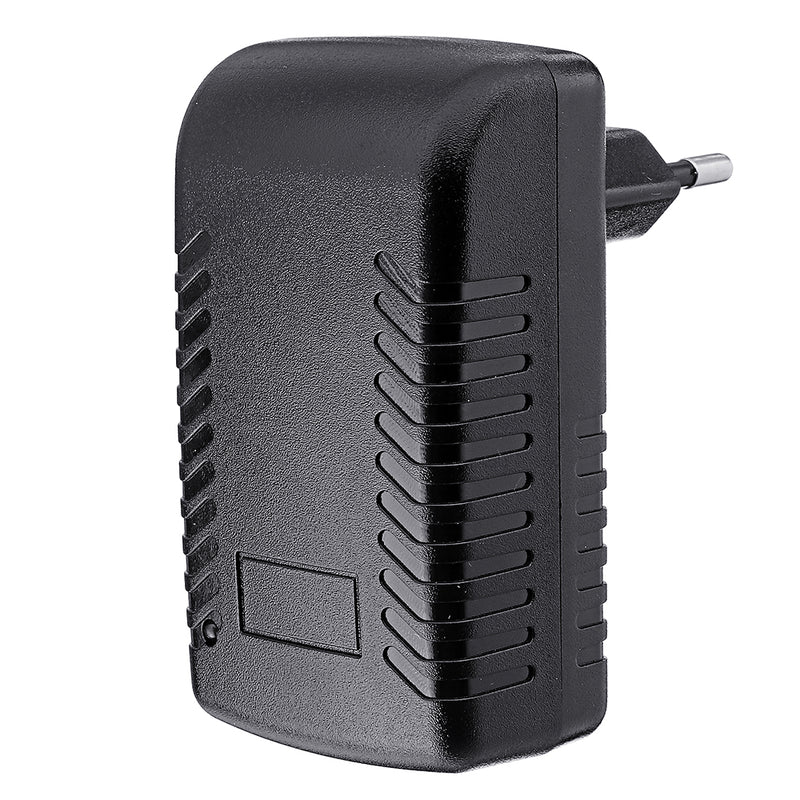

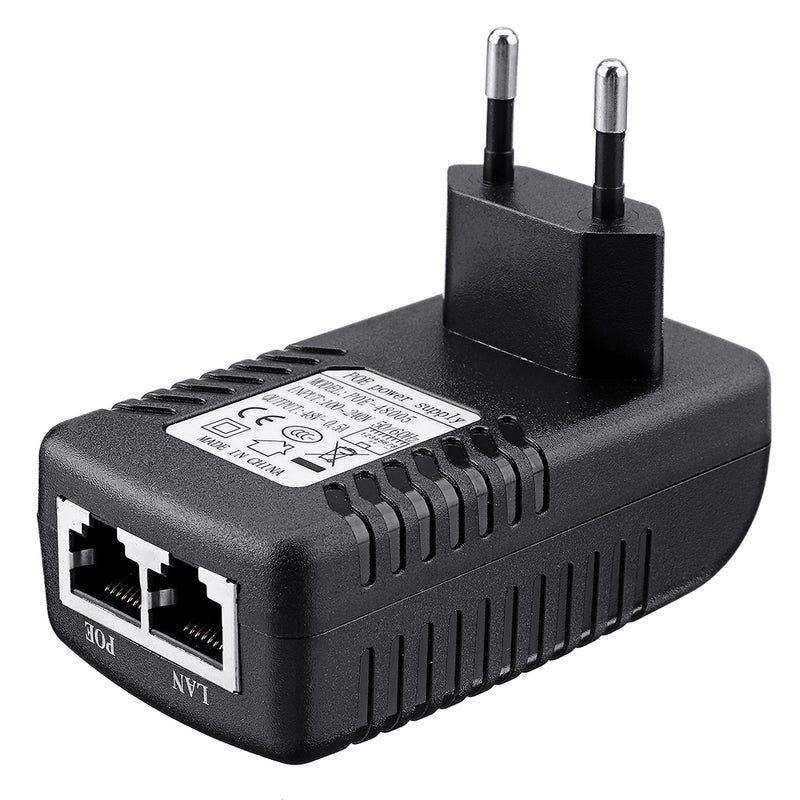

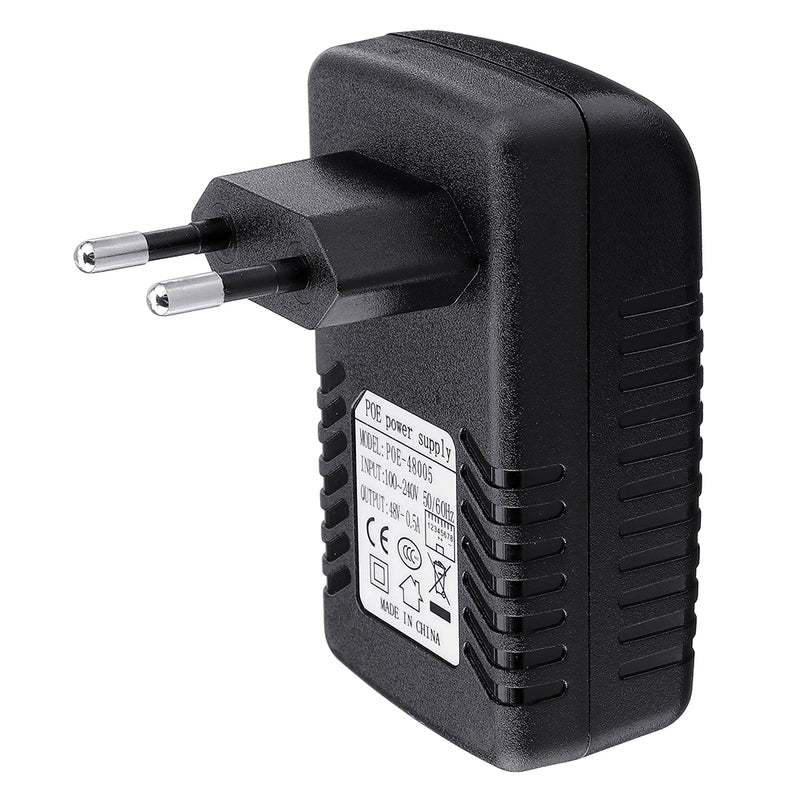

3pcs EU Plug CCTV Security 48V 0.5A 24W POE Wall Plug POE Injector Ethernet Adapter IP Camera Phone PoE Power Supply
Save 0
SKU: U2I-BG-1564617
Share this product
Description
Main Specifications:
1. Power Input Rated Voltage range: AC100~240V, Frequency range: 47~63Hz, Efficiency:>80% (min), AC current: 0.7A(max) 2. Power Output Rated voltage: DC48V, Rated current: 0.5A, Current range: 0~0.5A, Ripple: 480mVp-p, Rated power: 24W, Voltage tolerance: ±3.0%, poe pin: 4&5(+), 7&8(-); Data Pin: 1236 3. Power Protection Protection Short circuit, Over load protection, Over power protection 4. Environment Working temp: 0 ~+40°C, Working humidity: 20 ~90% RH non-condensing, Storage temp & humidity: -20~+85°C, 10~95% RH, Vibration: EN 61131-2; Working distance: Max.100m 5. Safety & EMC Standards: design refer to EN60950, Withstand voltage: I/P-O/P: 3KVAC, 5mA, 60S, Isolation resistance: I/P-O/P: 100M ohms/500VDC, EMC: EN55022 Class B
Application:
For wireless Access Points, Routers, IP phones, IP cameras, modems, switches, embedded computers or other network devices.
Important tips:
This poe injector is compatible with IEEE802.3af poe device(PD) or non-poe device through IEEE802.3af poe splitter, the poe PD/poe splitter must support PoE pin 4/5(+),7/8(-) in 10/100Mbps Base-T lan environment
How to connect:
- At the starting point: The poe injector connected to: 1) Power socket 2) Network: switch/router/computer host.
- At the ending point: 1) To powered PoE device(PD), PD must support poe pin 4&5(+), 7&8(-) 2) To powered NON poe device, which requires a standard IEEE802.3af poe splitter(poe splitter + non poe device= a poe device), the poe splitter must support poe pin 4&5(+),7&8(-)
Package included:
3 x 48V 0.5A poe injector
