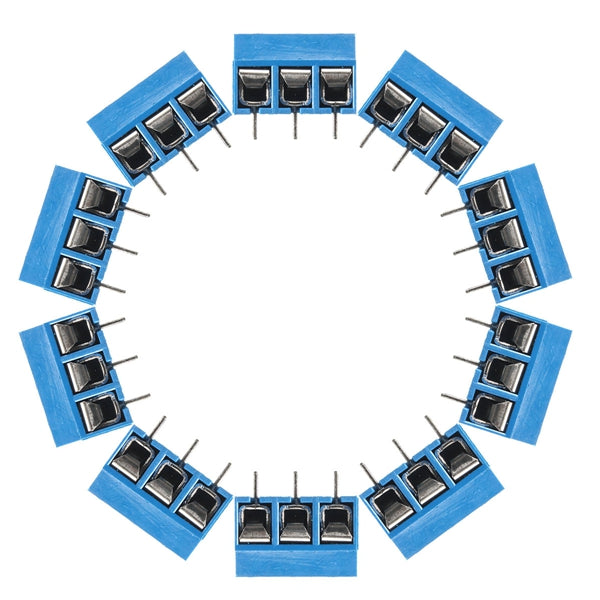

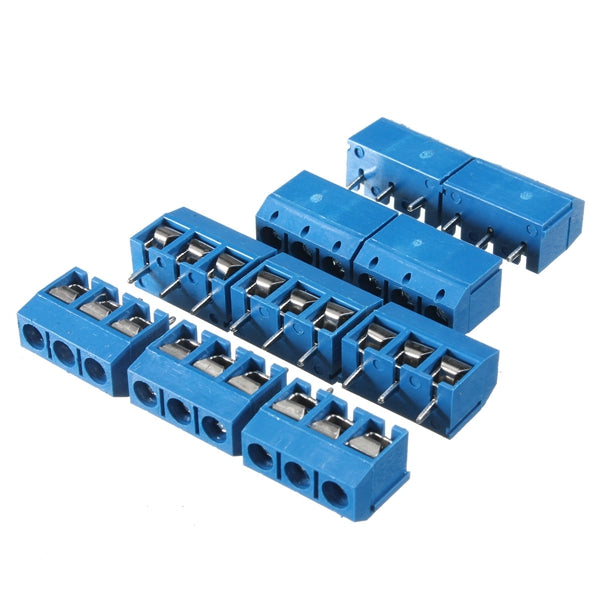

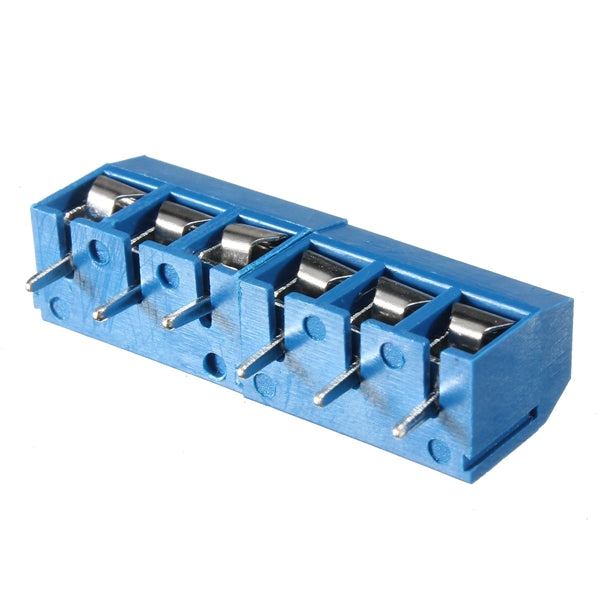

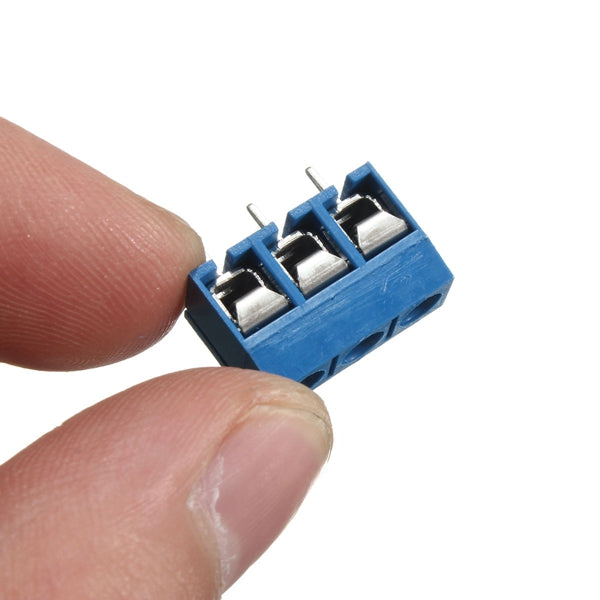

5mm spacing, 3-pin, screw type. Widely used in electronics, communications equipment, instruments, calculator, automatic control system, home appliance and warning devices, etc.
Specifications:
Total area: 15 x 8 x 14 mm / 0.59 " x 0.31" x 0.55" (l * w * h) Voltage: 300V Rated current: 16A Screw: M2.5 Steel Zinc Plated or stainless stell Temperature: - 30 to + 120 degrees celsius Torque: 0.5Nm (3.6lb.in) Contact resistance: 20mΩ Insulation resistance: 5000mΩ/1000V Withstanding voltage: AC1500V/1Min
Packaged, includes:
50 x 3 pin terminal connector
