Features:
Highly Stable Oxide Passivated Junction
Very Low Forward Voltage Drop
Matched Dual Die Construction
High Junction Temperature Capability
High dv/dt Capability
Excellent Ability to Withstand Reverse Avalanche Energy Transients
Guardring for Stress Protection
Epoxy Meets UL 94 V−0 @ 0.125 in
Electrically Isolated. No Isolation Hardware Required.
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.9 Grams (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Package includes:

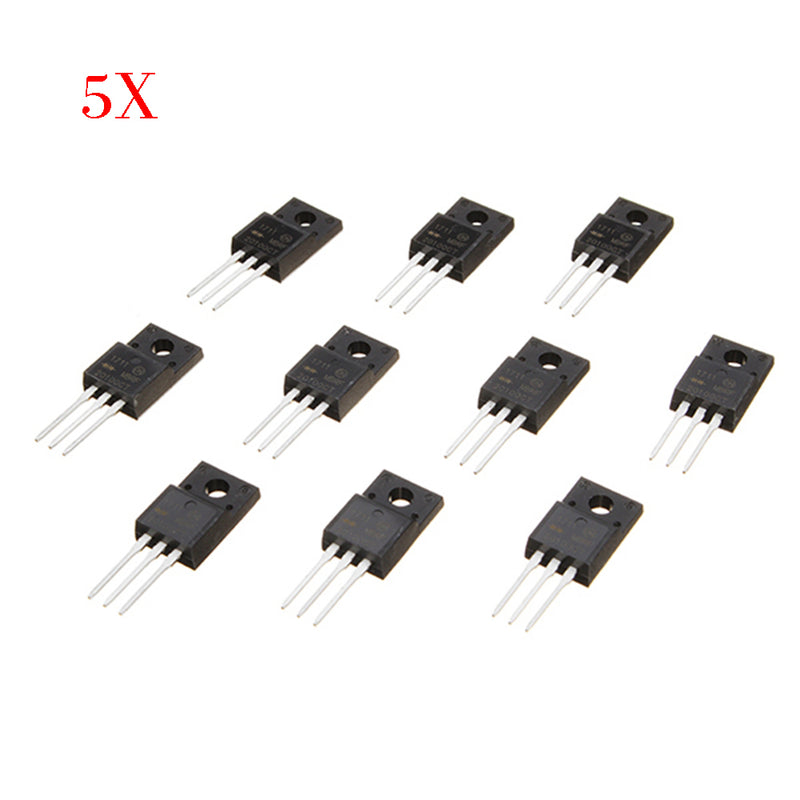

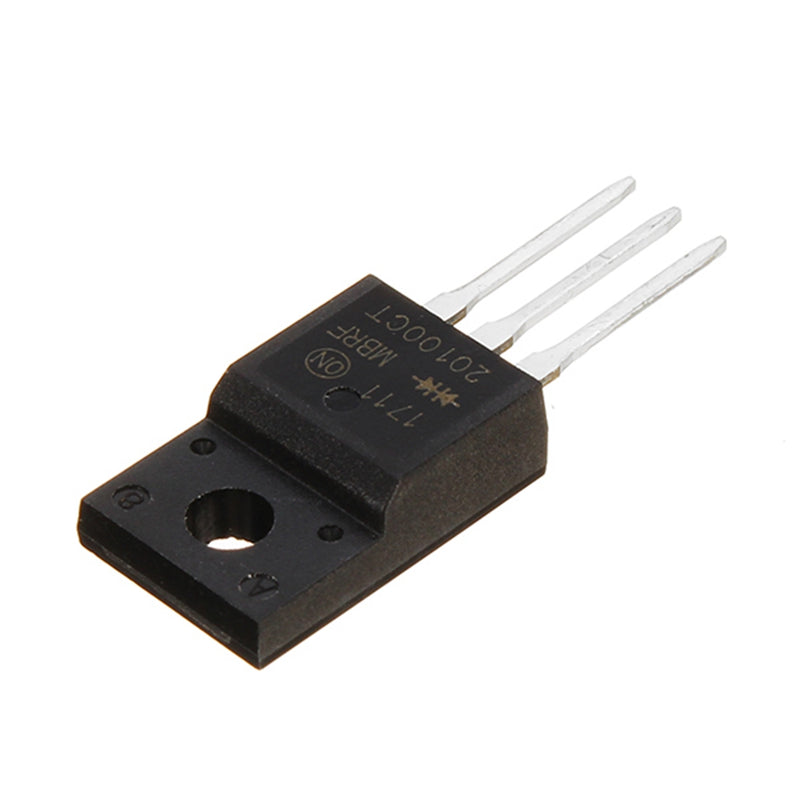

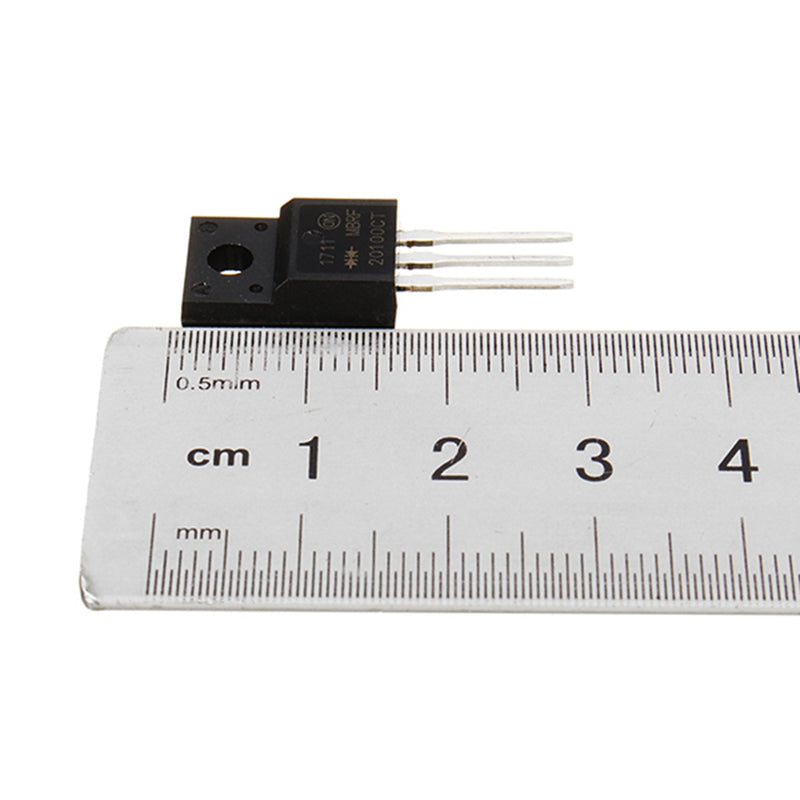

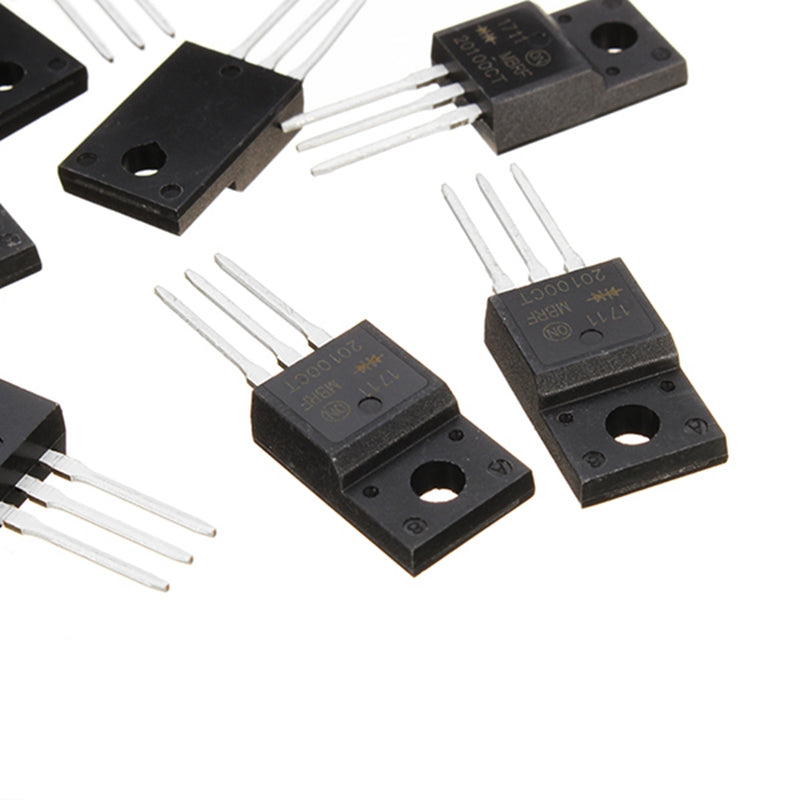

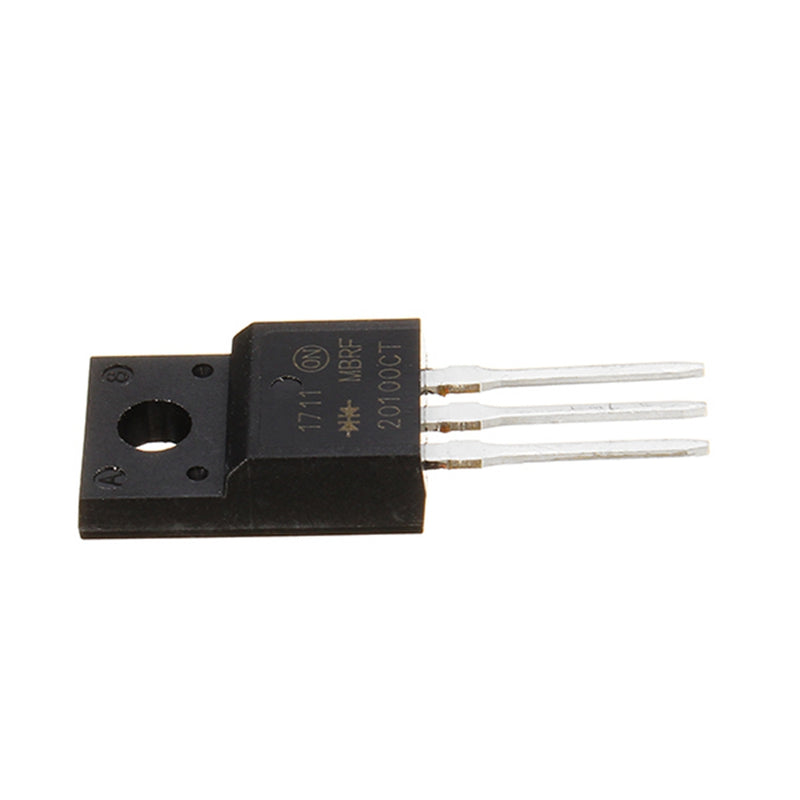

50 x Schottky Diode
