51 MCU Assembling Transparent Acrylic Robot Arm DIY Kit Learning Production Kit
Save 0
SKU: U2I-BG-1569907
Share this product
Description
Description:

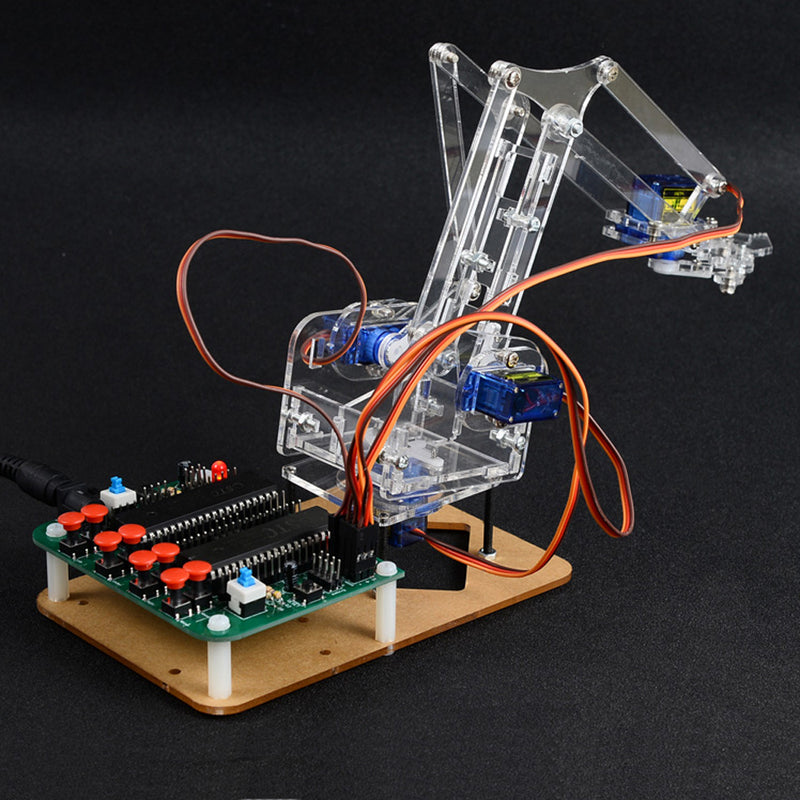

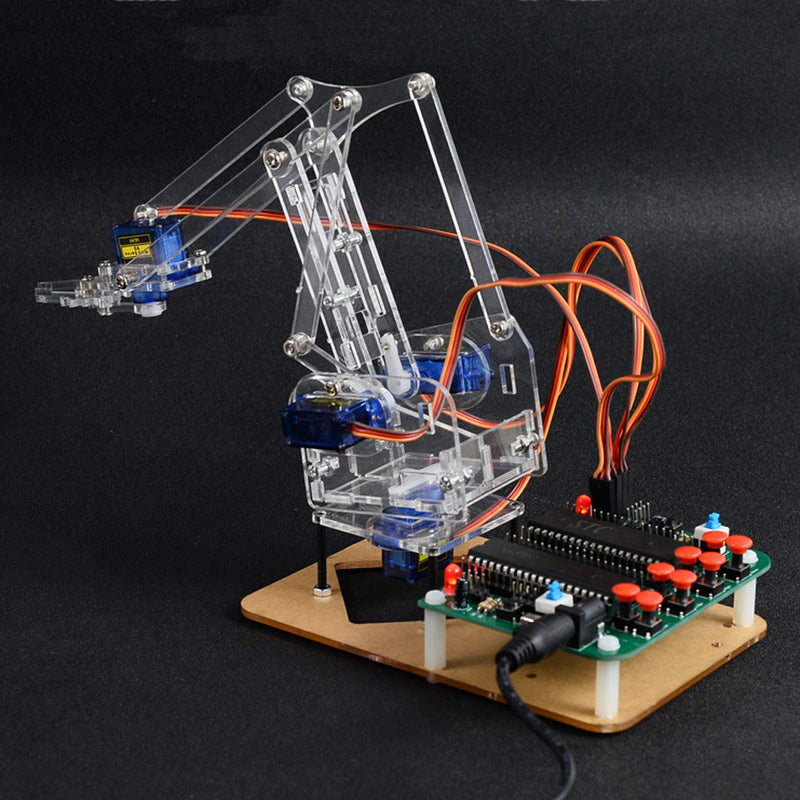

This product can electrically control the various actions of the robot. The control circuit consists of two STC90C52 learning development boards. Each pin is led out by a pin header for easy learning. The two parts of the MCU are relatively independent, with separate switching circuits, reset circuits and download ports. Servo direction according to picture direction. The position of the Servo is connected according to the silkscreen prompt. Power supply: DC5V 3A, the power supply is too small, there will be servo shake, uncontrolled. Extend the 2-way servo interface for easy learning.
Name
Parameter
PCB mark
Quantity

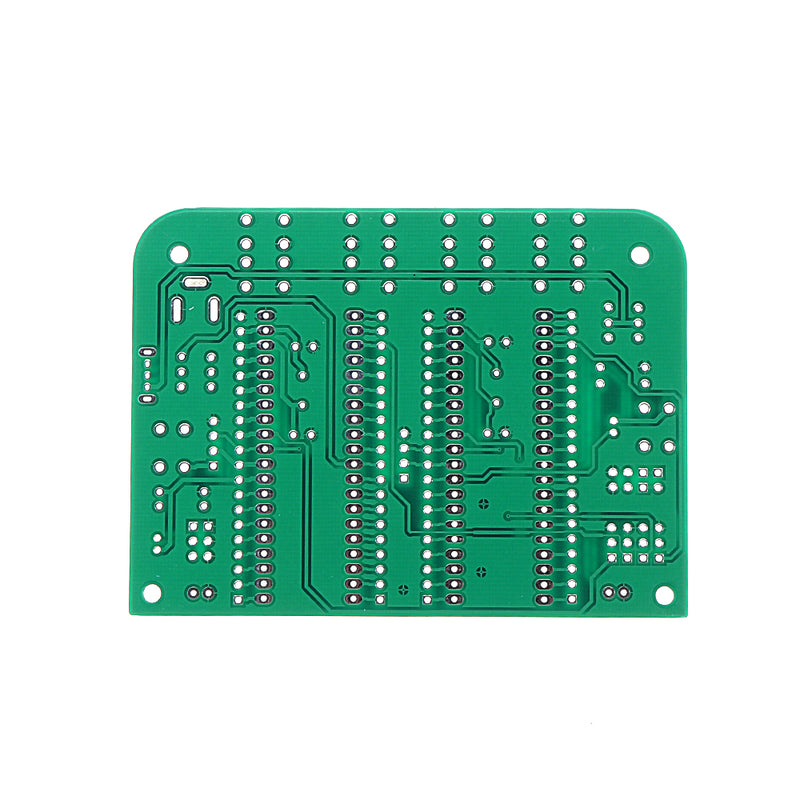

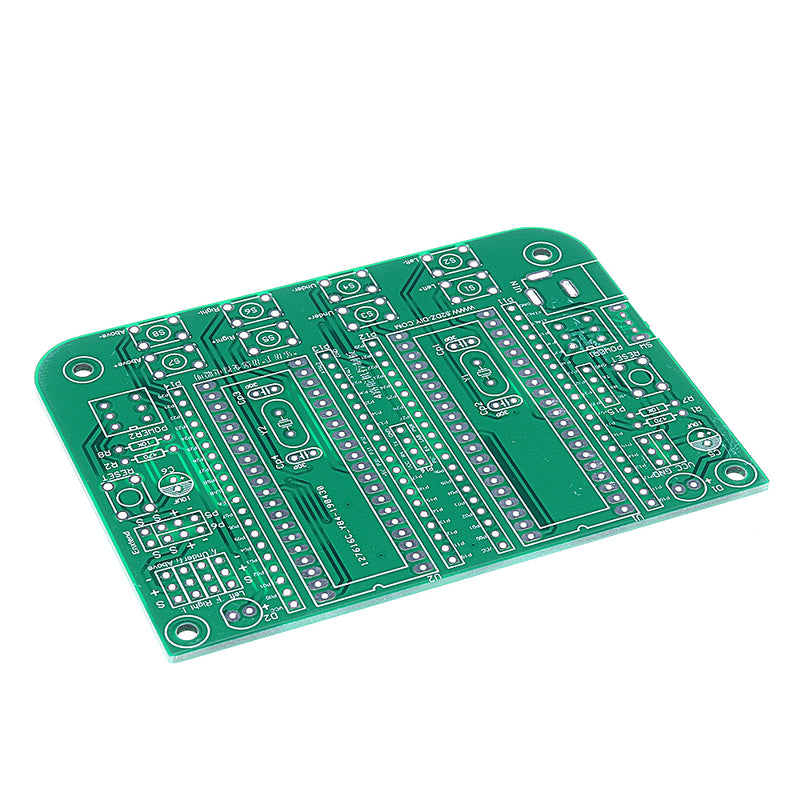

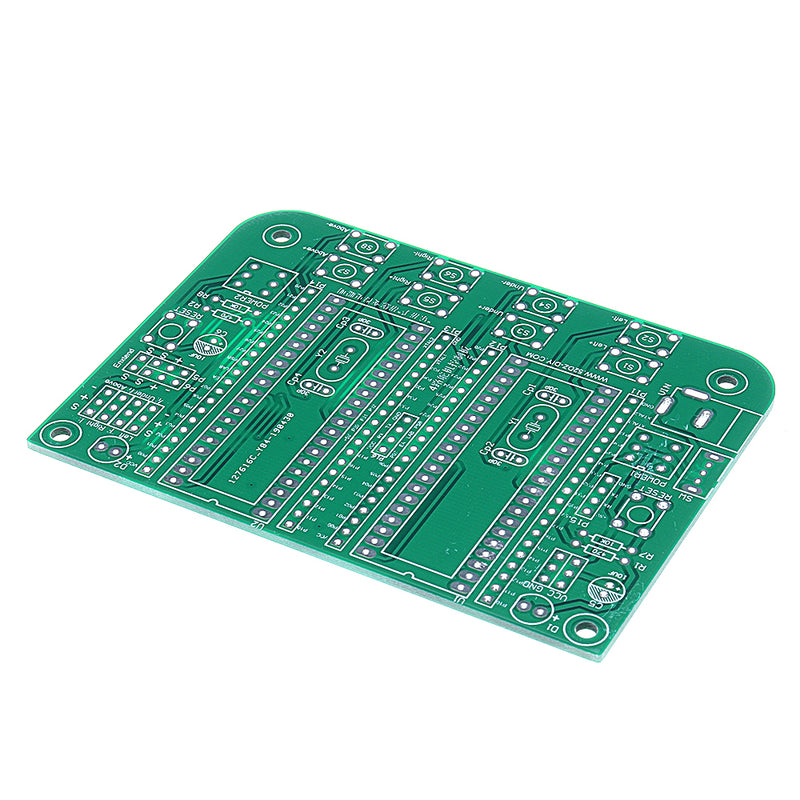

PCB board
1

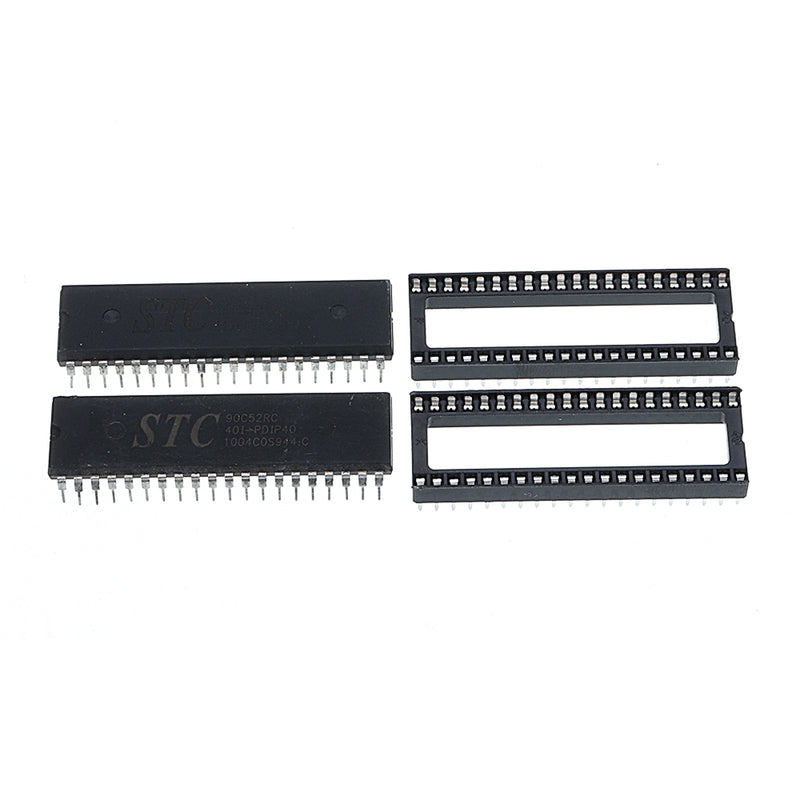

STC90C52 chip
DIP40
U1, U2
2
IC socket
DIP40
U1, U2
2
Pin
1*40pin
3
LED
Red 5mm
D1, D2
2
Capacitor
10uF 16V
C5, C6
2
Blue and white self-locking switch
POWER1, POWER2
2
Tact switch
6*6*5
RESET, RESET
2
6*6*10
S1-S8
8
DC socket
5mm
VIN
1
Bend toggle switch
SW
1
Ceramic capacitor
30p
CP1-CP4
4
Resistor
470
R1, R2
2
1K
R7, R8
2
Button cap
3.0
8

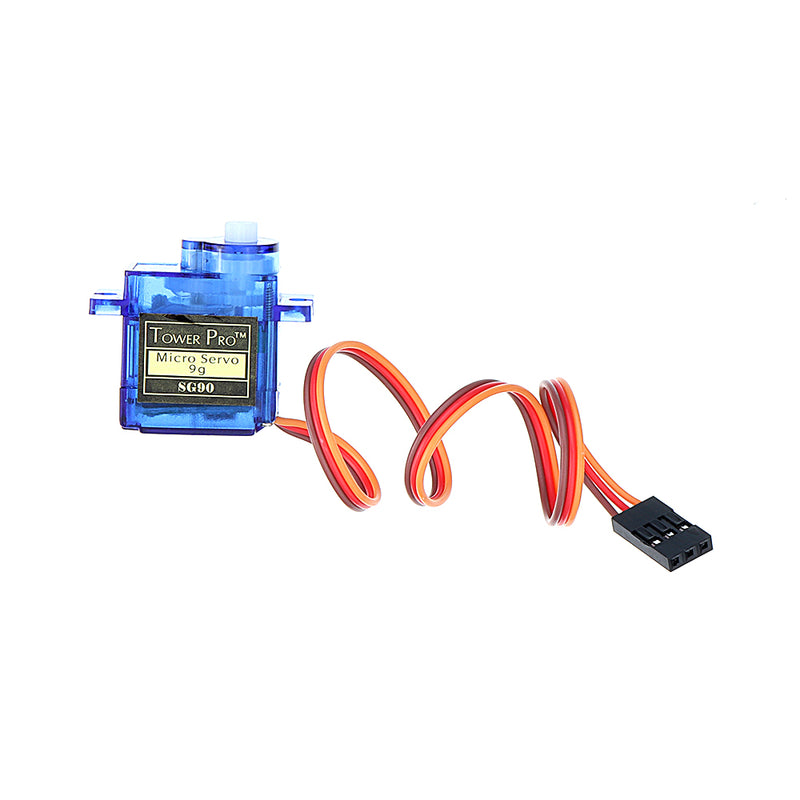

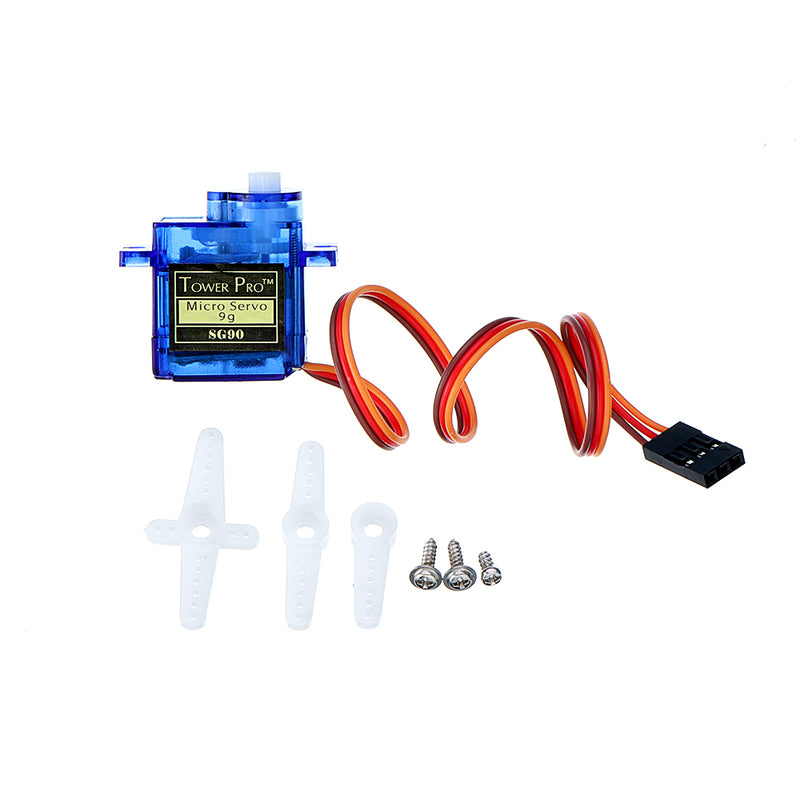

Servo SG90
4

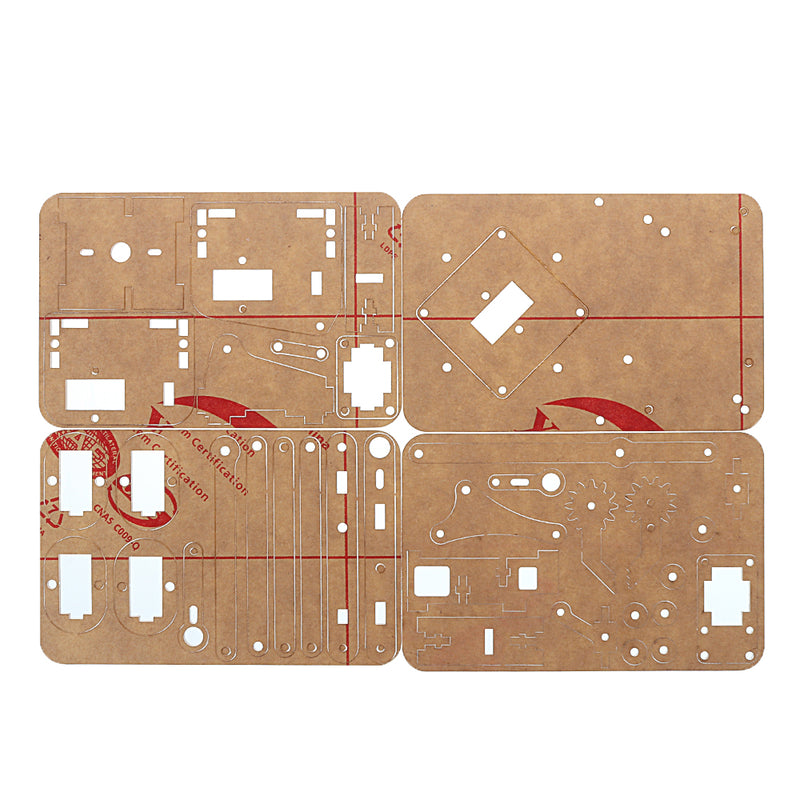

Acrylic shell
1 sets 4 piece
1
M3 plastic screw
4
Double pass isolation column
M3*20
4
Iron screw
M3*30
4
M3*12
8
M3*8
16
M3*6
14
Iron nut
M3
12
Crystal
H1200
Y1, Y2
2

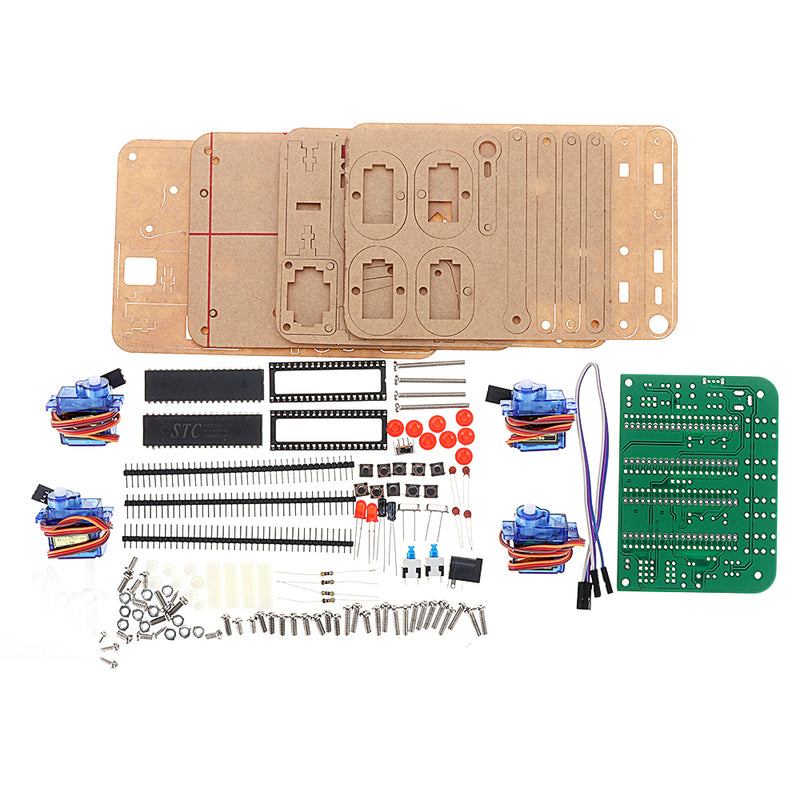

Package included:
1 x 51 MCU Assembling Transparent Acrylic Robot Arm DIY Kit
