Description:
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A - 14 AWG (2.5mm2;), 30A - 12 & 10 AWG (4mm2; & 6mm2;)
Test voltage: 6 kV (50 Hz)
Protection grade: IP67
Insulation material: PC/PA

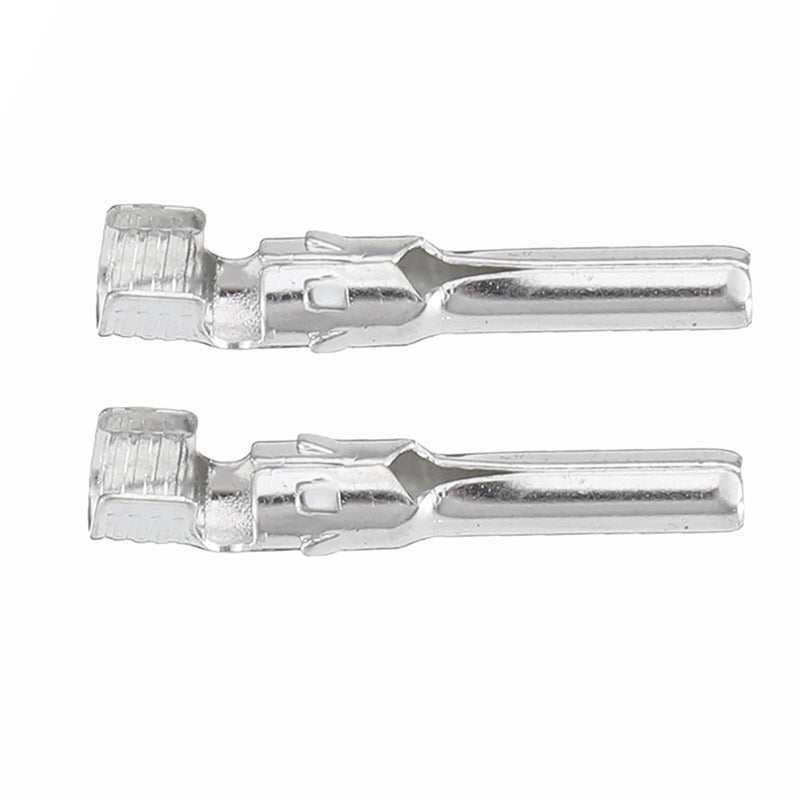

Contact material: Copper, silver-plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2;)
Locking system: Snap-in

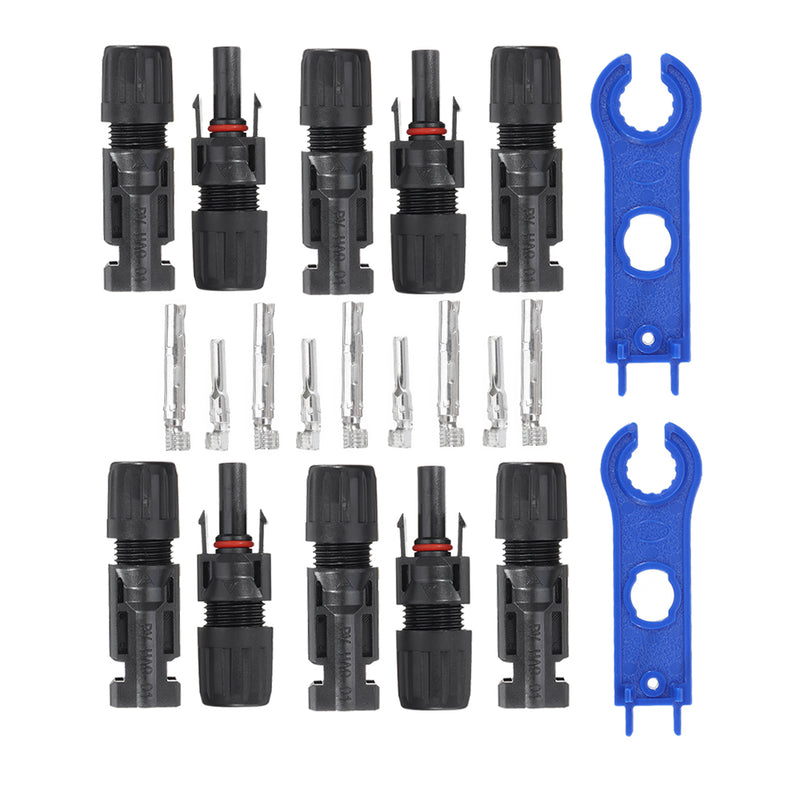

Package included:

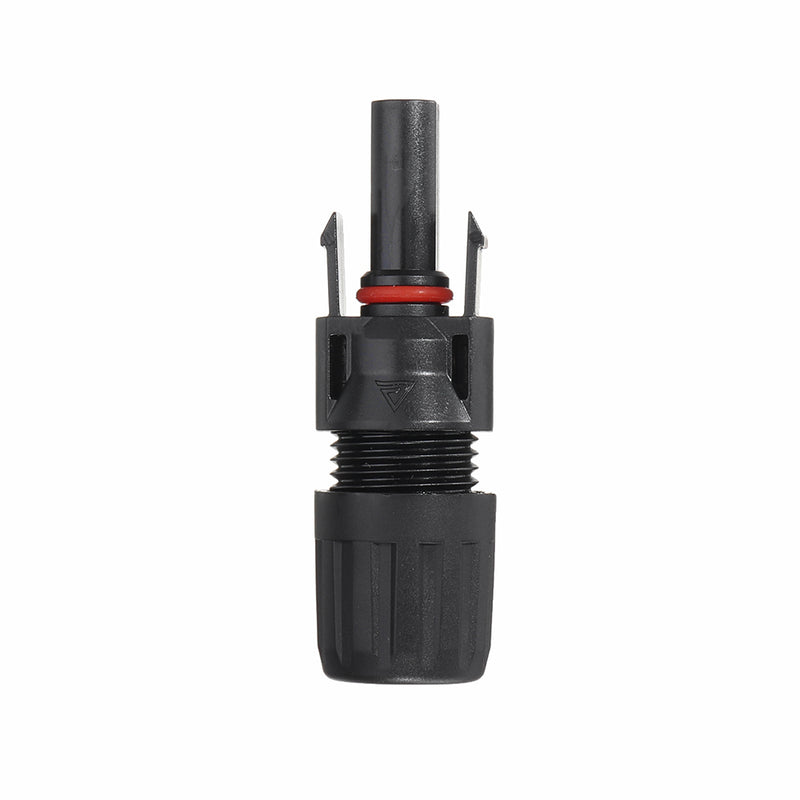

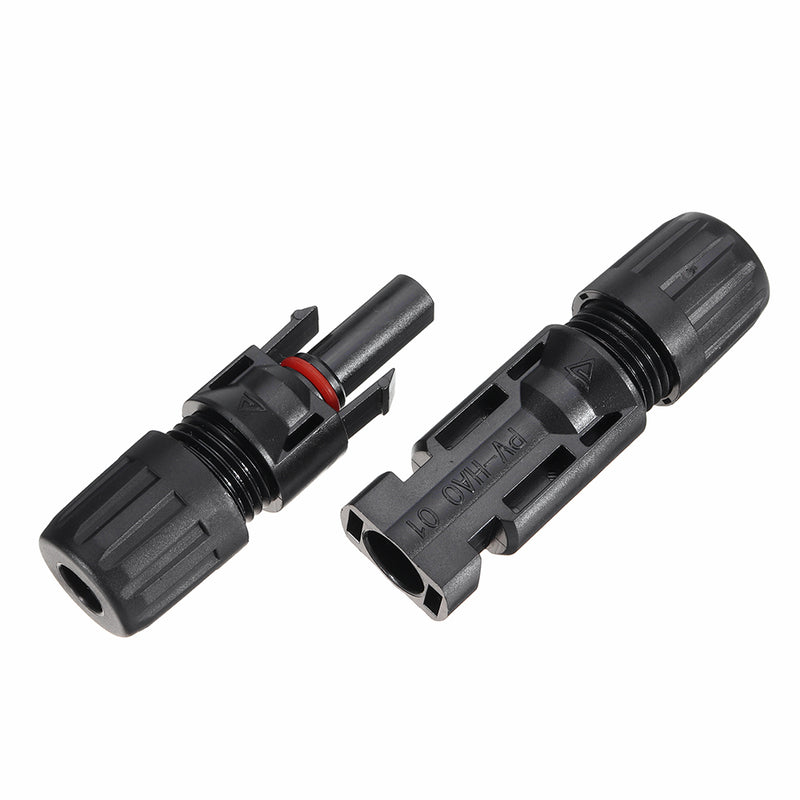

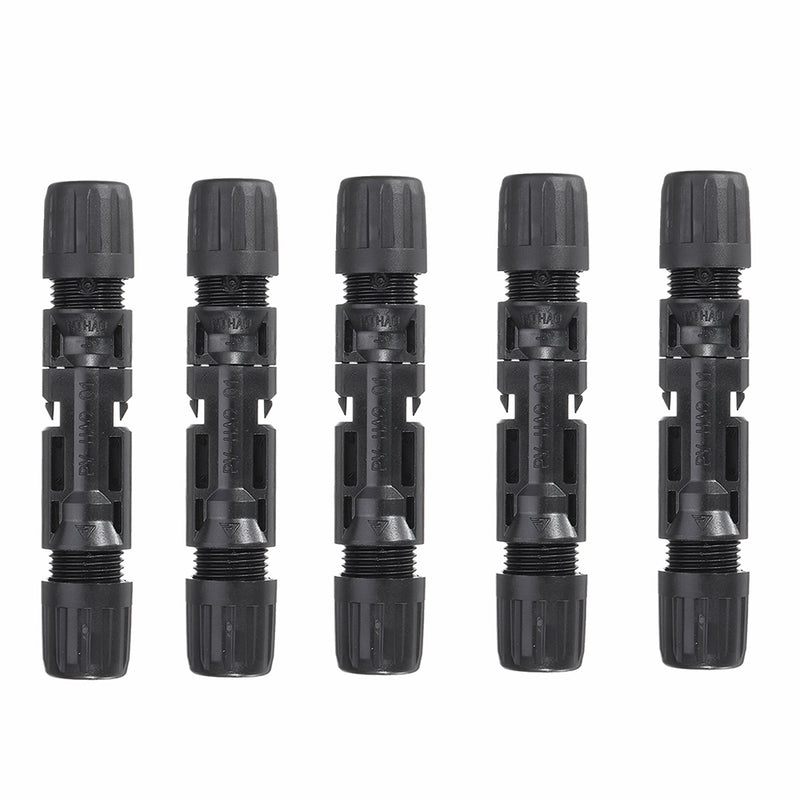

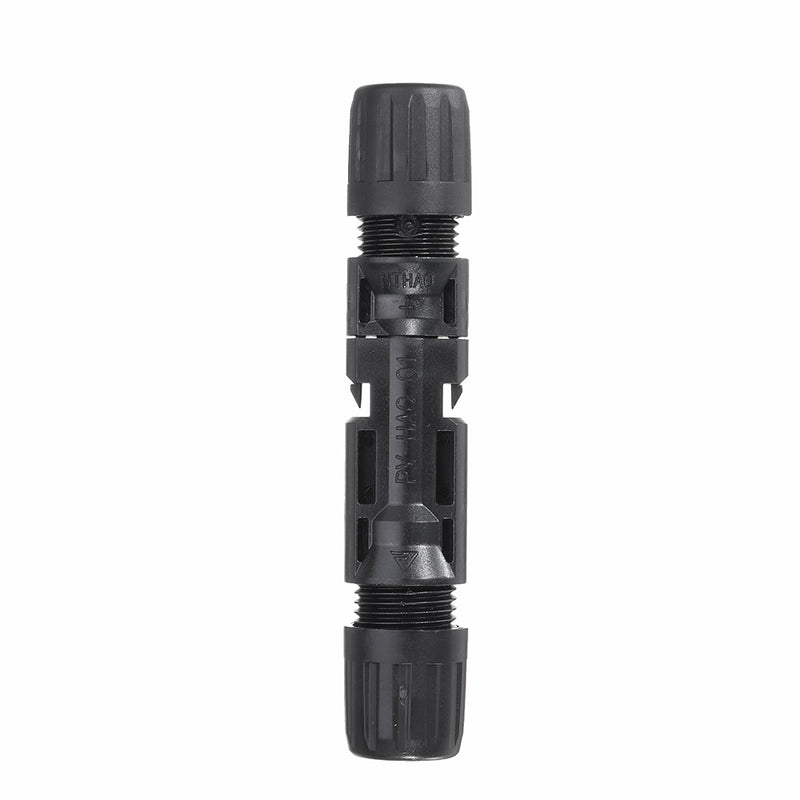

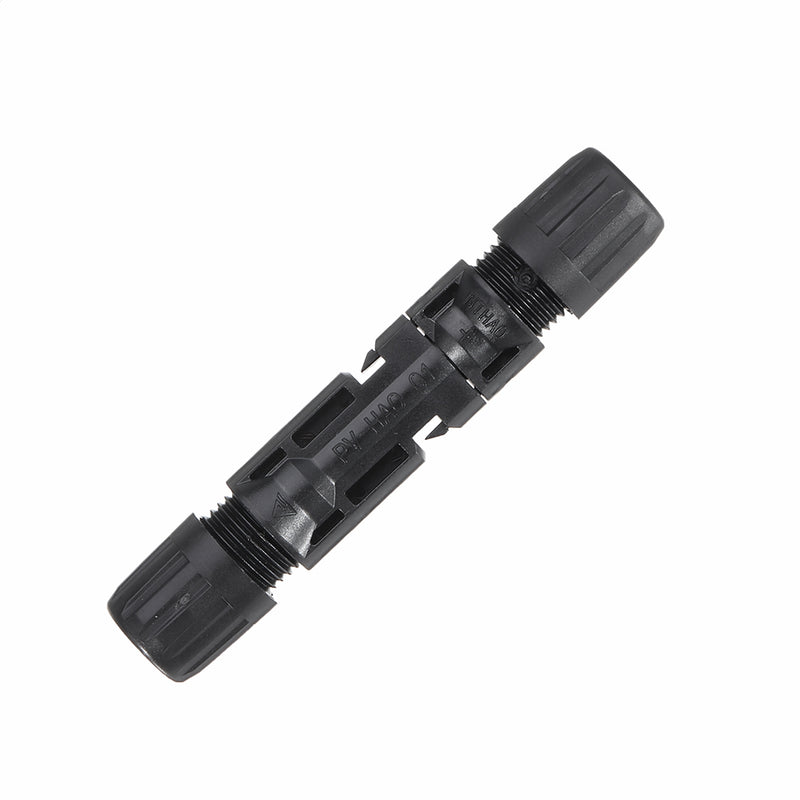

5pairs x MC4 Connectors

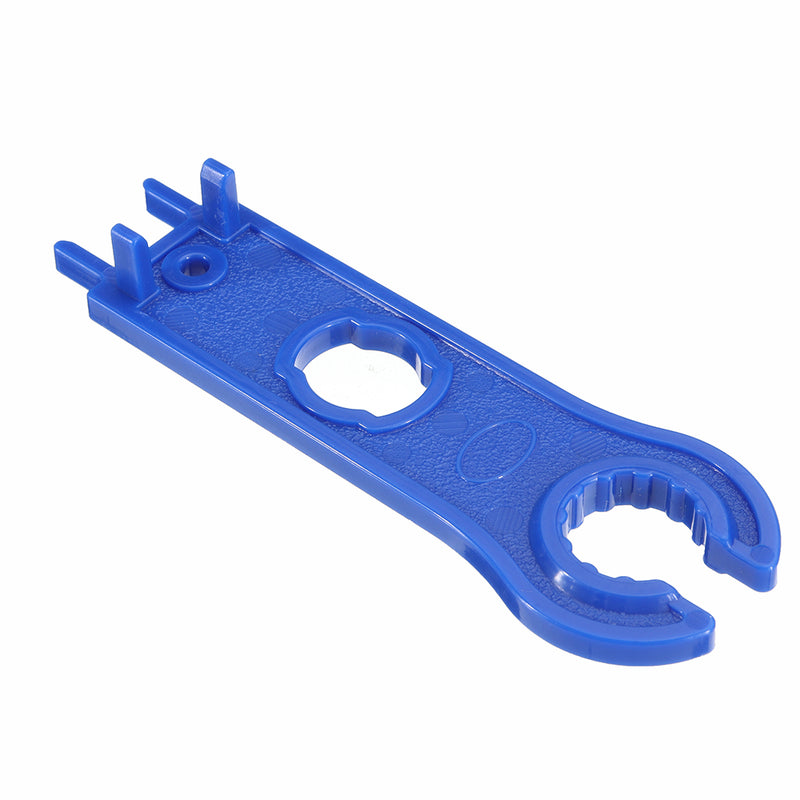

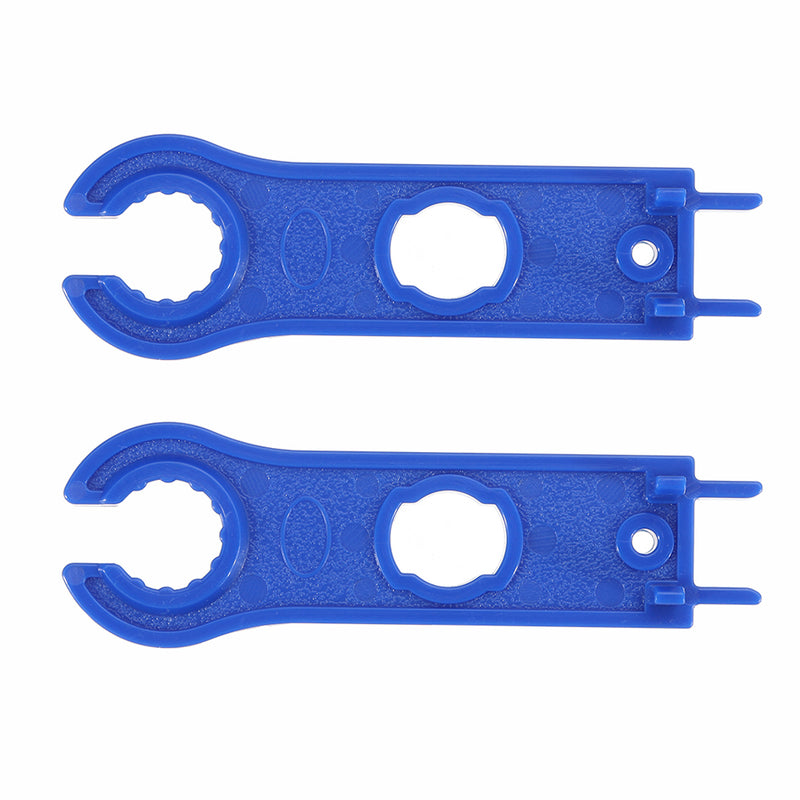

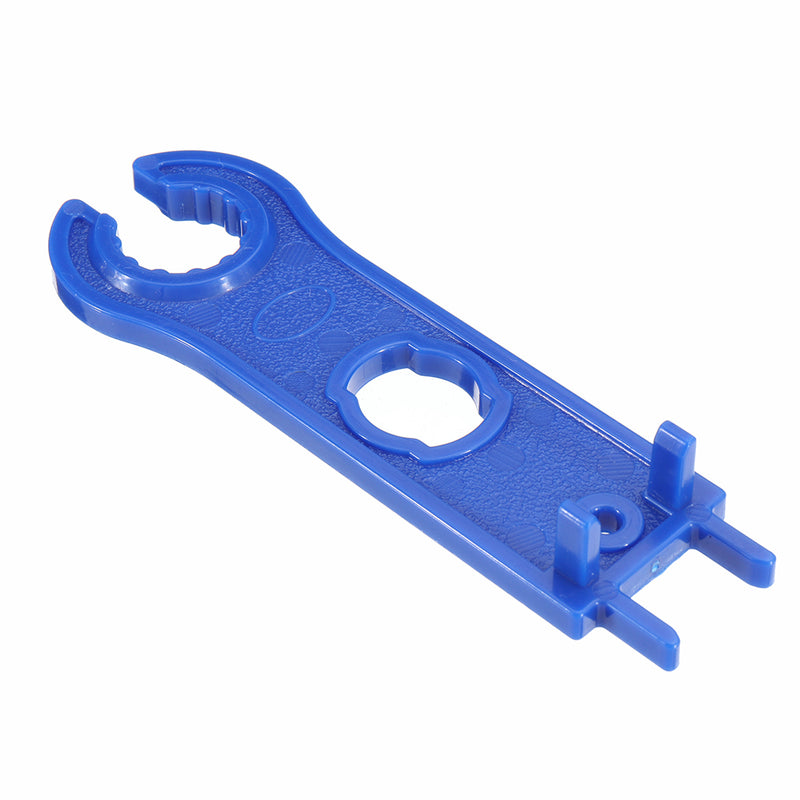

1pair x MC4 Spanner
