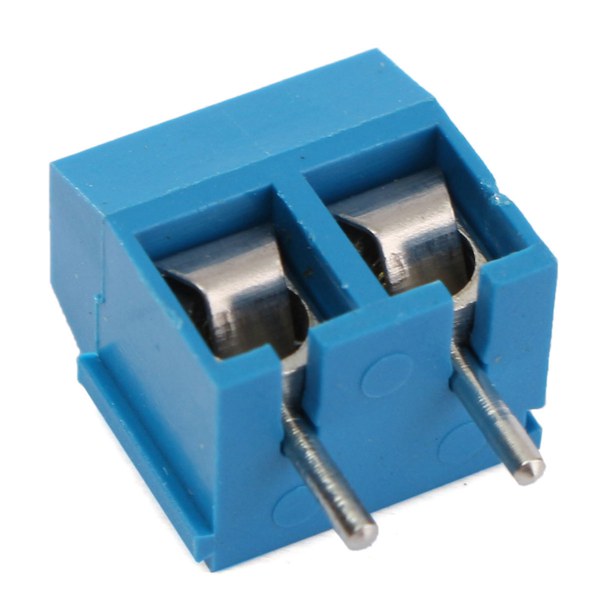

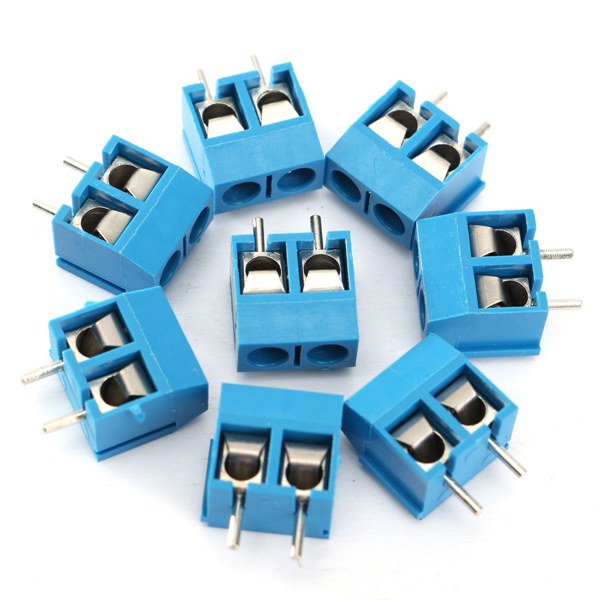

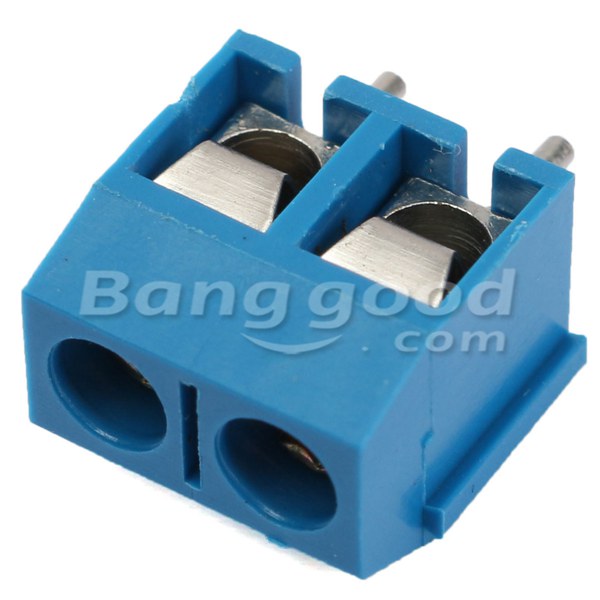

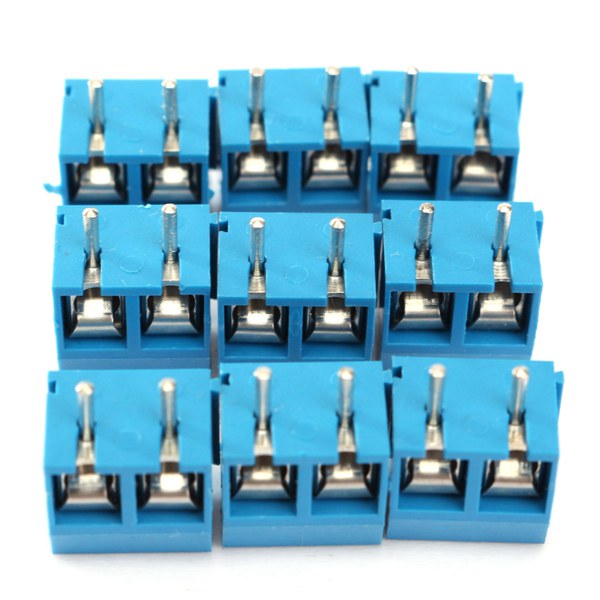

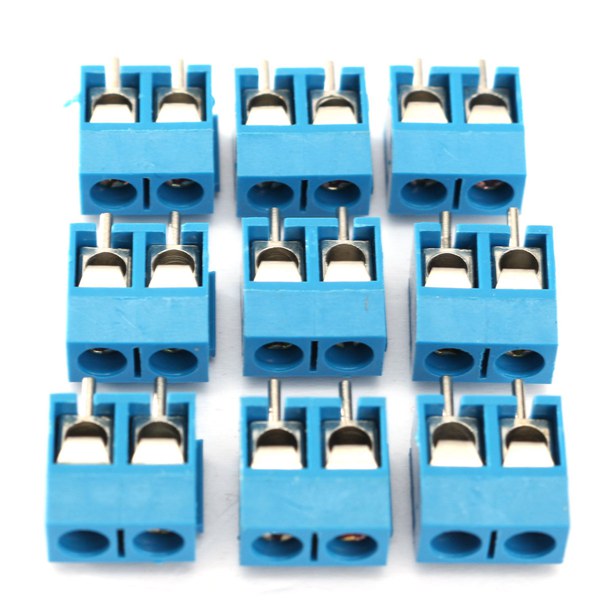

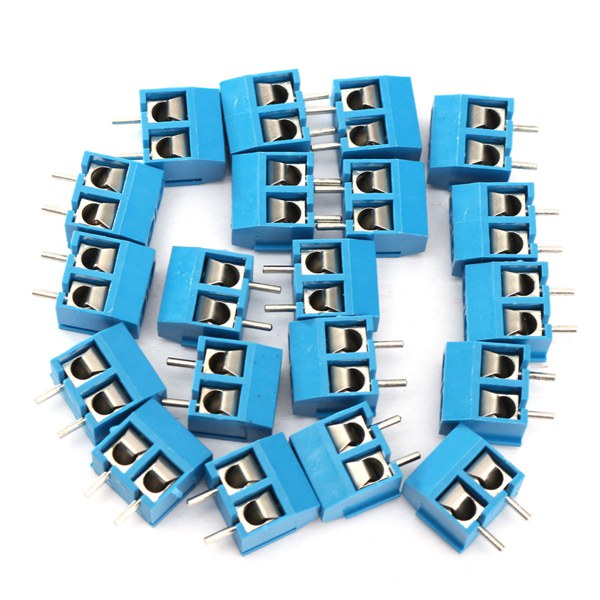

60pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch

60pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch

Name: 60pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch
Brand: Banggood
SKU: U2I-BG-1185450
Price: 1,459.00 INR
Availability: InStock

SKU: U2I-BG-1185450

Share this product

Description:

As a kind of connector, the terminal block is an important module in the electric industry.
It is convenient to connect wires.

Electrical Properties:

Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC1500V/1Min

Mechanical Properties:

Temp. Range: -30℃~+120℃
Max Soldering: +250℃ for 5 Sec
Torque: 0.5Nm

Specifications:

Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Pitch: 5.08mm Poles: 2P
Color: Blue
Quantity: 60

Package included:

60 x Terminal blocks
