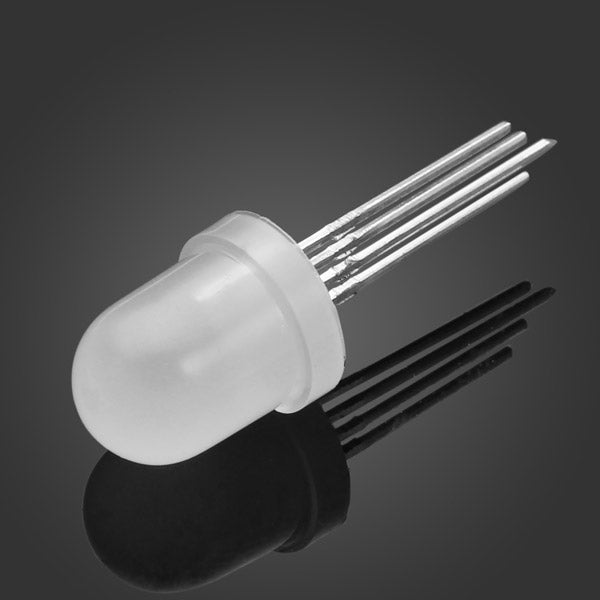

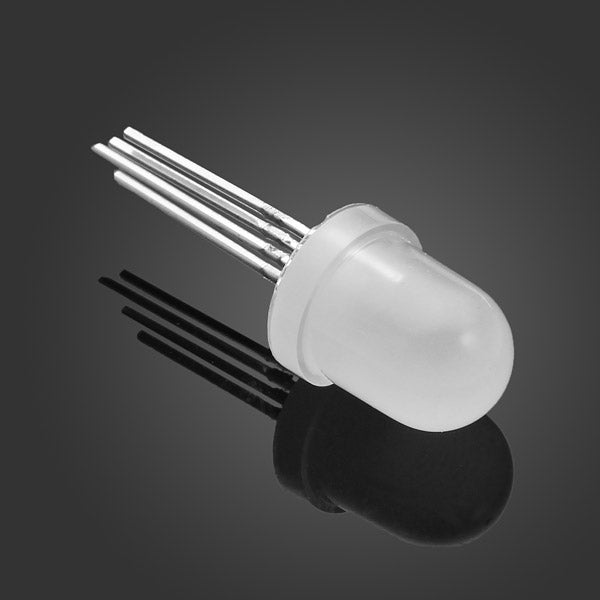

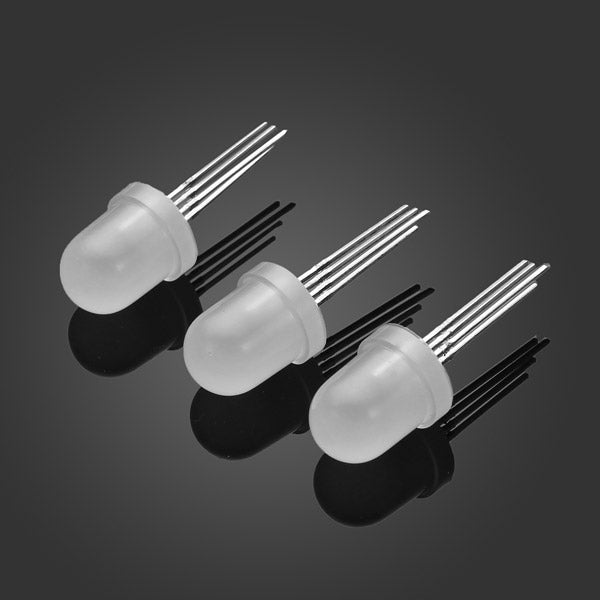

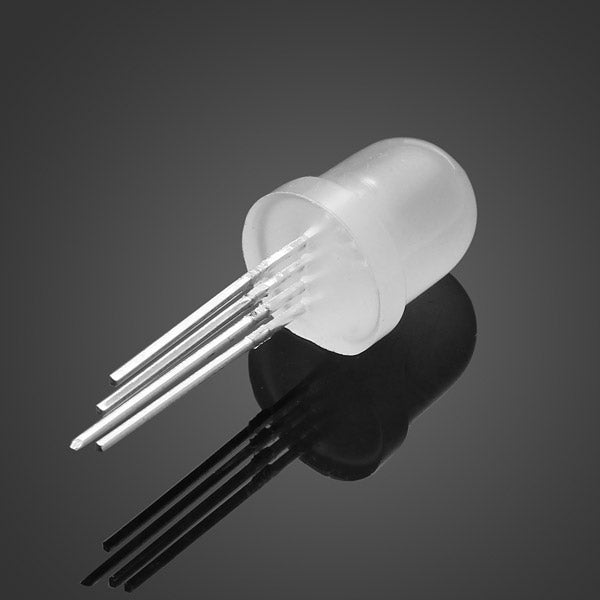

Size: 8mm Shape: Round Emitted Colour : Red / Green / Blue Lens Color : Diffused Luminous Intensity: 200-300/800-100/300-400mcd Forward Voltage (V) : 1.9-2.1v 3.0-3.4v View Angle: About 25 degree. Pins sequence: RED / Common Anode (positive terminal) / Green / Blue Maximum reverse voltage: VR 5 (v) Forward DC current: 20mA
Description:
Red 2.0V-2.2V minimum forward voltage, 20mA 622-625nm dominant wavelength
Green 3.2V-3.4V minimum forward voltage, 20mA 520-525nm dominant wavelength
Blue 3.0-3.2V minimum forward voltage, 20mA 465-468nm dominant wavelength
Common Anode - LEDs share Ground (postive input), but have separate Vdd (negative input)
Package includes:

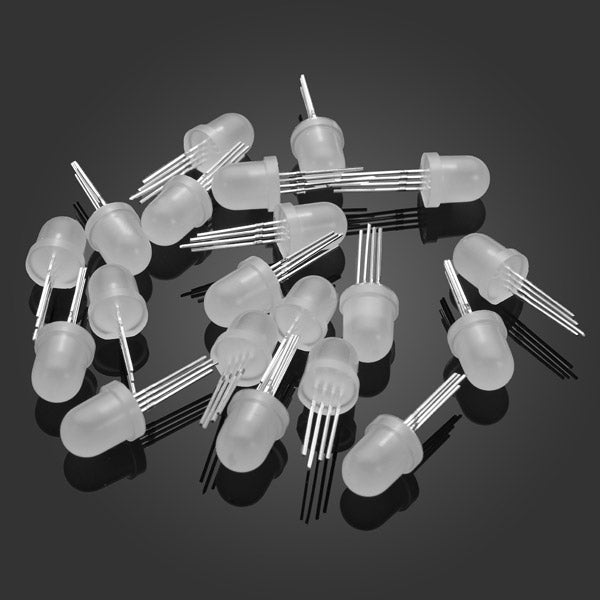

60 x LED diodes
