Specification:
Model: SS-12D00G3
Type: 1 Pole 2 Throw
Terminal Quantity: 3pcs
Working Power : 0.5A 50V DC
Contact Resistance: 30mΩ Max
Insulation Resistance: 100mΩ Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Terminal Length: 3mm/ 0.12"
Pin Pitch: 2.54mm / 1"
Main Body Size(not include Pins & Knob): 8 x 4 x 3.8mm/ 0.31" x 0.16" x 0.15"(L*W*H)
Switch Total Size: 8 x 4 x 10mm/ 0.31" x 0.16" x 0.39"(L*W*H)
Knob Size: 1.5 x 1.5 x 3mm/ 0.06" x 0.06" x 0.12"(L*W*H)
Package included:

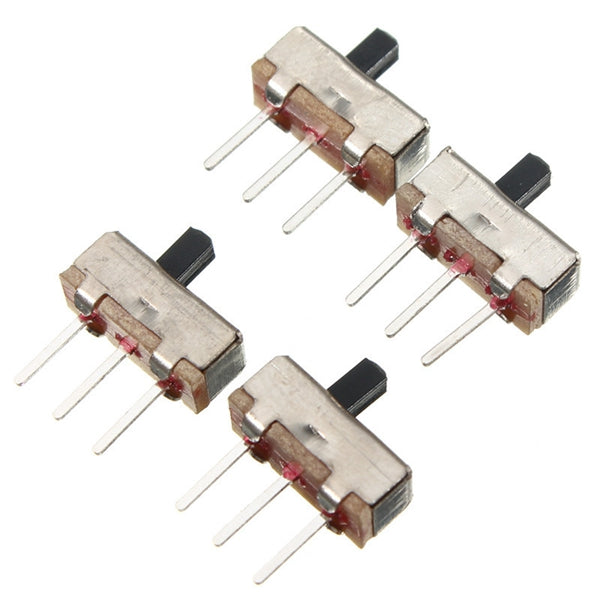

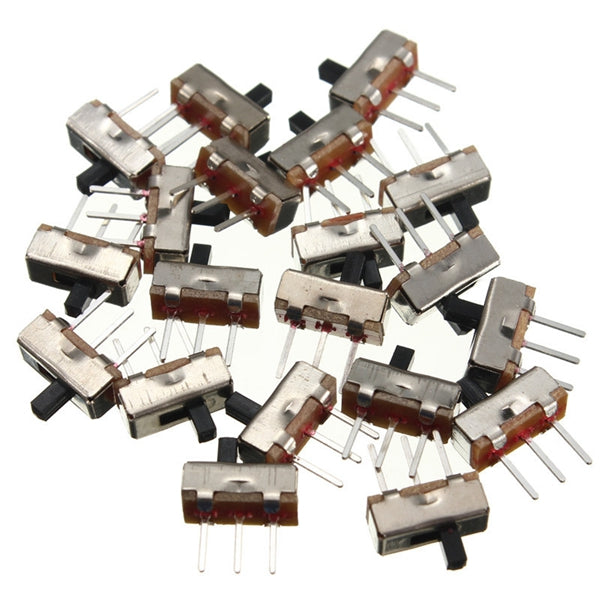

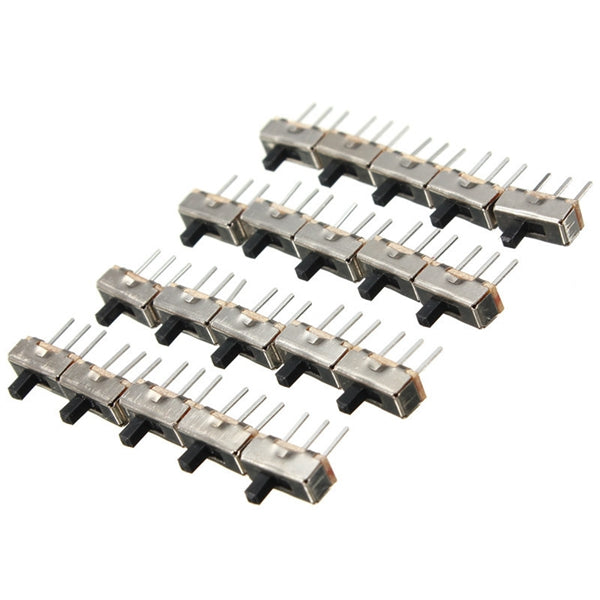

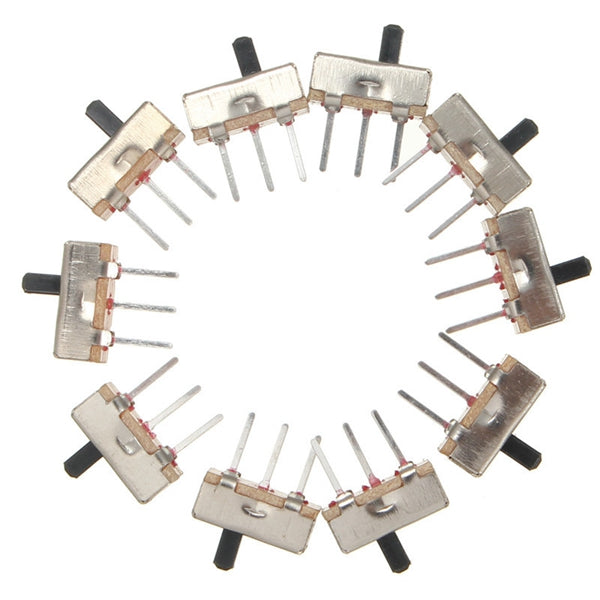

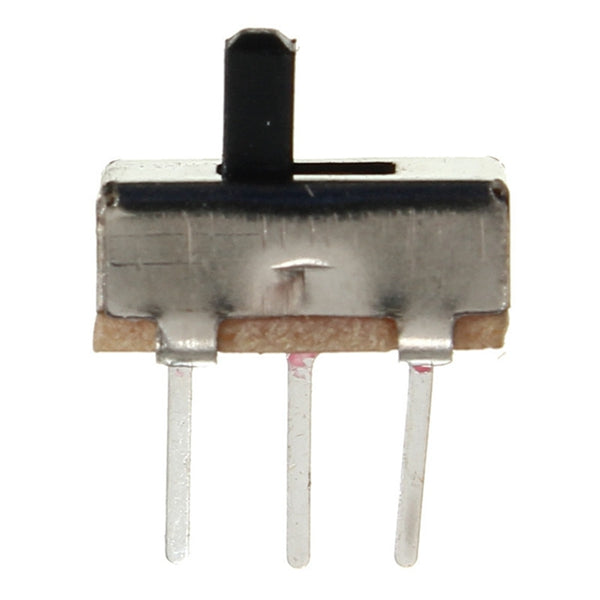

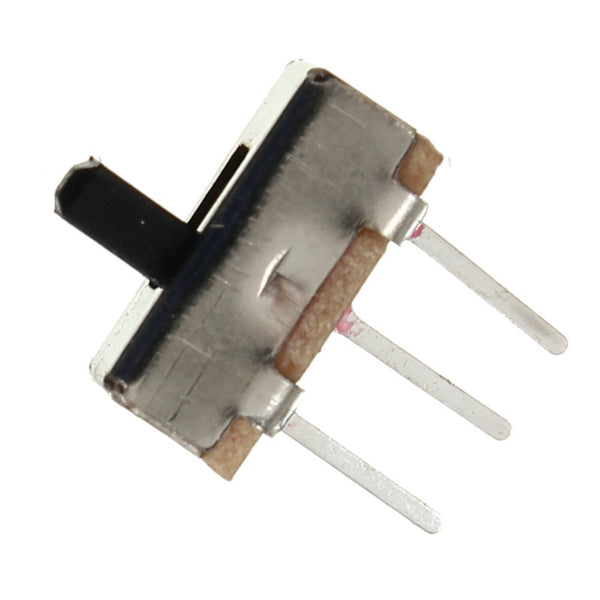

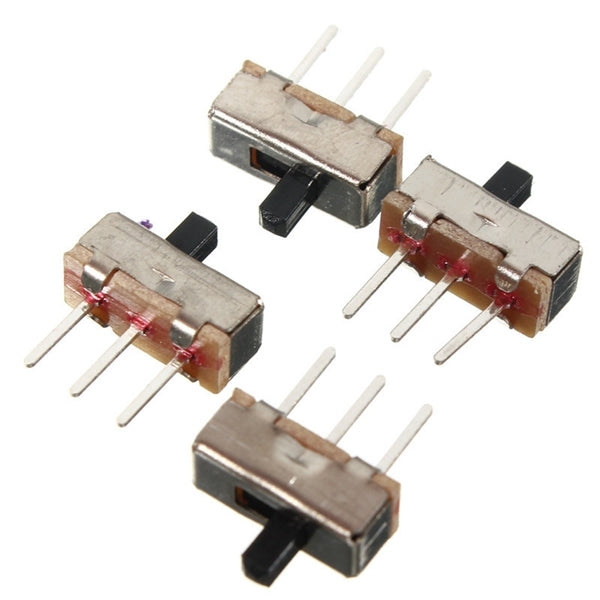

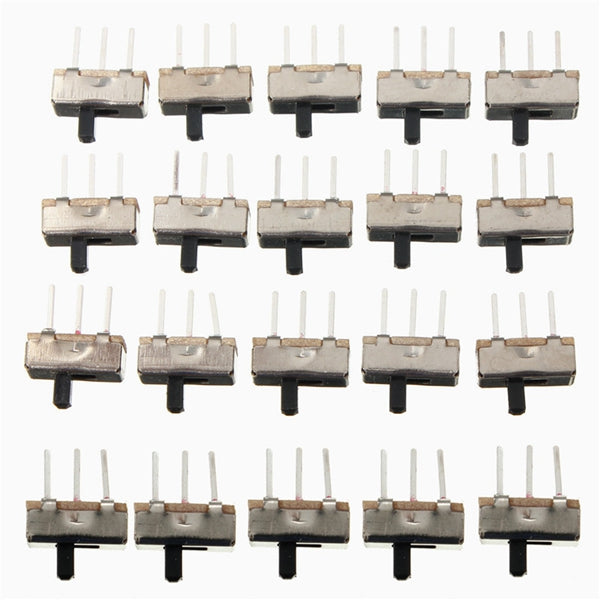

60 x Slide switch
