7 Inch LCD Display Screen DIY Kit HD LED 800x480 For Raspberry Pi
Save 0
SKU: U2I-BG-1036357
Share this product
Description

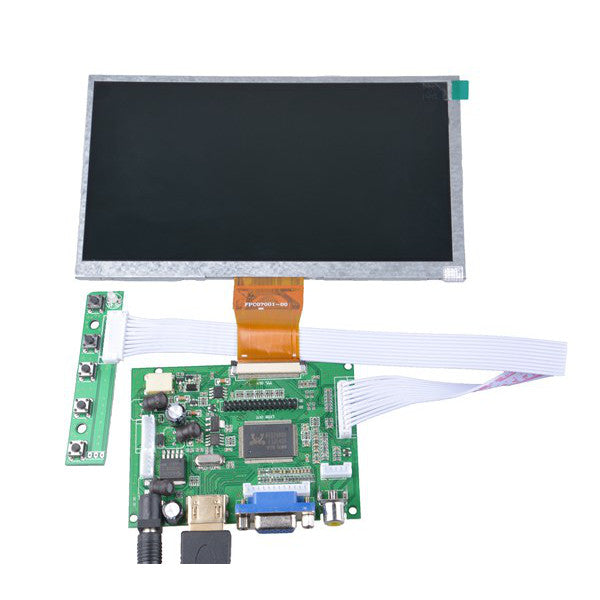

7 Inch LCD Display Screen DIY Kit HD LED 800x480 For Raspberry Pi
The module color (green / blue) will send random delivery
Description:

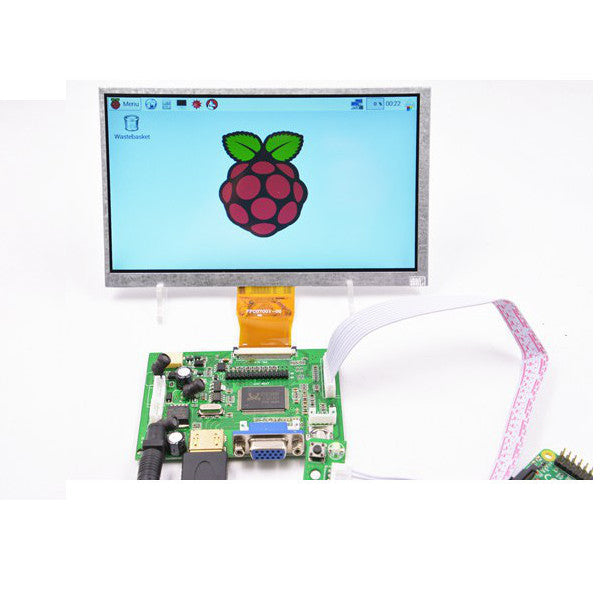

This 7 inch High-resolution 800*480 LCD display module kit is especially designed as a monitor for Raspberry Pi 2 Model B and Raspberry Pi B+ B A+. For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 800x480 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.
Feature:
Screen size: 7 inch LCD Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator Rated power: 6-7W Signal input: 2 AV + VGA + HDMI (HDMI 1.2) Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board Resolution: 800 * 480 Plug and Play: Support OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese Control: Multi-function OSD operation or potentiometer adjust the brightness and color Features: Using mature program, clear display Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format
LCD screen parameters:
Display size: 7 inch Touch screen: Not support Dimensions: 165 (W) × 100 (H) × 5 (D) mm Viewing area: 154.08 (H) × 85.92 (V) Resolution: 800 × 3 (RGB) ×480 Viewing angle: L70 ° R70 ° U50 ° D60 Panel type: TFT Contrast ratio: 500: 1 Interface type: Digital The number of connection: 50 PIN Digital (TTL) TCON Backlight: LED Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

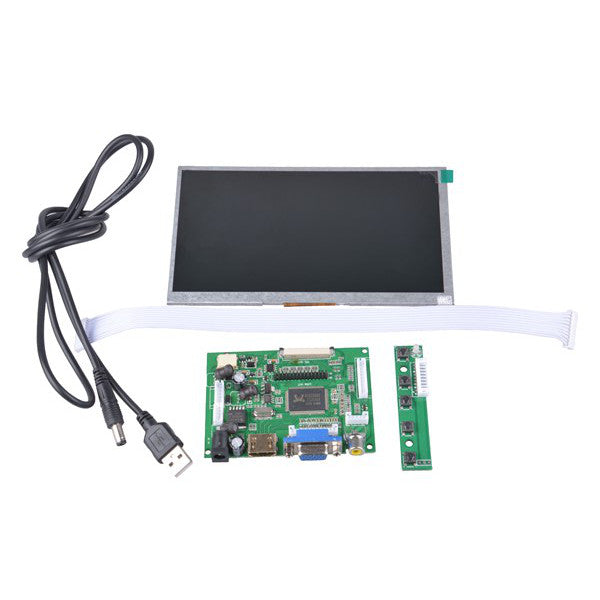

Package includes:

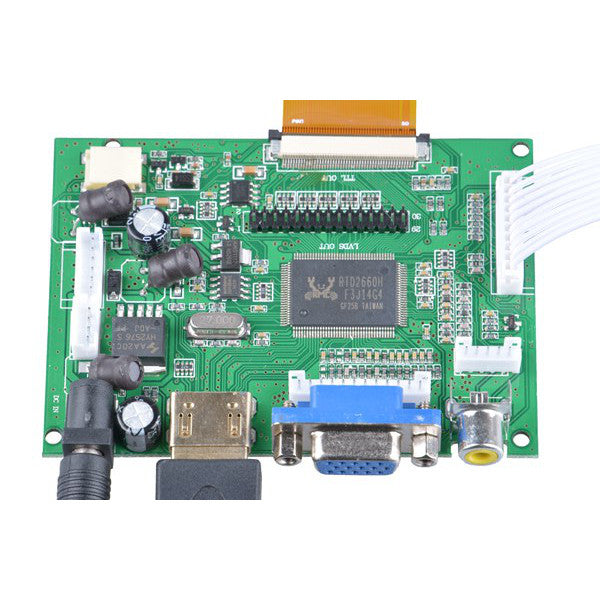

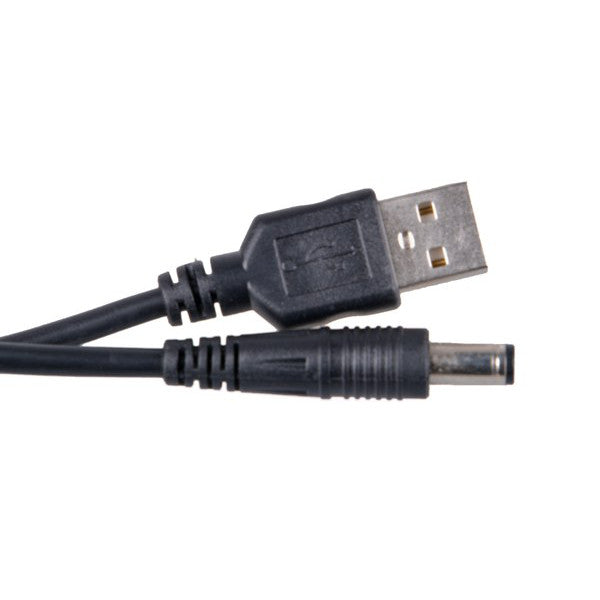

1 x 7-inch LCD screen 1 x LCD Driver board 1 x White cable (connected to the key board) 1 x Long green key board 1 x USB to DC5.5V power line
Note: The Raspberry Pi main board and heat sink are not included!!
