Description:
Electrical boxes are critical components of your home's electrical system.
But for many DIYers, the wide variety of boxes is bewildering.

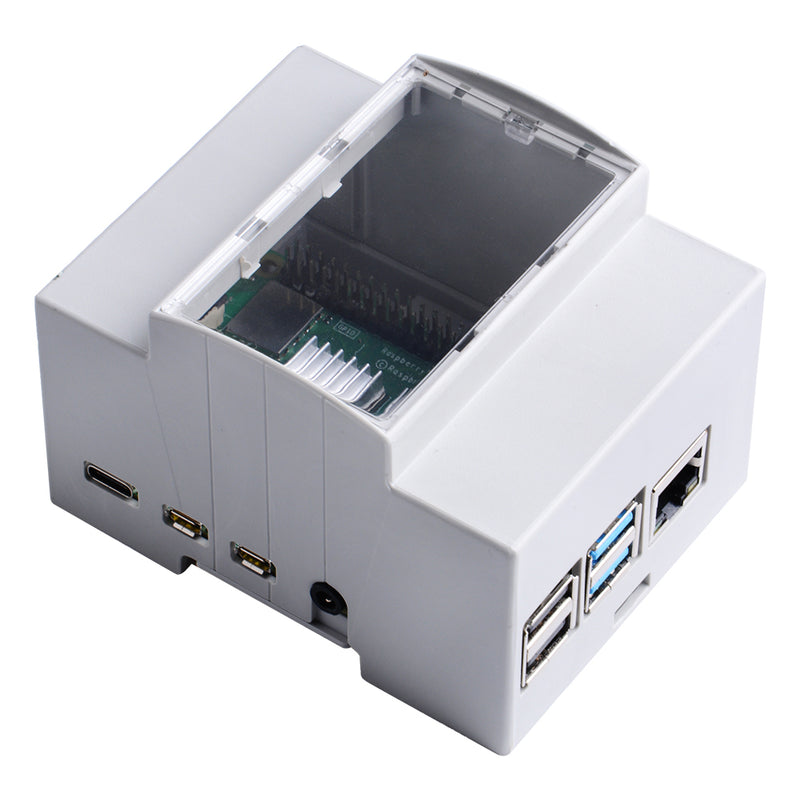

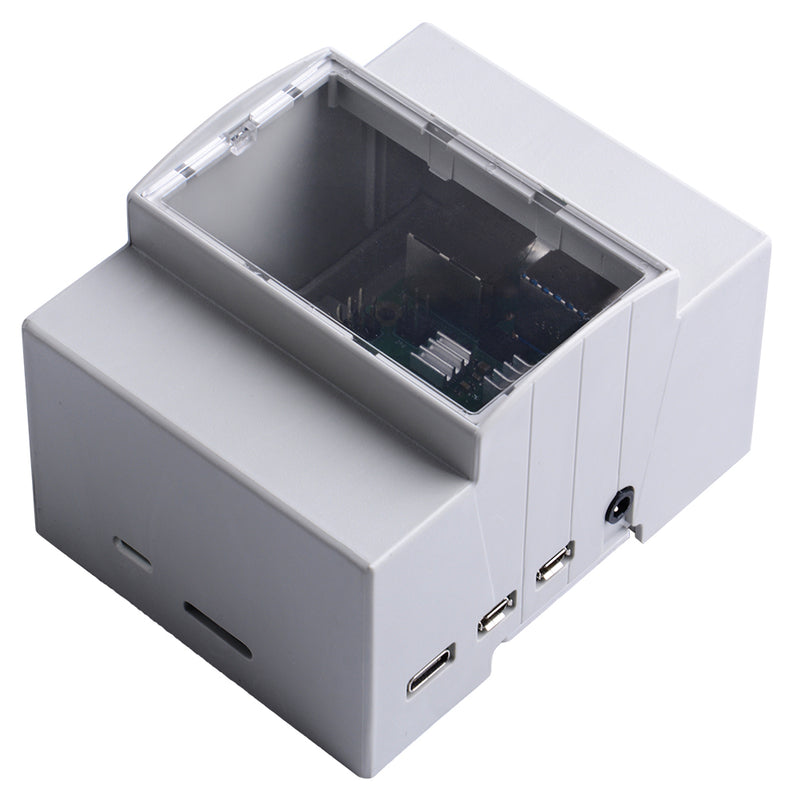

This ABS Electrical Box for Raspberry Pi 4B is made of ABS material, and it has a transparent observation port.

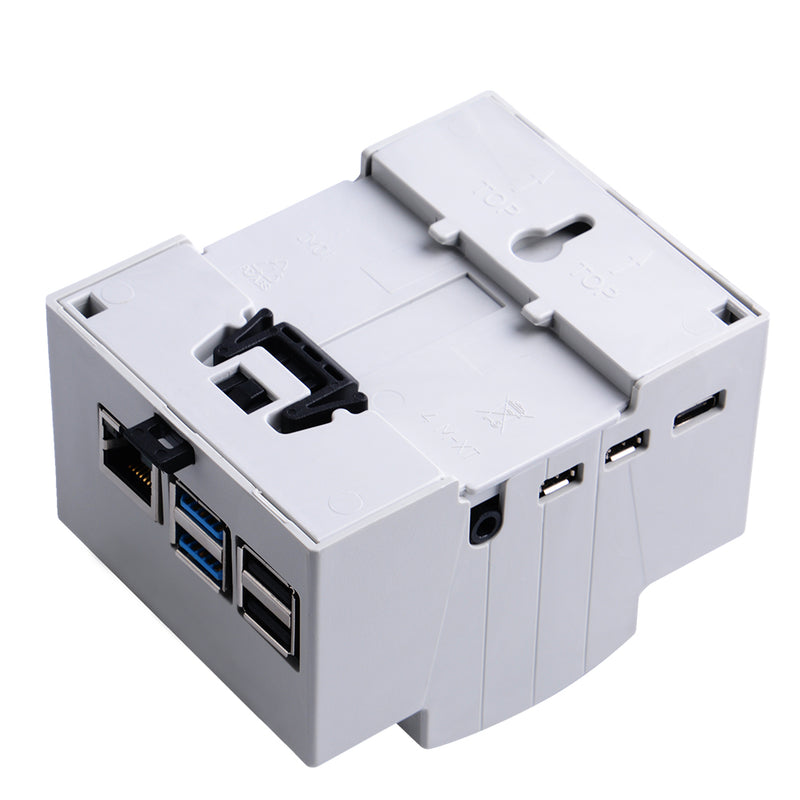

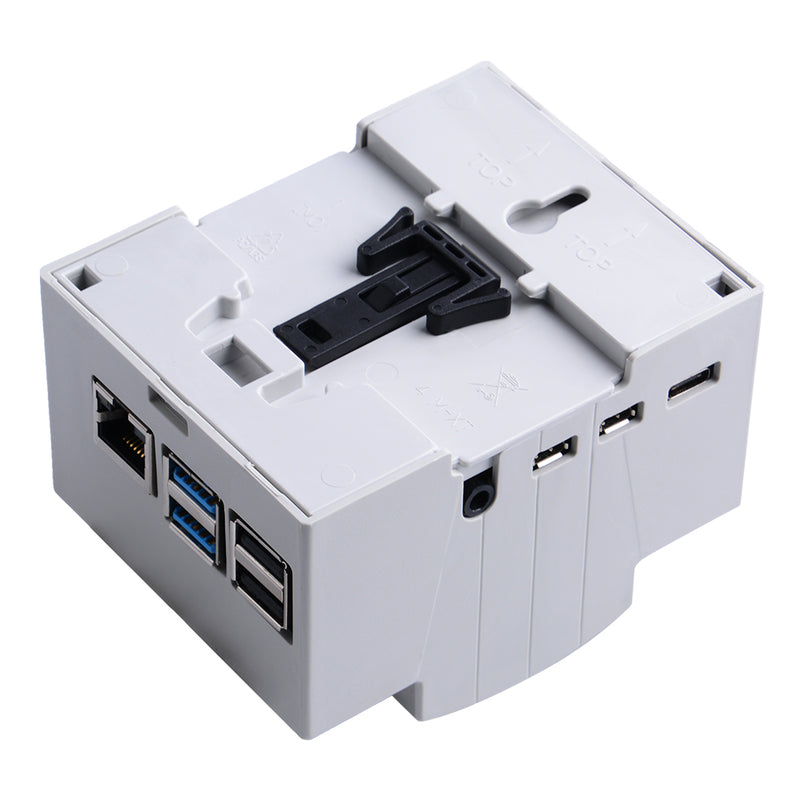

The box can be locked by a sliding lock. and it can be hung on the wall through the mounting hole
Features:
Easy to assemble
ABS material

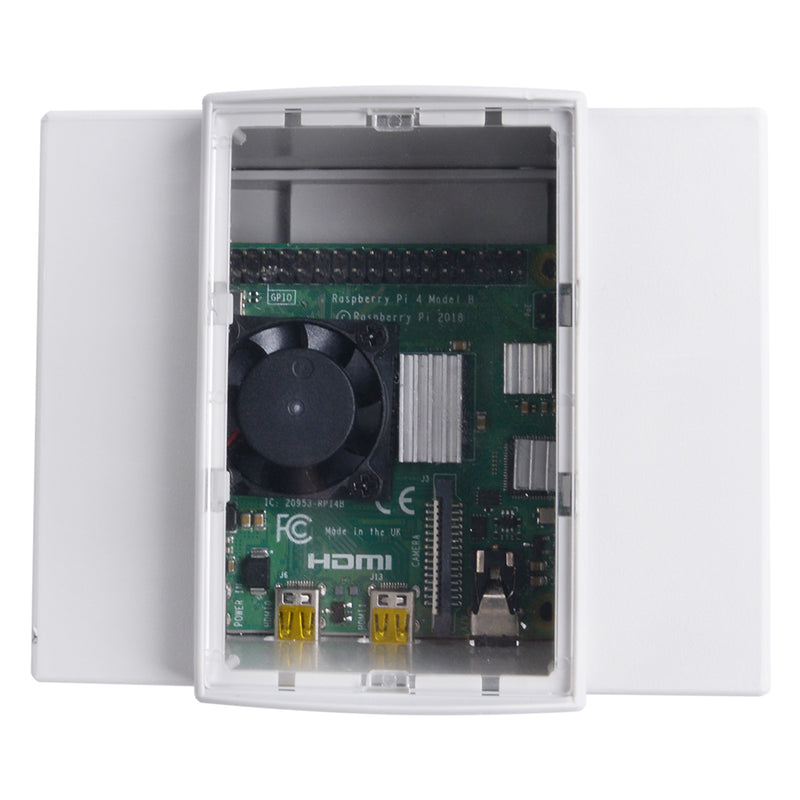

Transparent Observation Window
Sliding Lock
Mounting Hole

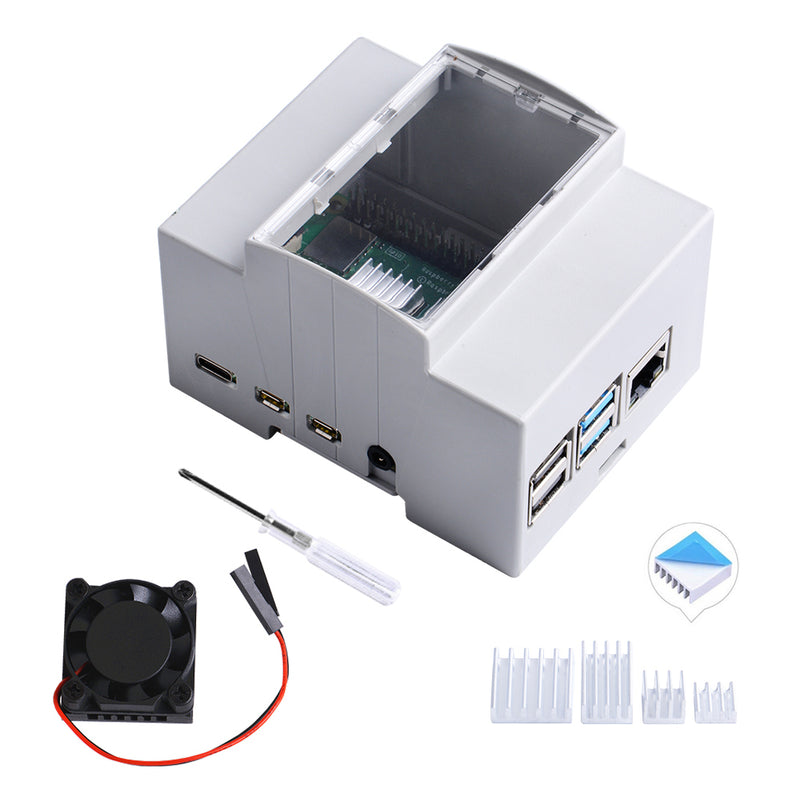

Package included: (the board is not included)
1 x ABS Electrical Box
1 x Single Fan with heat sink
1 x Screw Driver
1 x Aluminum heat sink pack
How to assemble
1. Remove the sliding lock(buckle) and then open the box.
2. Pasting heat sinks and single fan to Raspberry Pi 4B after peeling off the protect film, and then fixed Raspberry Pi 4B PCB to the bottom of the box with screws(Two).
3. Connect the fan's red wire to 5V and Black wire to GND on the Raspberry Pi's GPIO Pin.
4. Close the box and insert the sliding lock and buckle it.
5. Mounting the box to the wall or electrical box.
