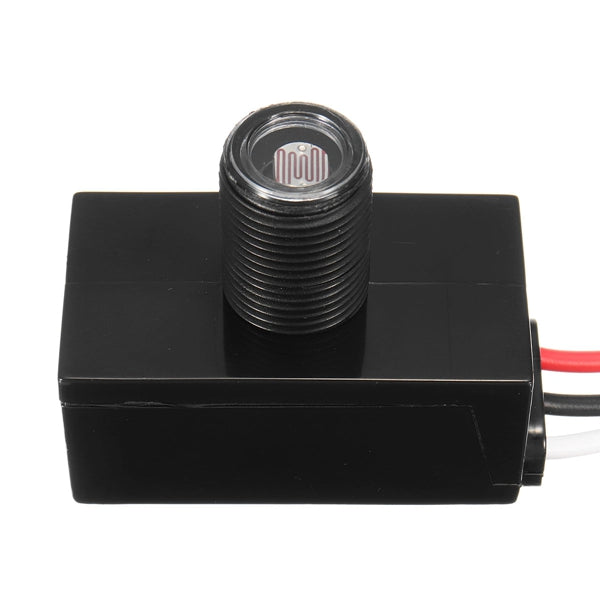

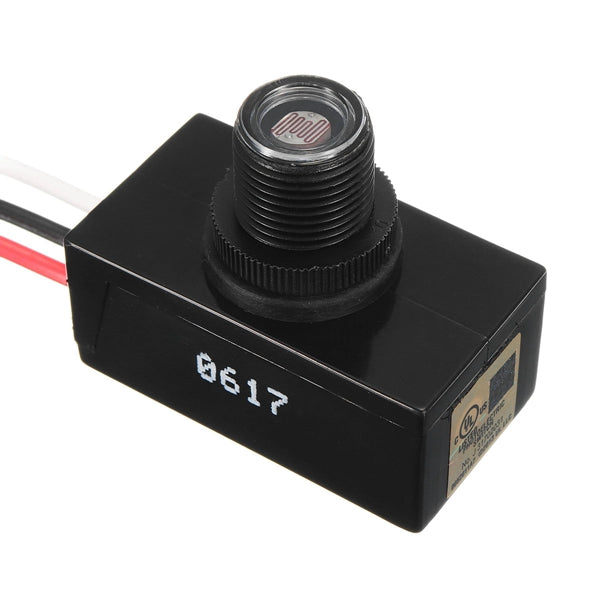

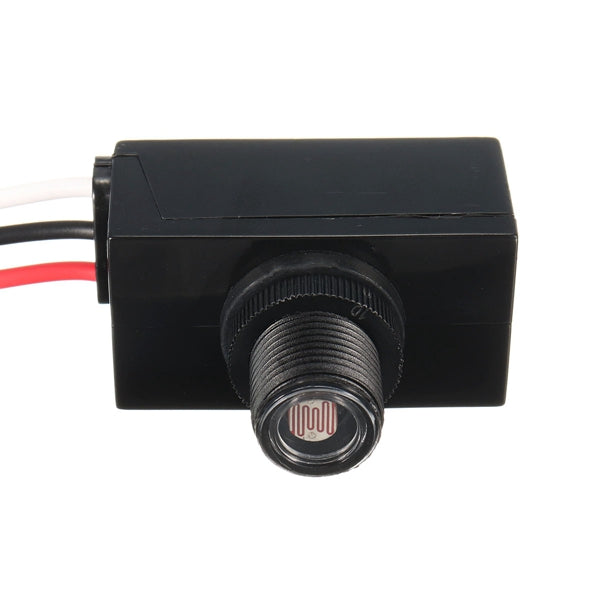

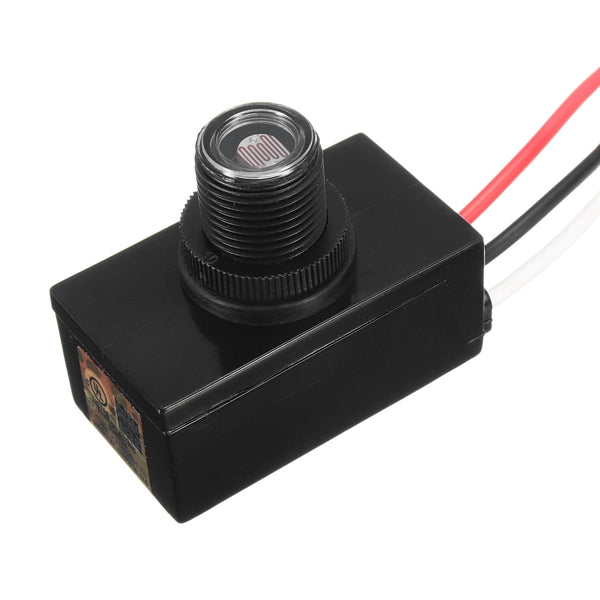

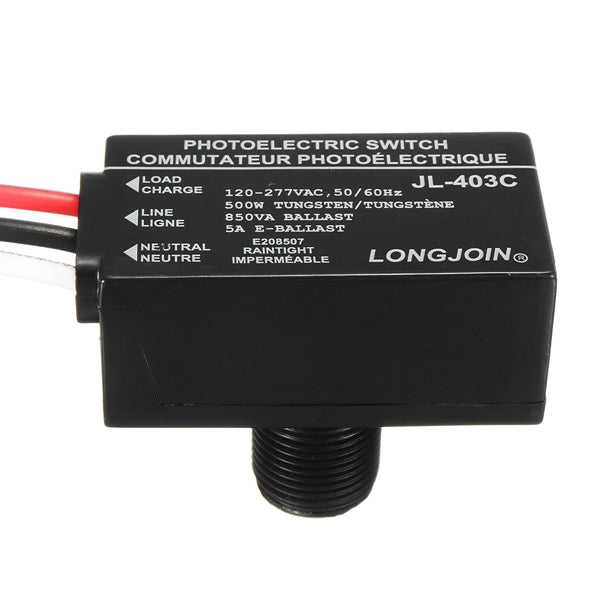

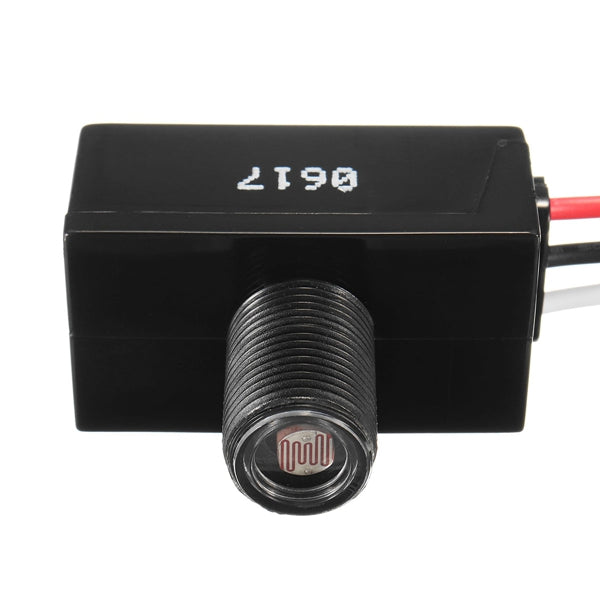

AC 120-277V Smart Photoelectric Induction Switch Light Control Switch Photocell Dusk To Dawn Auto
Save 0
SKU: U2I-BG-1262543
Share this product
Description
Specification:

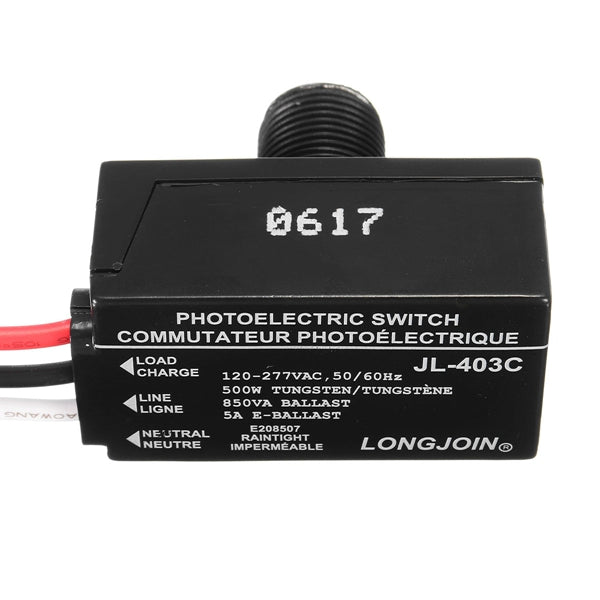

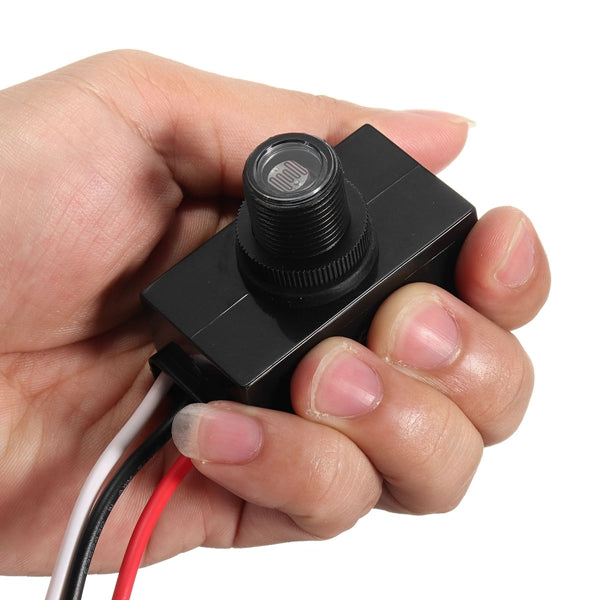

Rated Voltage: AC 120~277V Rated Frequency: 50/60Hz Rated Loading: 1000W Tungsten, 1800VA Ballast Power Consumption: 2W Operate Level: 10~20Lx On 30~80Lx Off Ambient Temperature: 40℃~ +70℃ Related Humidity: 99%RH Size(L*W*H): 53 x 28 x 42 mm Leads Length: 150mm (AWG#18) APPROVED BY: UL
Features:
Saving energy, long life, safe and reliable. Using three-wire system, compatible with resistance. Control of the lighting time according to the illumination value of the environment automatically. The internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically. Suitable for the LED lighting and outdoor monitoring, advertising gallery, garden lights and other automatic switching lights control.
Wiring Method:

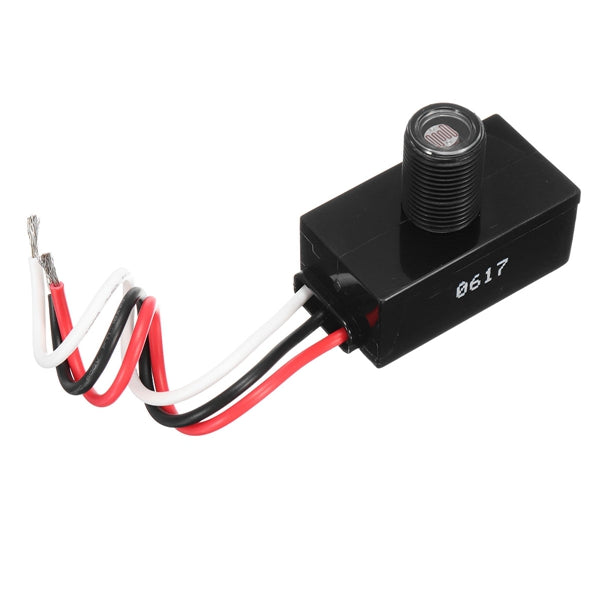

White Line + Black Line Connection (Input) White Line + Red Line Connection (Output) The White Line is the common line
Package included:

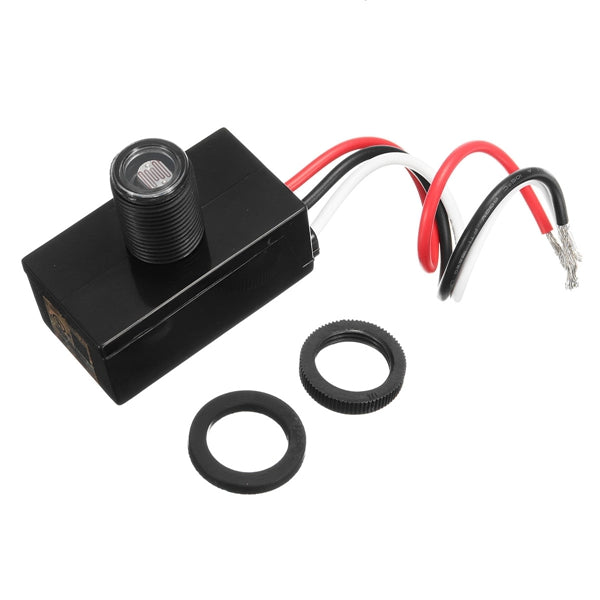

1 x Photoelectric switch
