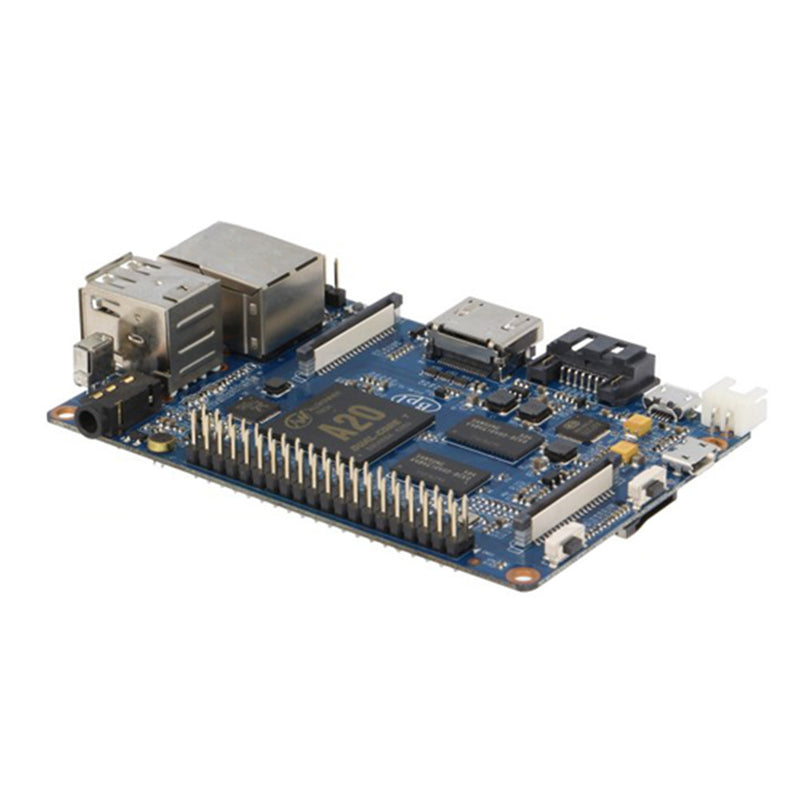

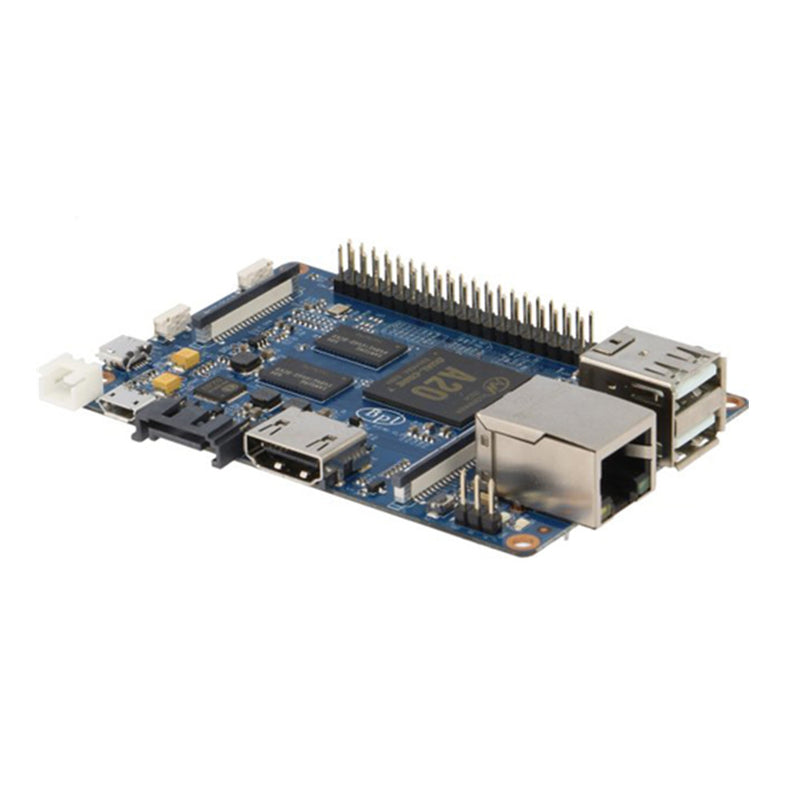

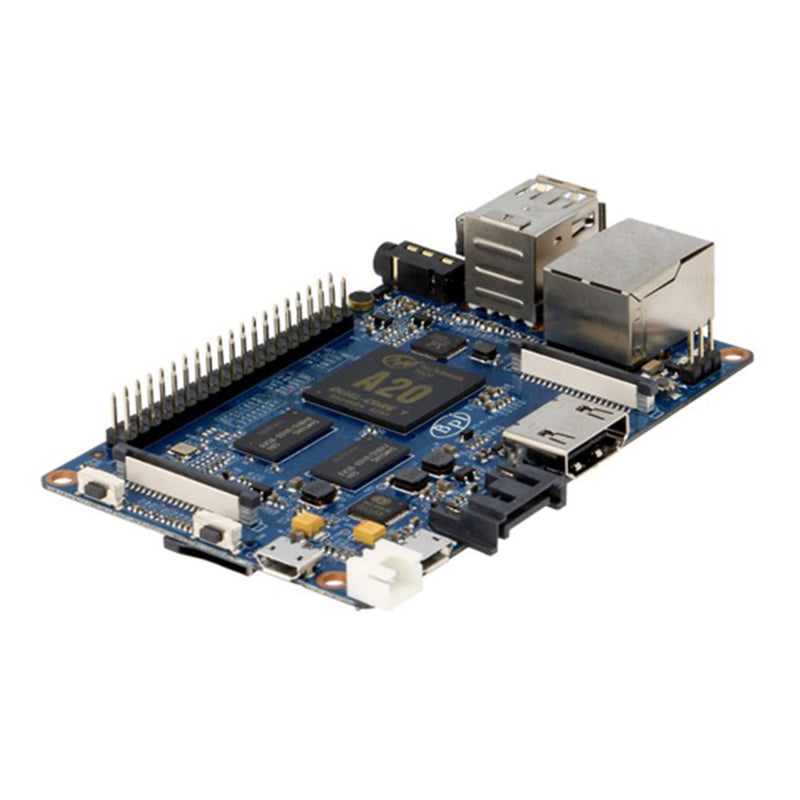

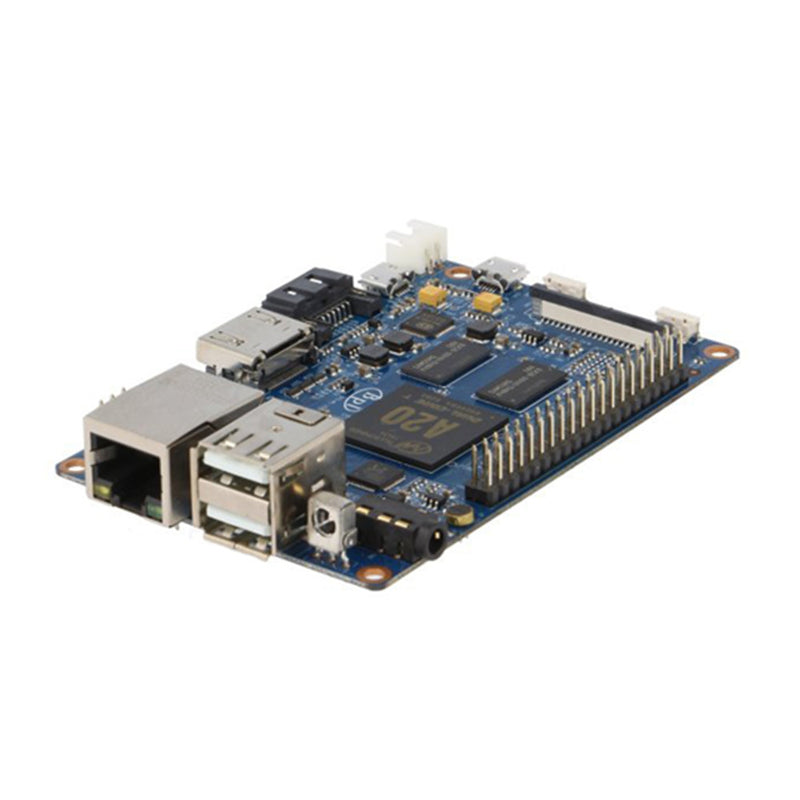

Banana Pi BPI M1 Plus A20 ARM Cortex -A7 Dual-Core 1.0GHz CPU 1GB DDR3 Single Board Computer Development Board Mini PC Learning Board
Save 0
SKU: U2I-BG-1435347
Share this product
Description
Introduction:
Banana PI BPI-M1+ is an Open Source hardware platform. Banana PI a dual core, Android 4.4,linux system support product which is much betterthan the Raspberry Pi. BPI-M1+ have SDIO WiFi module on board and have 40 PIN as rasbperry pi. The BPI-M1+ hardware runs Android, Debian Linux, Ubuntu Linux,OpenSuse linux and images that run on the Raspberry Pi and Cubieboard. Banana PI BPI-M1+ has a Gigabit Ethernet port and a SATA Socket. It can run with Android 4.4 smoothly. The size of Banana PI BPI-M1+ is about the same size as a credit card, It can easily run games as it supports 1080P high definition video output. The GPIO is compatible with Raspberry Pi 2 and can run Raspberry Pi images directly.
Key features:
·Allwinner A20 Dual-core 1.0GHz CPU ·Mali-400 MP2 with Open GL ES 2.0/1.1. ·1 GB DDR3 memory. ·Wifi &BT support onboard ·1x SATA interface. ·1x Gigabit LAN ·1x USB otg and 2x USB 2.0 ·1X MIC ·AV out ·HDMI out ·IR ·CSI camera interface ·DSI display interface ·40 PIN gpio ·3.7V lithium battery interface
Hardware spec
CPU
A20 ARM Cortex -A7 Dual-Core
GPU
ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory
1GB DDR3
Network
10/100/1000 Ethernet
WIFI&BT
Wifi & BT 4.0 support onboard
Video Input
A CSI input connector allows for the connection of a designed camera module
Video Outputs
HDMI, CVBS, LVDS/RGB
Audio Outputs
3.5mm jack and HDMI
Power Source
5V/2A via Micro USB (DC in only) and / or Micro USB OTG
USB 2.0 ports
2(direct from Allwinner A20 chip)
GPIO
GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND
LED
Power Key & 8P8C
Storage
SATA 2.0
OS
Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian
