Base On Beyerdynamic A1 Headphone Amplifier DIY Kit MC33078 BD139 BD140 Architecture With Headphone Protect ALPS Potentiometer

Base On Beyerdynamic A1 Headphone Amplifier DIY Kit MC33078 BD139 BD140 Architecture With Headphone Protect ALPS Potentiometer

Name: Base On Beyerdynamic A1 Headphone Amplifier DIY Kit MC33078 BD139 BD140 Architecture With Headphone Protect ALPS Potentiometer
Brand: Banggood
SKU: U2I-BG-1589031
Price: 5,165.00 INR
Availability: InStock

SKU: U2I-BG-1589031

Share this product

Description:

It is DIY kit, need assemble to work.
Design reference from Beyerdynamic A1 headphone amplifier circuit, can drive 25-600 Ohm headphone.
Recommend voltage: Dual AC 12V-18V power 20-30W enough.

Assemble tips:

1. Must check all element, not be in the wrong location, opposite direction, not be joined of all back Sn point.
2. MC33078 and all audions not assemble temporary.
3. Test 7812 7912 voltage +/-12V are all ok.
4. After power on and listen to relay close sound, delayed 4-5second.
5. Insert mc33078 andall audions, then test output DC voltage, less than 50mV.

Package included:

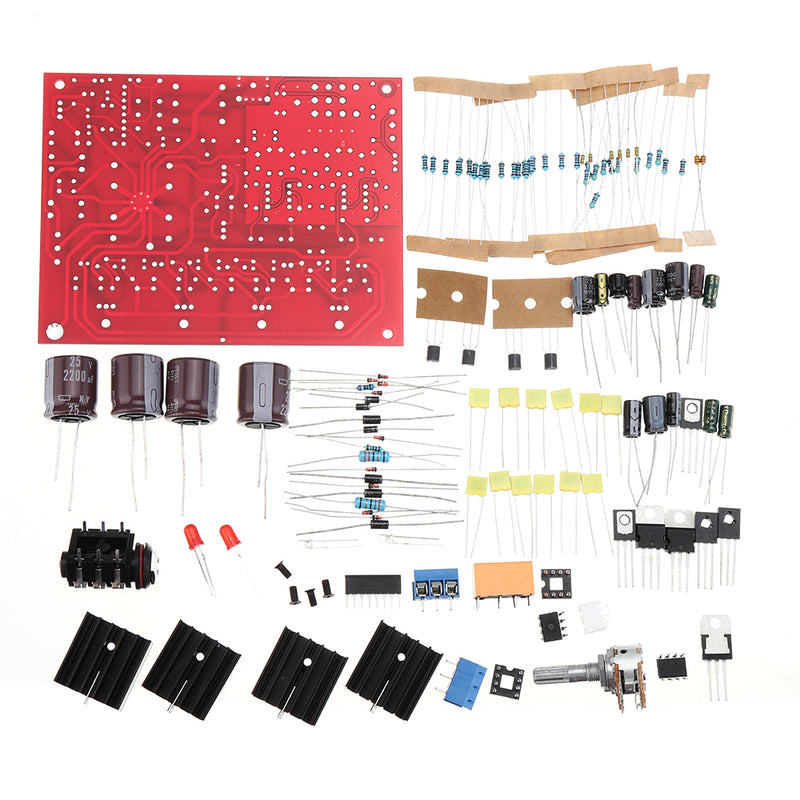

1 x Headphone Amplifier DIY Kit
