Description:Kit Name: D2-3 Smart Tracking Car
Dimensions: 105*80mm
Board material: single side 1.6mm FR-4 sheet
Supply voltage: 5V
| Name |
Parameter |
PCB mark |
Quantity |
| Resistor |
5.1K |
R2 R3 R4 R5 |
4 |
| 1K |
R6 R7 R8 R9 |
4 |
| 10K |
R11 R14 R17 R22 R20 |
5 |
| 510 |
R12 R15 R18 R21 |
4 |
| Ceramic capacitor |
104 |
C2 C4 C5 |
3 |
| LED |
Red 5mm |
D1 D2 |
2 |
| Infrared emitting diode |
3mm |
D3 D4 D5 D6 |
4 |
| Infrared receiving diode |
3mm |
D7 D8 D9 D10 |
4 |
| Pin |
4p |
|
1 |
| 8p |
|
1 |
| Lead line |
|
|
4 |
| Universal wheel nut |
M5 |
|
1 |
| Universal wheel |
M5 |
|
1 |

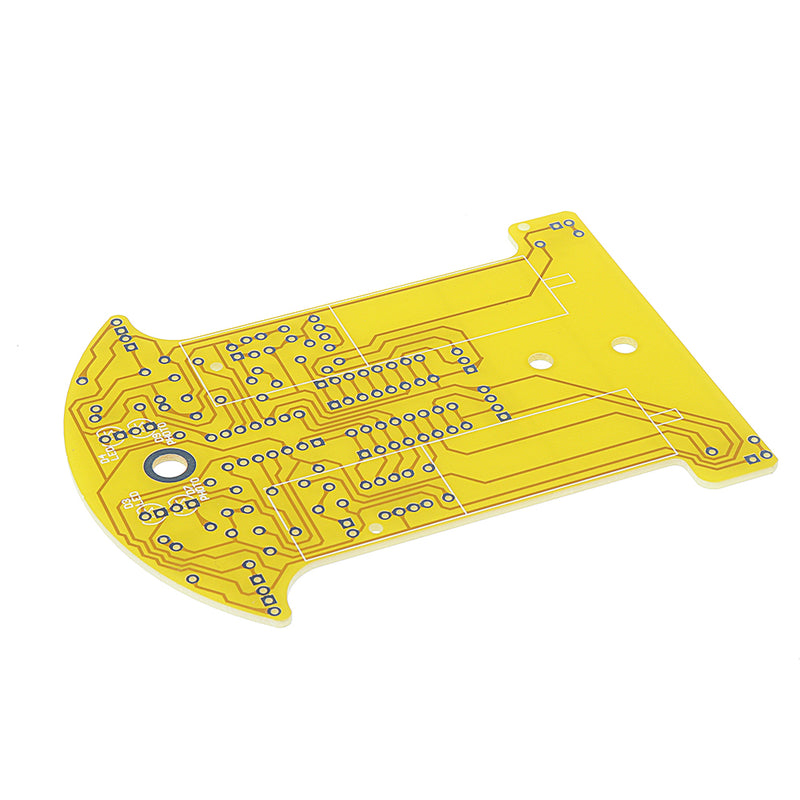

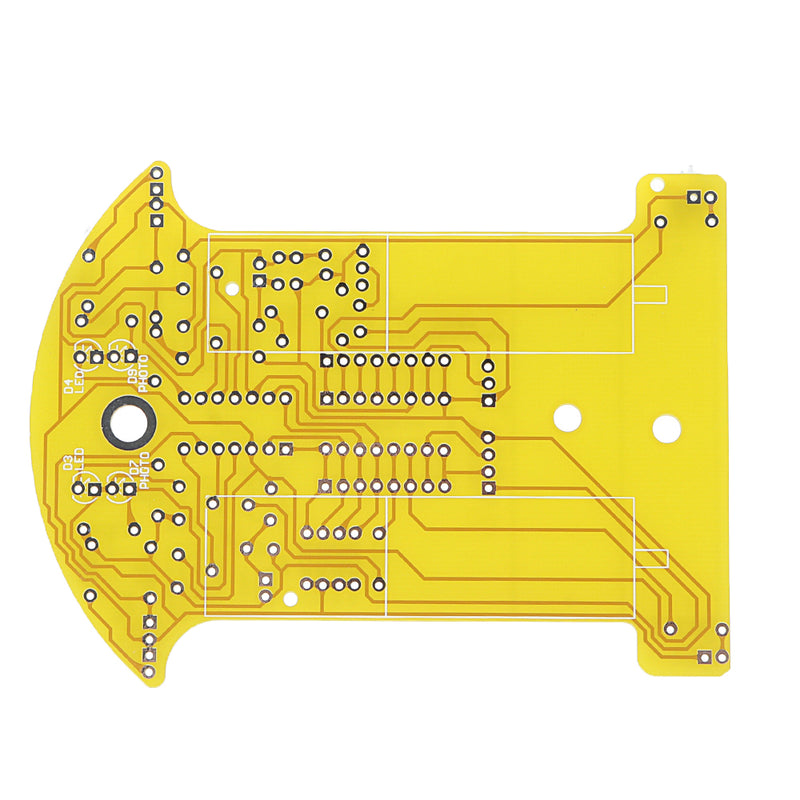

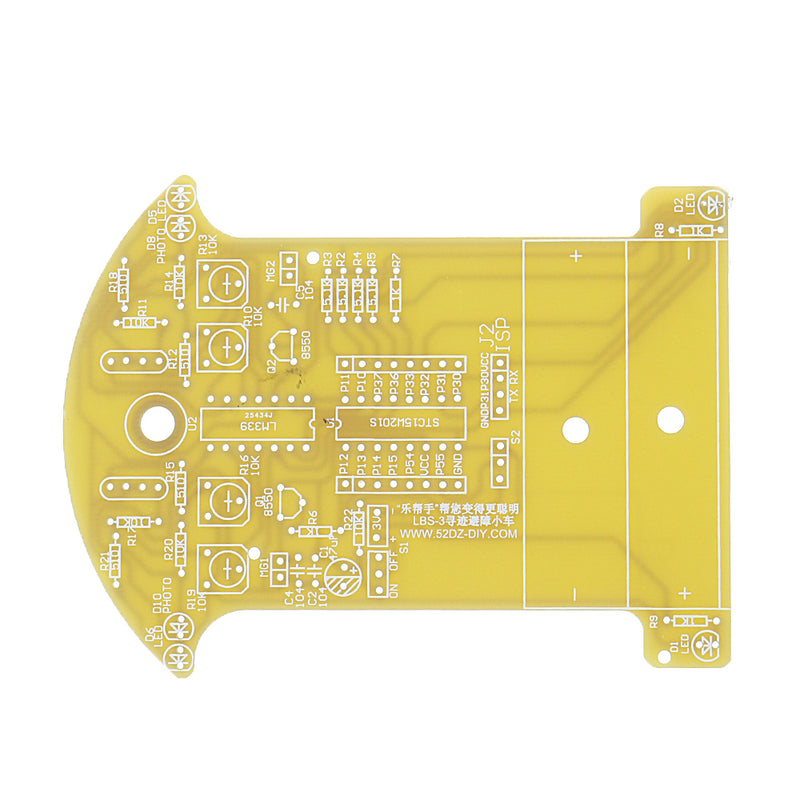

| PCB board |
|
|
1 |
| Transistor |
8550 |
Q1 Q2 |
2 |
| Toggle Switch |
DIP |
J3 J4 |
2 |
| Electrolytic capacitor |
47uF/50V |
C1 |
1 |

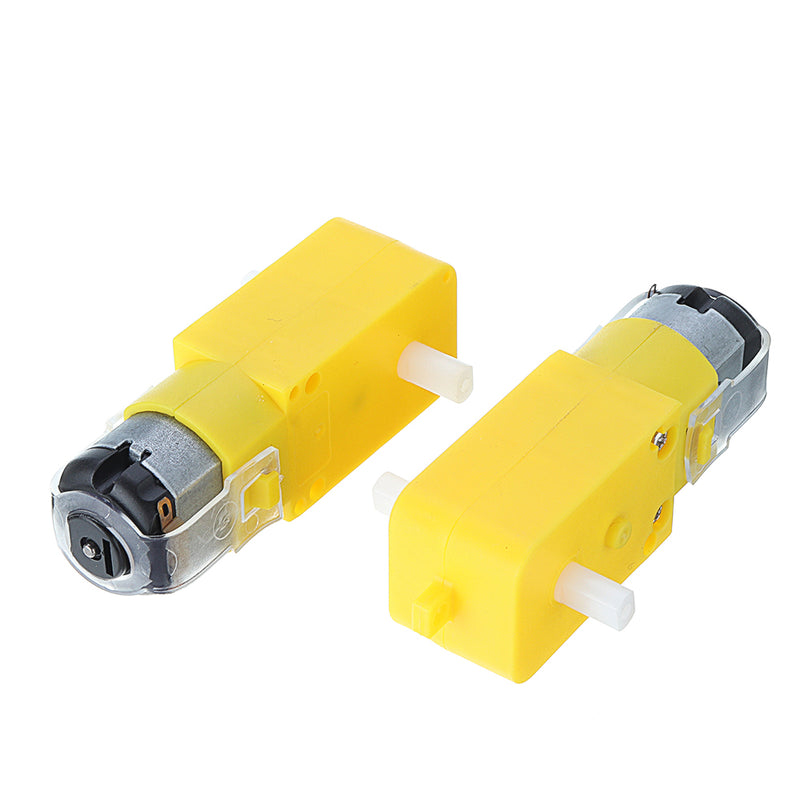

| Motor |
|
MG1 MG2 |
2 |
| Adjustable resistor |
10K |
R10 R13 R16 R19 |
4 |
| IC |
STC15W201S |
U1 |
1 |
| LM339 |
U2 |
1 |
| IC socket |
14p |
U2 |
1 |
| 16p |
U1 |
1 |

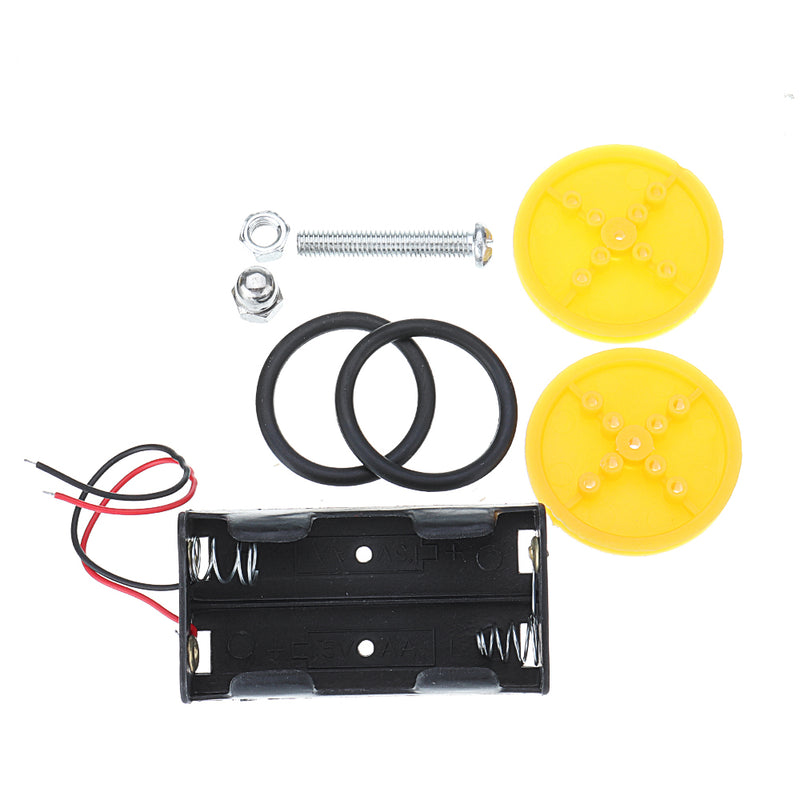

| Wheel |
|
|
2 |
| Tire |
|
|
2 |
| wheel screw |
M2.2*7 |
|
2 |
| Universal wheel screw |
M5*30 |
|
1 |
| Battery socket |
|
|
1 |

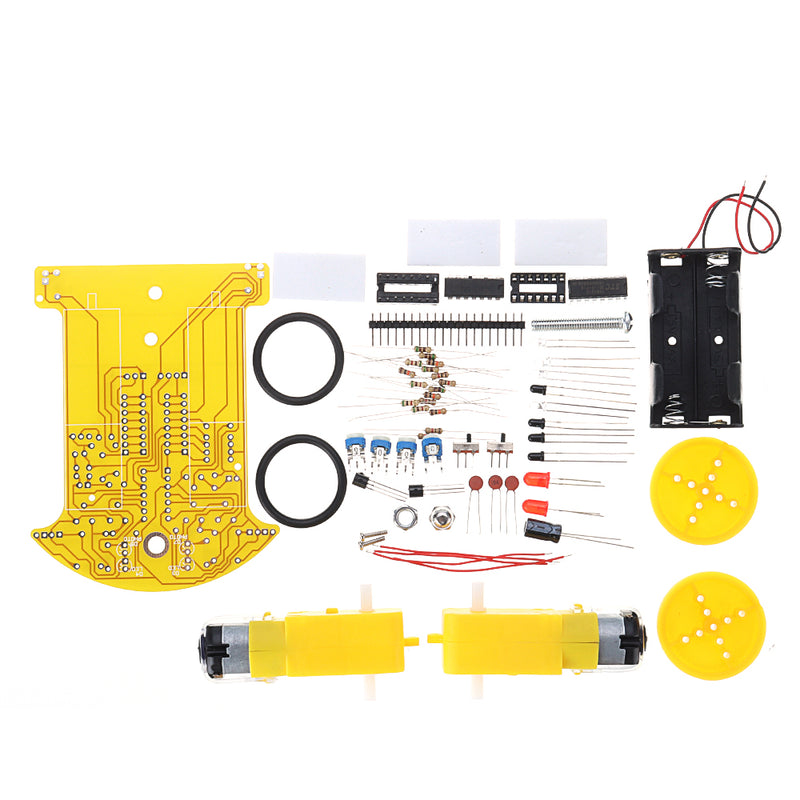

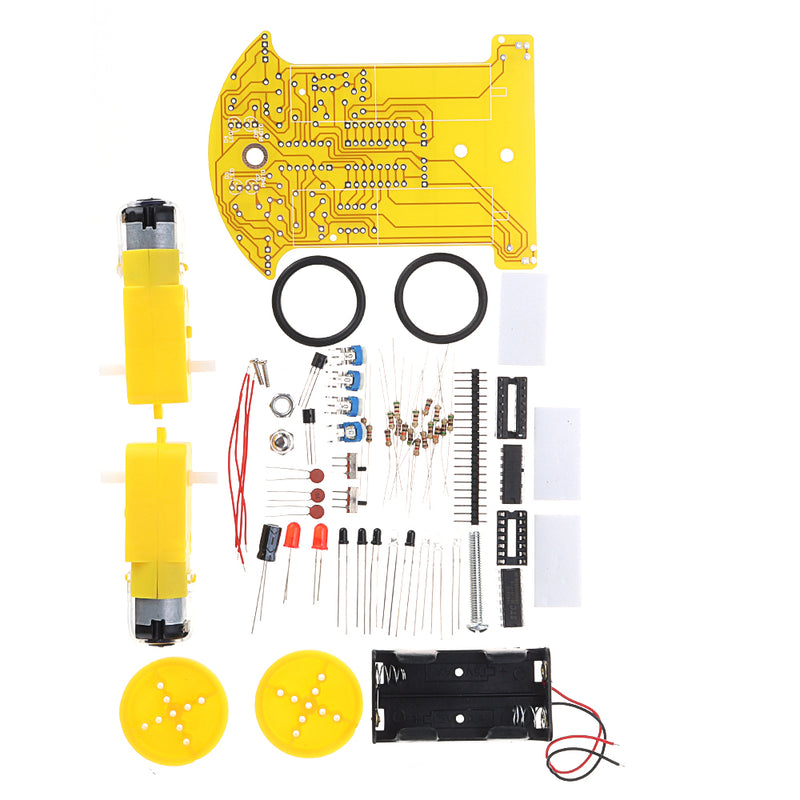

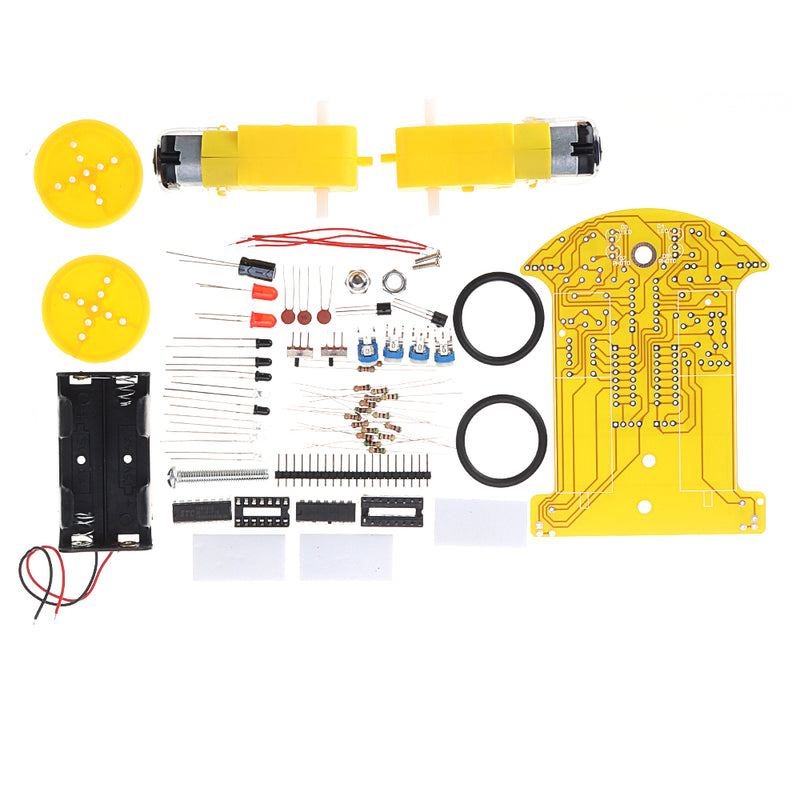

Package included:
1 x DIY D2-3 Intelligent Tracking Infrared Obstacle Avoidance Car Kit
