DIY M590E GSM GPRS Communication Module Kit Dual Band 900/1800MHZ 85.6 Kbit/s 900m-1800m For
Features:
1. This module is a standard AT instruction set
2. Support 900M-1800M, GSM frequency band
3. Can be connected: MCU for TTL
4. GPRS class 10: Max. 85.6 Kbit/s (DL)
5. Coding scheme CS1~CS4
6. Mobile station class B
7. CSD/USSD
8. SMS: TEXT/PDU
Specifications:
1. Dual-band: 900/1800 MHZ
2. GPRS multi-slot Class 10
3. Compliant to GSM phase 2/2+
4. Class 4(2 W)@900 MHz
5. Class 1(1 W)@1800 MHz
6. RX sensitivity: -107 dBm
7. 3GPP Release99 compliant
8. Control via AT commands: GSM 07.07, 07.05 and Neoway enhanced AT commands
9. 27.007, 27.005 and ITU-T V.25 ter
10. Integrated TCP client & server, UDP, FTP, DNS
11. CMUX 3GPP TS 27.010
12. Supply voltage: DC 5V
13. Current: 1A
Package included:

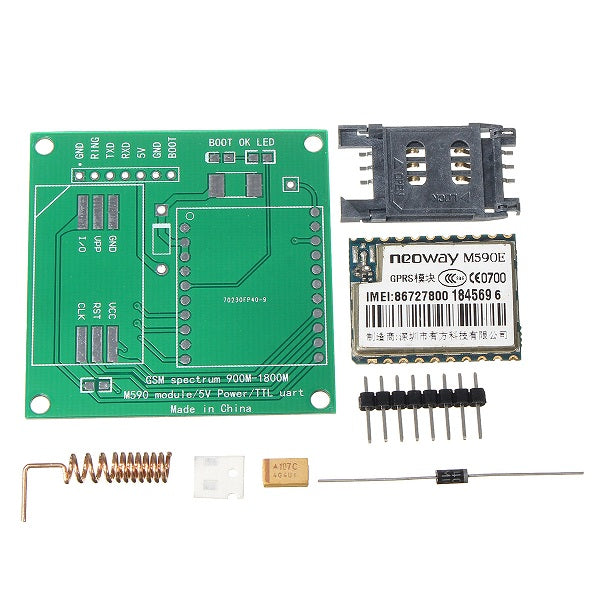

1 x DIY M590E GSM GPRS Communication Module Kit
,,,,,,
