Note: This is a DIY kit, you need to assemble it. No install instruction supply.
Feature:
On the basis of the ordinary tesla, added a music playback function: A new concept loudspeaker for generating acoustic vibrations of air generated by an arc excited air! Can play mobile / computer music, the sound quality is clear.

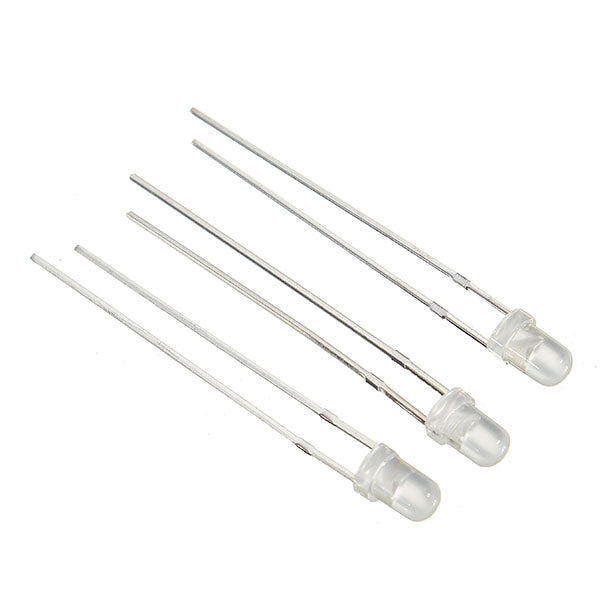

Voltage input 15-24V DC, when arc length 24V, 5 - 10 mm meters is the most ideal, small size, can work uninterruptedly for a long time, but also can light up the LED from a distance, foam energy-saving lamp, flash tube, can play radio transmission, rotating arc etc..
Circuit parameters:
Model: Mini Music Tesla
Operating voltage: DC 15-24V, current 2A
Power: about 15W

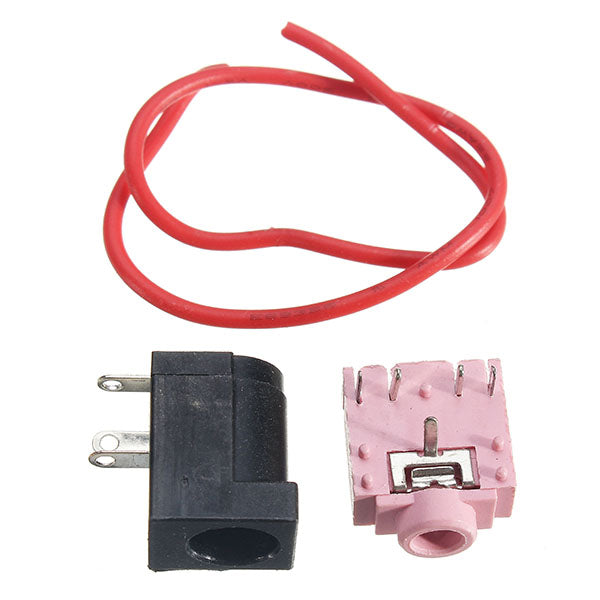

Power supply interface: DC5.5 * 2.1 compatible 2.5
Audio interface: 3.5 jack, you can connect the phone, mp3, computer audio source.
(the computer audio interface is 3.5, the audio line uses 3.5 to 3.5 audio lines, the mobile phone and the MP3 interface are different, please use the corresponding audio line to turn 3.5)

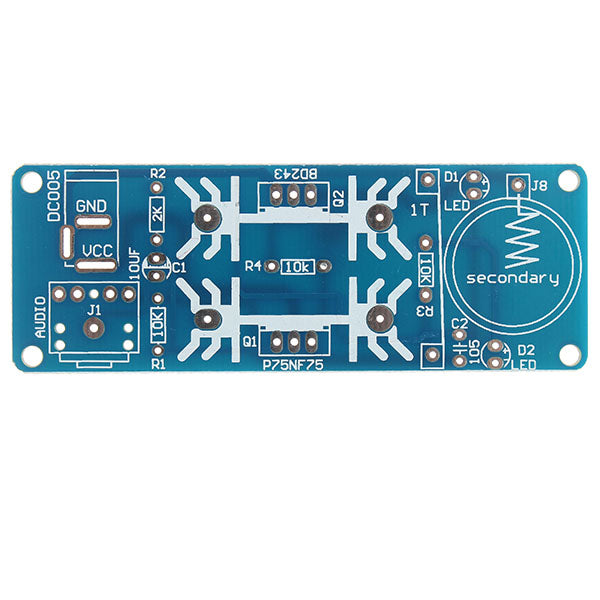

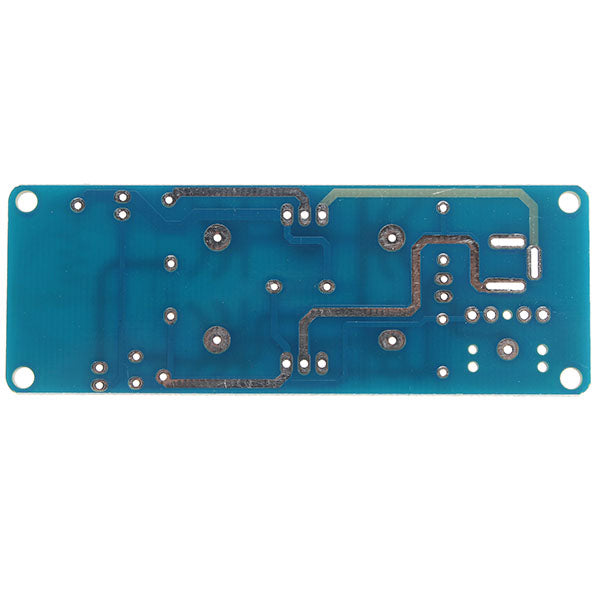

Board size: 8.5cm x 3.1cm
Package weight: about 56g

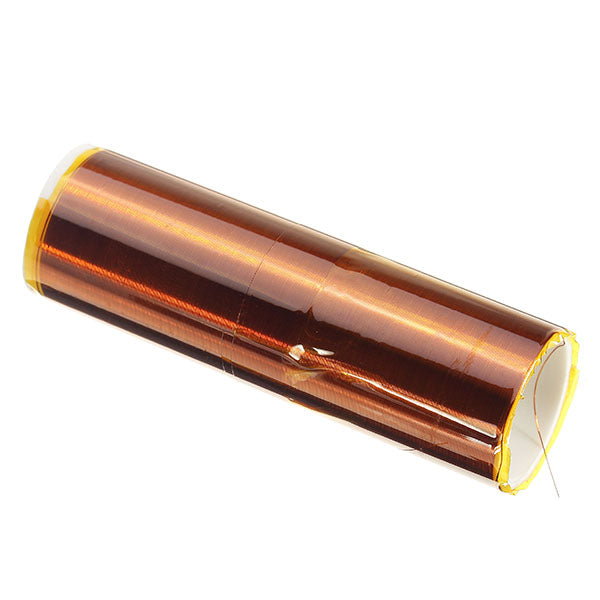

Coil size: diameter 2.05cm, height 6.8cm
Wire lap: 350 laps, coil diameter 0.15 enameled wire

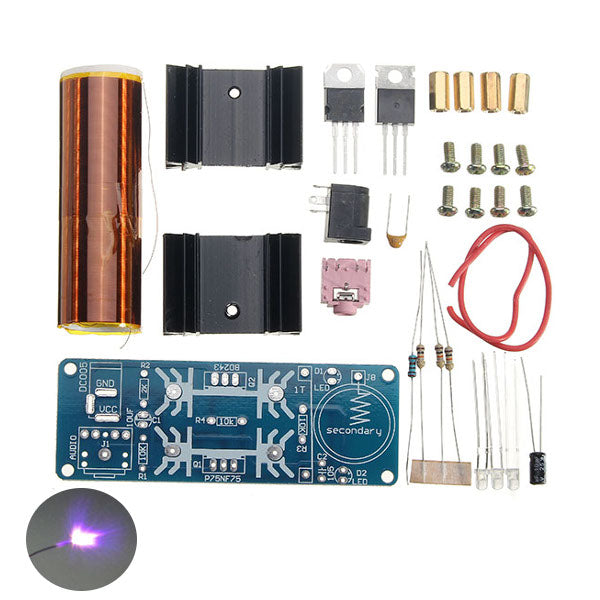

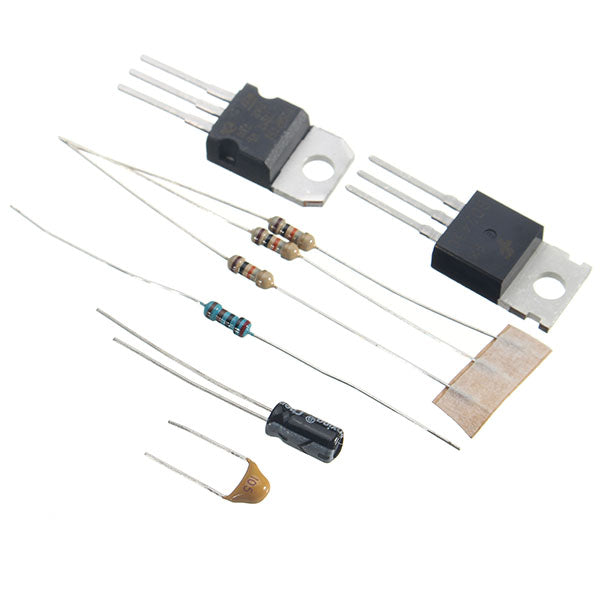

Package includes:
1 x Mini Music Tesla
