Description:
Kit Name: Infrared Remote Control Car Kit
Dimensions: 106*80mm
Board material: single side 1.6mm FR-4 sheet
Supply voltage: 5V
Number of LEDs: 3 5mm Red LEDs
1. Printed on the PCB with various components silk screen marks, please refer to the silk screen mark soldering
2. The resistance is not divided, but there are different resistance values. Please pay attention to distinguish when soldering
3. Electrolytic capacitor, LED is divided into positive and negative poles, long legs are +, short legs are -
4. When connecting the power cord to the terminal block, pay attention to distinguish between positive and negative poles, do not reverse.
Package included:2 x 10 ohm resistor(R3,R4)
2 x 51 ohm resistor(R5,R6)
1 x 200 ohm resistor
2 x 3.3k ohm resistor(R1,R2)
1 x 10k ohm resistor
2 x 9012 transistor(Q1,Q2)
3 x 5mm Red LED(D1-D3)
1 x 470uf/25V capacitor
1 x IC STC15F104W
1 x 8P IC socket

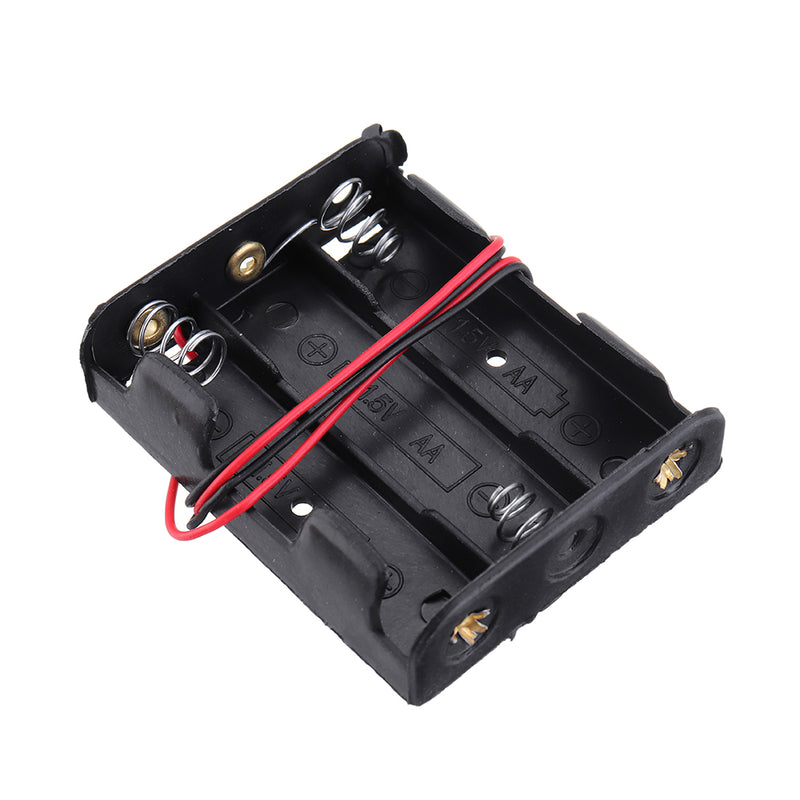

1 x battery socket
1 x Double-sided tape
1 x M5*30 screw

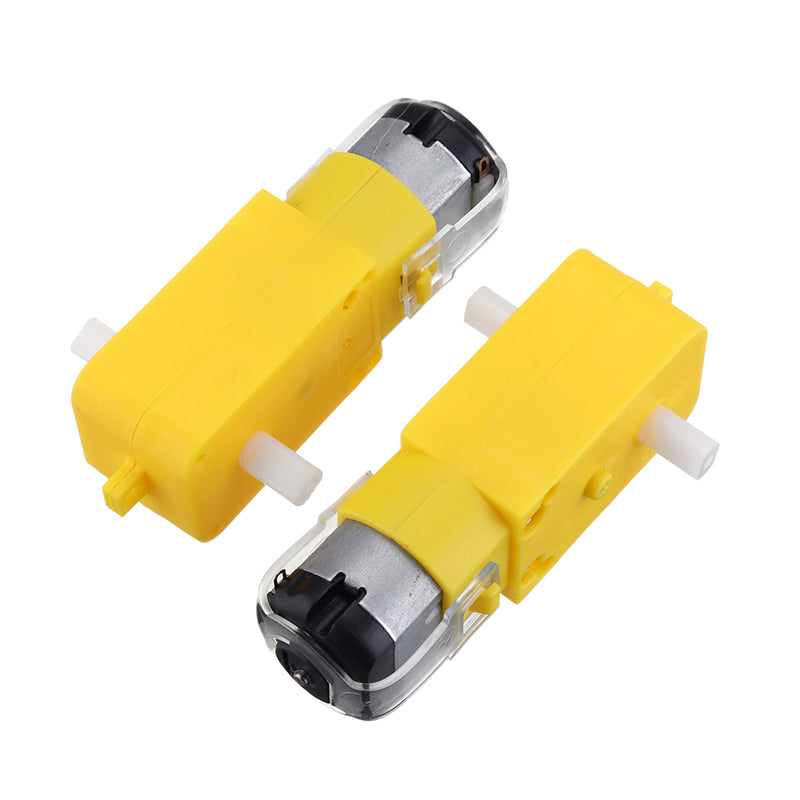

2 x motor

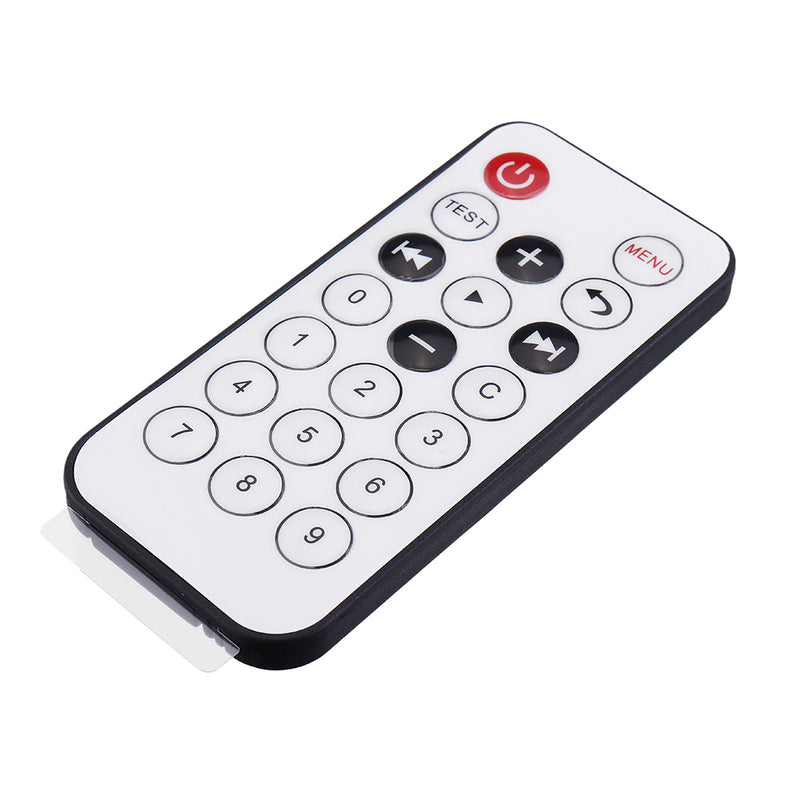

1 x remote control
1 x receiver
1 x button switch
1 x M5 Hex Nut
1 x M5 Cap Nut
2 x M2*10 screw

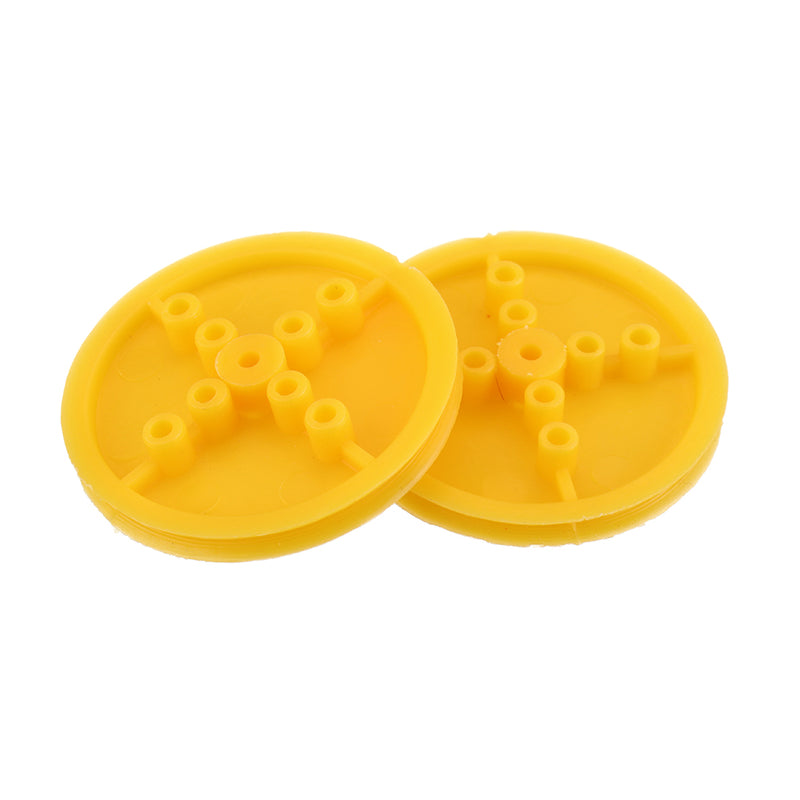

2 x wheel

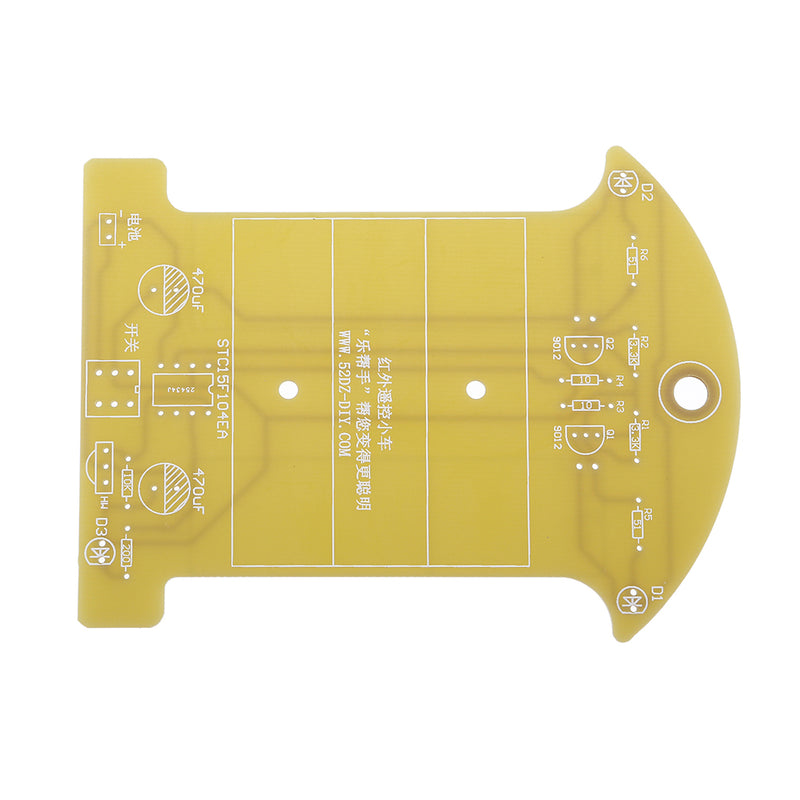

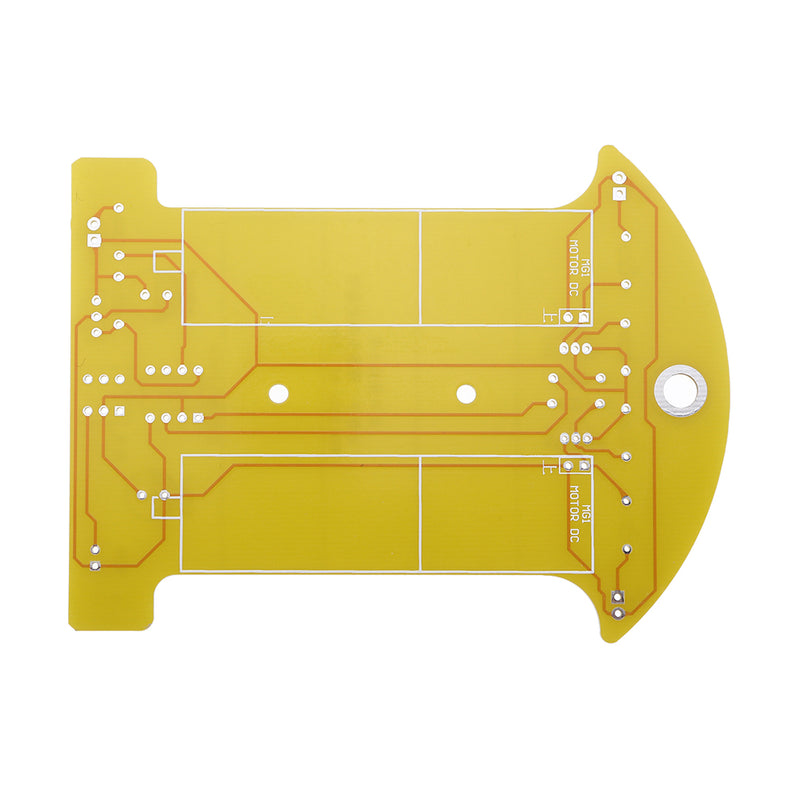

1 x PCB board
