DIY WIFI APP 8x8x8 3D Light Cube Kit Red Blue Green LED MP3 Music Spectrum Electronic Kit No Housing
Save 0
SKU: U2I-BG-1247760
Share this product
Description
Note:
1. This product does not include housing!! if you need the housing, please purchased separately (Product ID: 1247731). 2. This is a DIY kit, you need to have some knowledge of electronics and ability. 3. Need a lot of soldering, you should have enough patience. 4. 8x8x8 Red, Blue and Green three kinds of lights display version, not RGB LEDs, not single color display, please note!! 5. APP function only supports Android 6. File: Click here to open
Feature:

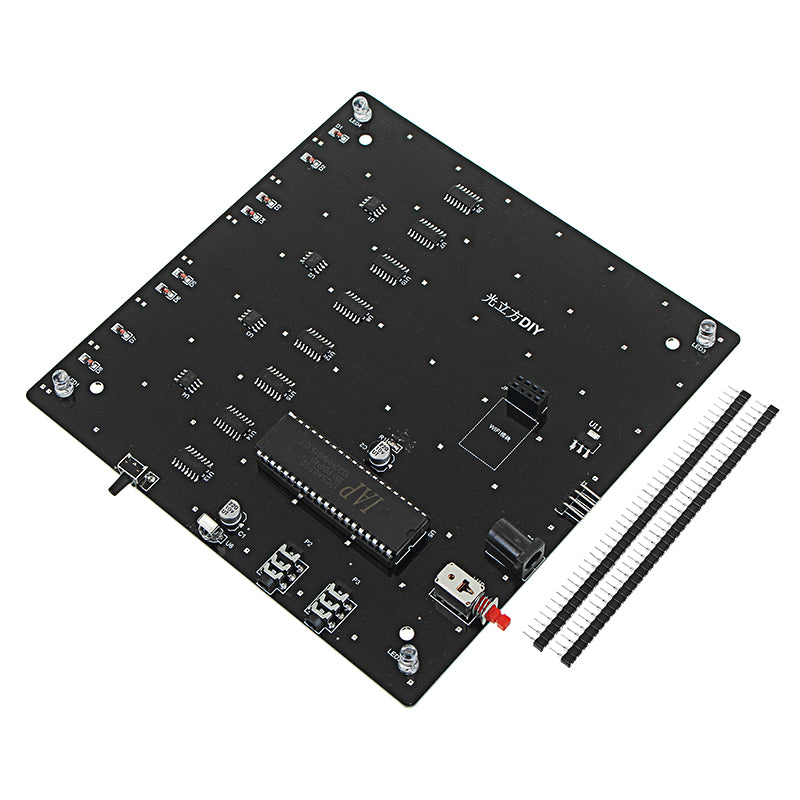

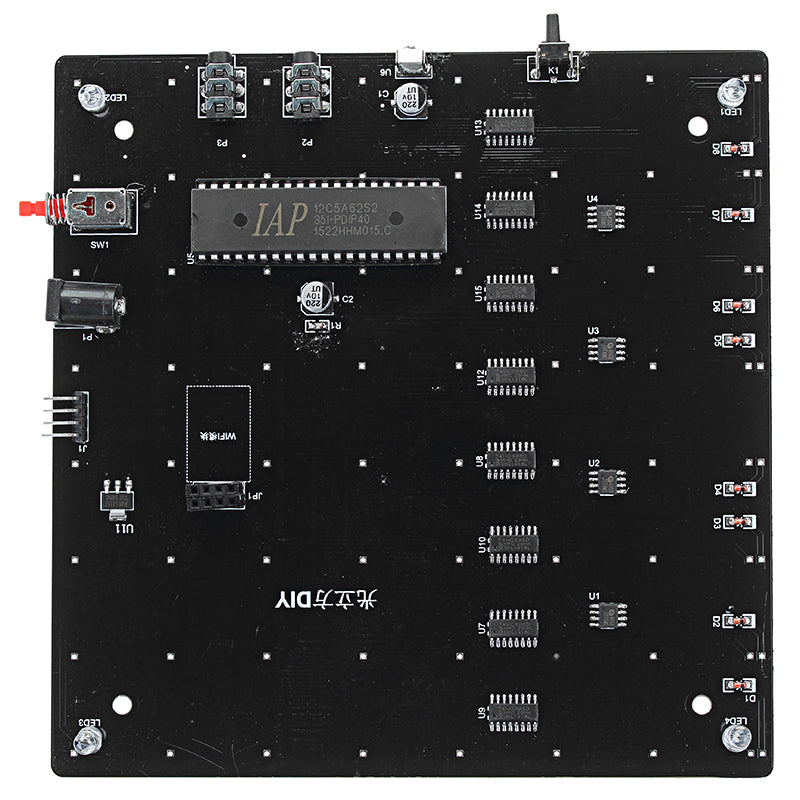

The backplane consists of a circuit board and component parts, which require their own soldering.

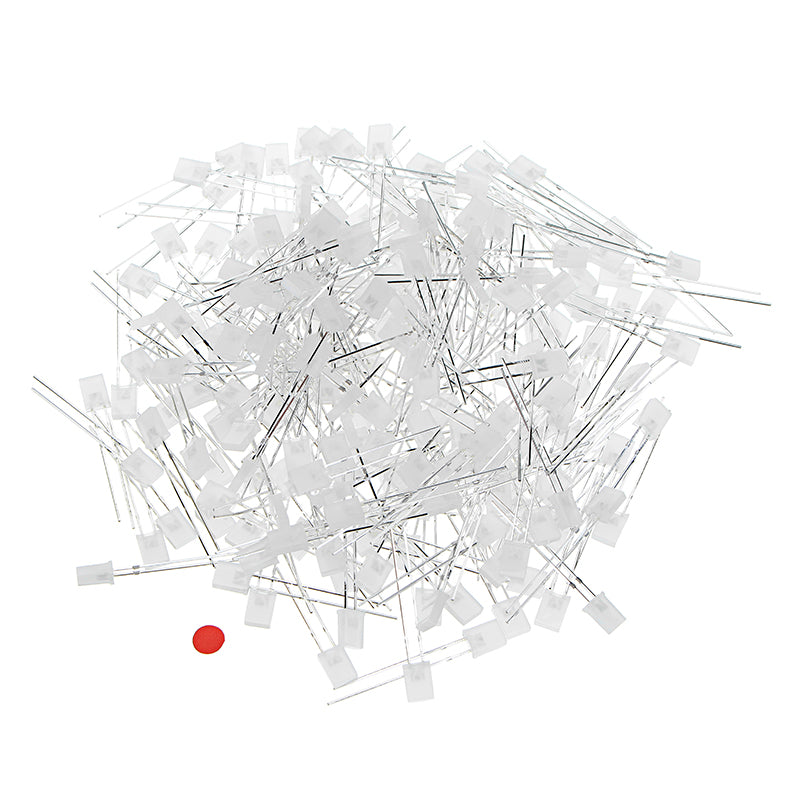

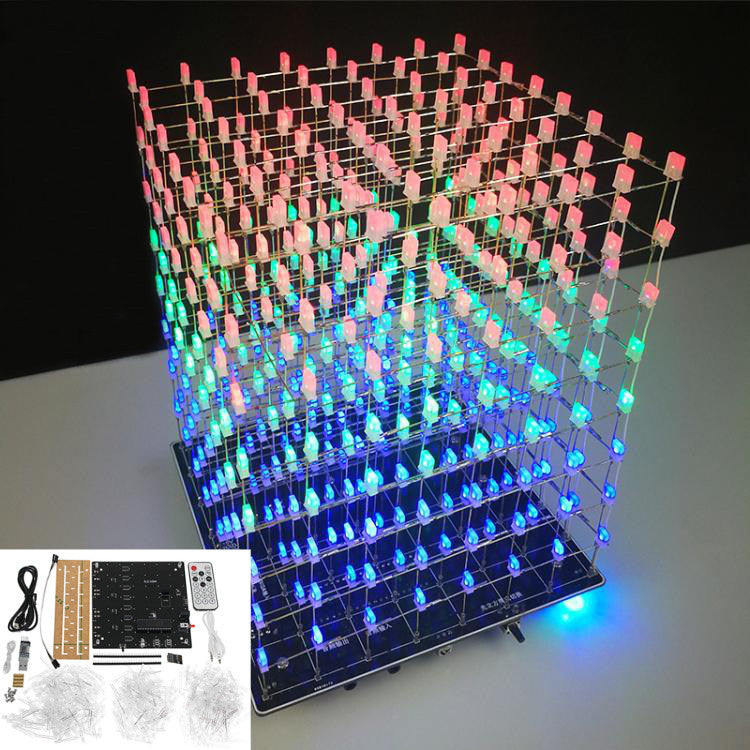

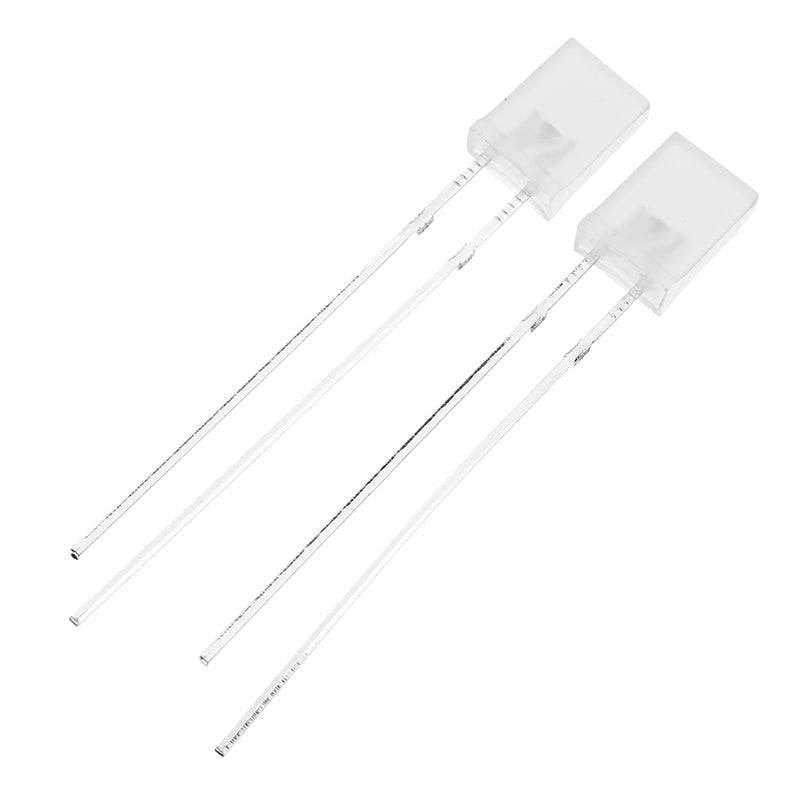

512 pcs RGB LED lights form a square three-dimensional space.

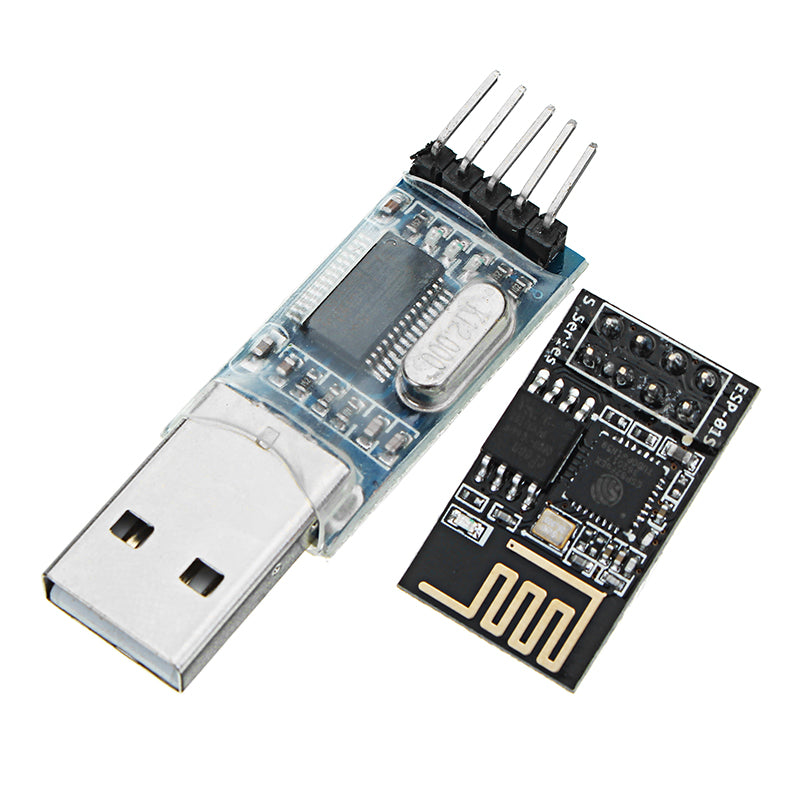

With expanding wifi module, cell phone wireless connection the cube, exclusive APP control operation. (Viewing better at night).
Specification:
Input voltage: 5V
Current: 1A-2A (2A effect is better because of the LED driver chip APM4953)
Power: 5V phone charger power supply

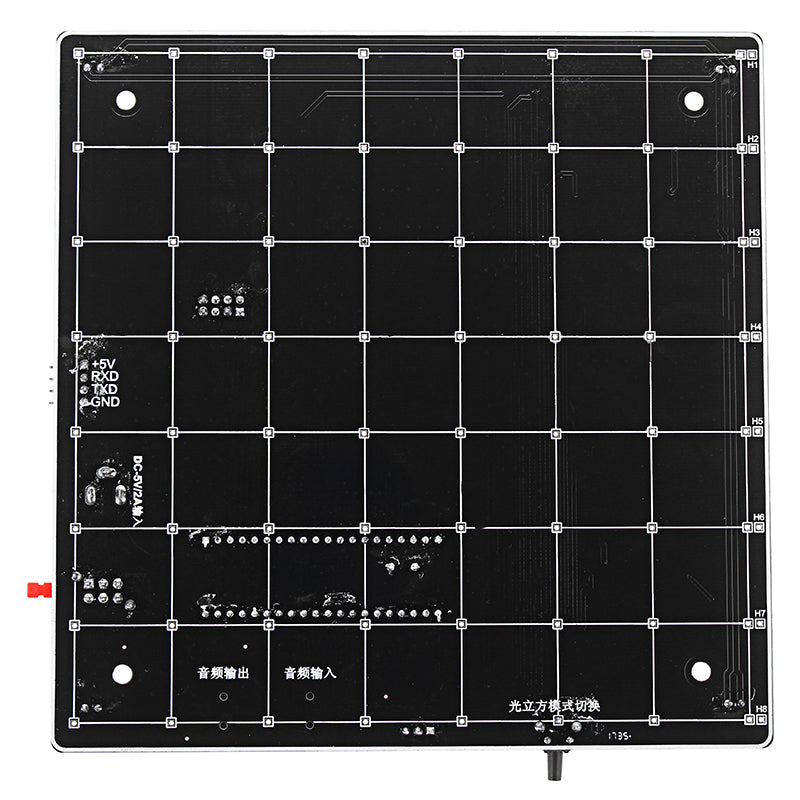

Circuit board material 1.6 mm RF-4 plate
PCB board size: 150 x 150mm
APP version functions: (support for Android only)
1. Through the audio cable input and output music.
2. Built-in 45 kinds of offline cool animation (power to run the animation)
3. Built-in 15 kinds of offline dynamic audio animation (with music dancing)
4. 3 D8 PC mode (control animation, which can control lights display)
5. 3 D8 PC music mode

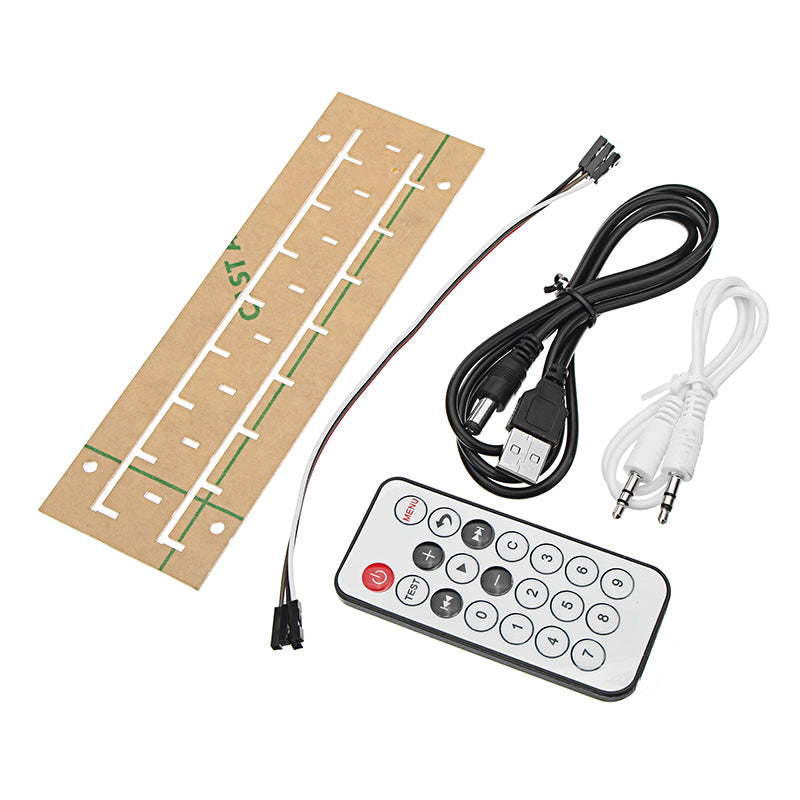

6. Infrared remote control (long distance remote control)
7. PWM breathing light mode
8. Boot motherboard test mode
9. 15 level animation speed adjustment
10. Brightness adjustment of 10 level
11. Change word by the phone (32 patterns, 45 letters)
12. Mobile PC
After the phone connected to the product wifi, you can use the exclusive APP (light cube APP) software to operate. The wifi module has been carefully PCB design and debugging, straight line transmission distance up to 10-20 meters.
