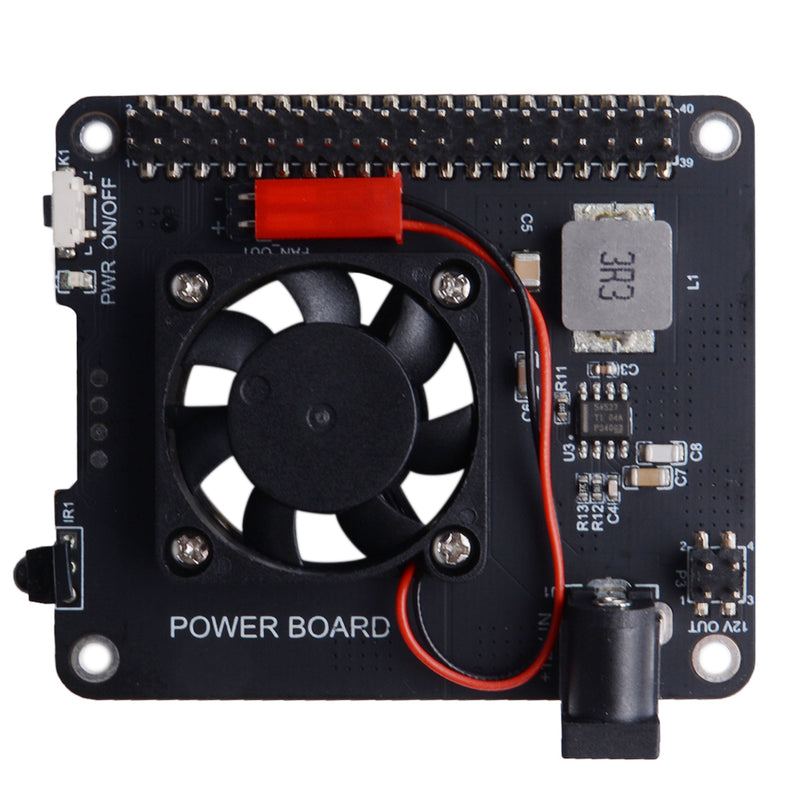

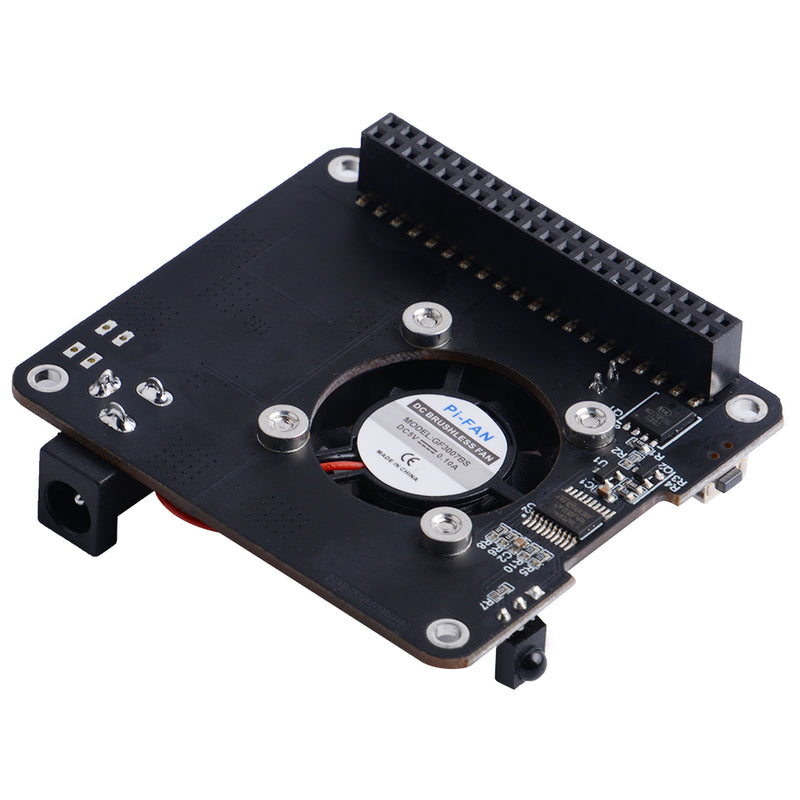

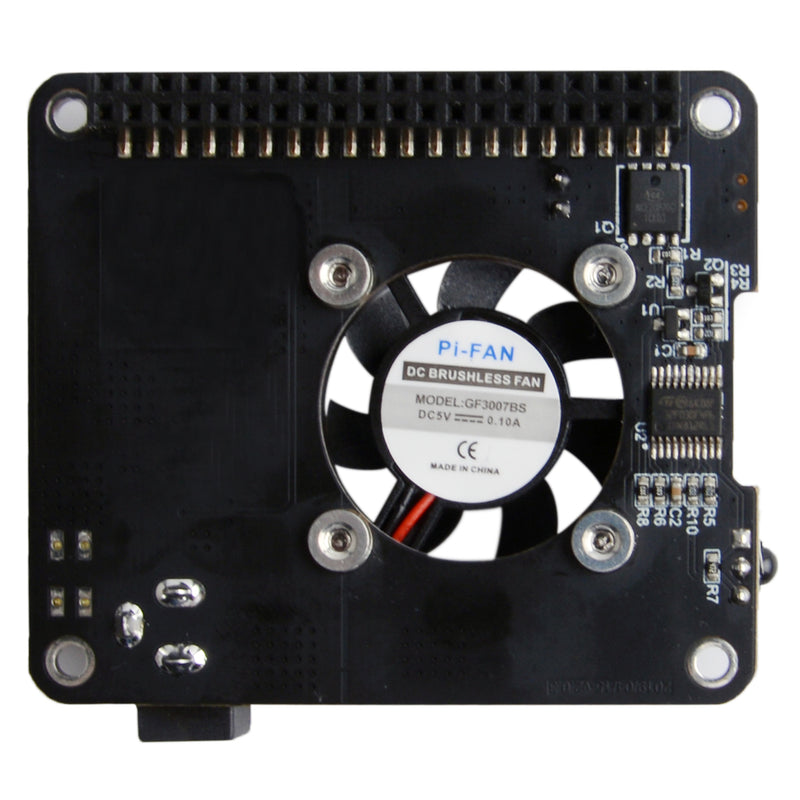

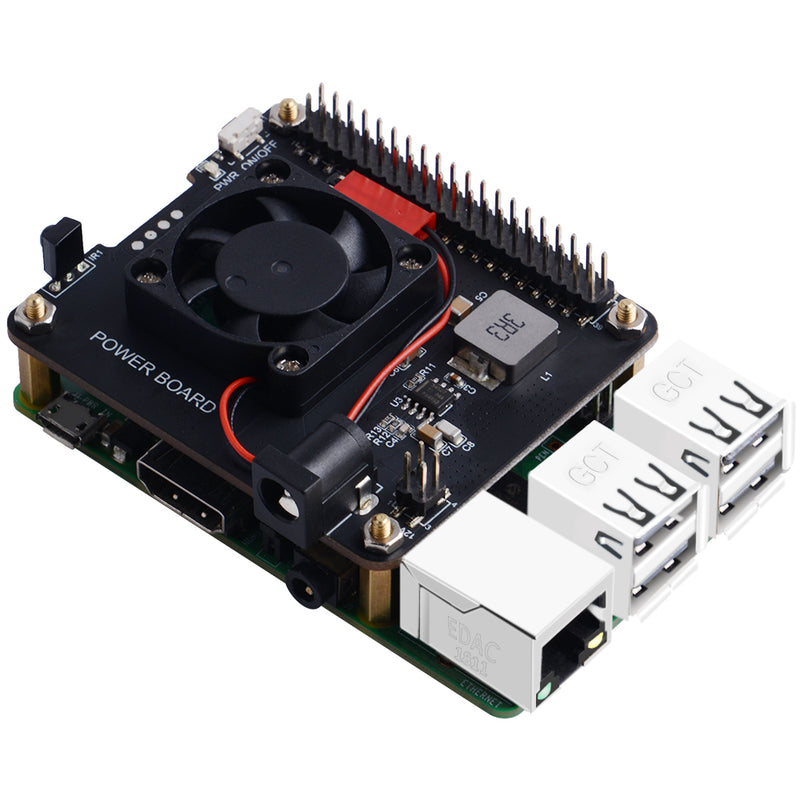

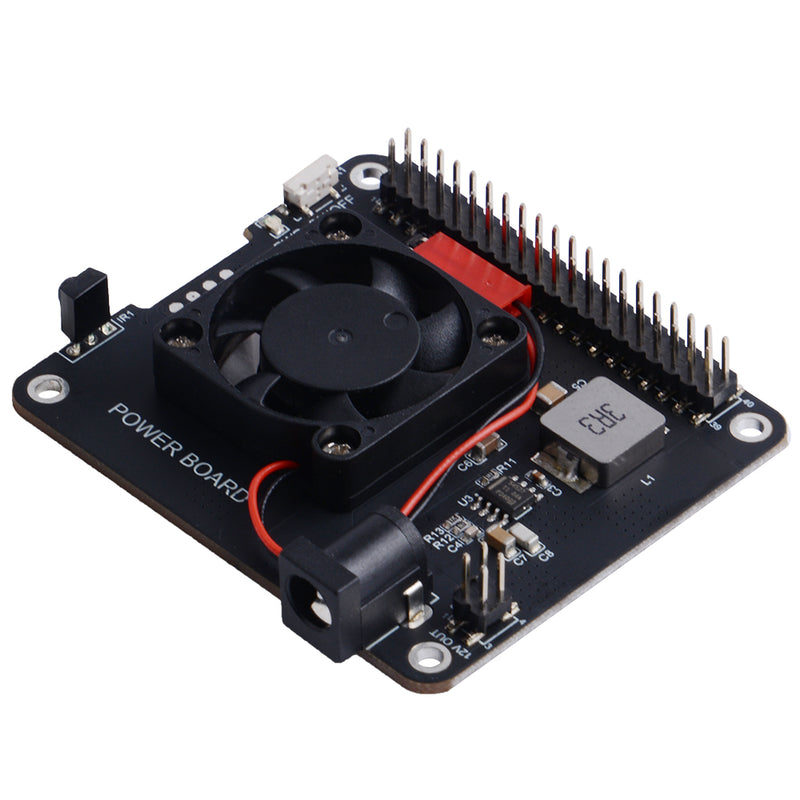

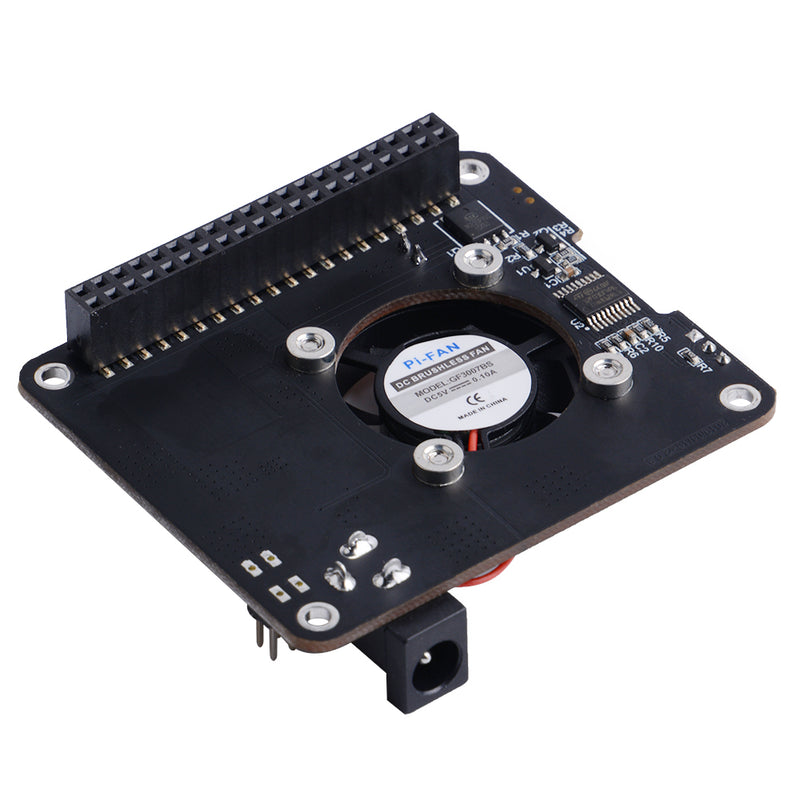

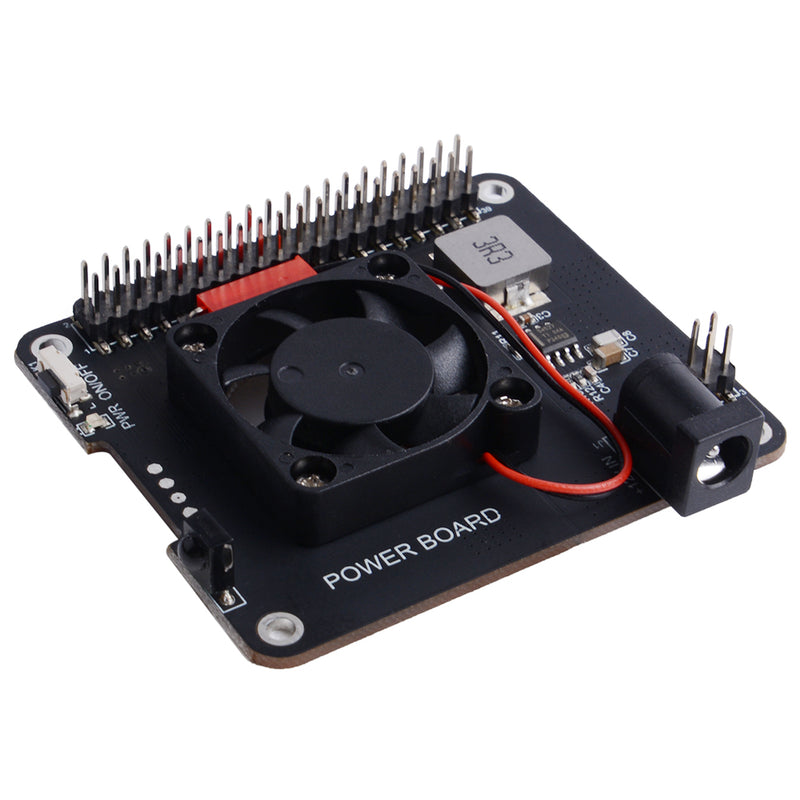

DockerPi Power Board Expansion Board With Cooling Fan For Raspberry Pi 4B/3B/3B+ / Banana Pi / Orange Pi
Save 0
SKU: U2I-BG-1532749
Share this product
Description
Description:
- DockerPi PowerBoard is used to power the Raspberry Pi (or similar SBC) with a typical power of up to 20W (5V/4A) and can run up to 25W (5V/5A) with good heat dissipation. - DockerPi PowerBoard also provides power to other DockerPi modules to protect the security of the power supply. It also provides a safe shutdown function, supports IR remote control switch, button control switch (Requires Driver,One-Step Automated Install). - DockerPi PowerBoard has fan cooling, and we recommend that you install the DockerPi PowerBoard on the bottom of the other DockerPi. - DockerPi PowerBoard recommends 12V 2A or above power input and 12V power from 4-pin headers to other DockerPi. (If other modules require 12V power) - Note: 1. DockerPi PowerBoard does not support hot plug. 2. The RPI mainboard is not included.
Features:
- DockerPi Series - SMPS - 12V Input - Typical output:20W(5V/4A) - Absolute output:25W(5V/5A) - 3CM Quiet Fan - Remote Control Safe Power(Require Driver) - Button Control Safe Power(Require Driver) - Recommended to be stacked at the bottom - Can Stack with other Stack board - Independent of the mainboard hardware (but Safe Power must develop by yourself)
