Features:
1.Automatic conversion of refrigeration and heating mode
2.Control mode of return difference;Temperature display resolution 0.1
3.The temperature controller has the characteristic of high accuracy, high sensitivity, high stability.
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc
Specifications:
Display Type: Digital
Style: Standing Station
Temperature sensor: NTC 10K
Sensor length: 1.0m
Temperature measuring range: -55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy: ±1° C
Power supply: 12V DC
Power consumption: <3W
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% (No condensate)

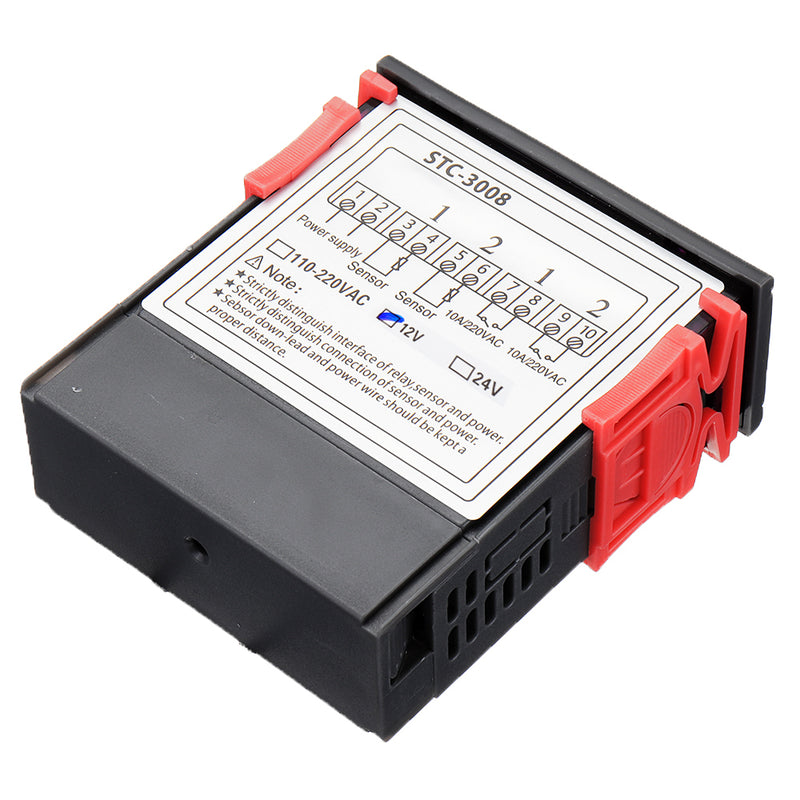

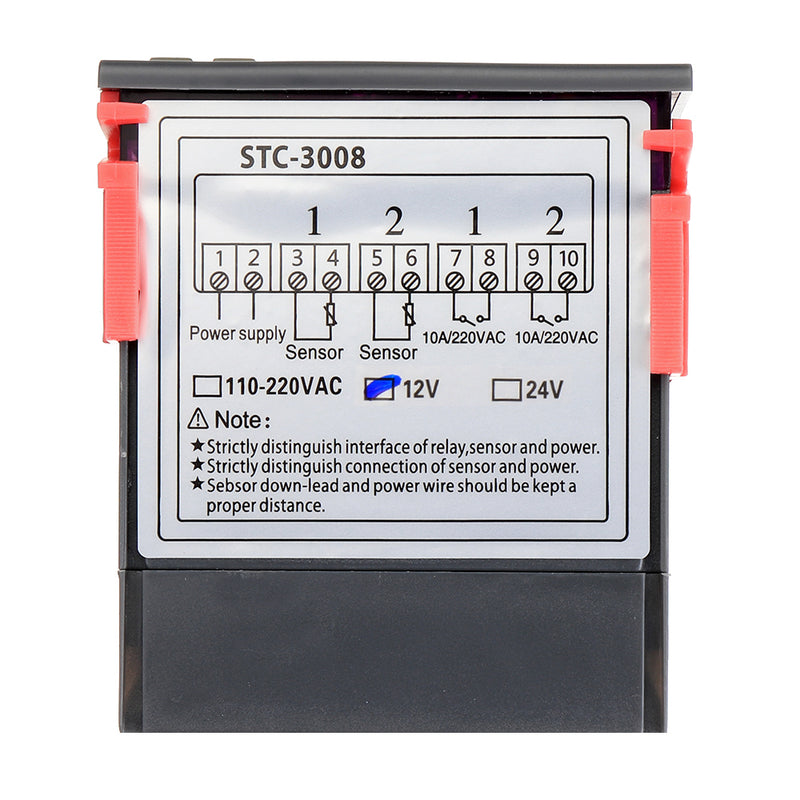

Relay contact capacity: Two Relay Cool 10A/240VAC; Heat 10A/240VAC
|
|
|
Default |
P0 |
①: Delay start |
0-60 minutes |
0 |
P1 |
②: Delay start |
0-60 minutes |
0 |
P2 |
High temperature alarm |
P3~120°C |
120°C |
P3 |
Low temperature alarm |
P2~-55°C |
-55°C |

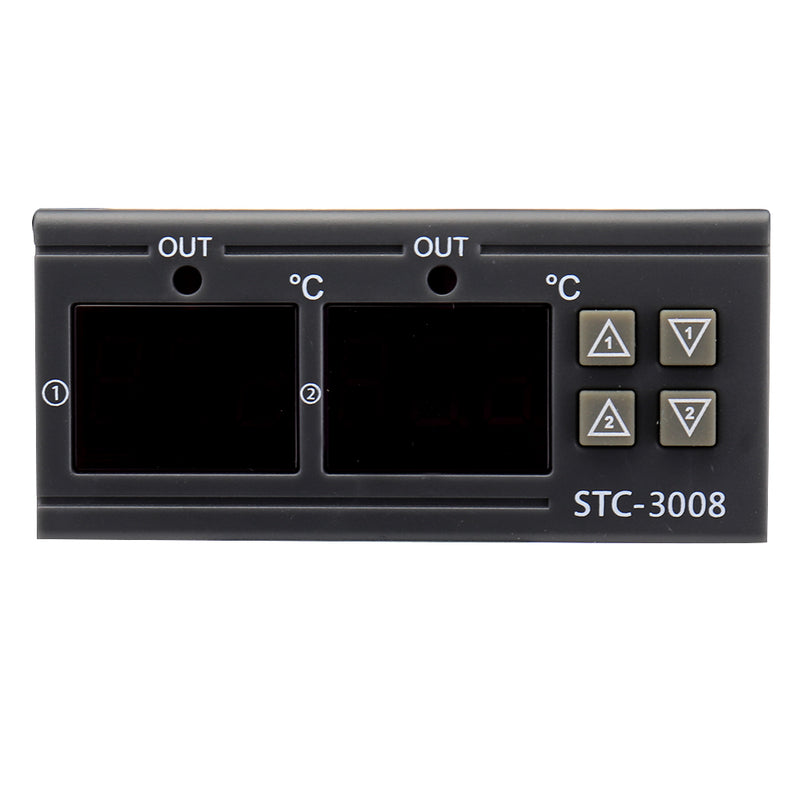

Long press UP 1 button for 3 seconds, ① display flashes, press UP or DOWN button to set the start temperature(25°C default)
Long press DOWN 1 button for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)
Long press UP 2 button for 3 seconds, ② display flashes, press UP or DOWN button to set the start temperature(25°C default)
Long press DOWN 2 button for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)
Long press DOWN 1 and DOWN 2 button for 3 seconds to reset the controllers.
Heating Mode--Start temperature
Cooling Mode--Start temperature>Stop temperaturePackage included:

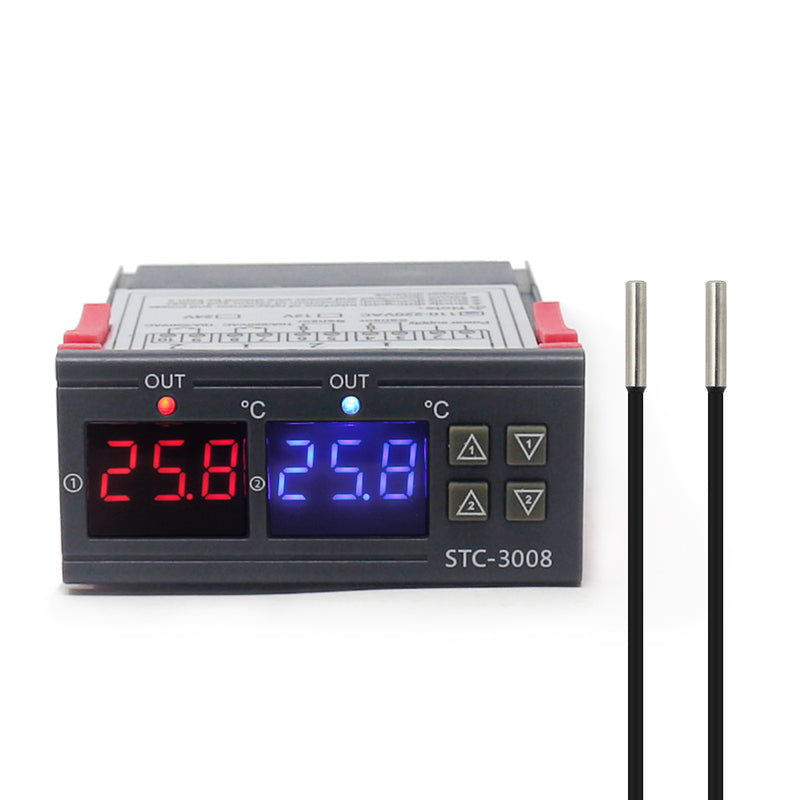

1 x Temperature Controller

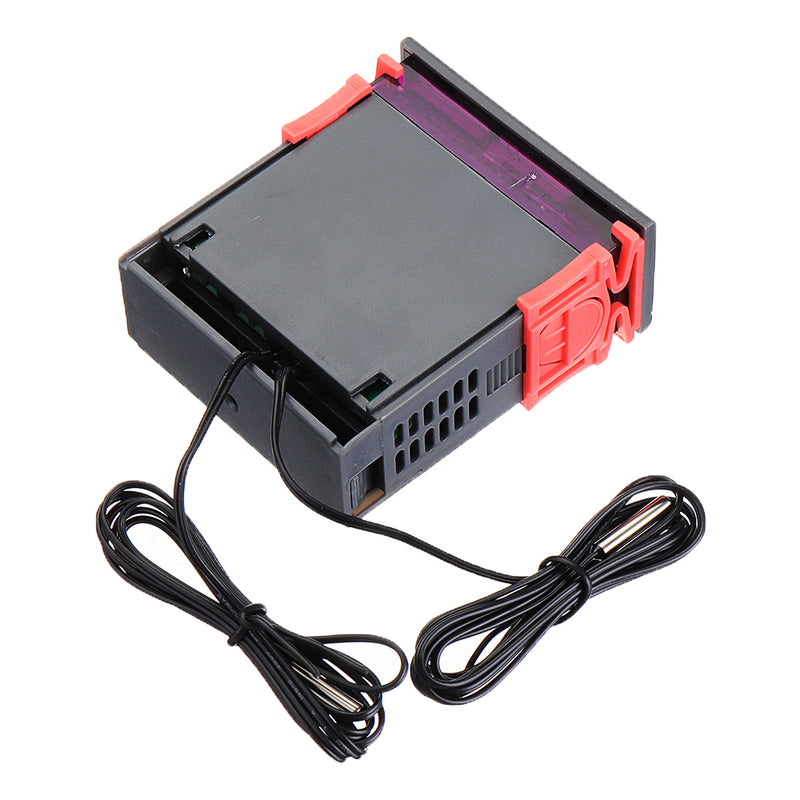

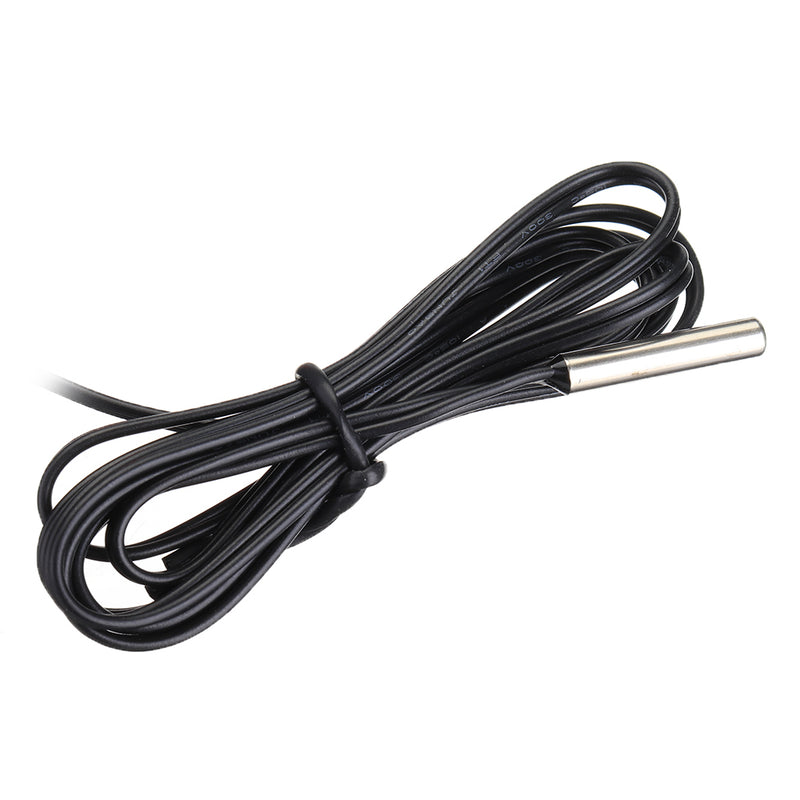

2 x Waterproof Sensor
