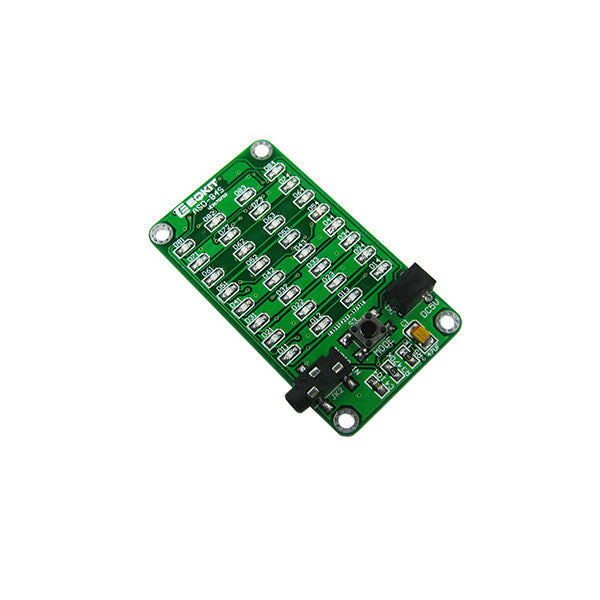

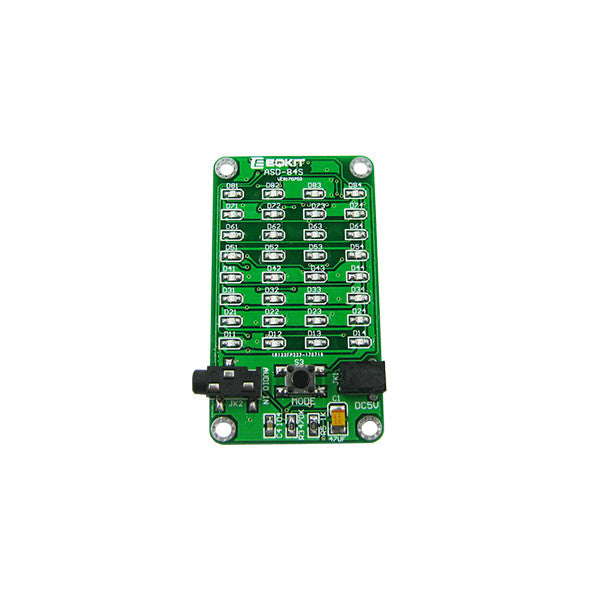

Model: ASD-84S
Working voltage: DC5V
Standby current: ≤ 5mA
Working current: ≤35mA

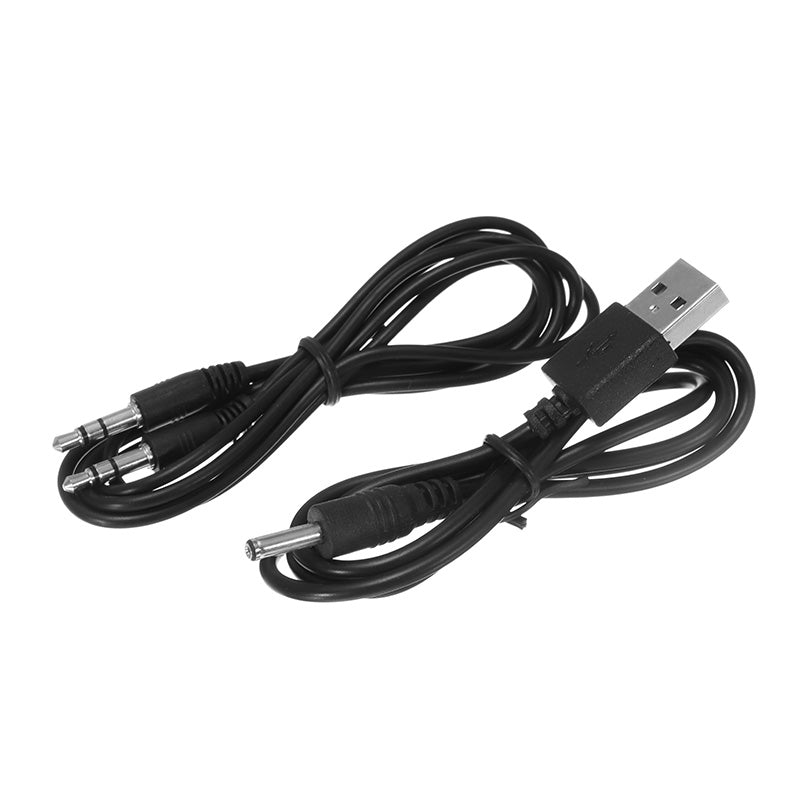

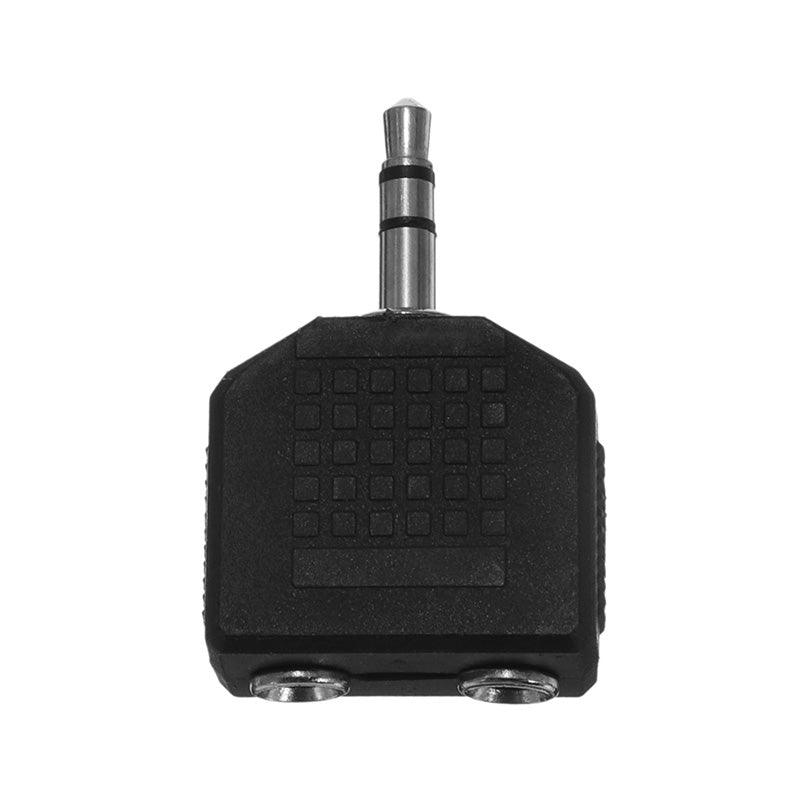

Signal input method: 3.5mm audio cable

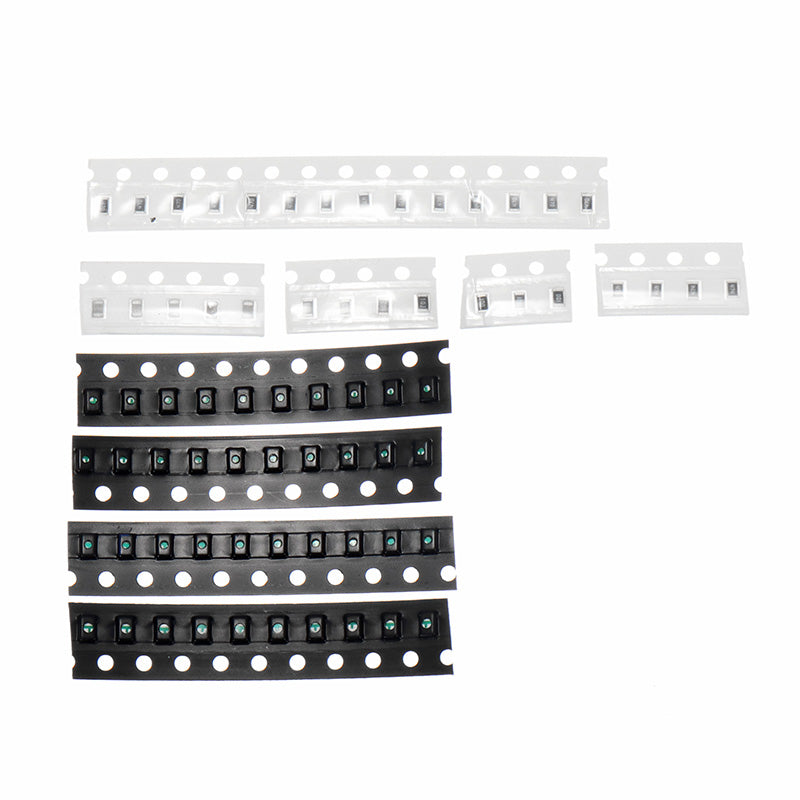

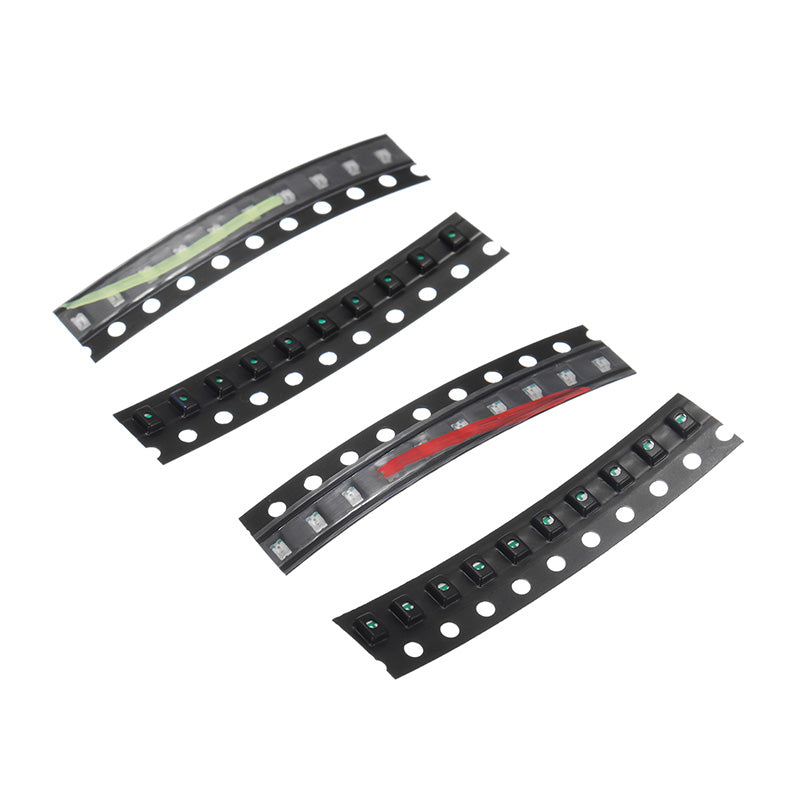

LED color: 0805 red, green, blue, yellow

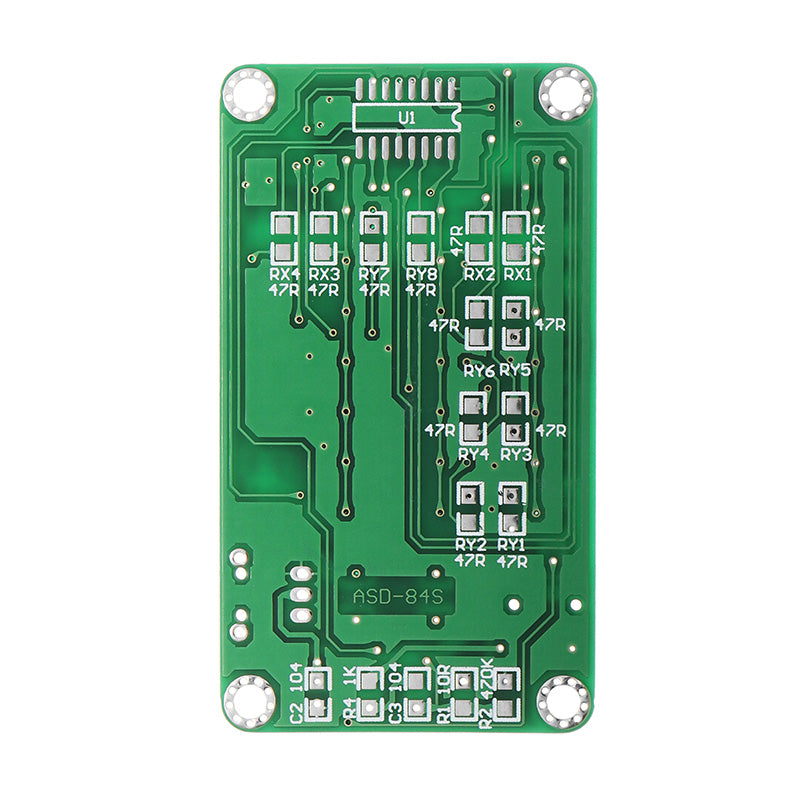

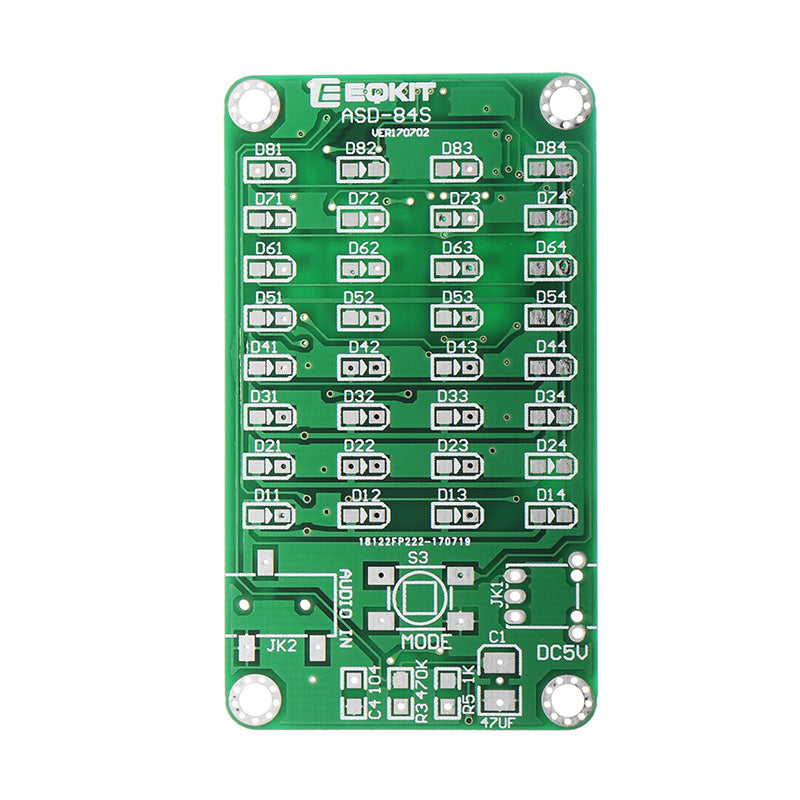

PCB size: 64.2mm x 36.5mm
PCB mounting hole: 3mm
PCB mounting hole spacing: 58.1 x 30.5mm
Note: When installing the LED, please keep the same line in the same color.
| Button method |
Operating mode |
Screen display |
Function setting Description |
Default setting |
| Short press |
Fast flash mode |
3 |
Display refresh very fast, very dynamic |
2 |
| Medium speed mode |
2 |
Display refresh is relatively fast, strong sense of rhythm |
| Low speed mode |
1 |
Display refresh rate is relatively slow, the visual feel good |
| Long press |
High sensitivity |
H |
Able to detect weaker signals |
B |
| Medium sensitivity |
B |
Able adapt to most signals |
| Low sensitivity |
L |
Can filter weak interference signal |
| Note: Hold on the MODE button, and then turn on the power to enter the test mode, test mode can detect each LED is good or bad. |
Package includes:

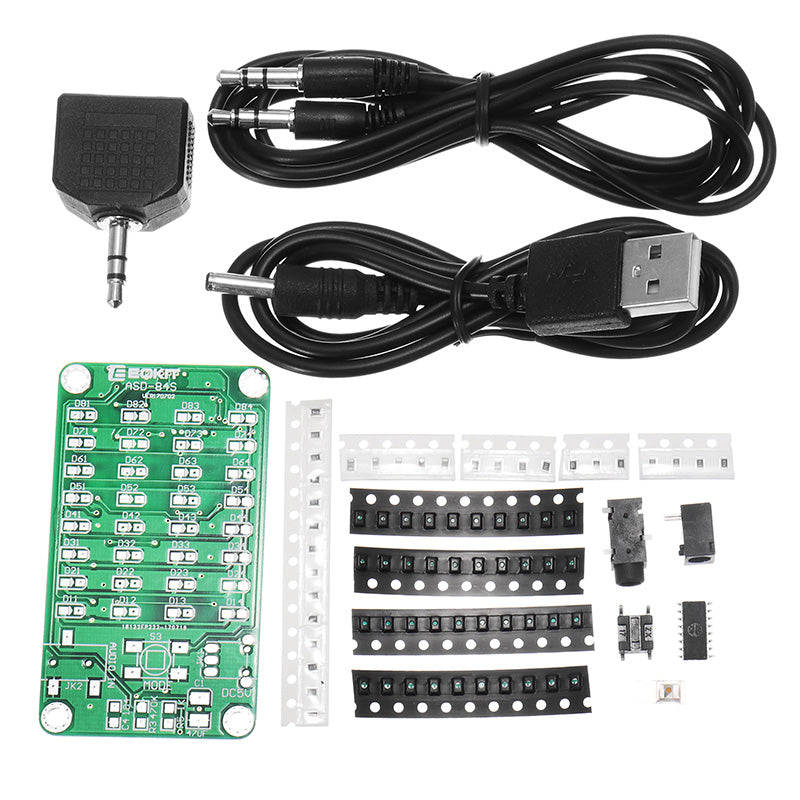

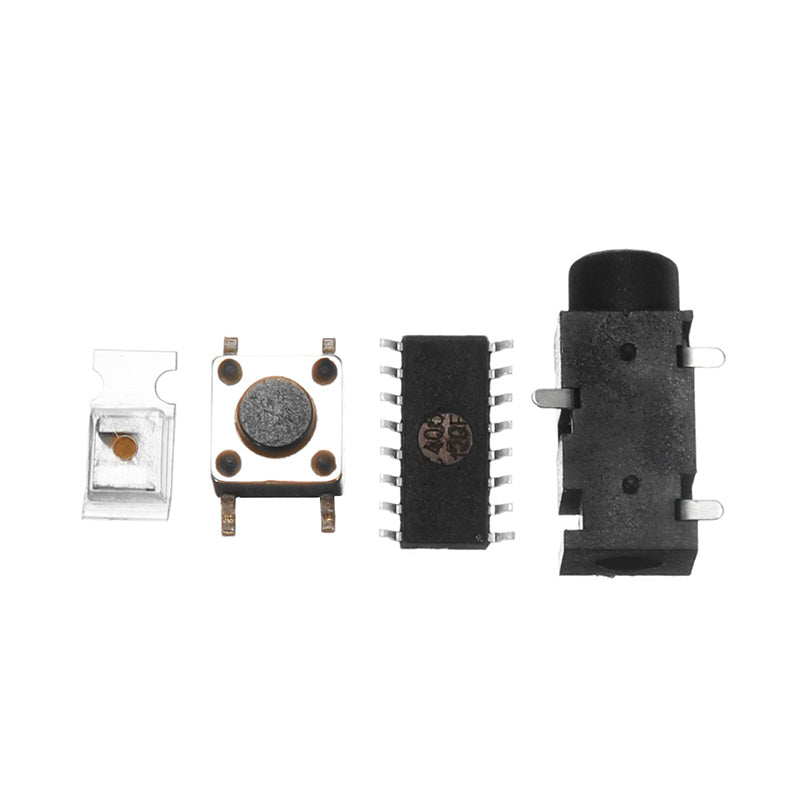

1 x 8*4 Level Indicator Kit
