Model: AUL-10
Supply voltage: DC9V-12V
Audio input:0~1.5Vrms

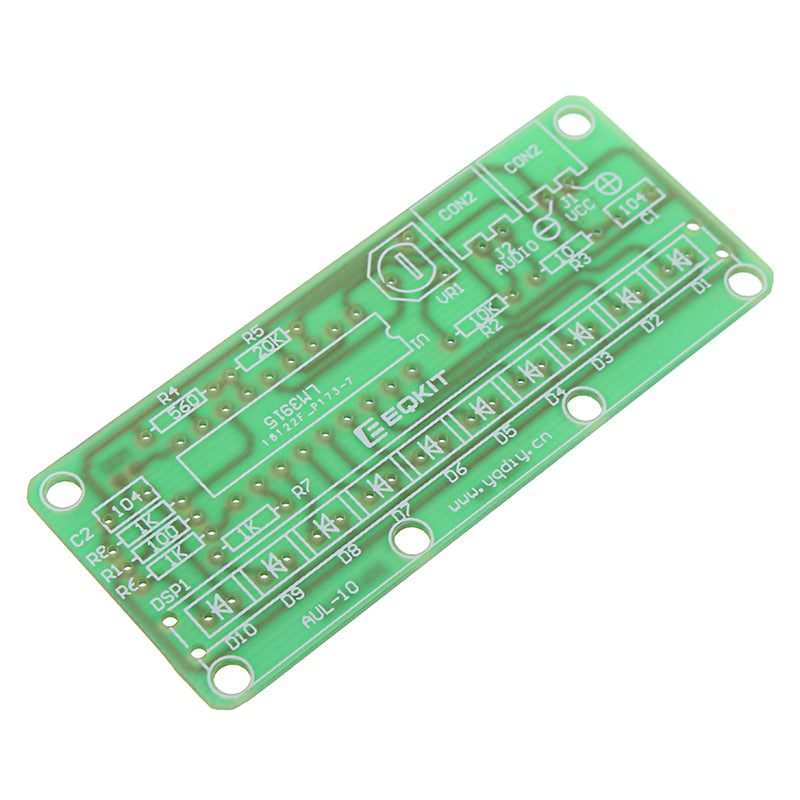

PCB size: 66 x 28mm (L x W)

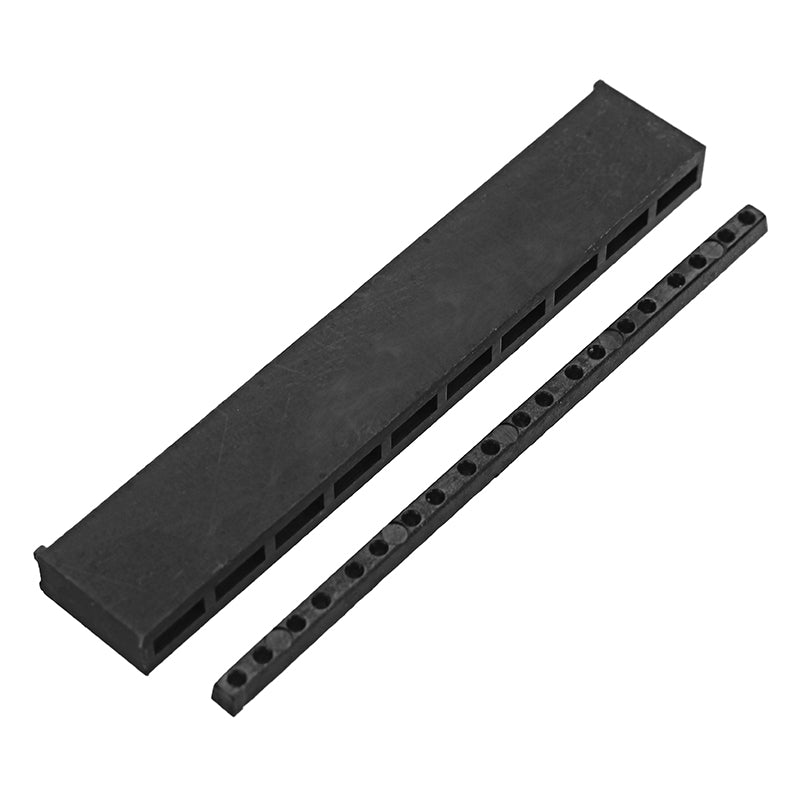

Light row size: 62.5 x 5 x 10.7mm (L x W x H)
Two indication modes: bar indication and fire spot indication (Realized by MOD short-circuit point)
Lamp row offers two kinds of vertical and horizontal installation

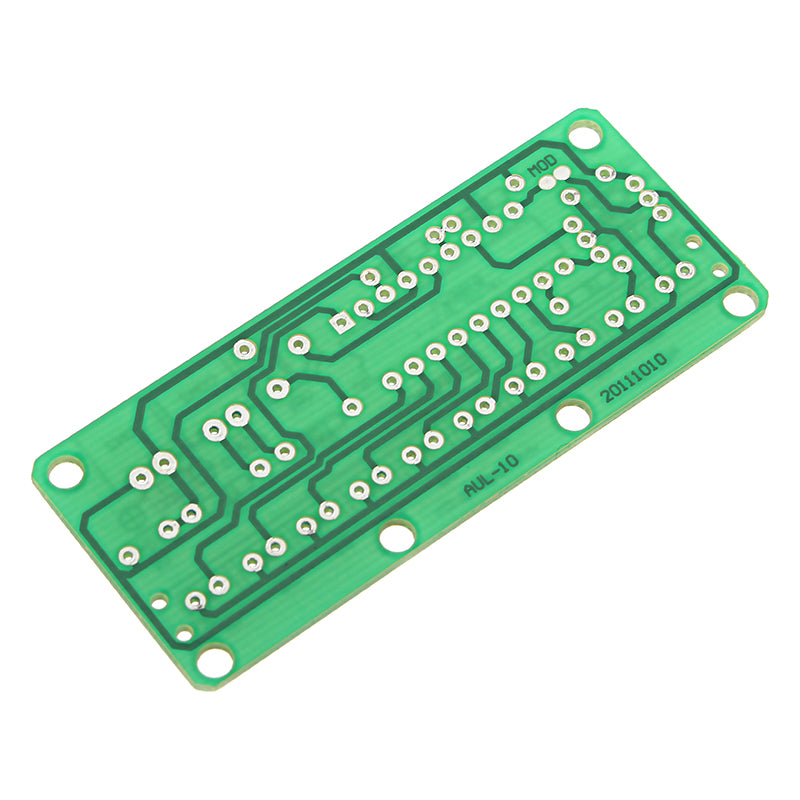

Tin-treated solder pads
Note: Before power on, please confirm the polarity of the power supply is correct (based on the polarity marked on the PCB board)

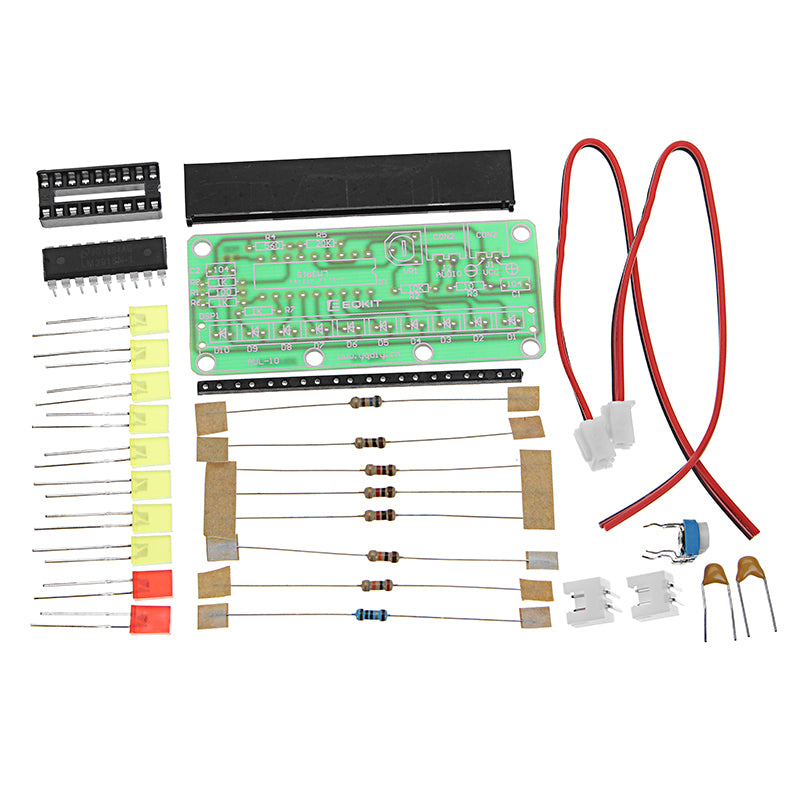

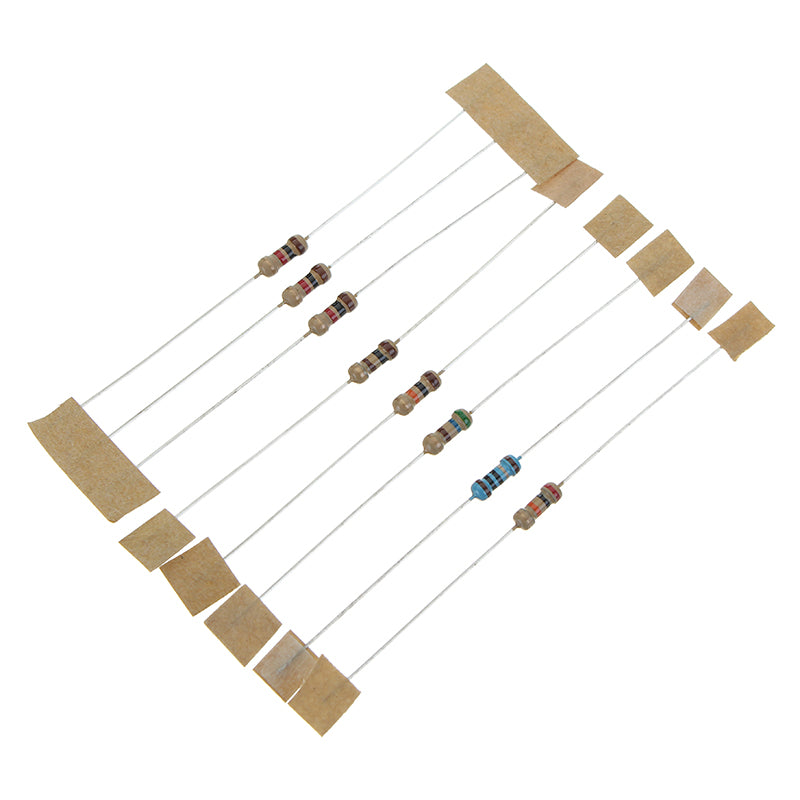

Package includes:

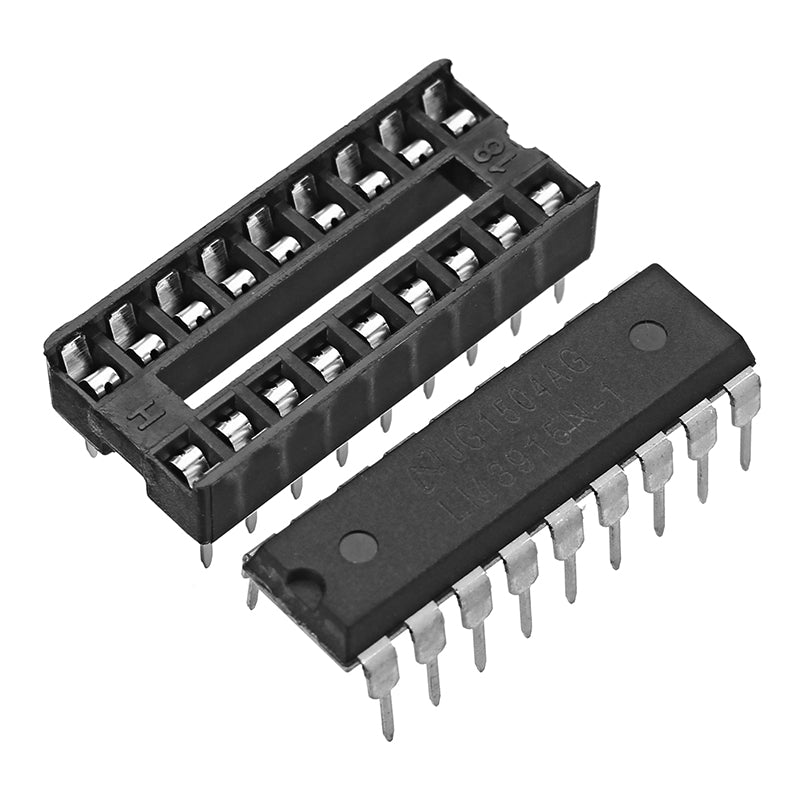

1 x LM3915 Level Indicator Kit
