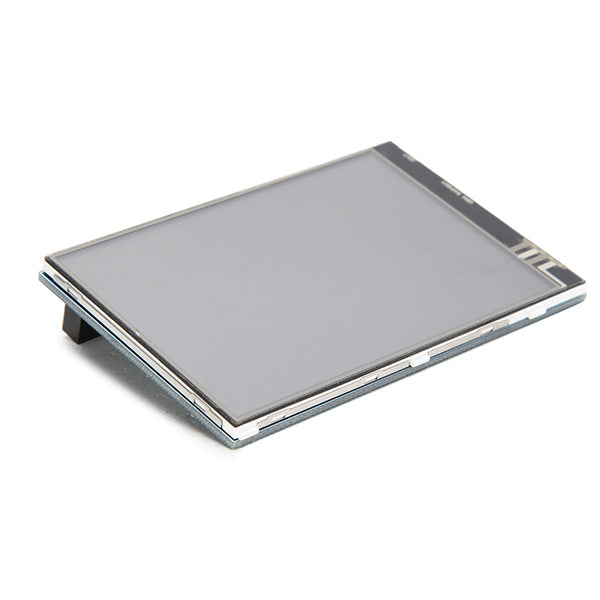

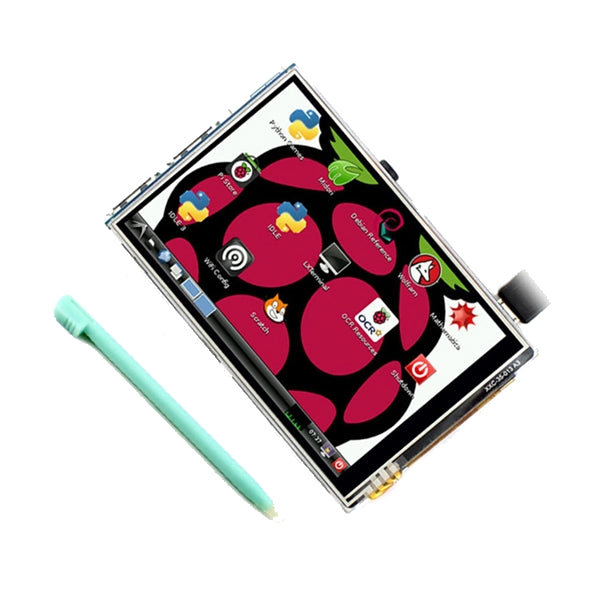

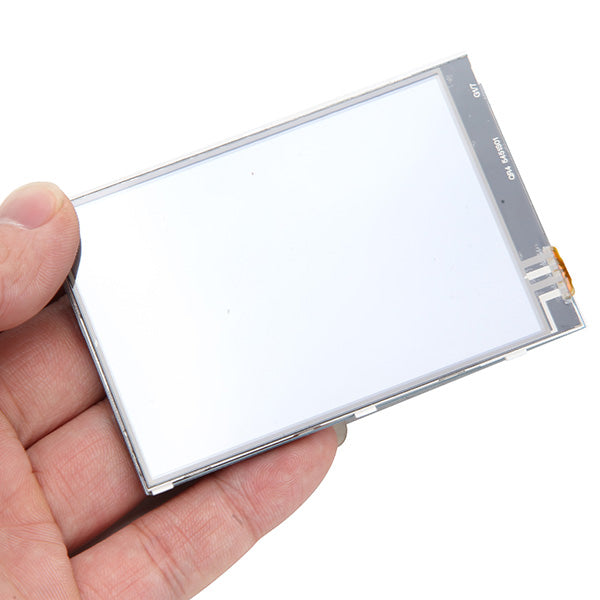

Geekcreit 3.5 Inch 320 X 480 TFT LCD Display Touch Board For Raspberry Pi 3 Model B RPI 2B B+

Geekcreit 3.5 Inch 320 X 480 TFT LCD Display Touch Board For Raspberry Pi 3 Model B RPI 2B B+

Name: Geekcreit 3.5 Inch 320 X 480 TFT LCD Display Touch Board For Raspberry Pi 3 Model B RPI 2B B+
Brand: Banggood
SKU: U2I-BG-1023432
Price: 5,134.00 INR
Availability: InStock

SKU: U2I-BG-1023432

Share this product

Manual and driver (←please click here)

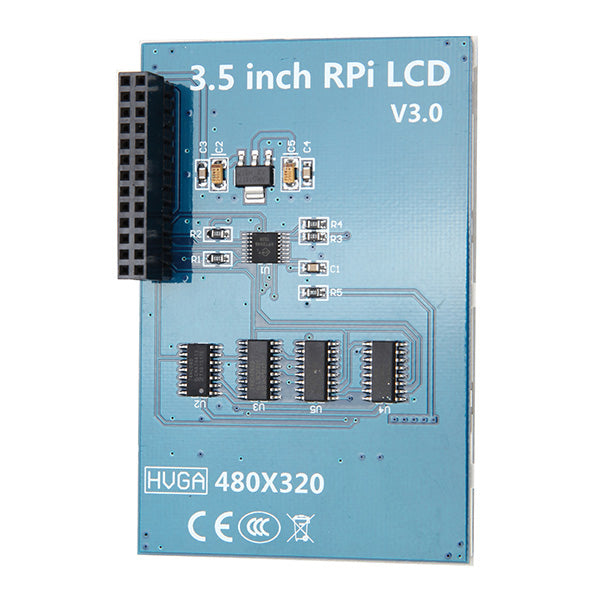

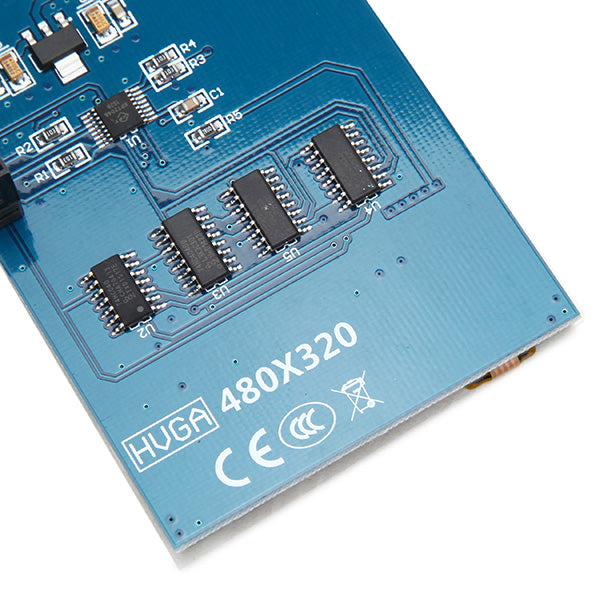

( Due to the different batch,These board have two colors, Bule or Green, will be send in random, please note that before you buy it !!! )

Suitable case:1102333

Parameter:

LCD Type	TFT
LCD Interface	SPI
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Backlight	LED
Resolution	320*480 (Pixel)
Aspect Ratio	8:5
Power Consumption	TBD
Backlight Current	TBD
Operating Temp. (Centigrade)	TBD

Interface Definition:

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

Package included:

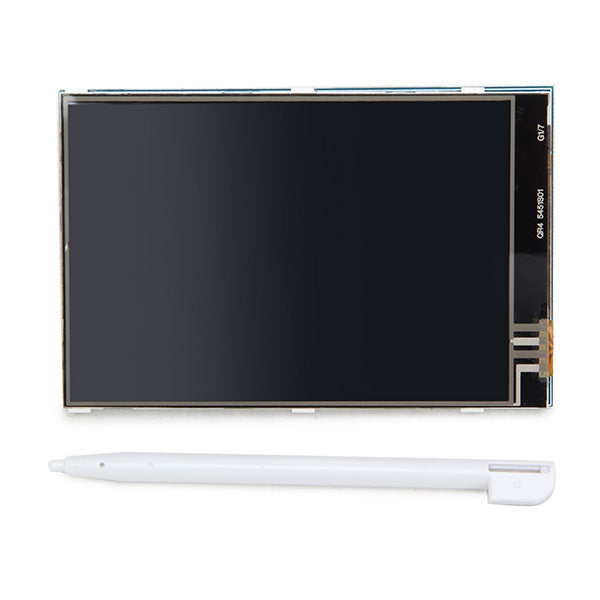

1 x 3.5 Inch 320 X 480 TFT LCD Display Touch Board

,,,
