Introduction :

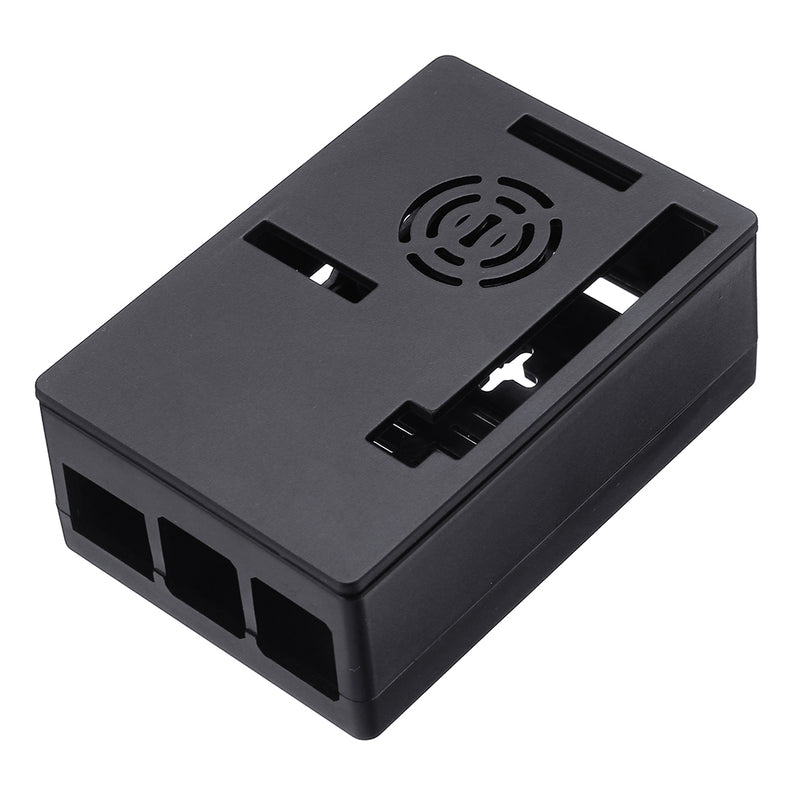

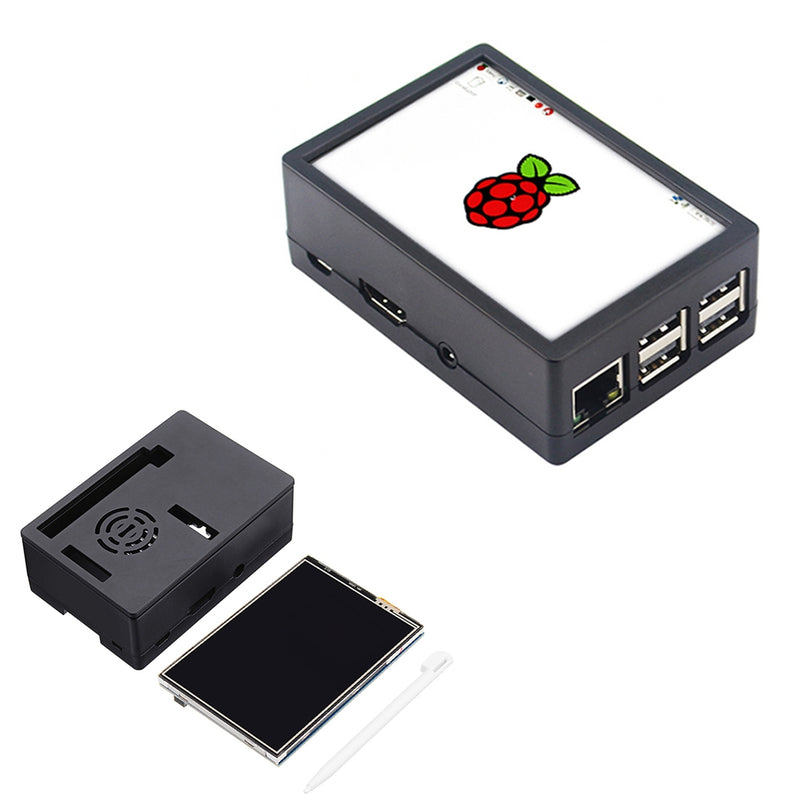

Sometimes you use the the Raspberry Pi with 3.5 inch touchscreen , but sometime you don't use them together. In this situation , you need a case which both suitable for Raspberry Pi alone or with 3.5 inch touchscreen. This is the reason we provide this new case -- for the people use 3.5 inch screen more convenient: When you use the touchscreen , just remove the cover board and fan; When you don't use the touchscreen , you can use the cover and fan , which become a normal case.
Please note that you can't use the 3.5 inch touchscreen and cooling fan at the sametime !
Features :
1. One case for two use :
1). This case suport install 3.5 inch touchscreen , and need to remove the cover board and can't use the fan in this using way.
2). When you don't use the 3.5 inch touchscreen , it is a general case with cooling fan.
2. Full access for Raspberry Pi :
We leave every hole for SD card , HDMI , AV , Ethernet , USB , POE , Camera , MIPI DSI ports.

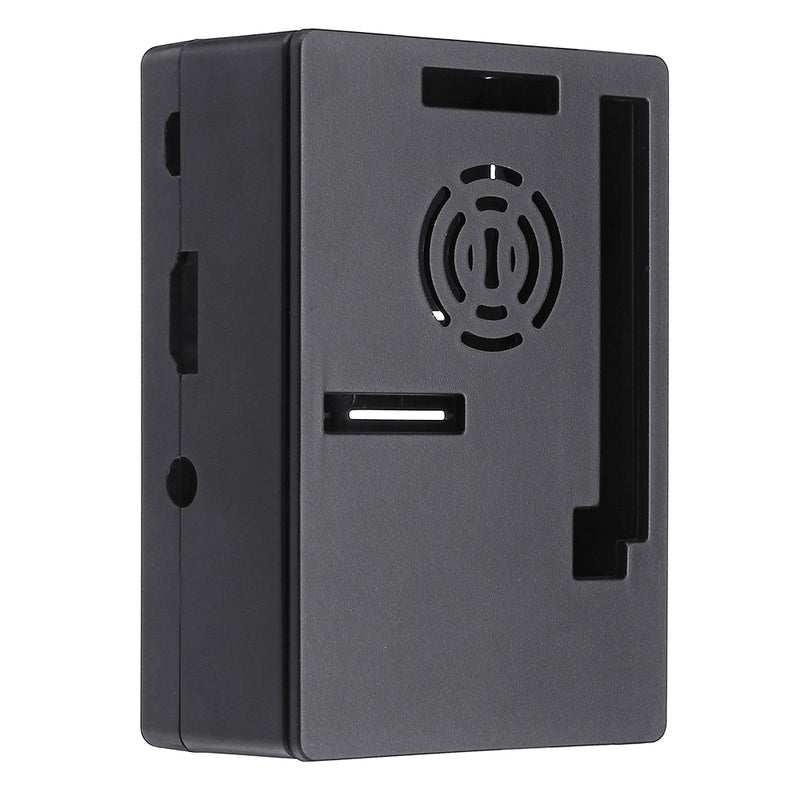

3. Support cooling fan :
You can install the cooling fan on the cover board , which make the best heat dissipation and extend the using life of Raspberry Pi.
( You can't use the 3.5 inch touchscreen and cooling fan at the sametime ! )

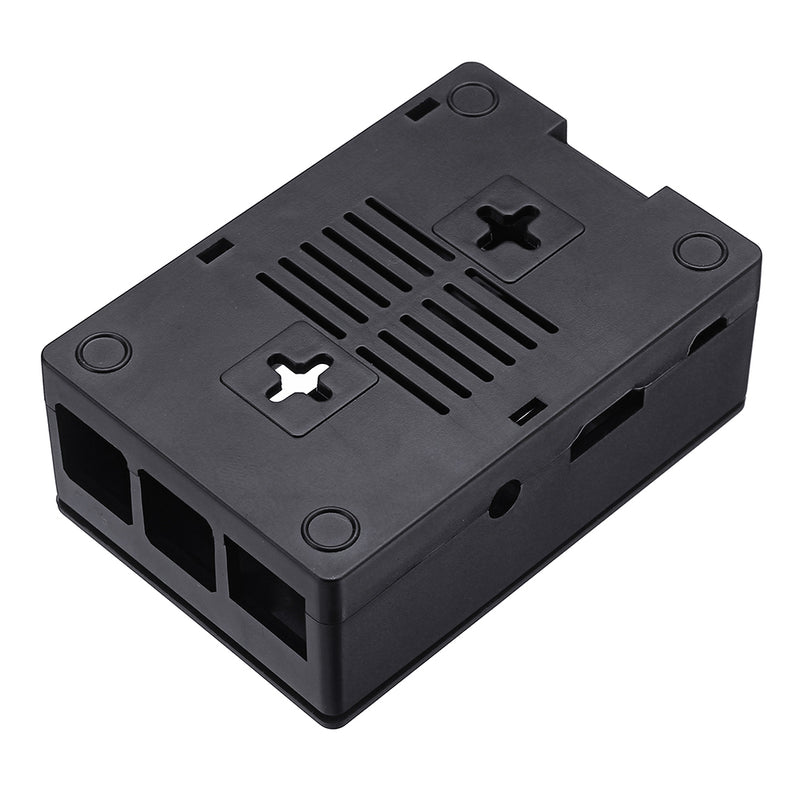

4. Hange hole on the bottom :
We make 2 hole on the bottom so that you can hange the case on the wall or something else .
This design is very convenient when using the 3.5 inch touchscreen.

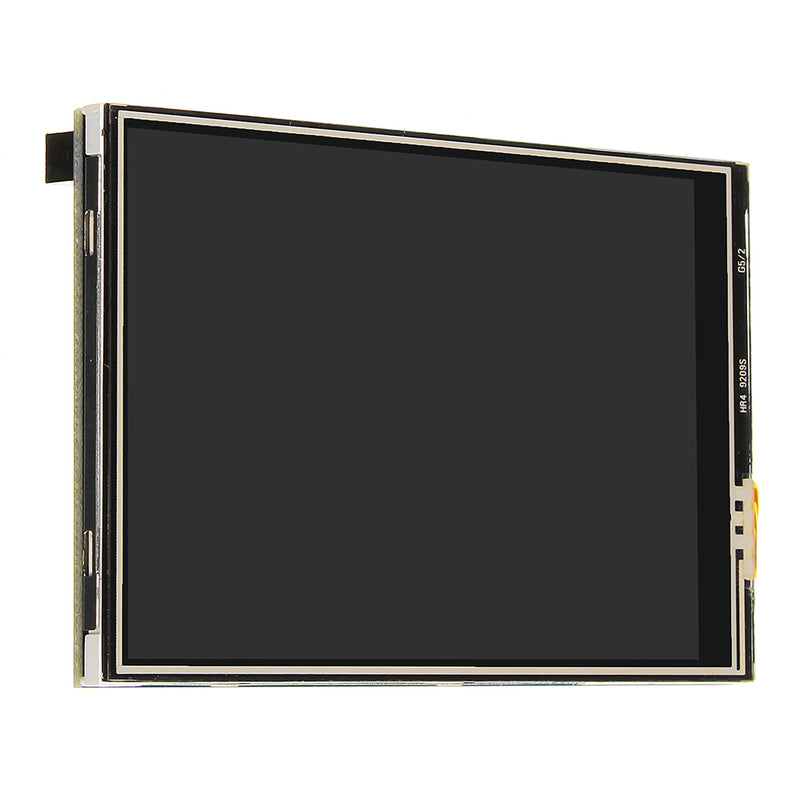

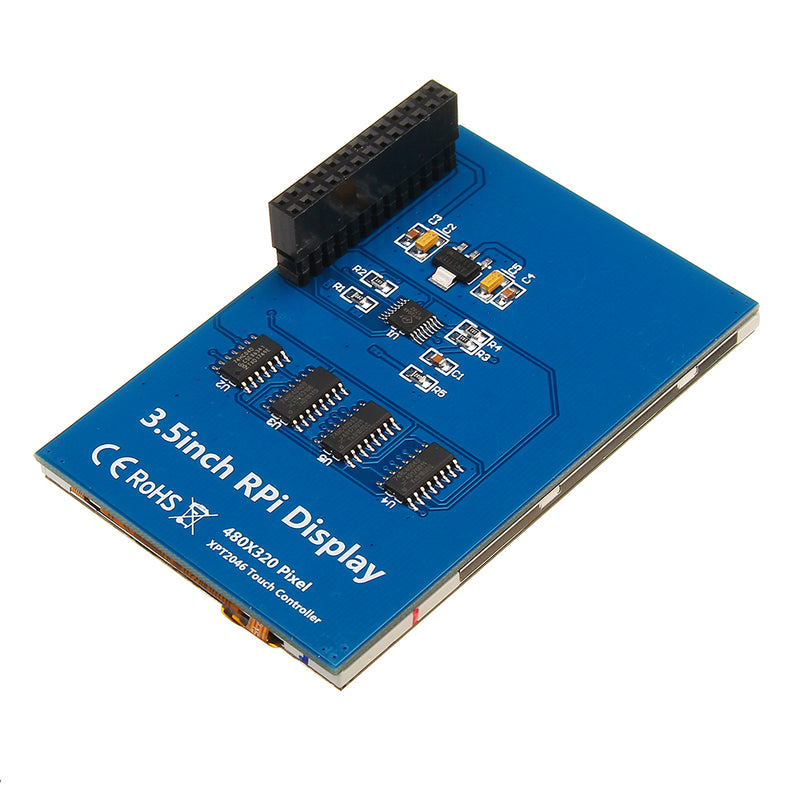

-480×320 pixel resolution, better display.
-Driver provided (works with custom Raspbian directly).
-Supports any revision of Rasp Pi (directly-pluggable).
-Designed for Raspberry Pi, an ideal alternative solution for monitor.
-Support software keyboard (system interaction without keyboard/mouse).
-Provides the best available protection/accessibility for Model B, Protect and secure your Rasp Pi from shocks, scratches and dust.
How to install the 3.5 inch touchscreen :
1). Install the Raspberry Pi on the base board

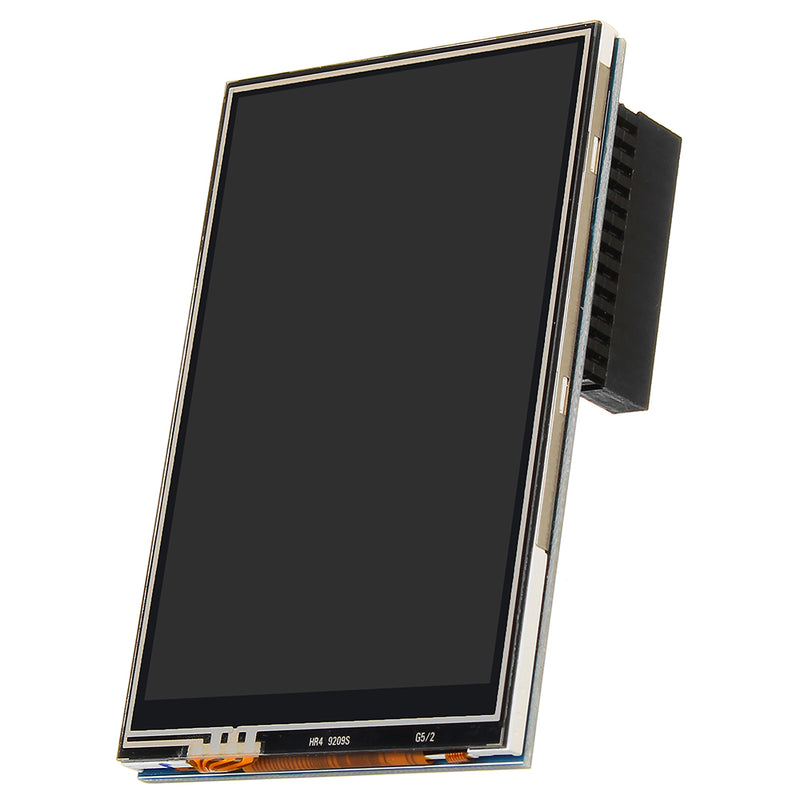

2). Please stick the pad on the back of 3.5 inch touchscreen , then insert the 3.5 inch touchscreen on Raspberry Pi by GPIO pin correctly ( don't be malposed )
3). Install the cover board

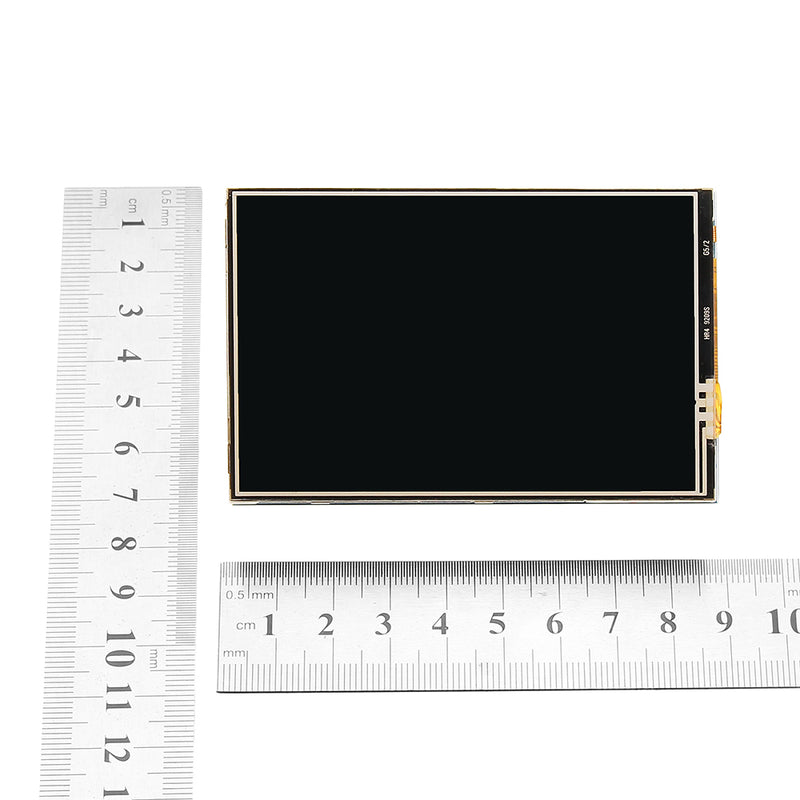

Parameter:
| LCD Type |
TFT |
| LCD Interface |
SPI |
| Touch Screen Type |
Resistive |
| Touch Screen Controller |
XPT2046 |
| Colors |
65536 |
| Backlight |
LED |
| Resolution |
320*480 (Pixel) |
| Aspect Ratio |
8:5 |
| Power Consumption |
TBD |
| Backlight Current |
TBD |
| Operating Temp. (Centigrade) |
TBD |
Interface Definition:
| PIN NO. |
SYMBOL |
DESCRIPTION |
| 1, 17 |
3.3V |
Power positive (3.3V power input) |
| 2, 4 |
5V |
Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 |
NC |
NC |
| 6, 9, 14, 20, 25 |
GND |
Ground |
| 11 |
TP_IRQ |
Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 |
LCD_RS |
Instruction/Data Register selection |
| 19 |
LCD_SI / TP_SI |
SPI data input of LCD/Touch Panel |
| 21 |
TP_SO |
SPI data output of Touch Panel |
| 22 |
RST |
Reset |
| 23 |
LCD_SCK / TP_SCK |
SPI clock of LCD/Touch Panel |
| 24 |
LCD_CS |
LCD chip selection, low active |
| 26 |
TP_CS |
Touch Panel chip selection, low active
|
About the system of 3.5 touch screen
The touch screen need to configure the driver for touch function , otherwise you can not use it by your own system.
Here we provide the method to configure for Raspbian system :
Step 1: Download the Raspbian IMG
Step 2: Burn the system image
If you don't know how to do that,you can refer to the Raspberry Pi office tutorial
Step 3: Open terminal(SSH) and install the driver on RaspberryPi
(tested on RaspberryPi 3B+,3B,2B,2B+,1B,ZERO)
Drive File:
sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD35-show
Make sure your RPI connects to the internet then wait a few minutes, when the system reboot ok, you can see that.
You can also download the system image which we already configured well by following link :
https://github.com/goodtft/LCD-show

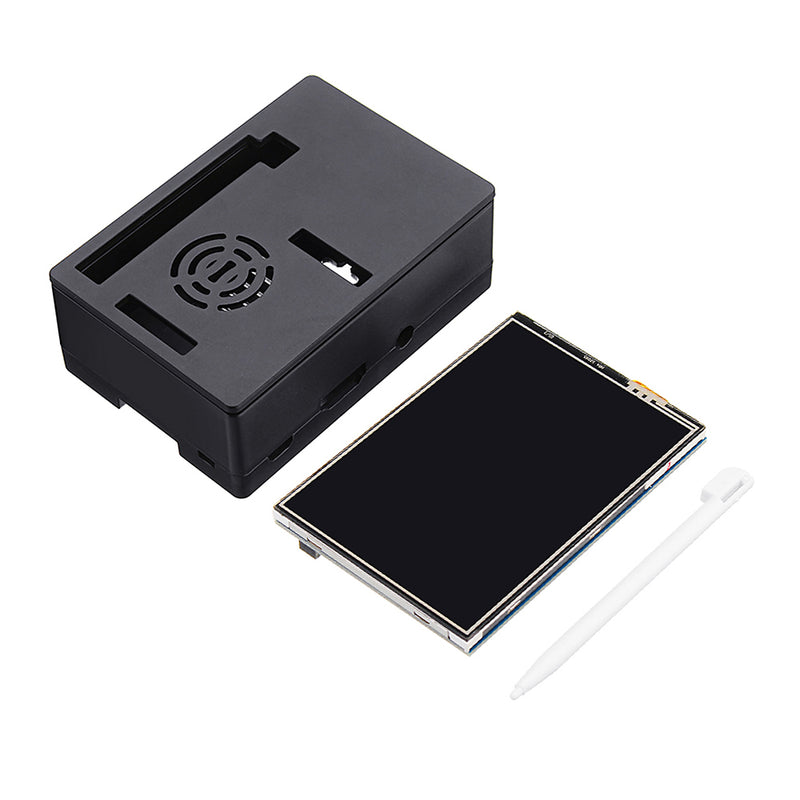

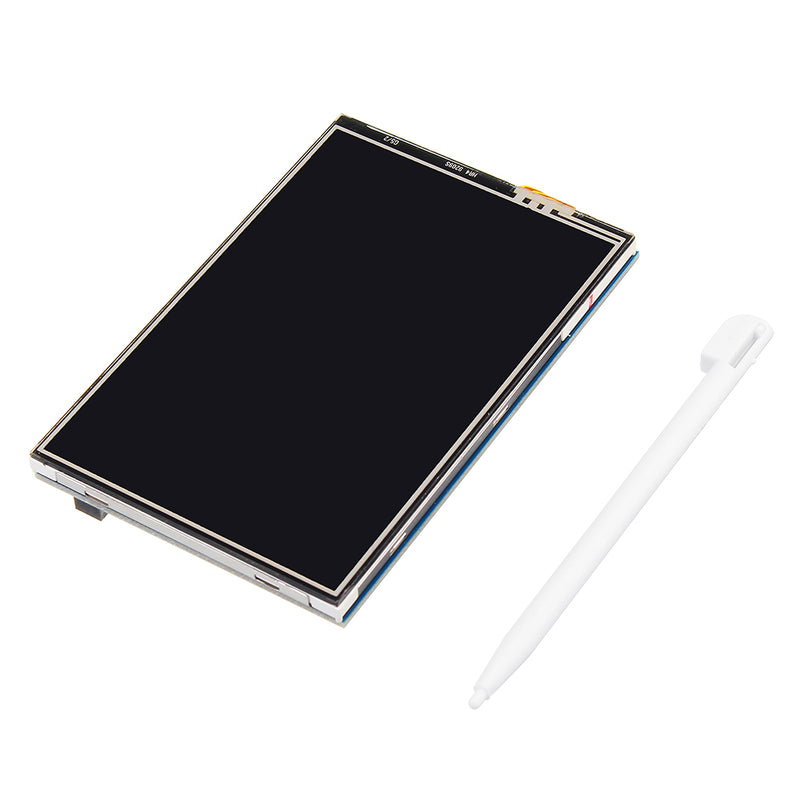

Package included:1 x 3.5 inch Touch Screen
1 x Protective Case
1 x Touch Pen
