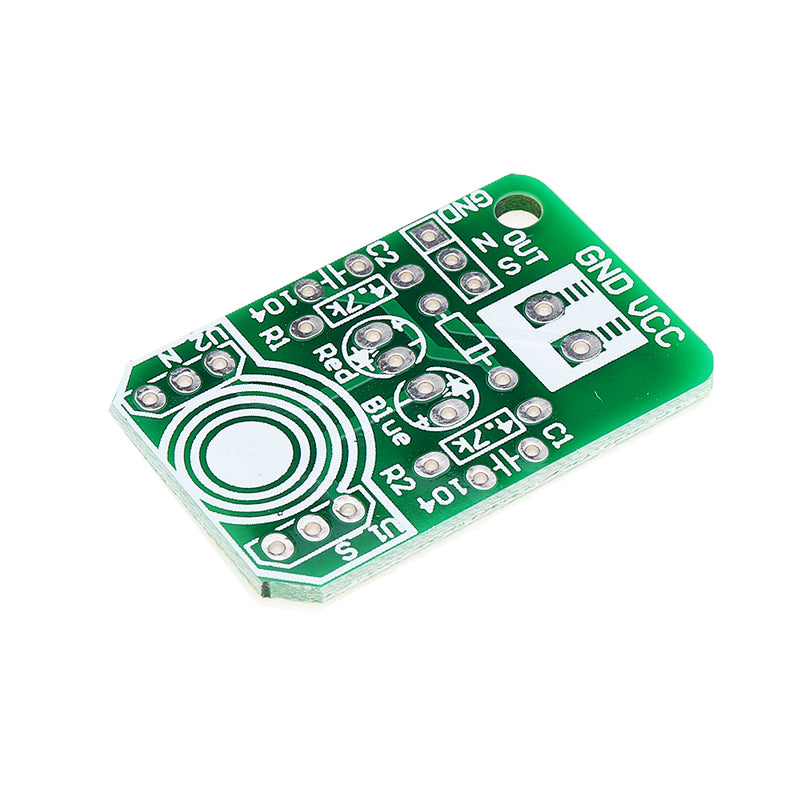

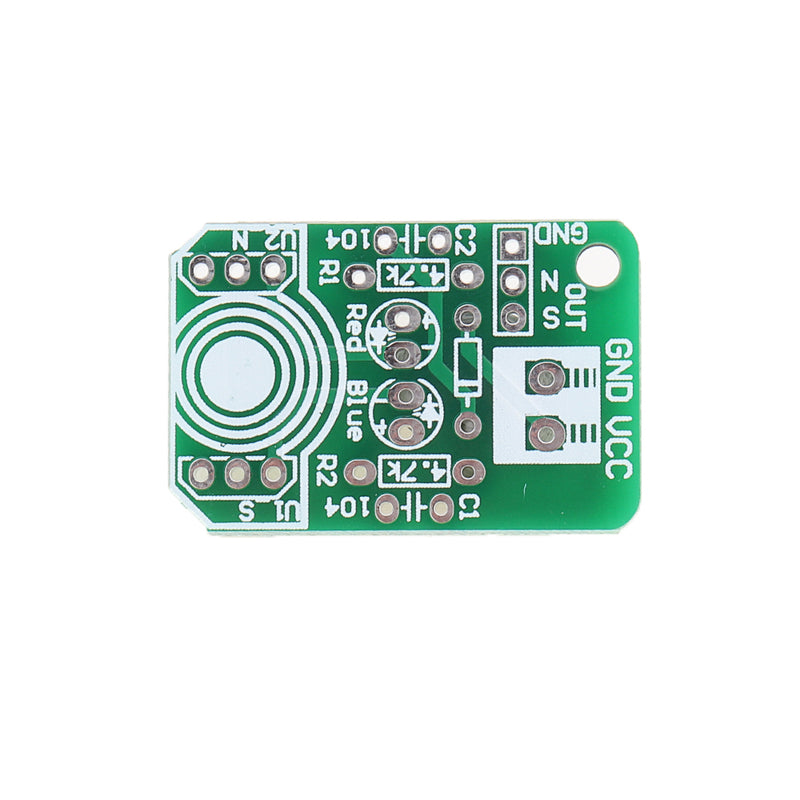

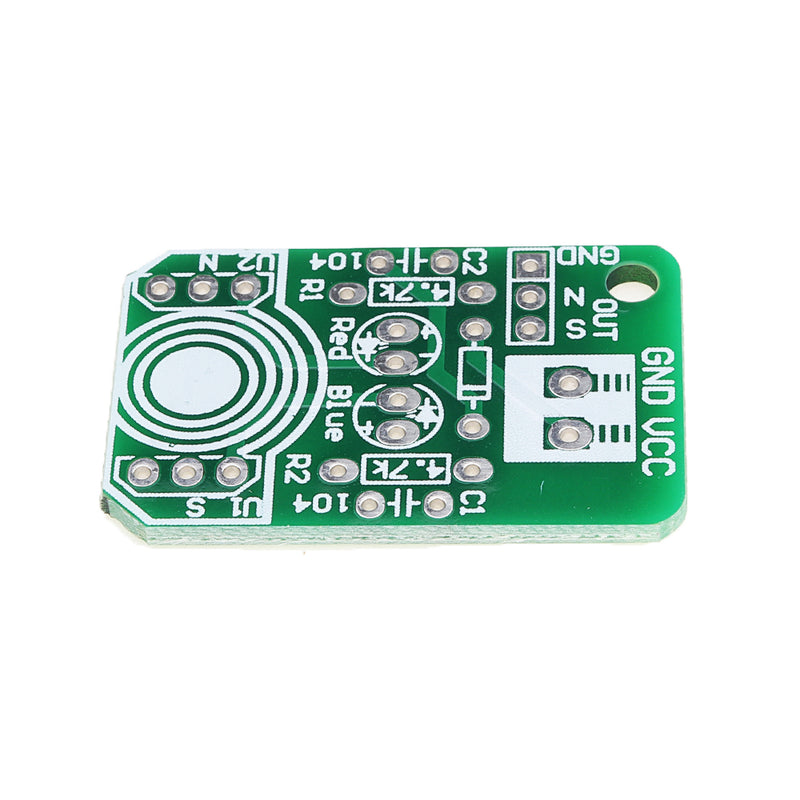

Hall Magnetic Induction Sensor Magnetic Detection Magnetic Pole Resolver North and South Pole Detection Module DIY Kit
Save 0
SKU: U2I-BG-1591167
Share this product
Description
Product parameters:
Size: 33mm x 22mm Operating voltage: 4.5V to 24V DC Module function: South and North poles distinguish, the South Pole is close to the bright blue light, and the North Pole is close to the bright red light. Maximum output load current: 25MA Operating temperature range: -40 to 80 degrees Celsius. Detection distance: visually within 7MM, strong magnetic can reach 1.5CM.
Interface definition:
VCC: Positive power supply GND: Negative power supply OUT: output signal The south pole of the magnet is detected, the blue indicator light is on, and the pin S is outputted low level; The north pole of the magnet is detected, the red indicator light is on, and the pin N is output low level; When there is no magnet, the blue and red indicators are off, and the pins S and N are both output high.
Package included:

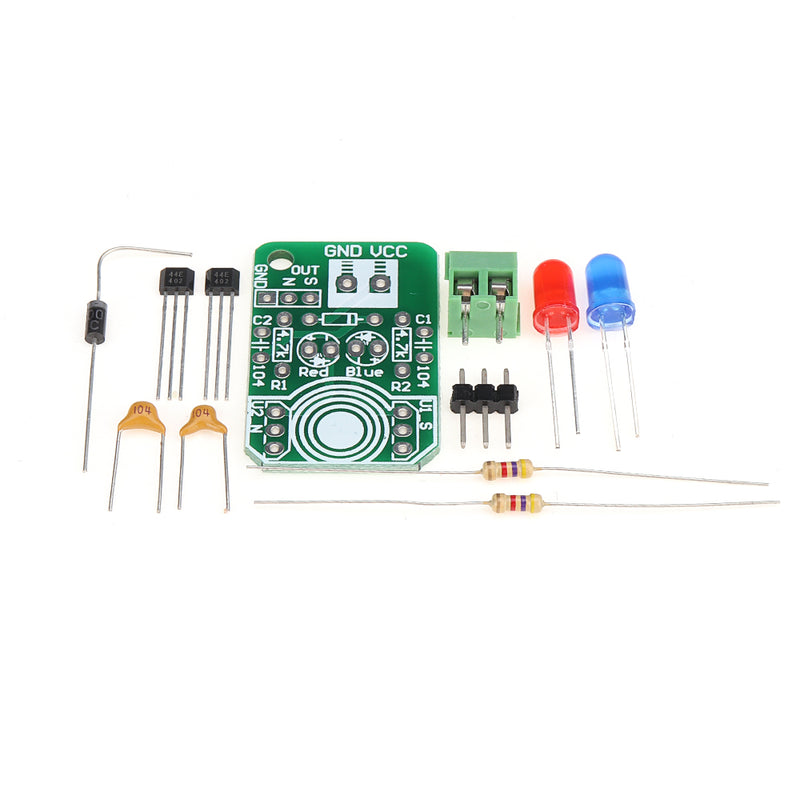

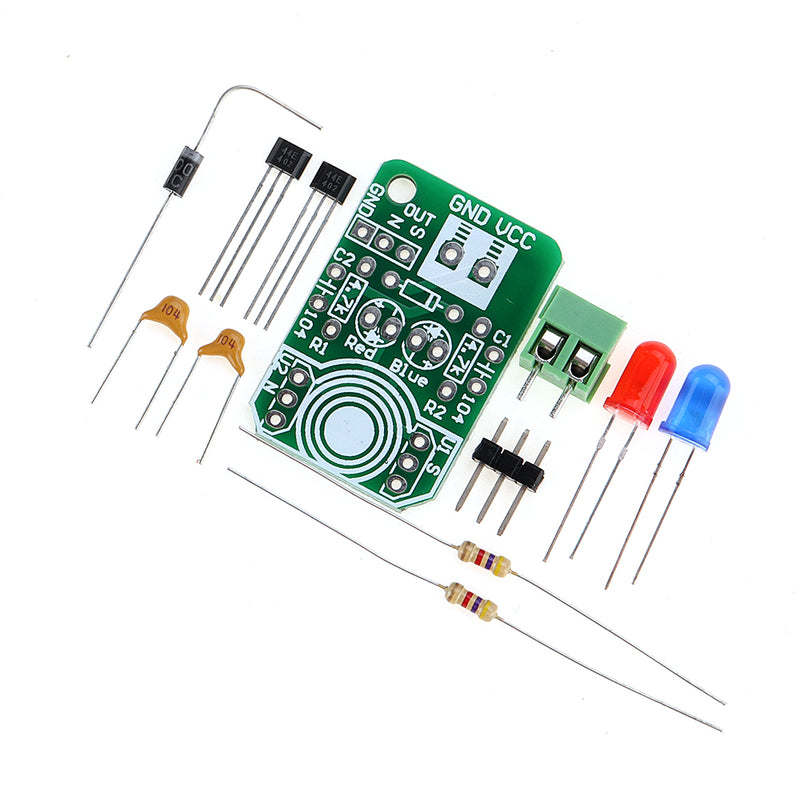

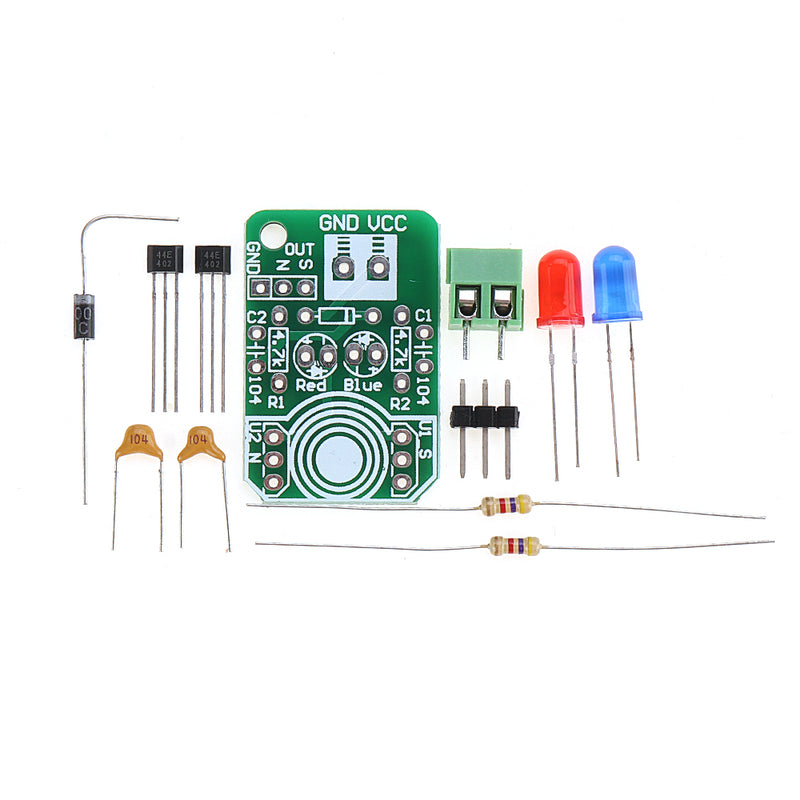

1 x Hall Magnetic Induction Sensor DIY Kit
