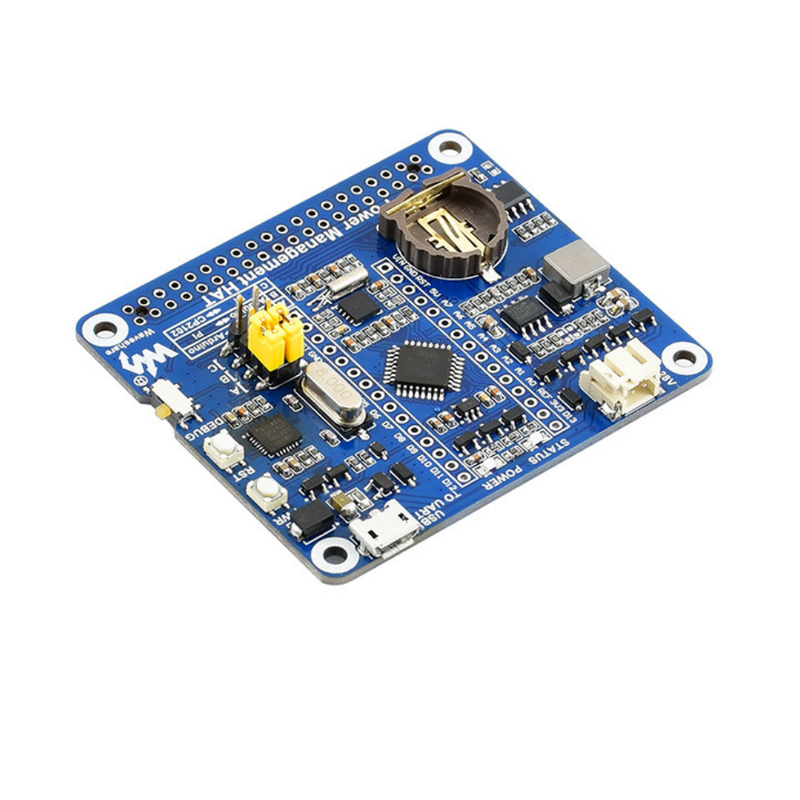

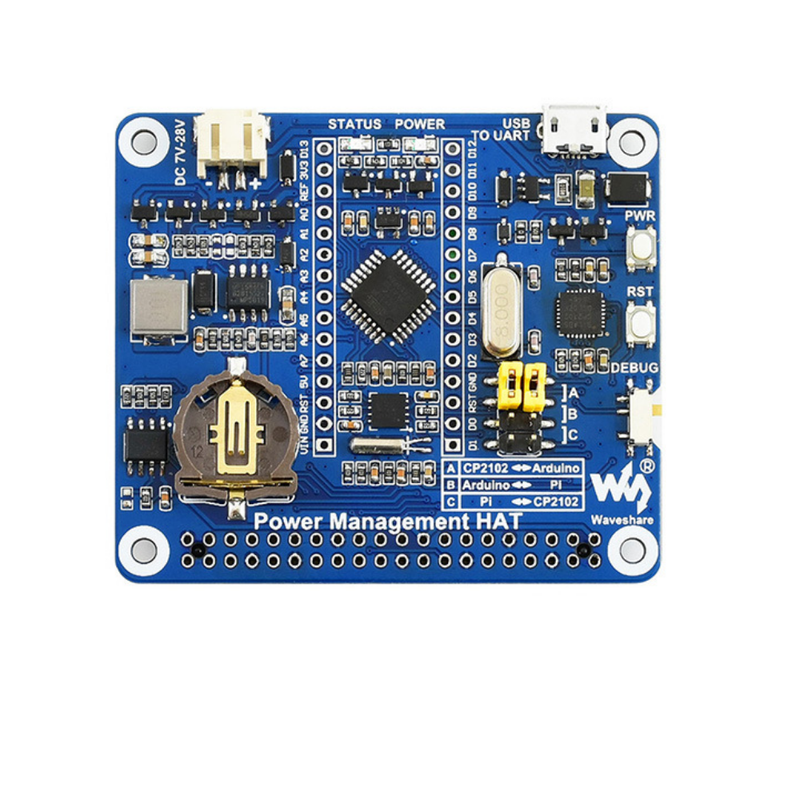

Intelligent Power Management Board ATmega328P MCU PCF8523 RTC Clock Built-in Protection Circuit Smart Control Module for Raspberry Pi
Save 0
SKU: U2I-BG-1587046
Share this product
Description

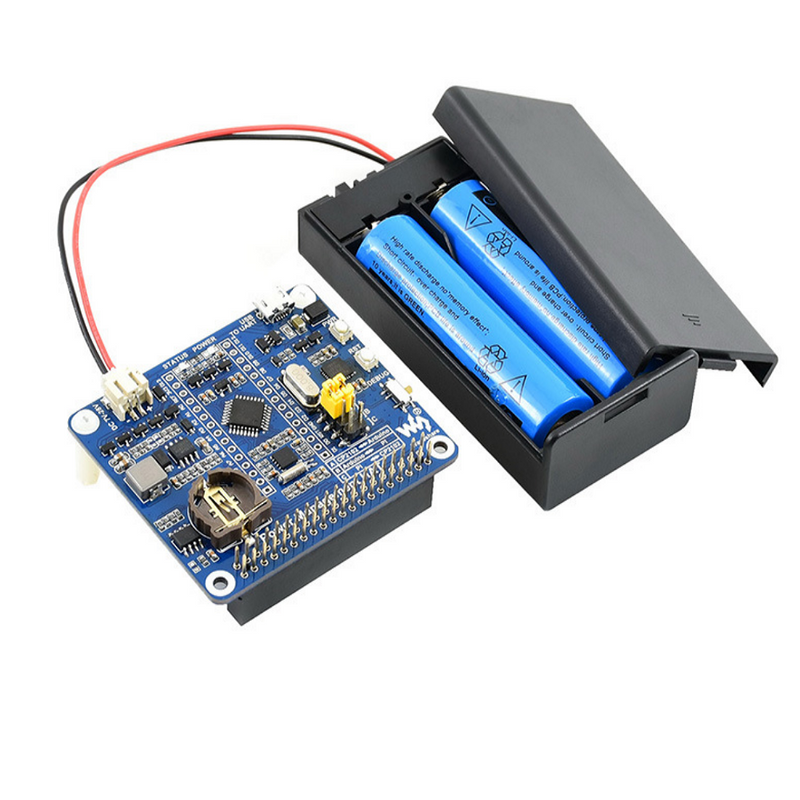

Batteries are not included
Overview:
Built-in ATmega328P Single-Chip Microcomputer and RTC Clock Controller Board for Raspberry Pi. Supporting Automatic Start-up and Shutdown Program Proving Intelligent Power Management for Your Project to Reduce Power Consumption Protect your Data From Being Lost in Suddenly Power Off
Feature:

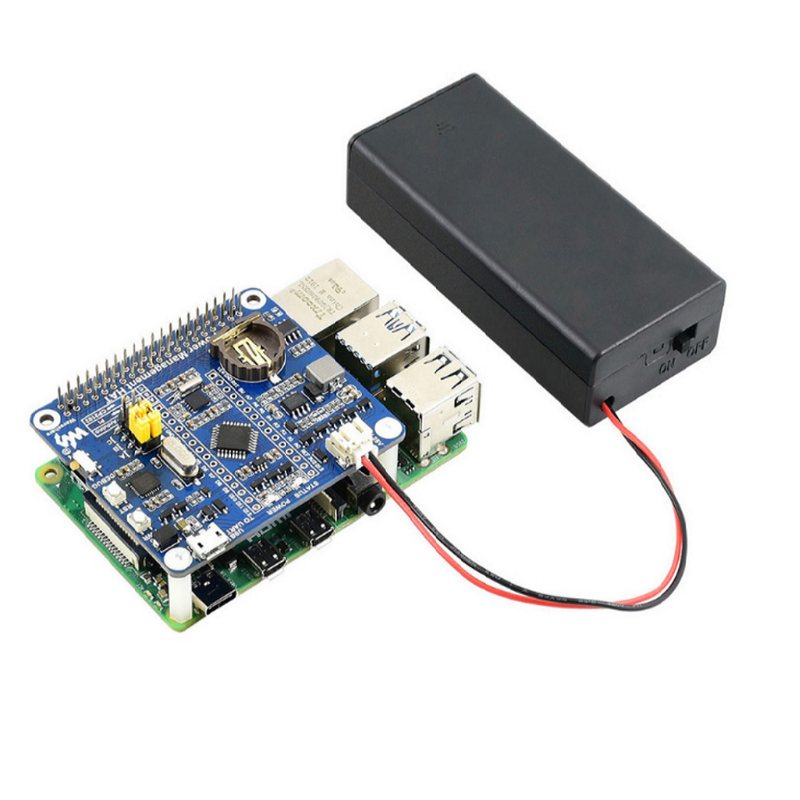

Based on Raspberry Pi 40PIN GPIO Interface,Compatible with Most Raspberry Pi Series Mainboard ATmega328P MCU , Support Programming Built-in PCF8523 RTC Clock, Accurate Time Management Built-in CP2102 Chip for Serial Communication and Program Downloading for ATmega328P Custom Button Included for Various Usage By Programming Built-in Protection Circuit Voltage and Current Monitor Included, Real-time Detection for Working Current and Voltage is Enable
Specifications:
MCU Chip: ATmega328P-AU Communication Interface:UART+GPIO Communication Baud Rate: 115200bps Default (could be changed by reprogramming) Support USB Power Supply or PH2.0 Power Supply USB Input Voltage: 5V PH2.0 Input Voltage: DC 7-28V Power Supply or Lithium Battery Size:56.5mm x 65mm Fixing Hole Diameter:3mm
