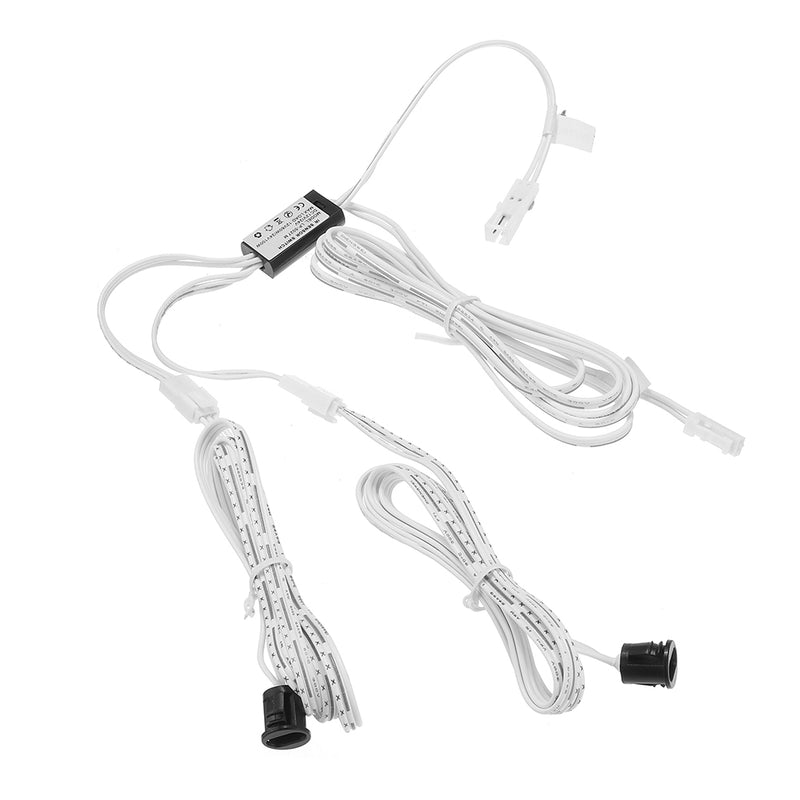

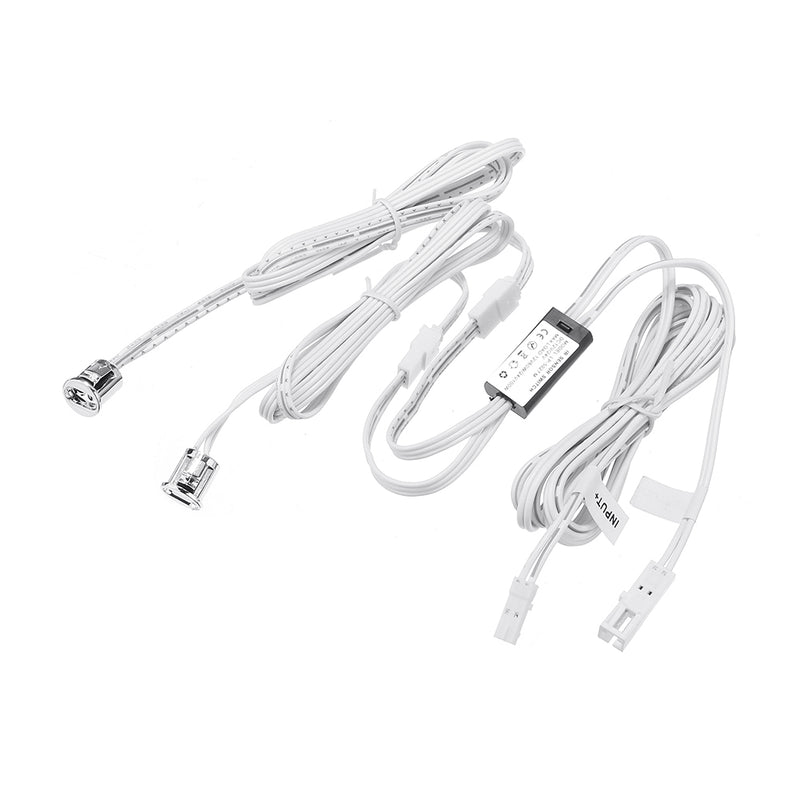

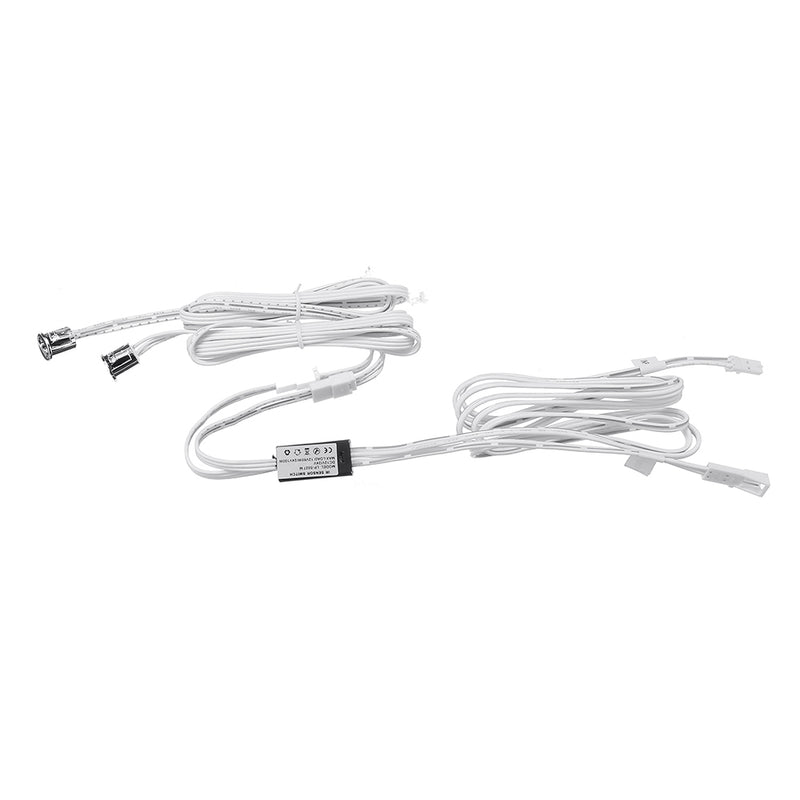

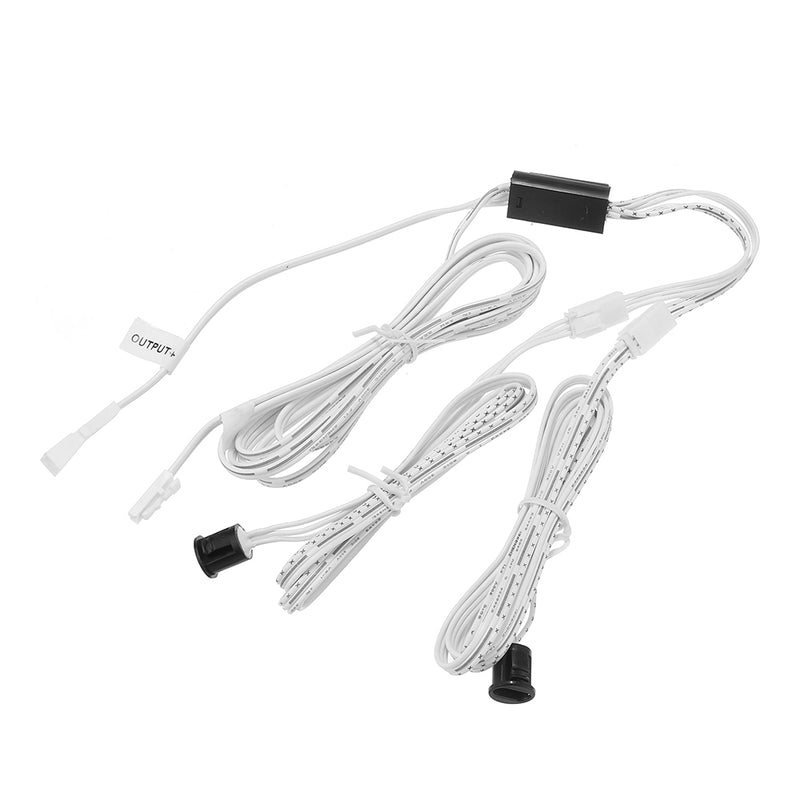

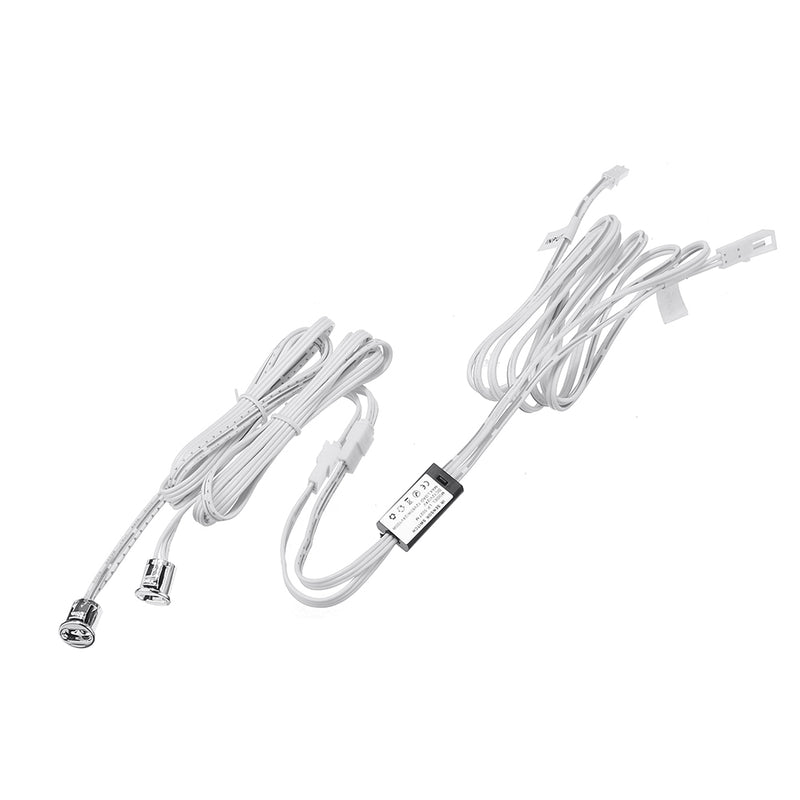

Lampow LP-5027M2 Silver / Black DC5-24V Double Head Door Mounted Sensor Switch High Power Wardrobe Double Head Switch

Product Name

Double-head gated induction switch

Model

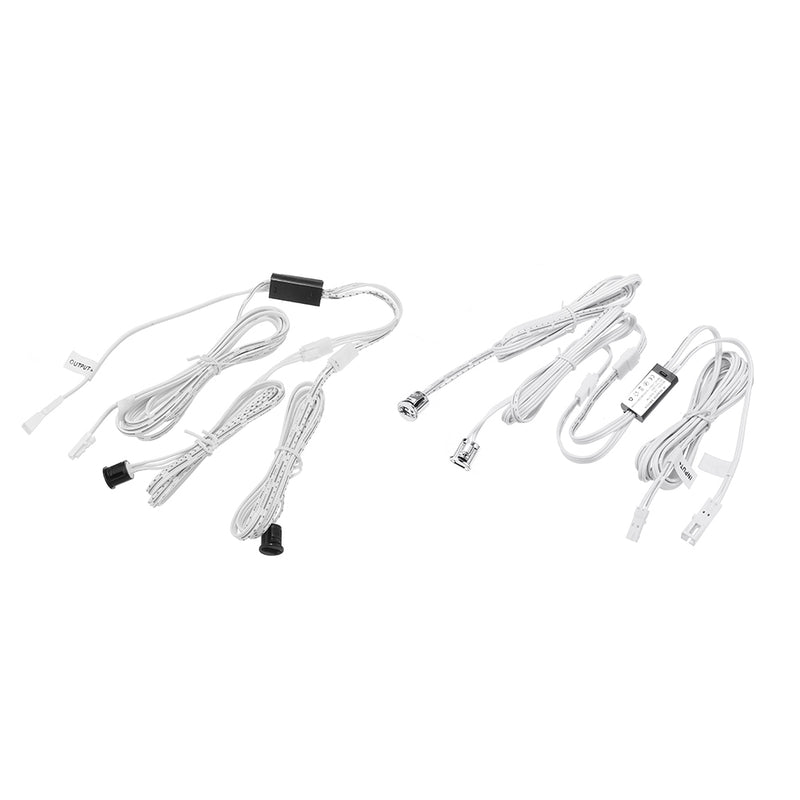

Lp-5027m2 (round/flat)

Number of Controller

1

Sensor number

2

Controller and sensor connection cable long

110

Controller and induction connection mode

Separate opposite insert type

Power supply output wire length

150

Power supply output wire length

15 cm

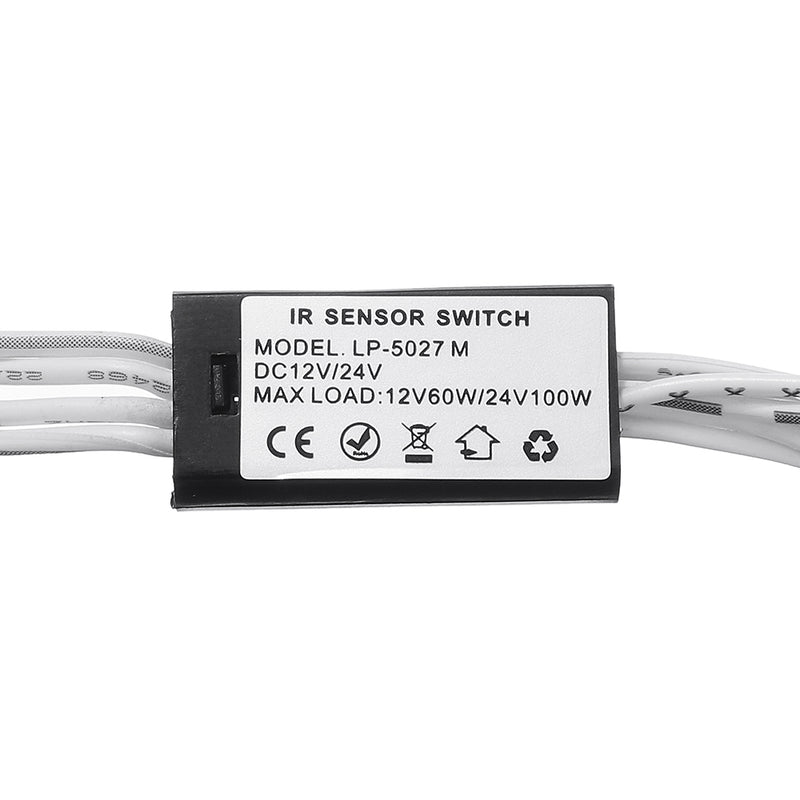

Controller size

10.5*8.5 *

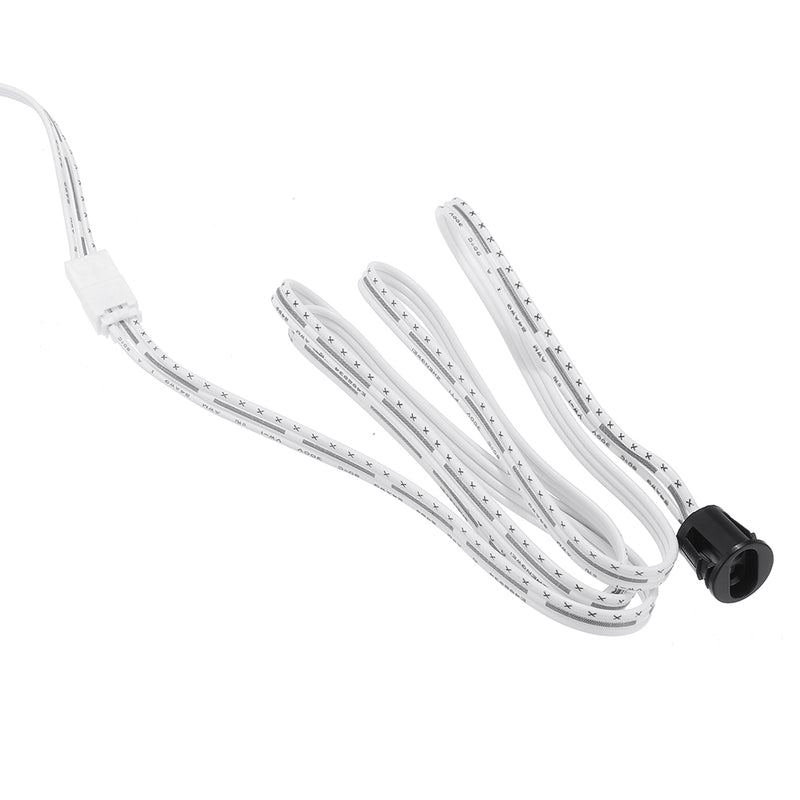

Sensor size

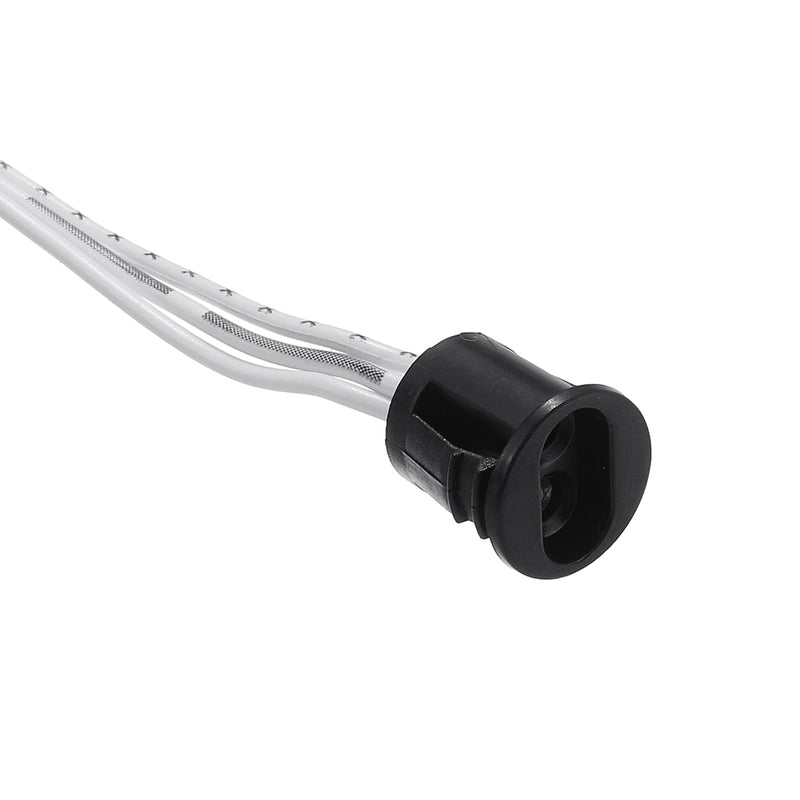

Round Head: outer diameter: φ 8mm; inner diameter: φ 2mm

Flat: Length: 28mm; width: 19mm; Height: 18mm

Operating voltage

12 V 24 V

Maximum load

4A 48 W

Work temperature

-20 to 50

Static current

<3mA

Sensing angle

35 °

Sensing distance

8 cm

Installation way

Embedded installation

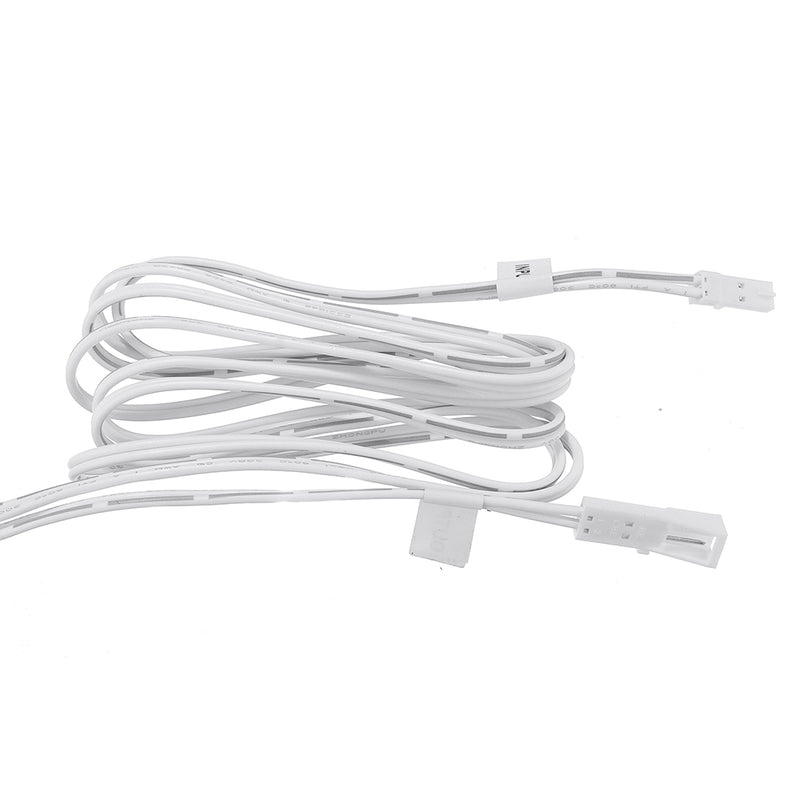

Power line terminals

XH male/female lug dual connection cable

Sensing method

Active

Control logic

Two-door door off: Lights out; one door or two-door on: lights on
