LM358 Breathing Light Parts LED Flash Light Electronic DIY Production Kit
Save 0
SKU: U2I-BG-1599894
Share this product
Description
Features:

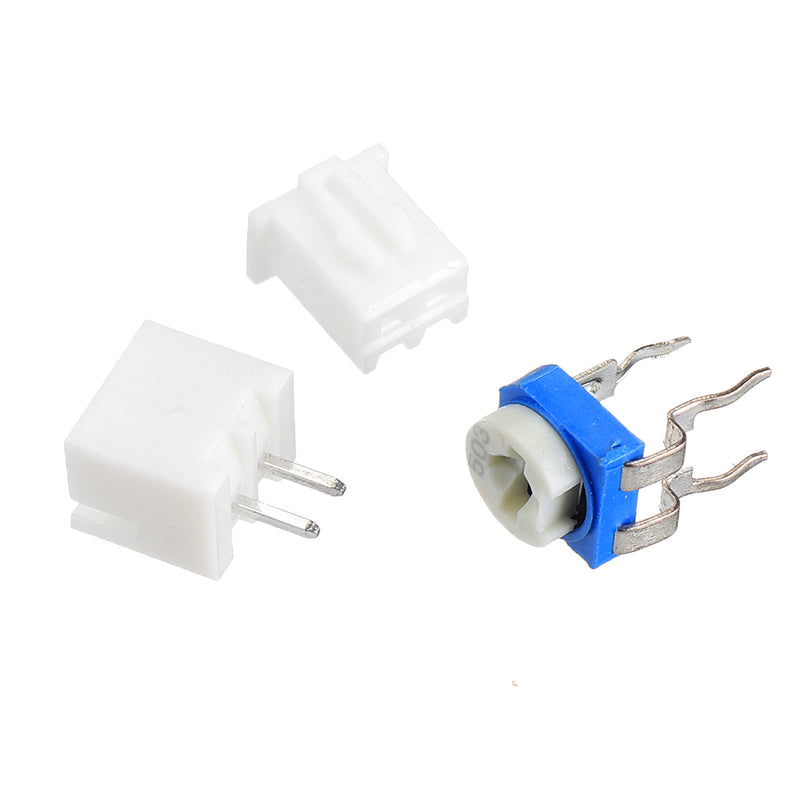

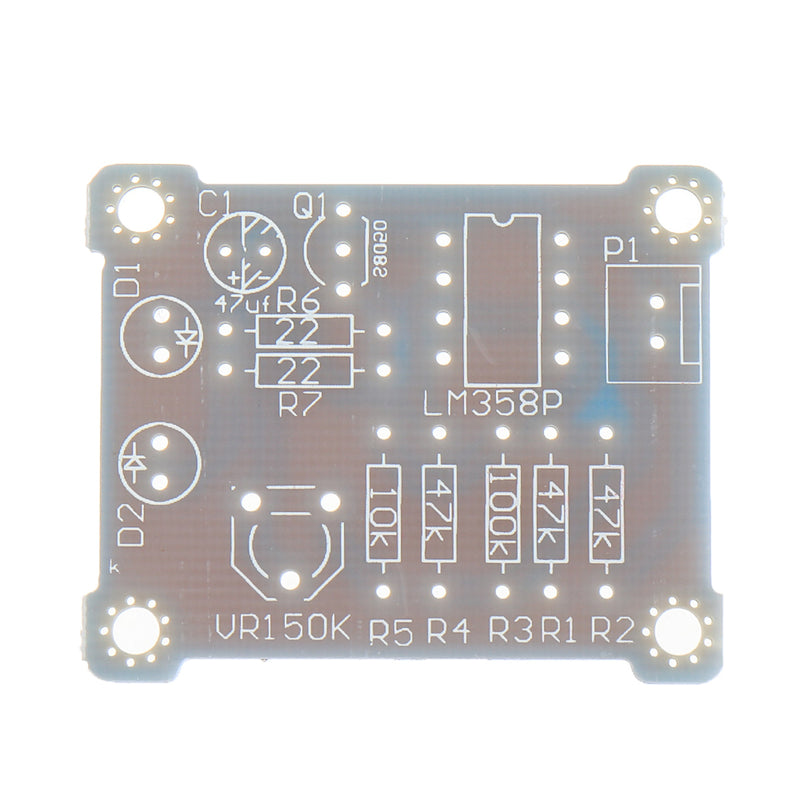

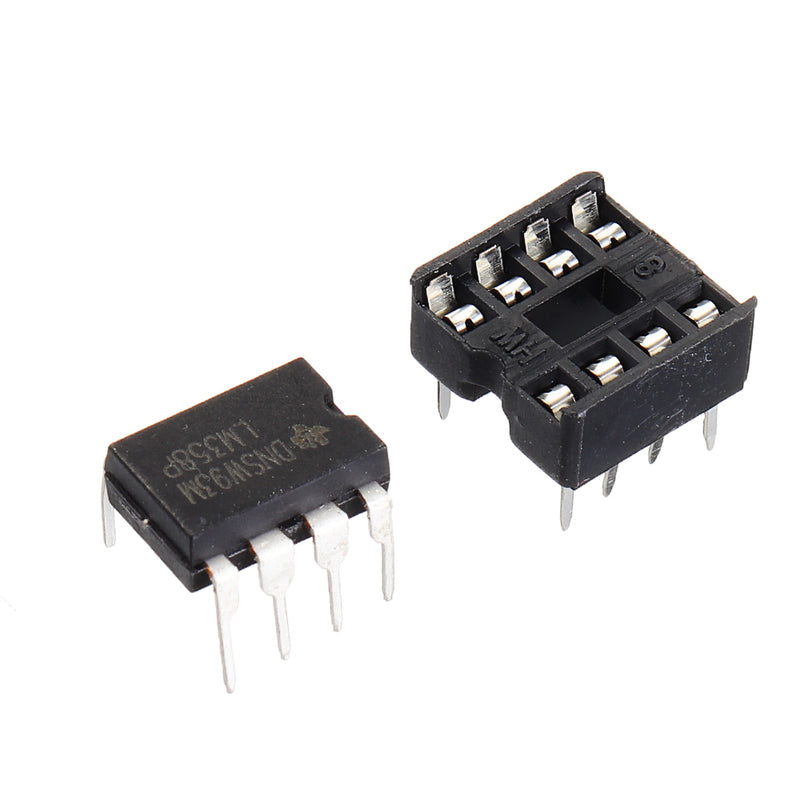

The circuit is especially suitable for beginners to use, has strong interest, obvious effect and low difficulty in production. It is the material of choice for assembly work, skill training, etc. The core of this breathing light circuit is the LM358, which includes two independent, high-gain, internal frequency-compensated dual operational amplifiers. Together with the external circuit, it forms a more accurate bistable circuit. R1 and R2 form a double. The reference voltage divider of the operational amplifier is 6V. R3 is the operational amplifier feedback resistor. C1, R4, R5, R6, and W1 determine the frequency of the breathing lamp. This circuit is adjusted by W1.
Specifications:
Working voltage: 5V material: metal Color: brown Size: 45*32mm
Package Included:

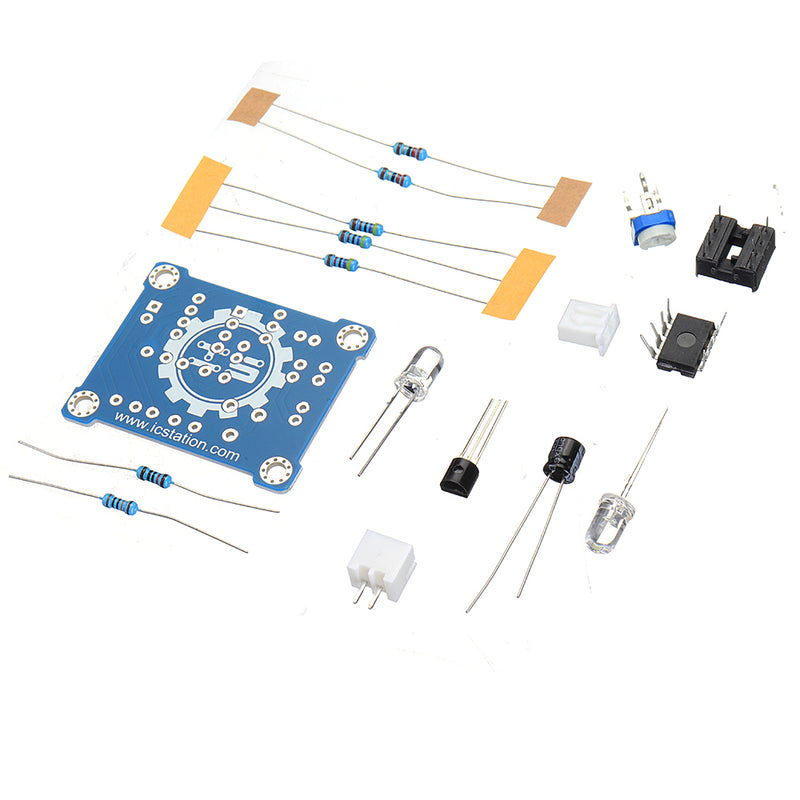

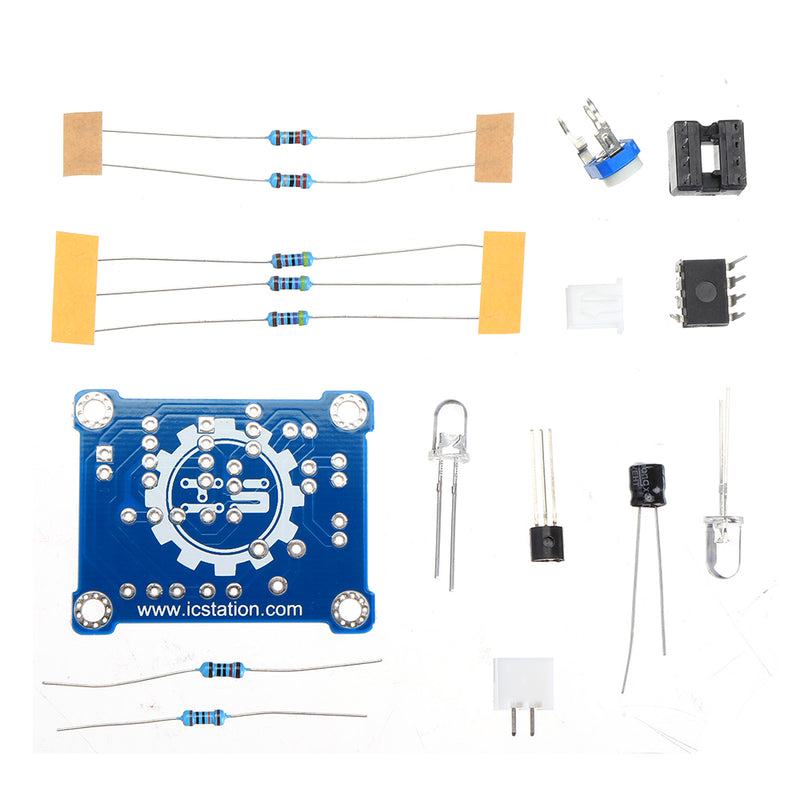

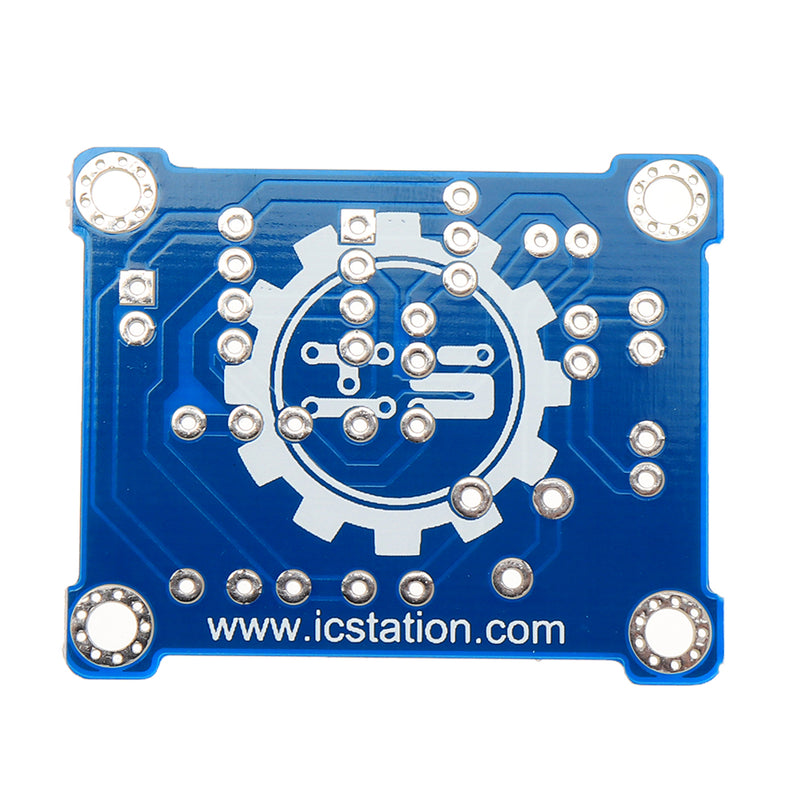

1 x Electronic Production Kit
