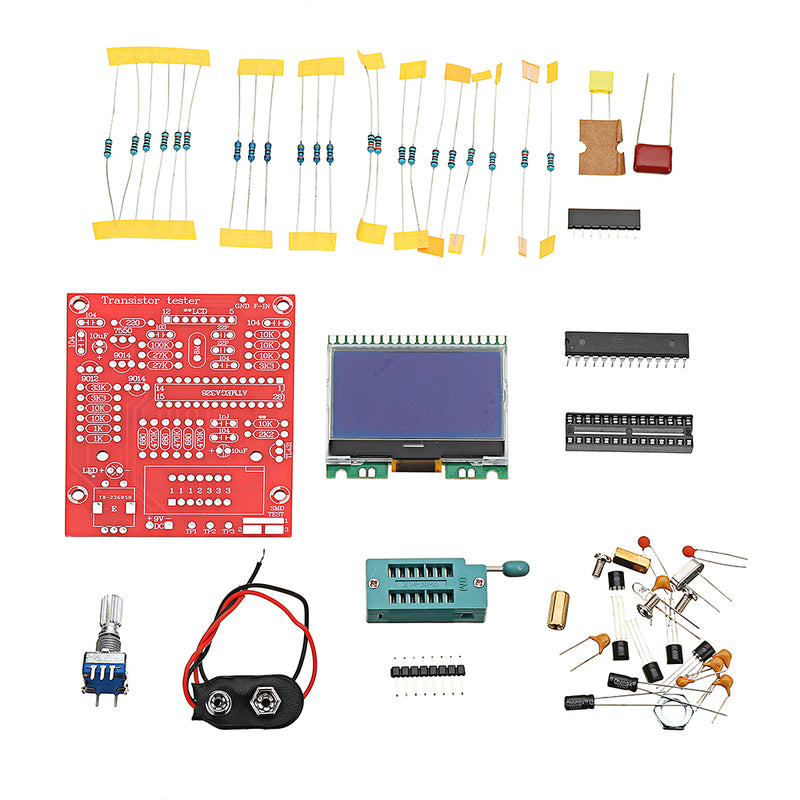

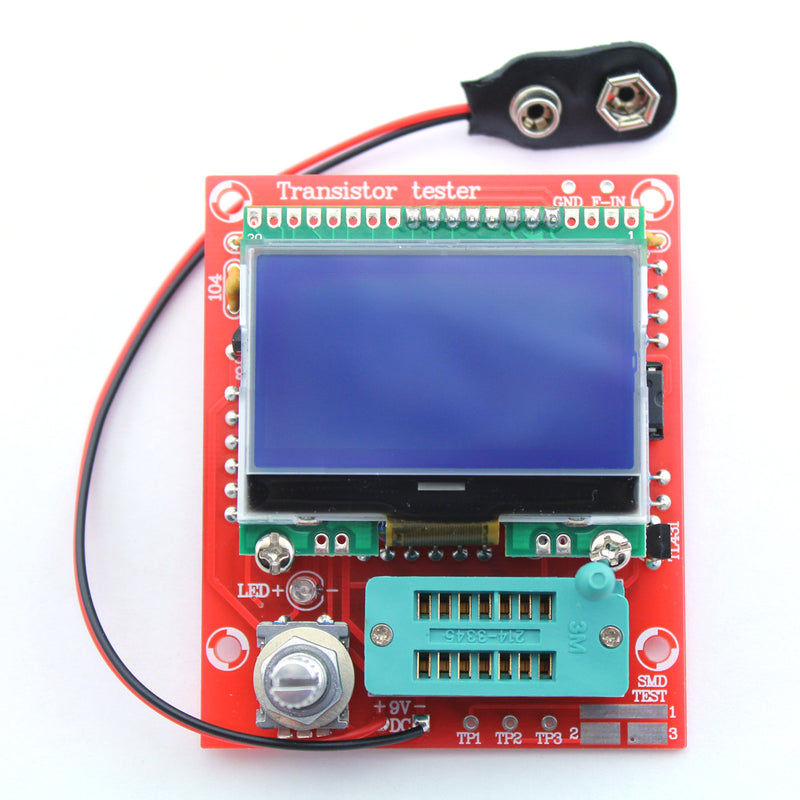

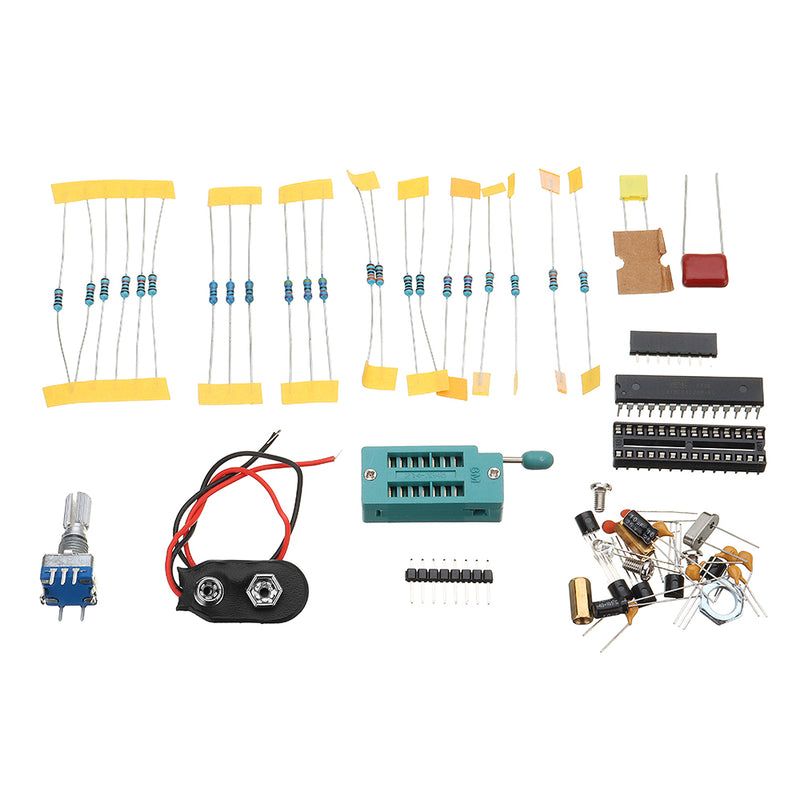

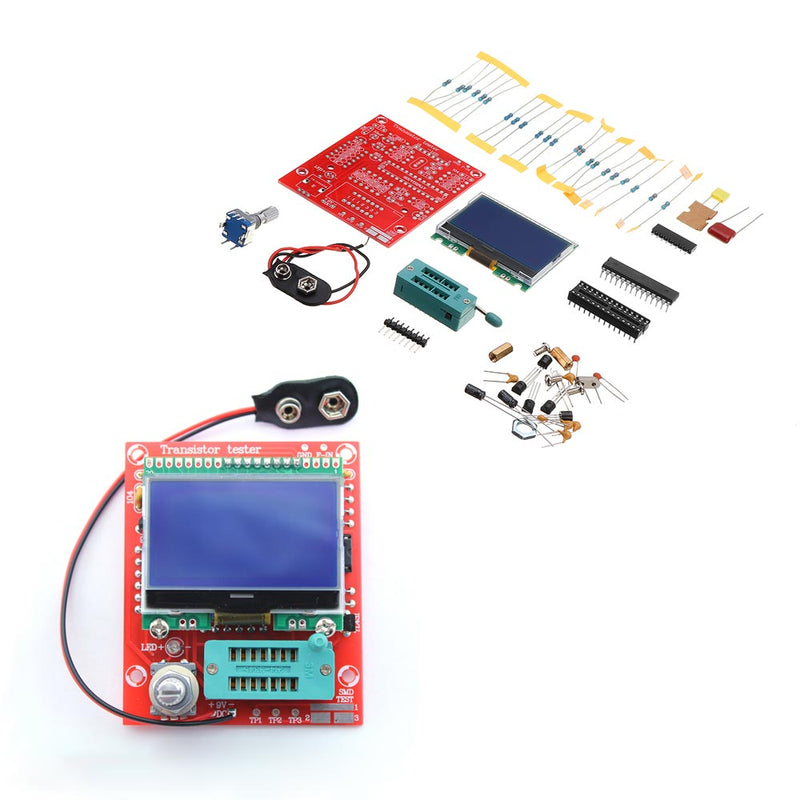

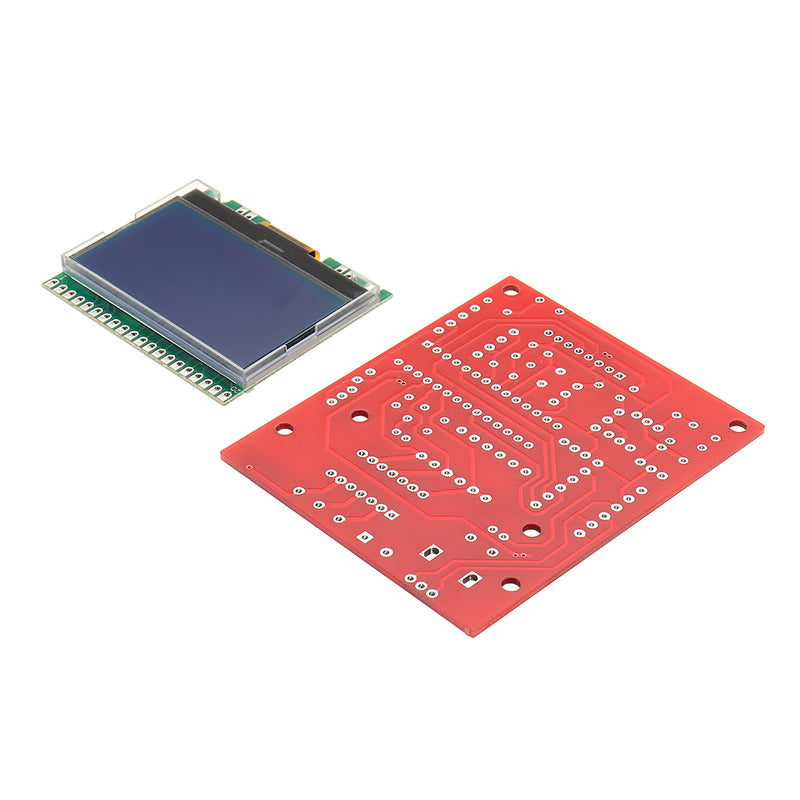

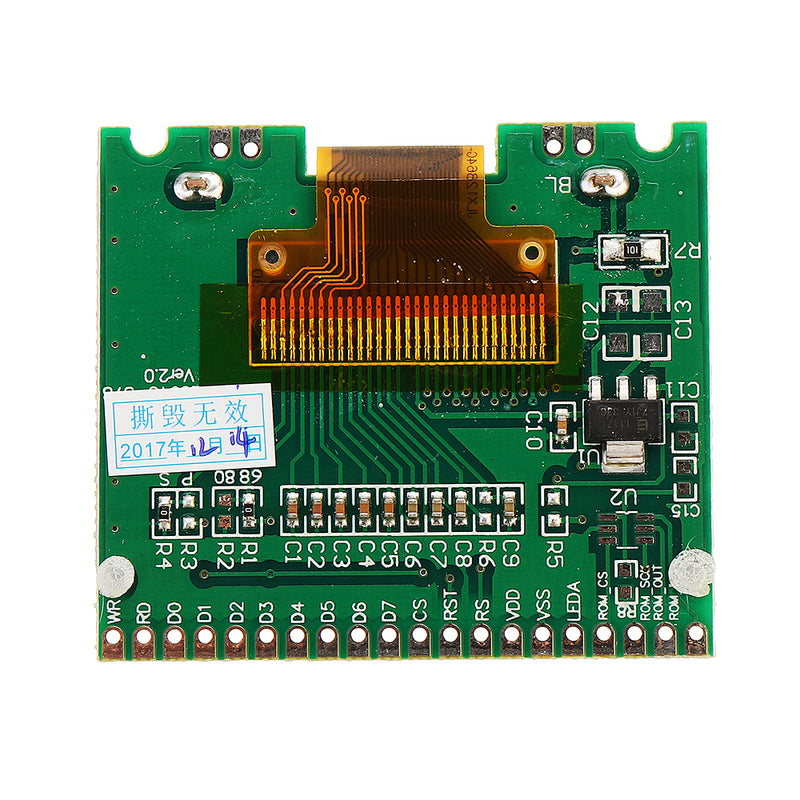

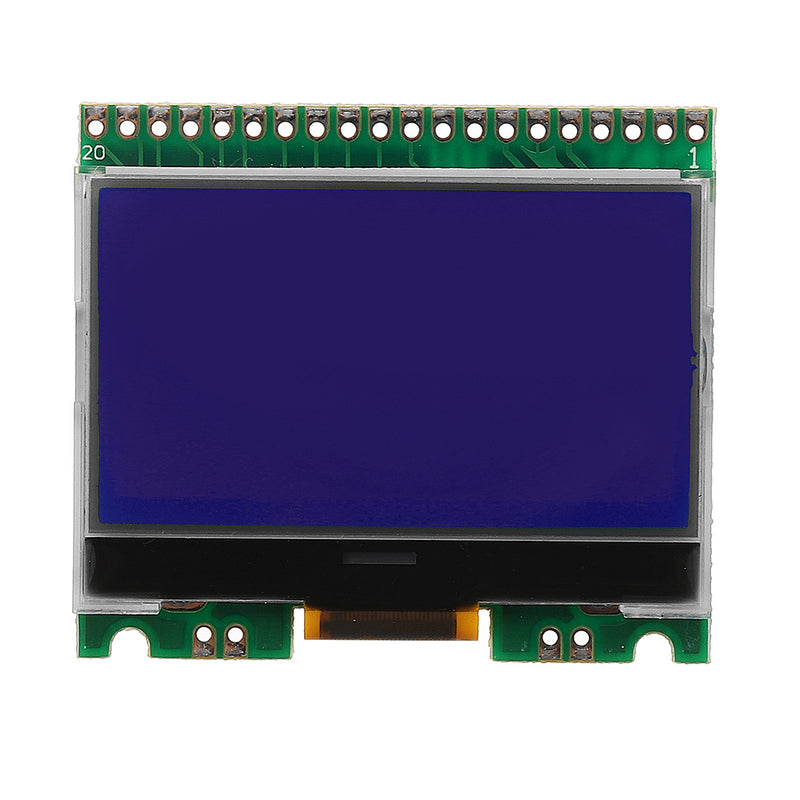

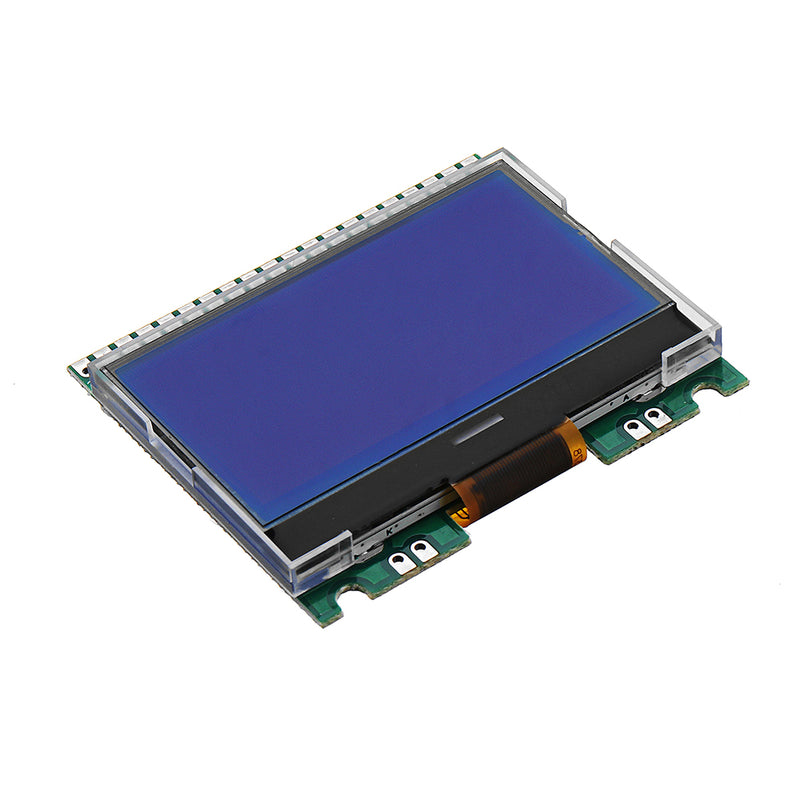

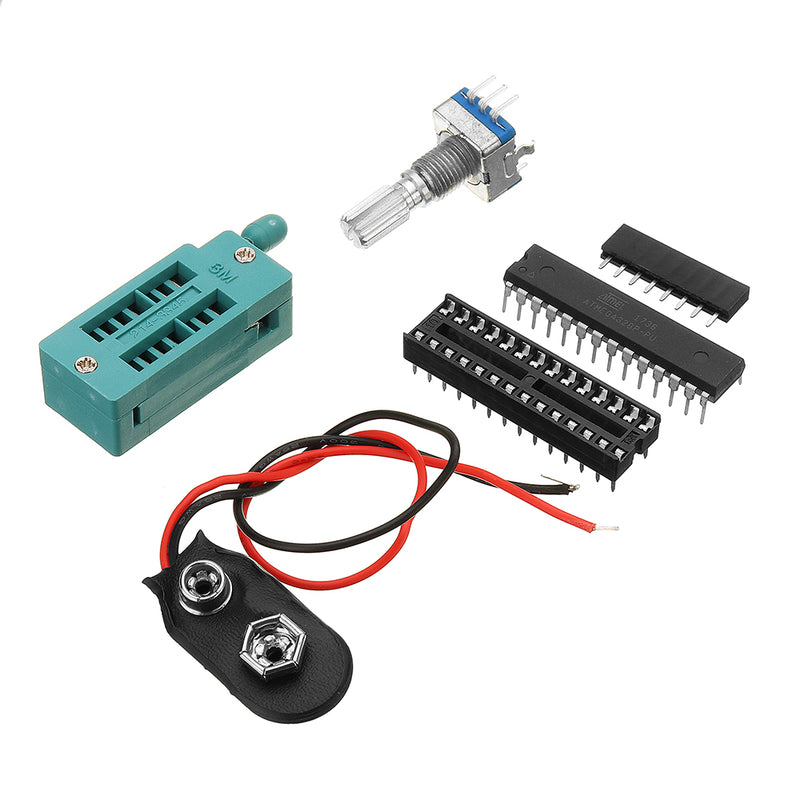

If you need the chip of this kit: >>>1002733<<<Product title marked "DIY kit" of both parts, you need your own assembled by soldering, to demonstrate for convenience, the main products picture is a physical map, the second picture are all parts that you receive, be sure to pay attention to distinguish
Description:1. Resistors, capacitors, inductors, diodes, transistors, SCR, and most commonly used devices will automatically recognize and measure
2. The capacitance line measurement capacity and ESR
3. The square-wave generator
4.PWM pulse signal generator
5. Frequency meter function
6. The graphical display of measurement results, easy and intuitive, the whole function is performed by a rotary encoder switch control, easy to operate.
Feature:Power supply voltage:
DC 5.5-12VWorking Current: 24mA @ 9V

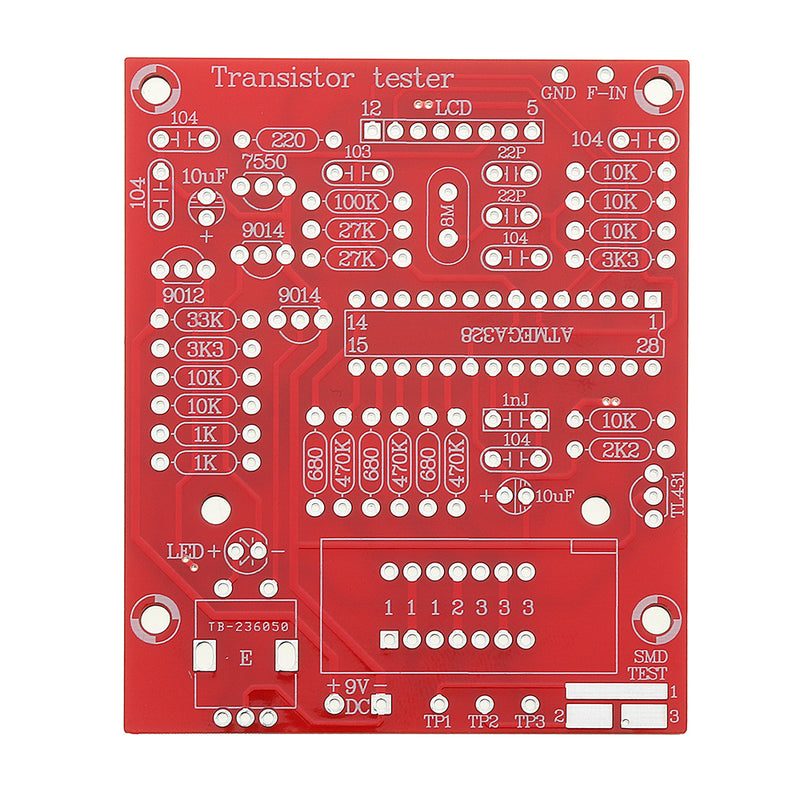

PCB Size: 75 x 63 mm
Main Function:1. One key measurement operation, auto power off delay. Shutdown current is only 20nA, support for battery operation
2: Automatic detection of PNP and NPN bipolar transistor, N, P-channel MOSFET, JFET field effect transistors, diodes, two diodes, thyristors, resistors, capacitors, inductors. Automatic detection of current amplification factor (B) Pin Definitions and the turn-on voltage of the transistor and the emitter junction (Uf), Darlington transistor through a high threshold voltage and high current gain recognition.
3: Can detect bipolar transistors and MOSFET internal protection diode and displayed on the screen. It can be measured threshold voltage and the gate capacitance of the MOSFET.
4: Support two resistance measurements, the potential can also be measured. The highest resolution is 0.1-ohm resistance measurements, the highest measured value of 50M Euro.
5: Capacitance measurement range from 25pf to 100mF (100,000 UF). Resolution up to 1 pF. 0.09UF capacitance can be detected above the equivalent series resistance (ESR), a resolution of 0.01 ohms. To display the value of the capacitor voltage loss and increase the capacitance of a separate line ESR measurements, available online (on the circuit) direct measurement capacitor value and ESR, easy maintenance and troubleshooting capacitance.
6. Inductance measurement range of 0.01MH-20H, otherwise it will be displayed as resistance, if the inductor DC resistance higher than 2100 will be displayed as the European resistance.
7. Can two diode display symbols in the right direction, displaying the forward voltage drop. LED detected as a diode forward voltage drop higher than normal. Dual LEDs detected as a double diode. Simultaneous detection LED flashes, very intuitive.
8. Each test of time is about two seconds, only the large capacitance and high inductance measurements will take a long time
Additional Feature:1. The square wave signal generator, optional built-in within the range of 1HZ-2MHZ stall square wave signal;
2.PWM pulse signal generator for 1-99% of the pulse width modulated signal;
3. The frequency meter function can test 1HZ-25KHZ or higher frequency signal (in this case a slight decrease in accuracy)
Manual !!! 1 x DIY M12864 Graphics Version Transistor Tester Kit LCR ESR PWM
