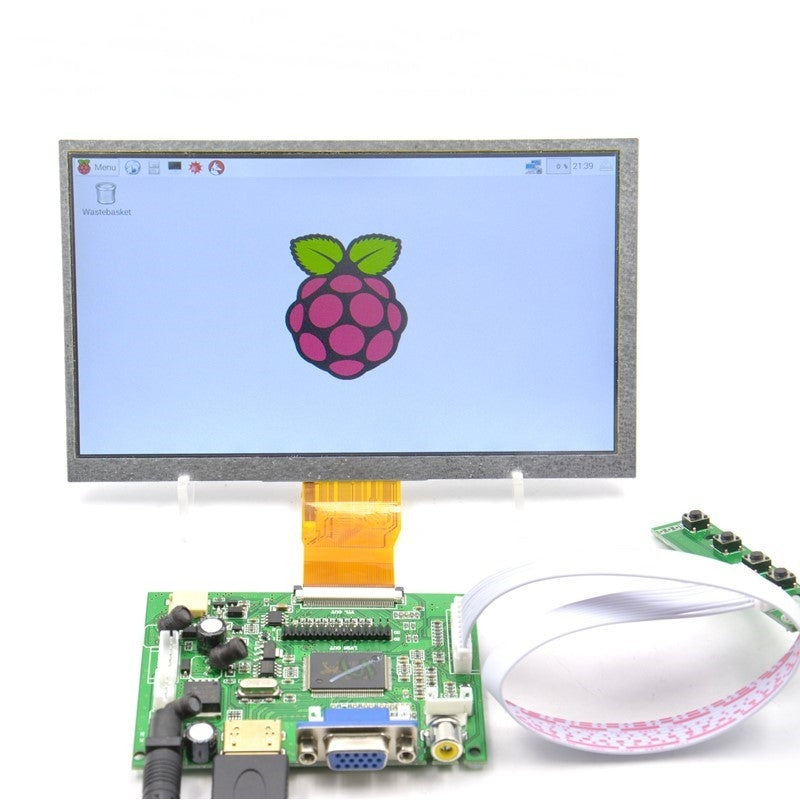

Raspberry Pi 7 inch HD LCD Screen 1024 * 600 Display Module Kit

Raspberry Pi 7 inch HDMI HD LCD Screen 1024 * 600 Display Module Kit

Note: The LCD screen without HDMI or VGA cable, un-touch screen version doesn't need drivers.
File download: http://img.staticbg.com/file/products/201602012142017 inch LCD.docx
The module color (green / blue) will send random delivery

Feature:

Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: 6-7W
Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
Resolution: 1024 * 600,
Plug and Play: Support
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
Features: Using mature program, clear display
Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

LCD screen parameters:

Display size: 7 inch
Touch screen: Not support
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 1024 × 3 (RGB) ×600
Point distance: 0.05 (W) × 0.15 (H) mm
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Display color: 262K
Contrast ratio: 500: 1
Brightness: 220cd / m2
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Backlight: LED
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

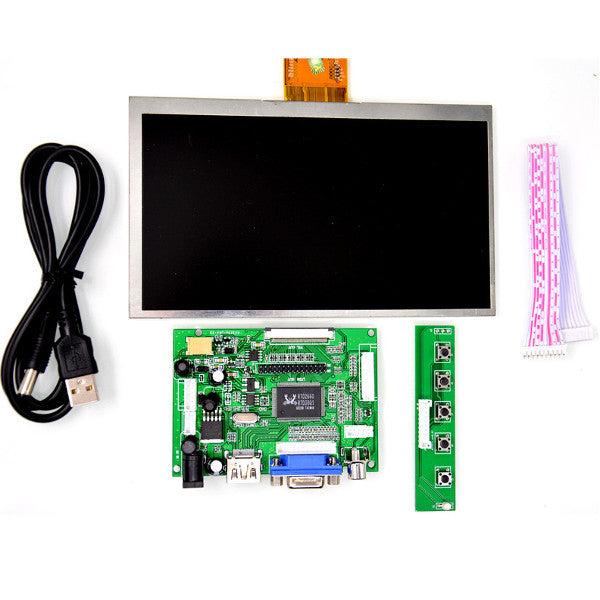

Package includes:

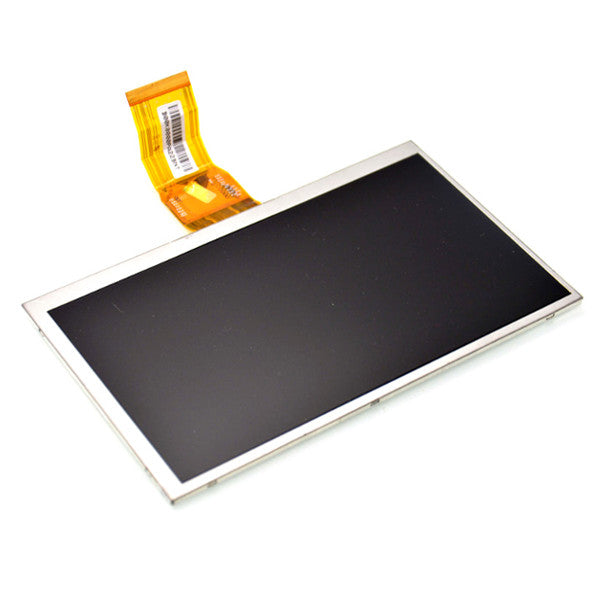

1 x 7-inch LCD screen

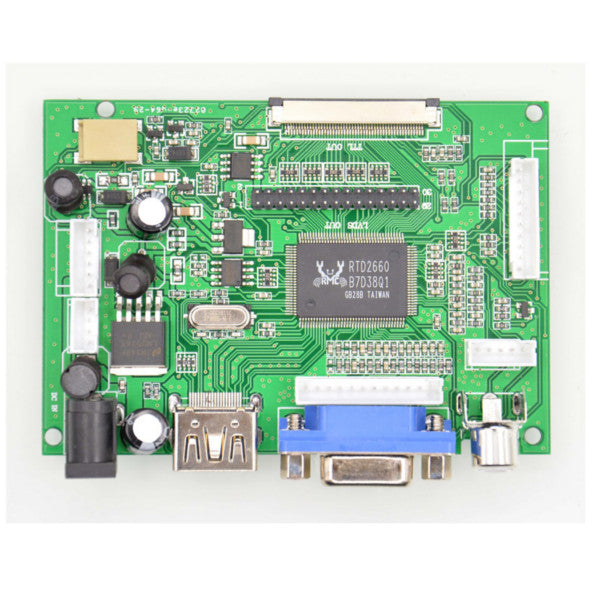

1 x LCD Driver board (Green board / blue board send random delivery)
1 x White cable (connected to the key board)

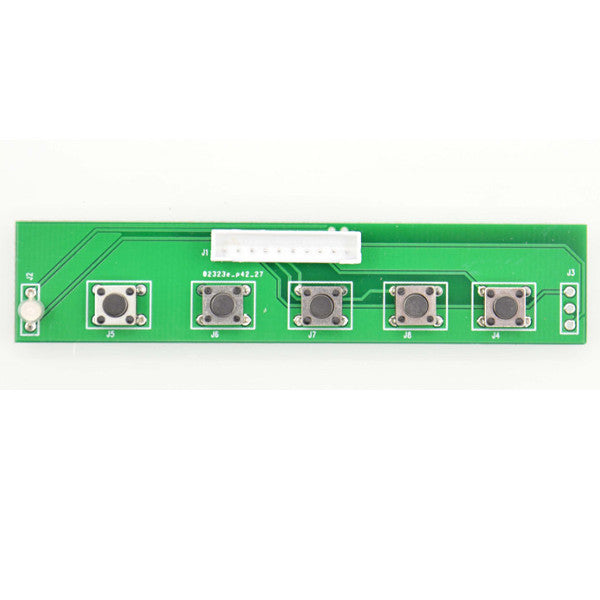

1 x Long green key board (Green board / blue board send random delivery)

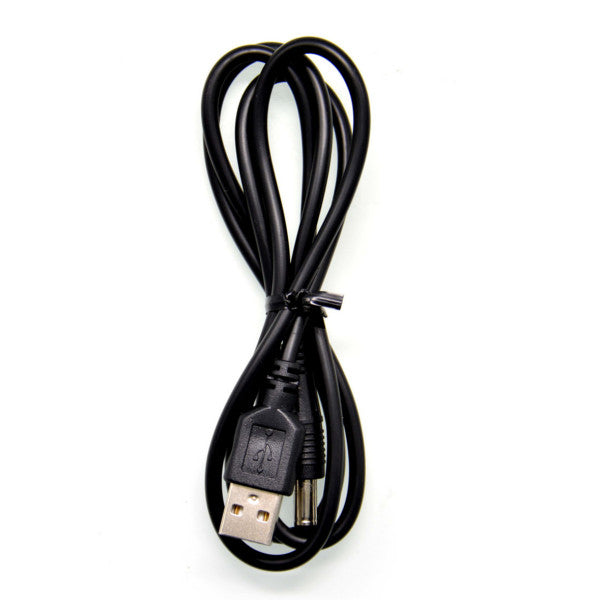

1 x USB to DC5.5 power line
