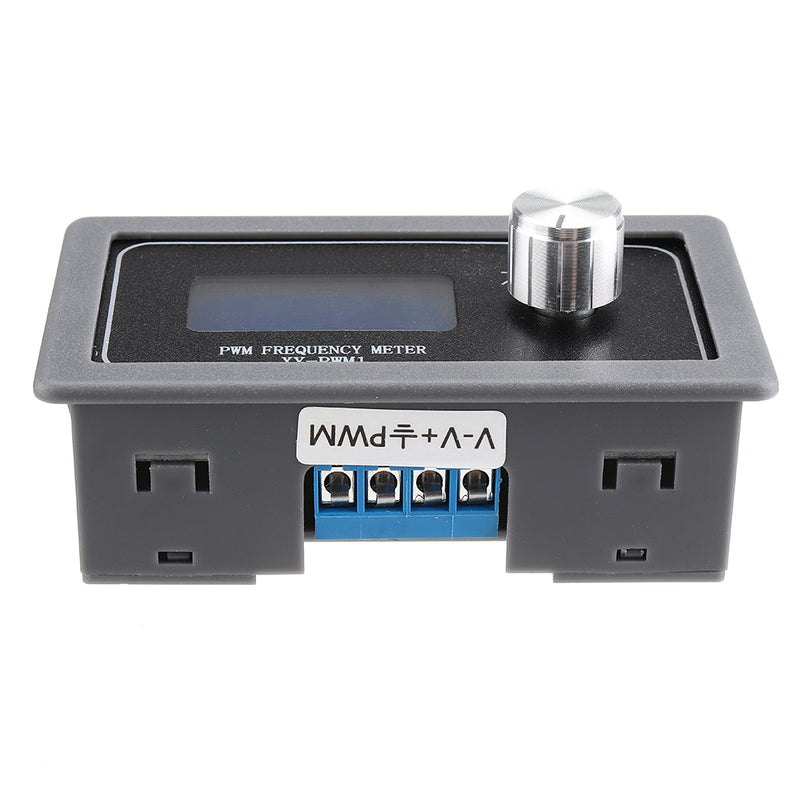

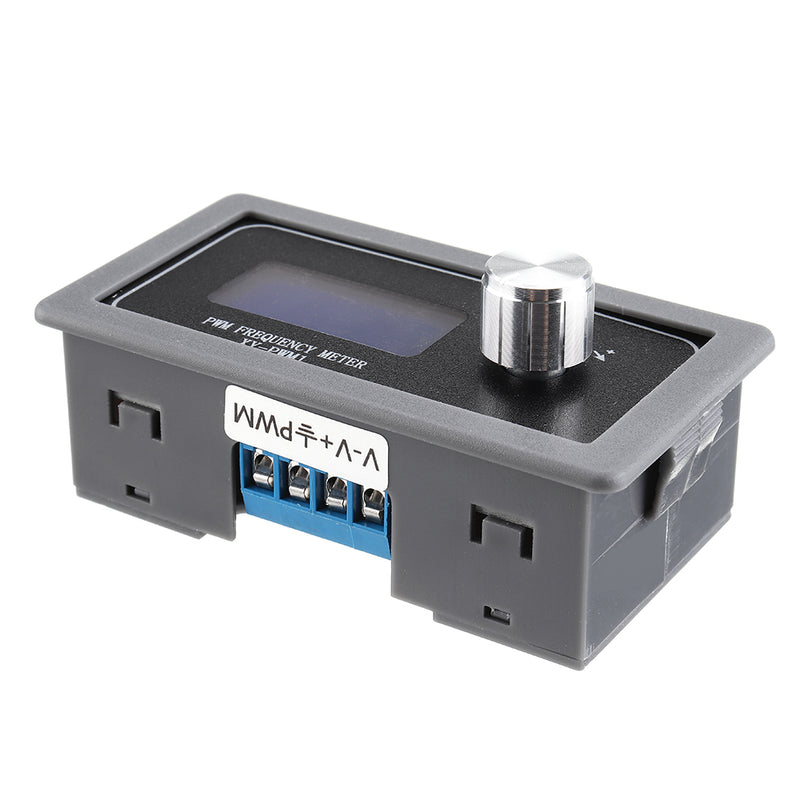

Name: Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module Hand Knob
Brand: Banggood
SKU: U2I-BG-1485923
Price: 2,245.00 INR
Availability: InStock

SKU: U2I-BG-1485923

Share this product

Module Highlights:

1. Dual mode, duty-free step 0.1% in fine mode;
2. LCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle;
3. With locking function, prevent misoperation;
4. Wide frequency range, high precision;
5. Serial communication, TTL level

First, the module description:

PWM output, you can set the frequency, duty cycle;
Normal mode:
Frequency range:1Hz~150KHz Duty:000~100%, duty-free step 1%;
Fine mode:
Frequency range:1Hz~15khz Duty:00.0~100%, duty-free step 0.1%;
Frequency is divided into four ranges, automatic switching:
1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz;
2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz;
3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz
4. X.X.X (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz

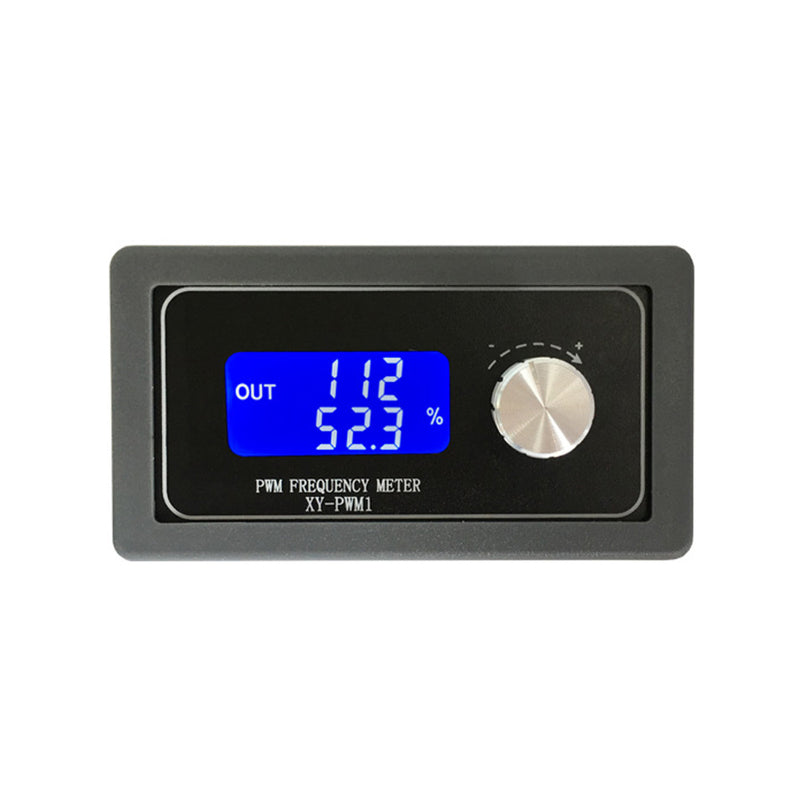

frequency display: 100 indicates PWM output 100Hz pulse;
1.01 indicates PWM output 1.01K pulse;
54.1 indicates that the PWM output has a pulse of 54.1 kHz;
1.2.4 indicates that the PWM output is 124 kHz pulse;
Duty cycle range: 0 ~ 100%;
All set parameters, power-down automatically saved.

Second, the parameter settings:

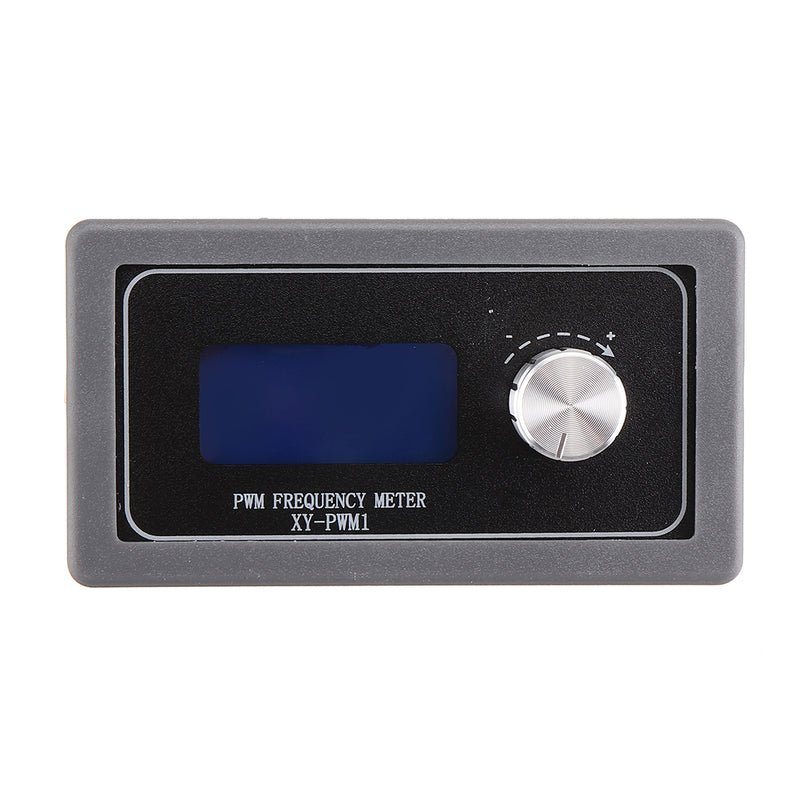

This product through the Rotary Encoder to adjust the frequency and duty cycle, can be determined according to the rotation speed to achieve rapid adjustment, the default adjustment duty cycle, short press adjust frequency, long press 2 seconds lock, long press 5 seconds switch mode (normal mode/fine mode), simple operation, set the parameters of automatic saving, no loss of power.

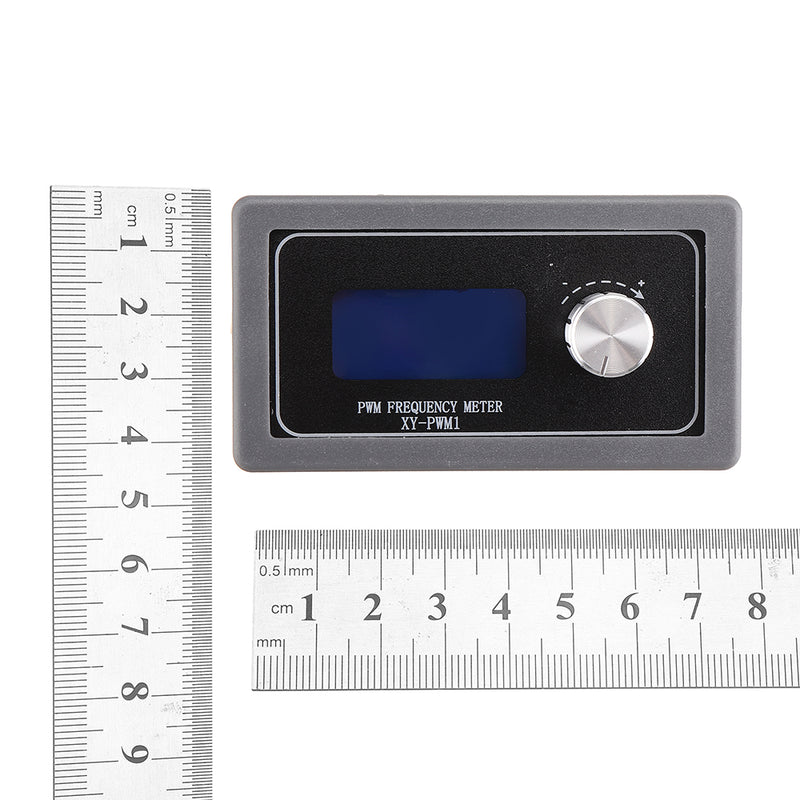

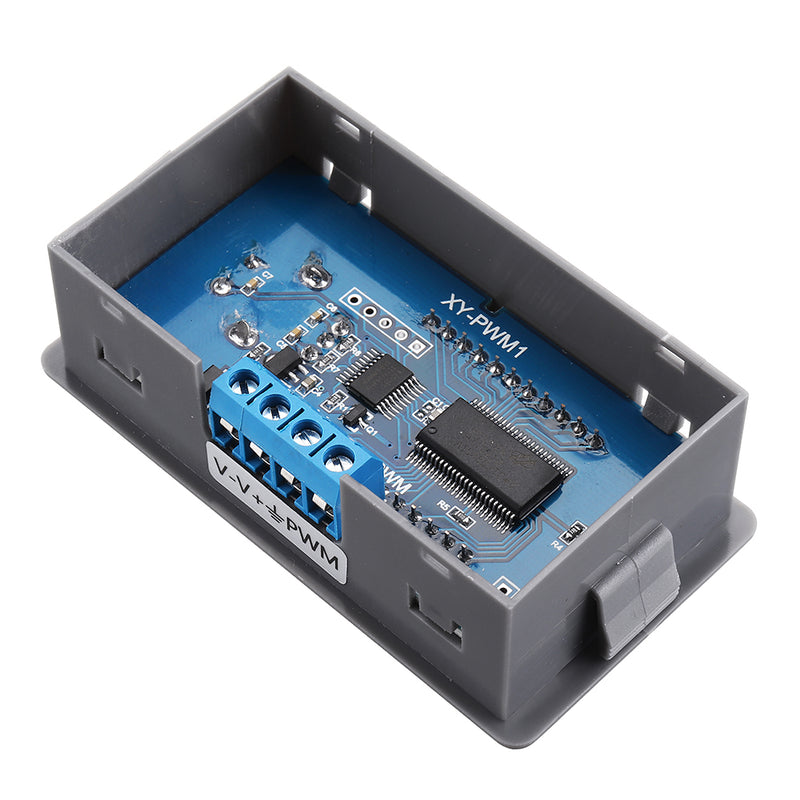

Third, the module parameters:

1. Working voltage: 3.3 ~ 30V;
2. Frequency range: Normal Mode:1Hz ~ 150KHz Fine Mode:1Hz~15KHz
3. Frequency accuracy: the accuracy in each range is about 2%;
4. Signal load capacity: the output current can be about 5 ~ 30ma;
5. Output amplitude: PWM amplitude equal to the supply voltage;
6. Ambient temperature: -20 ~ +70 ℃.

Fourth, the scope of application:

1. Used as a square wave signal generator, generate square wave signal for experimental development and use;
2. Used to generate a square wave signal that controls the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications).

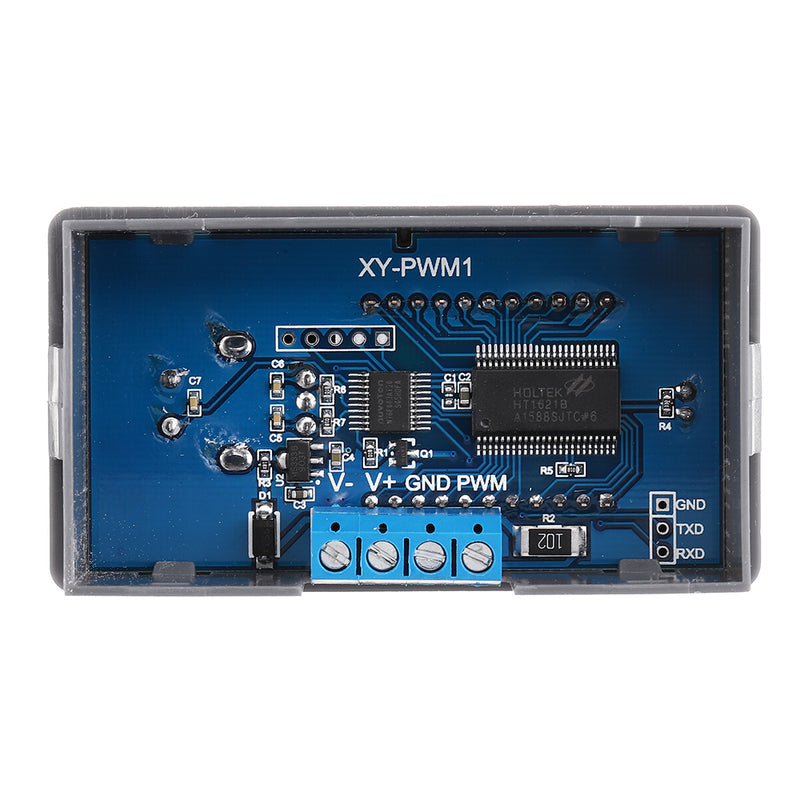

Communication standard:

9600 bps Data bits: 8
Stop bit: 1
Check digit: none
Flow control: none

1. set the frequency of the PWM
"F101": Set the frequency to 101 HZ (001 to 999)
"F1.05": set the frequency of 1.05 KHZ (1.00 ~ 9.99)
"F10.5": Set the frequency to 10.5KHZ (10.0 ~ 99.9)
"F1.0.5": set the frequency of 105KHZ (1.0.0 ~ 1.5.0)
Note: In fine mode, the maximum frequency is 15.0KHz

2. set the PWM duty cycle
Normal Mode:
"DXXX": set the PWM duty cycle to XXX; (001 ~ 100)
Such as D050, set the PWM duty cycle is 50%
Fine Mode:
"DXX.X": set the PWM duty cycle to XX.X; (0.1 ~ 100)
Such as D20.8, set the PWM duty cycle is 20.8%

3. Read the set parameters
Send a "read" string to read the set parameters.

4. Modify Mode
“MODE0”: Normal Mode
“MODE1”: Fine Mode
Set successfully return: DOWN;
Setup failed to return: FALL.

Package included:

1 x Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module
