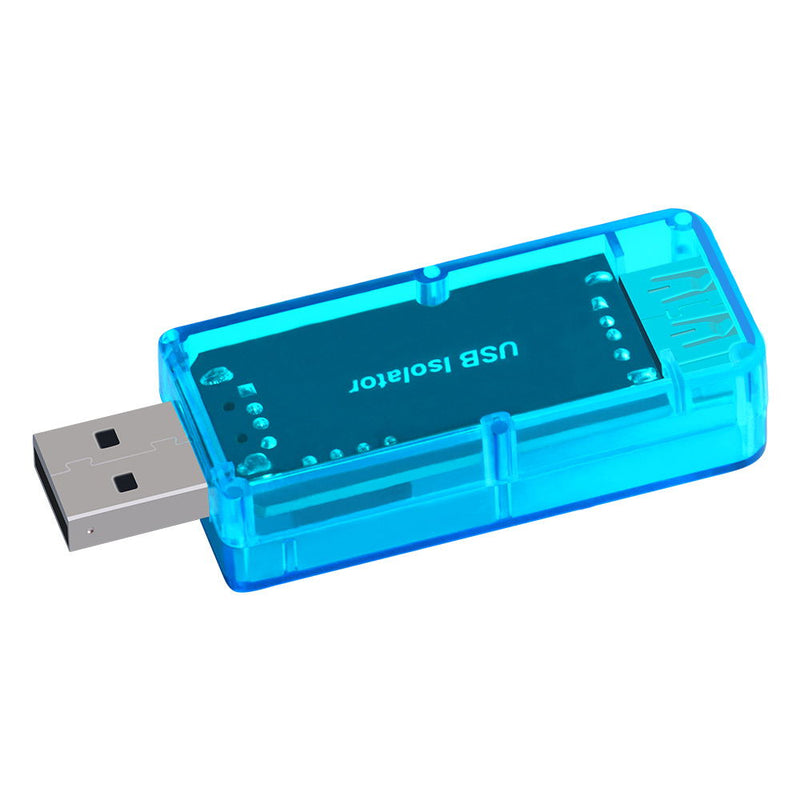

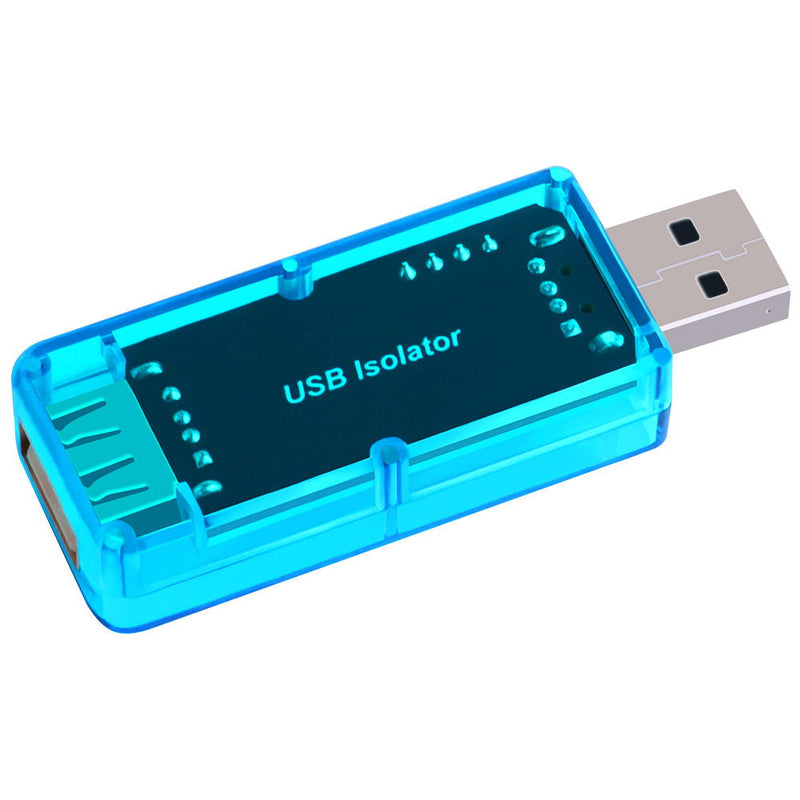

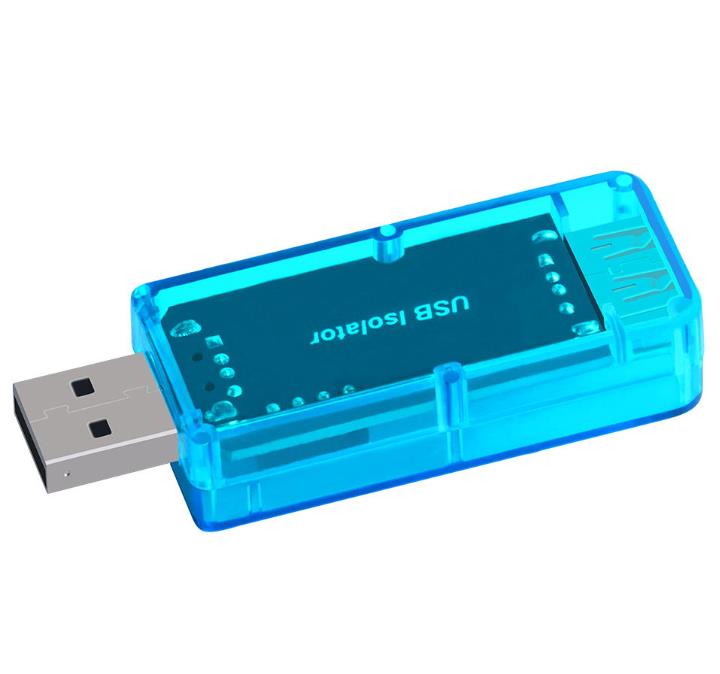

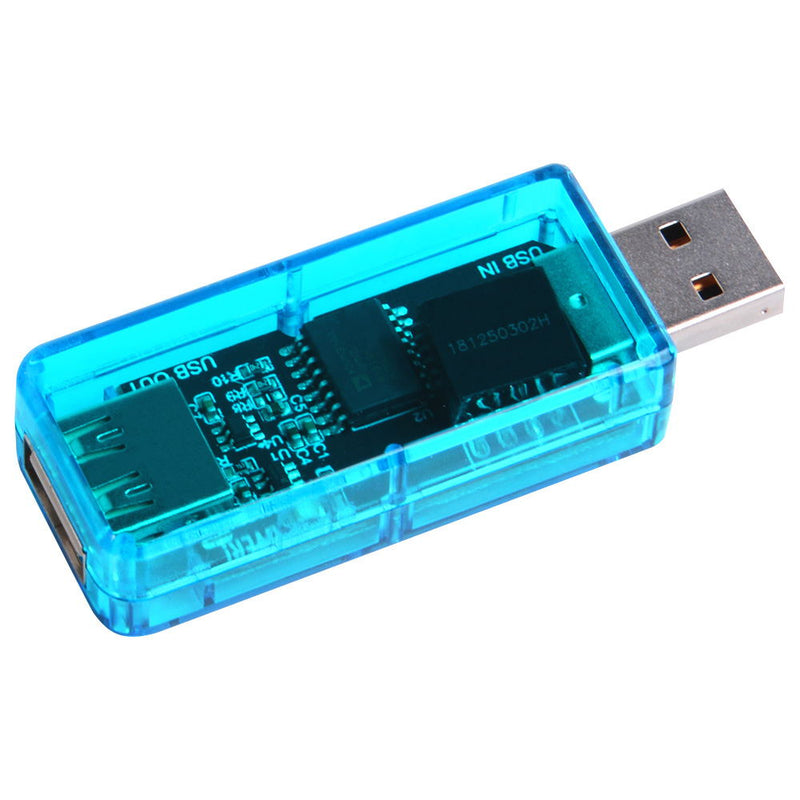

USB Isolator USB 2.0 compatible For Raspberry Pi 3B/3B+(Plus)
Save 0
SKU: U2I-BG-1478179
Share this product
Description
Features:
- USB 2.0 compatible - Low and full speed data rate: 1.5 Mbps and 12 Mbps - Bidirectional communication - 4.5 V to 5.5 V VBUS operation - 7 mA maximum upstream supply current at 1.5 Mbps - 8 mA maximum upstream supply current at 12 Mbps - 2.3 mA maximum upstream idle current - Upstream short-circuit protection - Class 3A contact ESD performance per ANSI/ESD STM5.1-2007 - High common-mode transient immunity: >25 kV/μs - RoHS compliant - Qualified for automotive applications - Safety and regulatory approvals - UL recognition: 2500 V rms for 1 minute per UL 1577 - CSA Component Acceptance Notice #5A - IEC 60950-1: 600 V rms (basic) - VDE certificate of conformity - DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 - VIORM = 560 V peak
