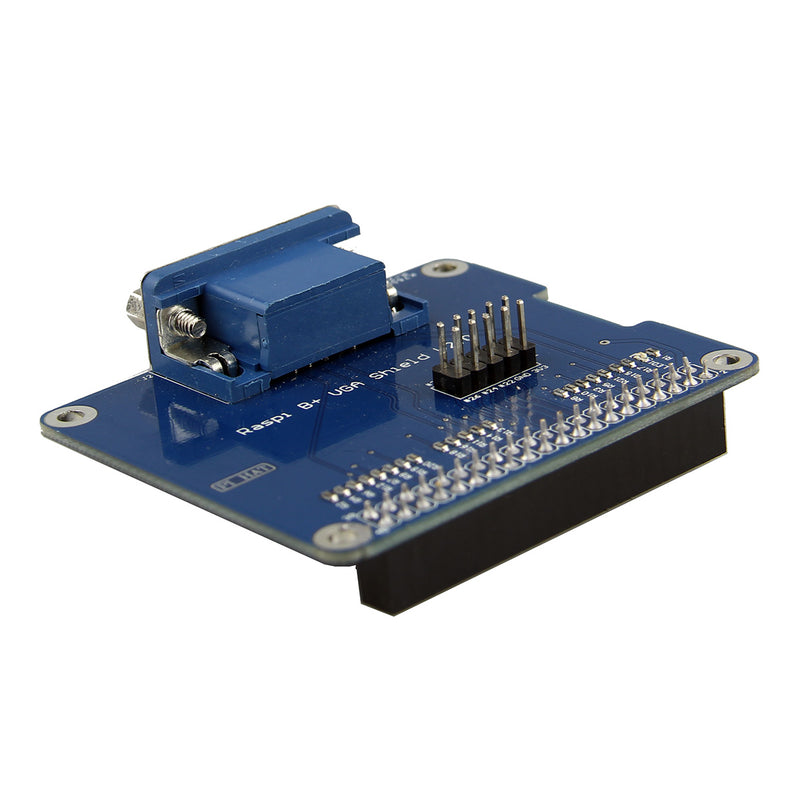

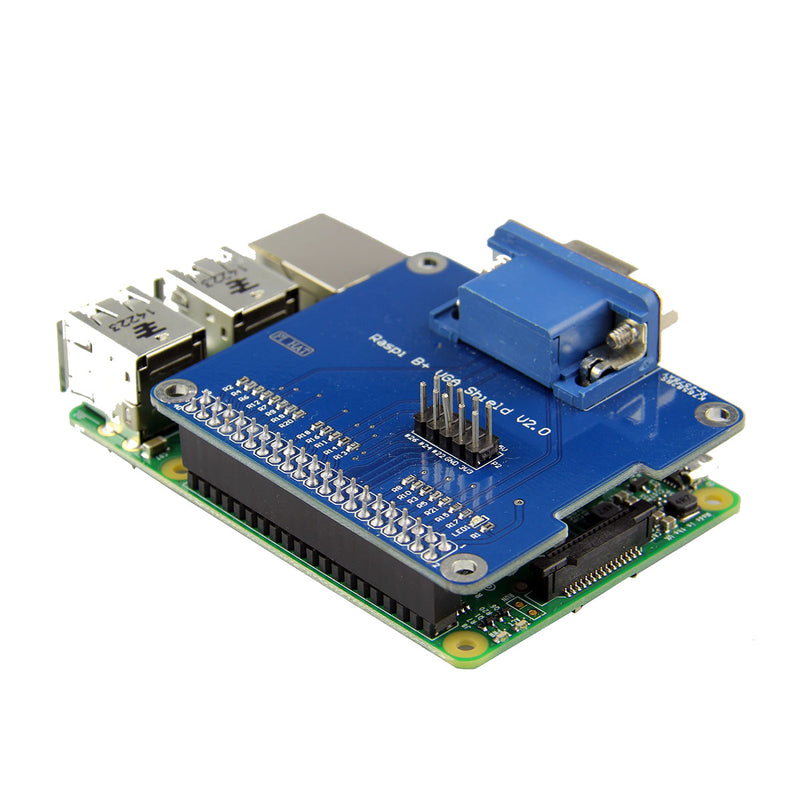

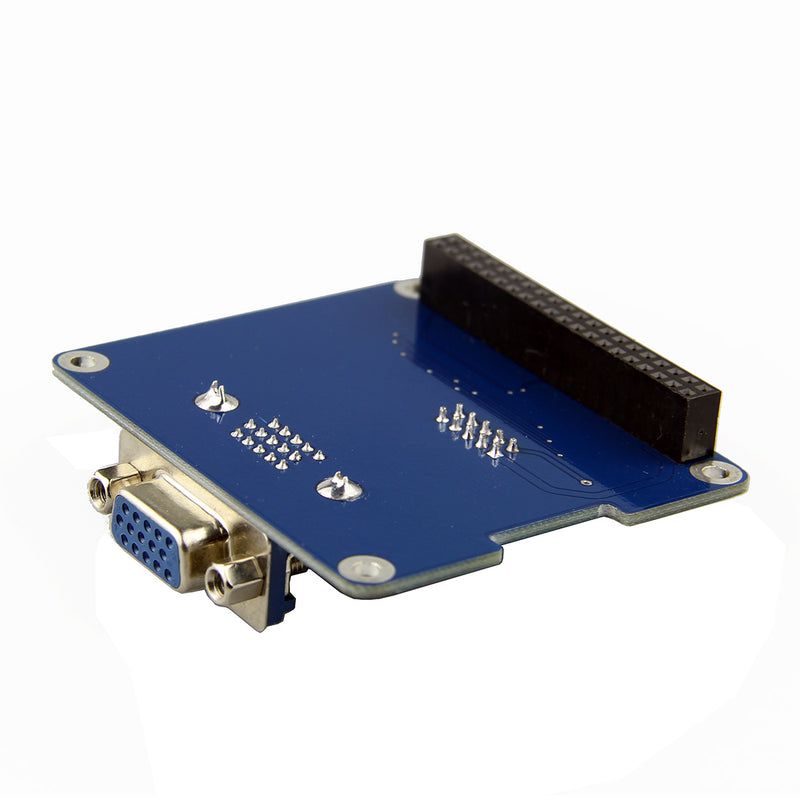

VGA Shield V2.0 Expansion Board For Raspberry Pi 3B / 2B / B+ / A+

Extend a VGA interface via GPIO and remain HDMI.

Note: Raspberry Pi main board is not included.

How to use:

1. Copy the two files(from setup.zip) to system card;

2. Open the file "config.txt" and append the following content at the file end;

enable_dpi_lcd=1

display_default_lcd=1

3. Configurate the appropriate resolution:

dpi_group=2

dpi_mode=82

// 1080p@60

dpi_group=2

dpi_mode=86

// 1366×768@60

Package included:

1 x VGA Shield V2.0 Expansion Board For Raspberry Pi 3B / 2B / B+ / A+
