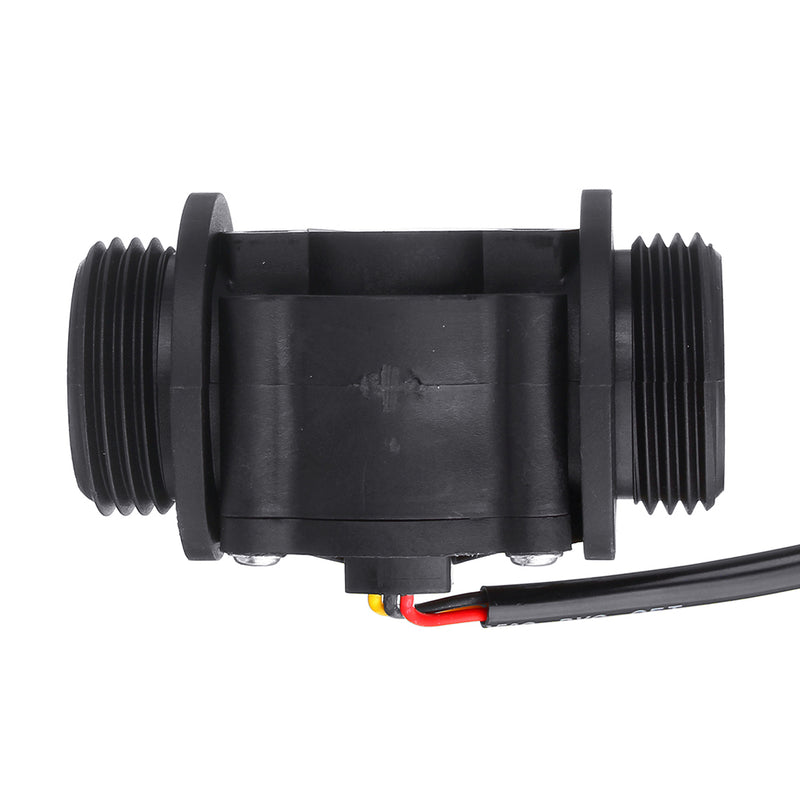

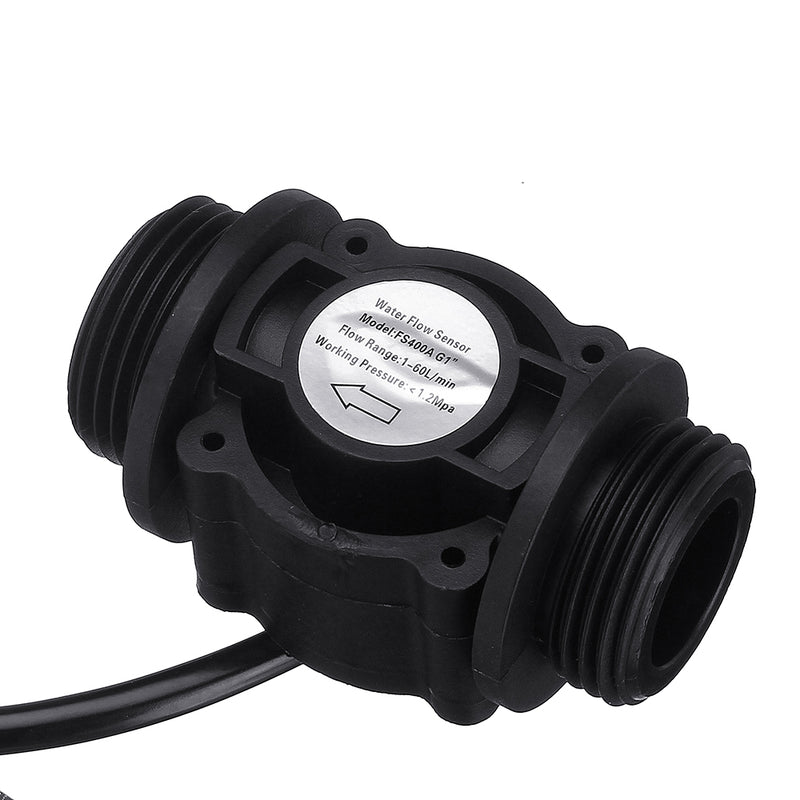

Name: Water Flow Sensor Fuel Flow Meter Water Meter Sensor Flowmeter Water Sensor Counter Indicator FS400A G1 DN25 1-60l/min 1.2MPA
Brand: Banggood
SKU: U2I-BG-1439150
Price: 2,591.00 INR
Availability: InStock

SKU: U2I-BG-1439150

Share this product

Description:

Note: The color of the item may vary slightly due to photography and your own computer
Impeller inlaid stainless steel beads, always wearable.
Flow range: 1-60L/min
Interior diameter: 0.81"
Minimum rated working voltage: DC4.5 5V-24V
Maximum current: 15 mA(DC 5V)
Working voltage range: DC 5-18 V
Load capacity: 10 mA(DC 5V)
Operating Temp: 80°C,Operating humidity: 35%-90%RH
Allow compression: Water pressure 1.20 Mpa below
Storage Temperature: -25-+80°C
Storage humidity: 25%-95%RH
F=4.8 * units of flow (L / min) * time (seconds).

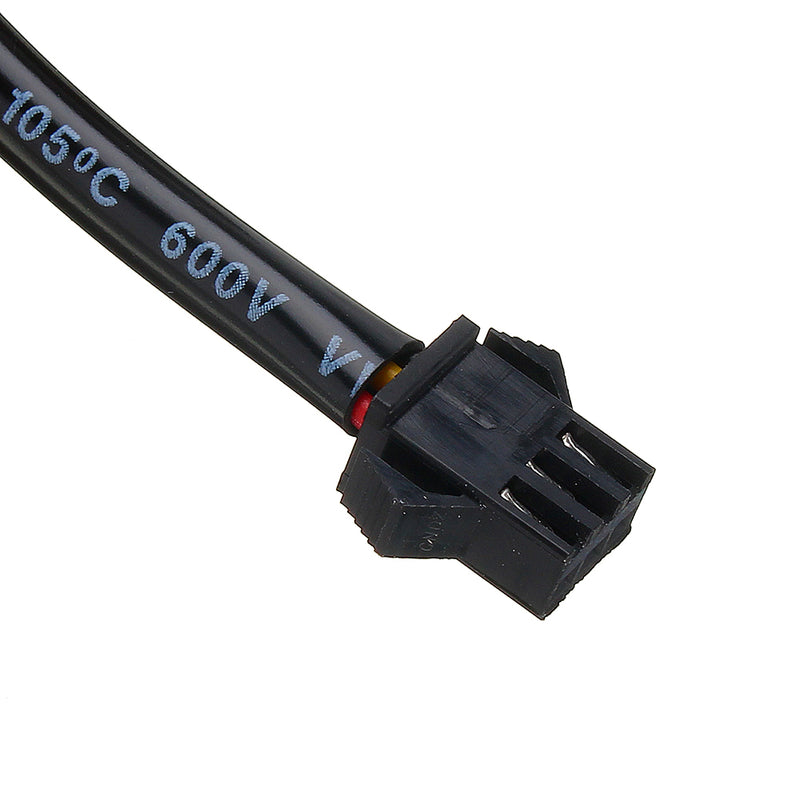

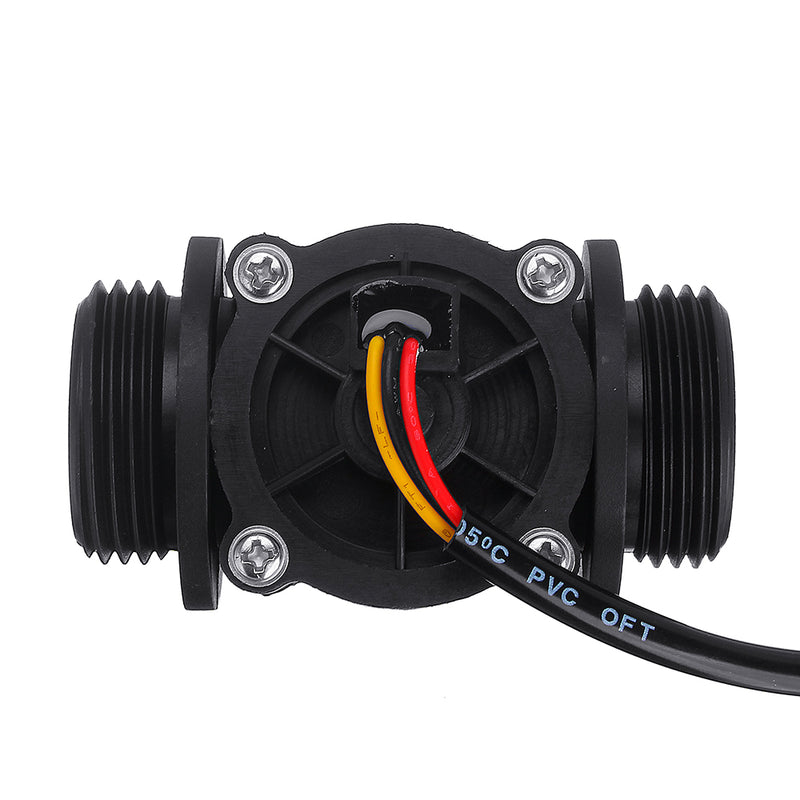

About the Wiring:

Red Connect Positive;
Yellow OUT Connect signal output;
Black GND Connect Negative.
Suitable for water purifier, water heaters, credit card machines, water vending machines,
coffee machines, smart card equipment, the boiler and other flow measurement devices!
Caution:
Prohibite dramatic impact and chemical erosion.
Prohibite throw or hit.
Vertical installation, the inclination is no more than 5 degrees.
Media temperature should not exceed 120degree.

Packaging included:

1 x G1 Flowmeter
