X705 UPS HAT 18650 5.1V 8A Output Smart Uninterruptible Power Management Expansion Board for Raspberry Pi 4B/3B+/3B
Save 0
SKU: U2I-BG-1607877
Share this product
Description
The Raspberry Pi is NOT included
Overview:

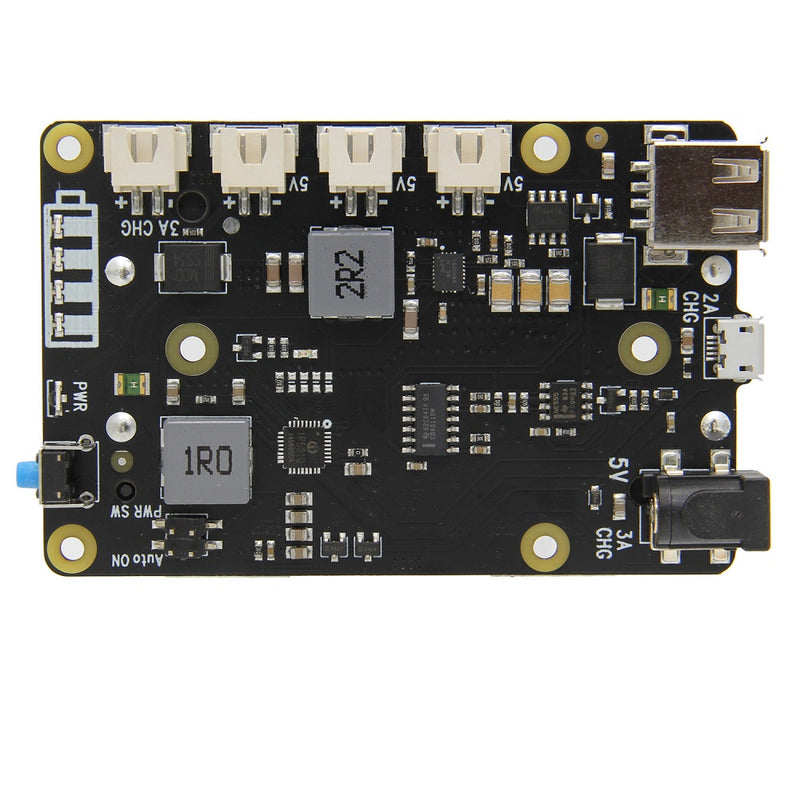

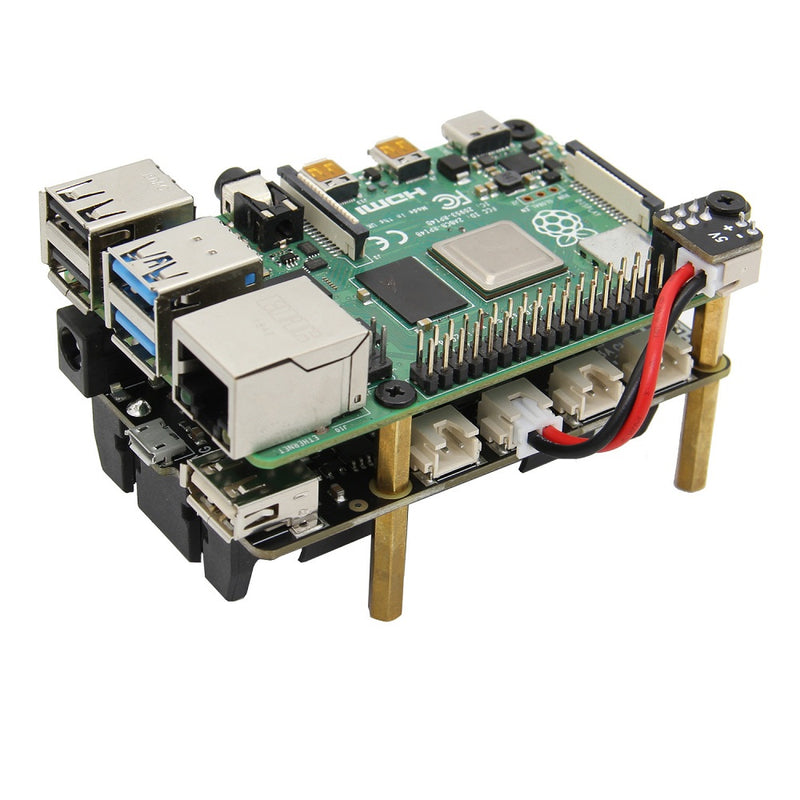

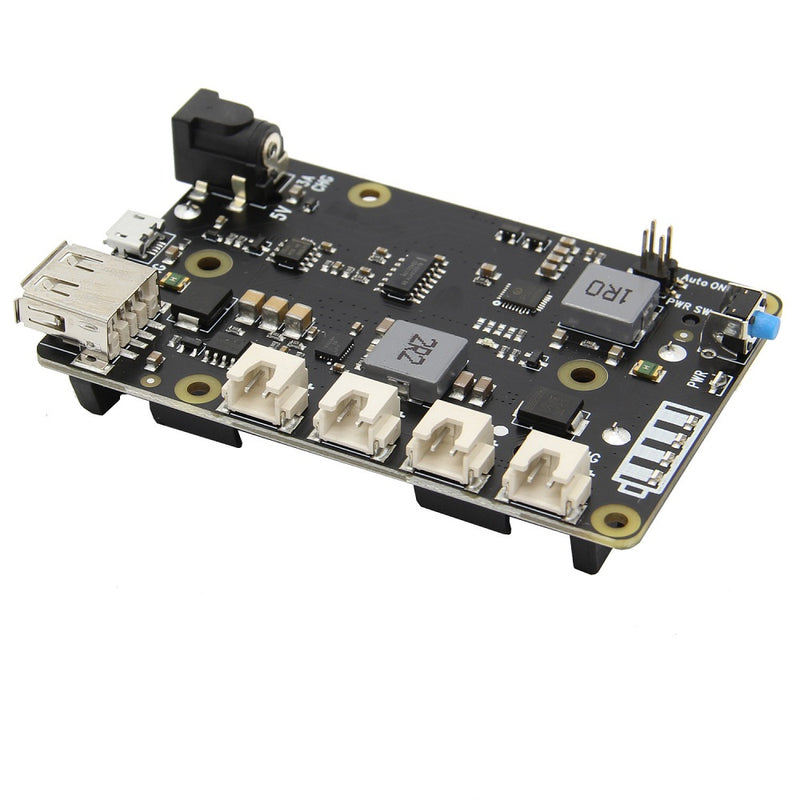

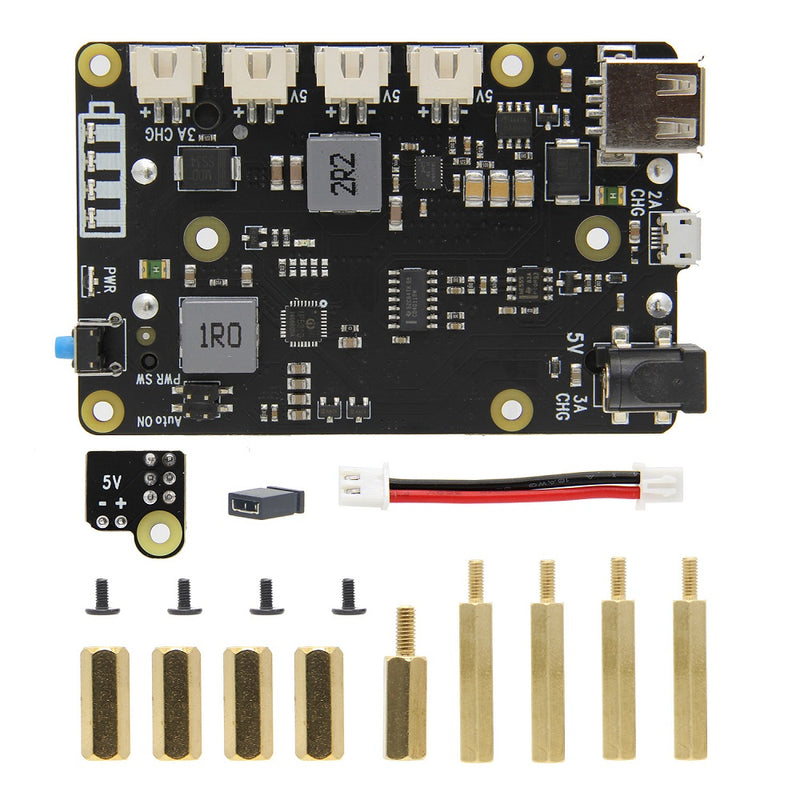

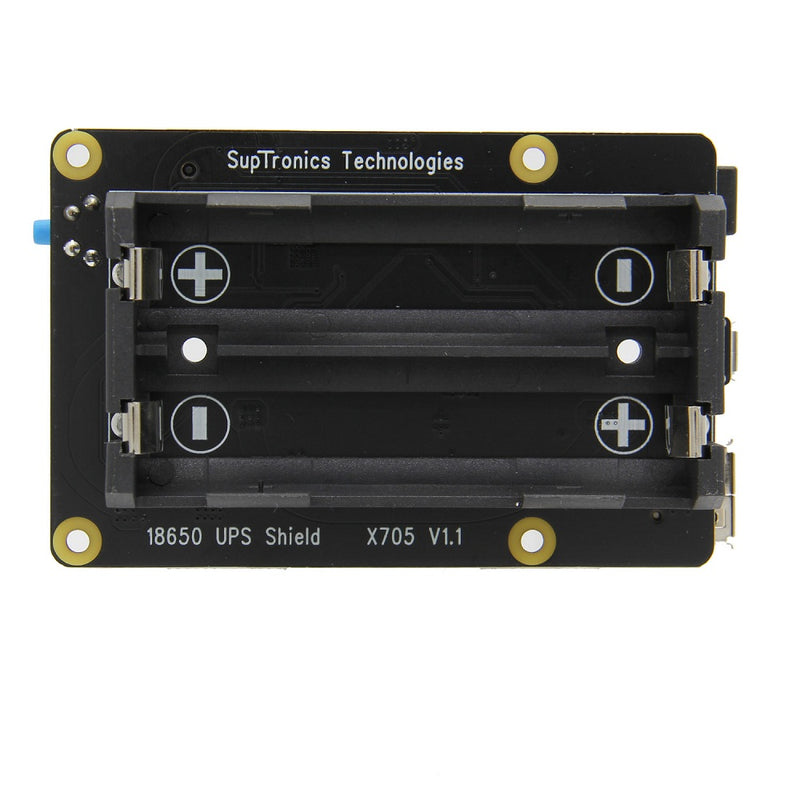

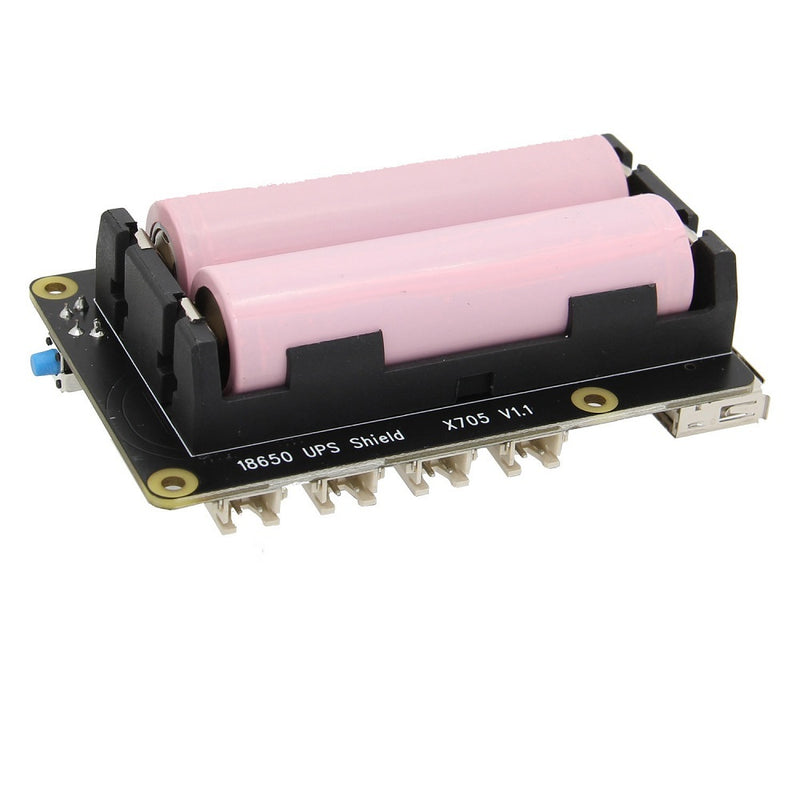

The X705 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides an advanced uninterruptible power supply and power . The X705 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X705 can also be used with the X820 (2.5" HDD/SSD Shield), X850 (MSATA SSD shield), X822.
Specifications:
- Power supply: via Micro-USB socket : 4.7~5.5Vdc, 2.5A; Via DC power jack : 4.7~5.5Vdc ±5%, ≥4A - UPS output : 5.1V ±5% Max 8A - UPS charging current: 2A via Micro-USB socket, 3A via DC jack - Terminal Battery Voltage : 4.2V - Recharge Threshold : 4.1V
Warning:
- DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI's MICRO USB or Type-C SOCKET. - DO NOT APPLY POWER TO X705 VIA THE MICRO USB SOCKET AND DC JACK AT THE SAME TIME. - DO NOT USE 18650 BATTERY WITH BUILT-IN PROTECTION CIRCUIT
