X870 NVME M.2 2280/2260/2242/2230 SATA SSD NAS Expansion Board with USB 3.0 Jumper for Raspberry Pi / Rock64
Save 0
SKU: U2I-BG-1472569
Share this product
Description
Overview:

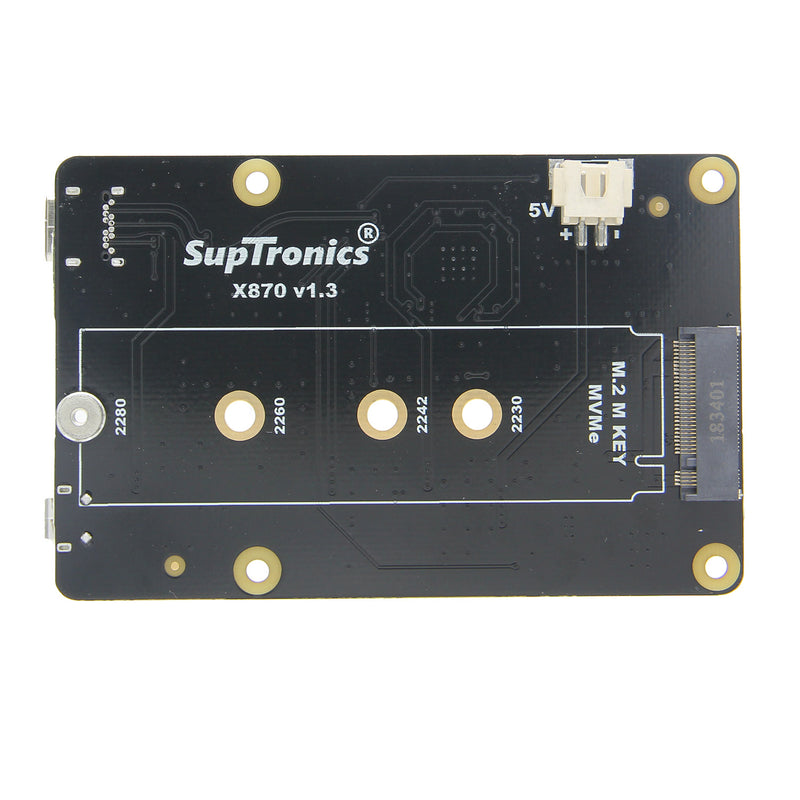

This is the X870 NVMe M.2 SSD Storage Expansion Board, it provides a complete storage solution for raspberry pi or ROCK64. It supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230.
Features:

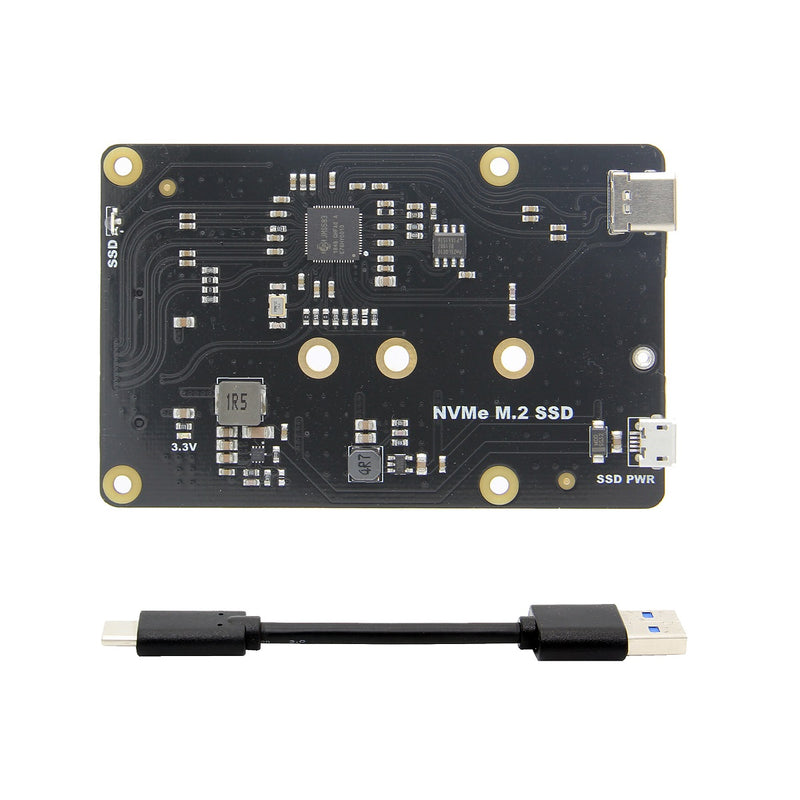

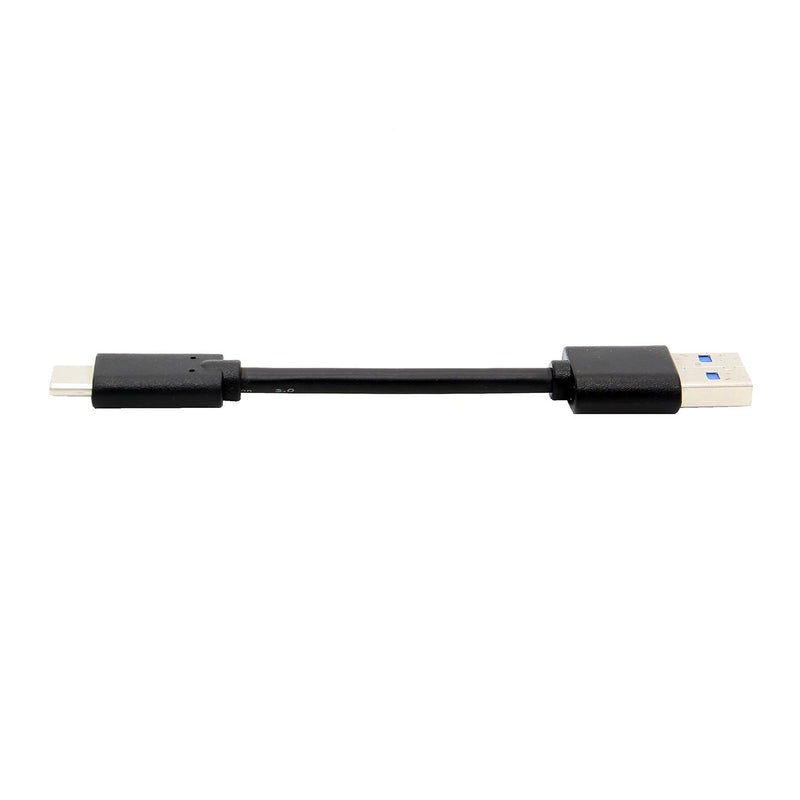

- Ideal storage solution for Raspberry Pi - M.2 NVMe SSD Shield - Supports up to 2TB M.2 NVMe SSD solid-state drives - Supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230 - Supports operating system installation and booting from your SSD - Supports fastest OS image writing (>1Gb/S*) from a PC or a Mac - Integrated USB 3.1 Gen2 to PCIe Gen3x2 10Gb/s bridge controller - USB2.0 connectivity offers plug-and-play functionality on your Raspberry Pi - Quick file transfer with high-speed USB3.1 Gen1 5Gb/s or Gen2 10Gb/s connectivity from a PC or a Mac - LED blue indicator indicates drive status - On-board micro-USB socket and XH2.5 connector allows external power supply to power high capacity SSD (Max 11.5Watts) - USB bus-powered - Specially-made short USB Type-C to USB-A 3.0 cable to connect with Raspberry Pi - Fully compatible with X720, X730 and X735 for intelligent and safe power management - PCB Size: 87mm x 56mm
Note:
- *The Raspberry Pi main board is not included. - *Test condition: USB3.1 Gen 2 port, SSD sequential write speed >1000MB/s - NVMe SATA SSD is not included - Compatible with NVMe M.2 SSDs - Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices - As with all SSDs, new media must be formatted before use - Performance depends on host system, workload, and SSD media used - SSDs use exceptionally high performance storage media that will run hot when under load - Older SSD drives with less efficient flash media may not perform as well as newer drives
Power supply request:
5Vdc +/-5% , Powered by Raspberry Pi Additional power supply for SSD (Only when you find that the power supply of the SSD is insufficient) 5Vdc via on-board micro-USB or XH2.5 2Pin connector
Ports & Connectors:
- USB socket - USB Type-C x 1 - Micro-USB SSD power socket x 1 - XH2.54 2P SSD power input port x 1 - 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x 1
