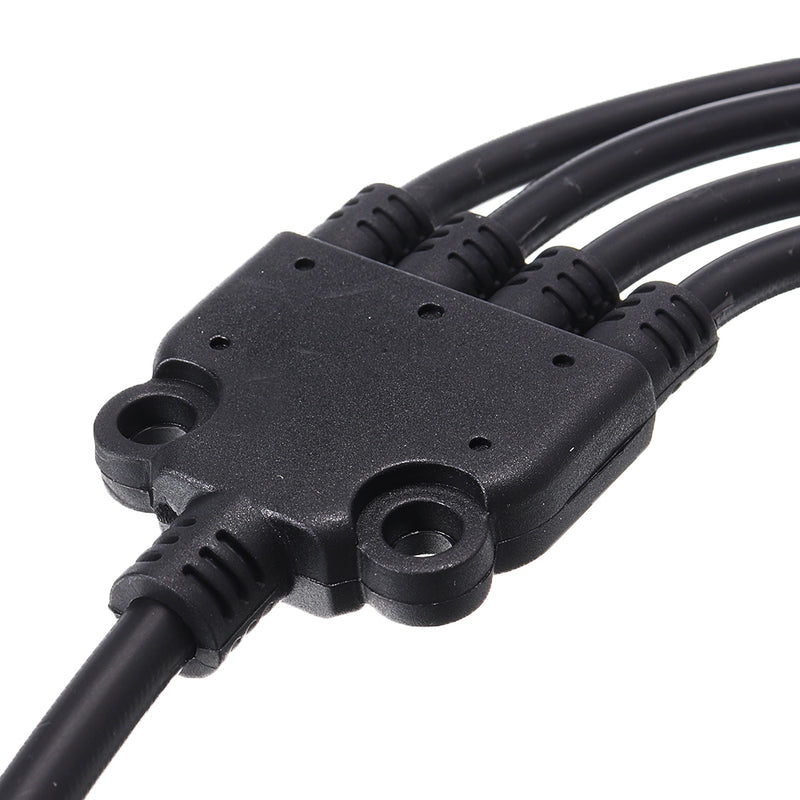

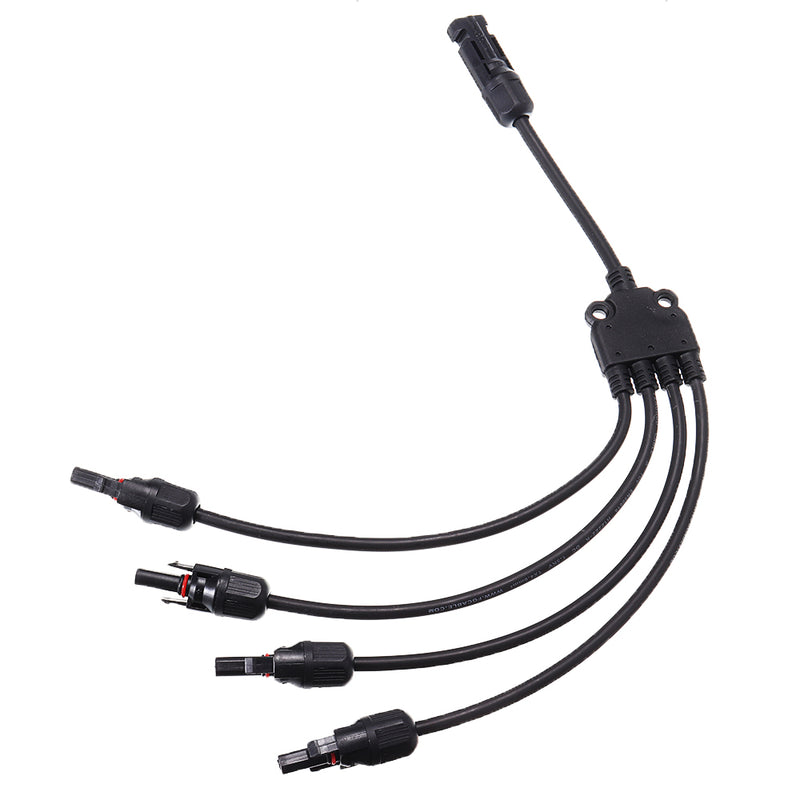

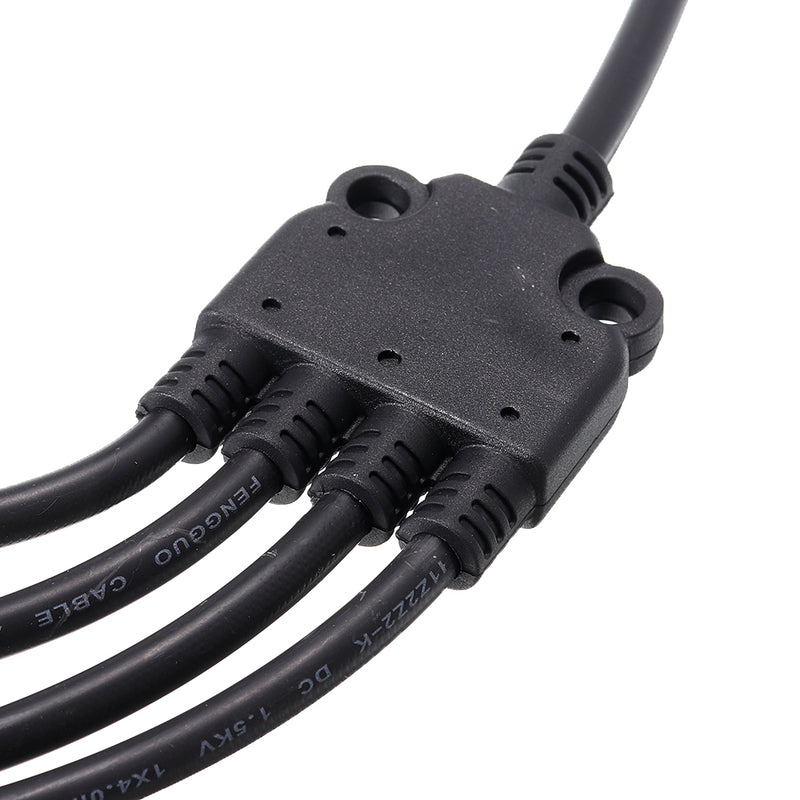

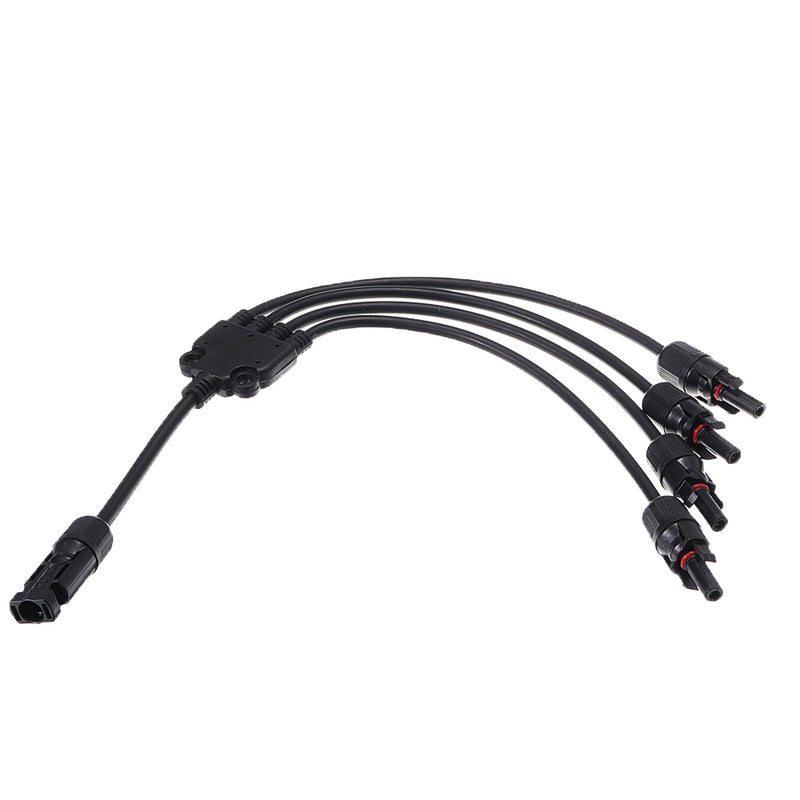

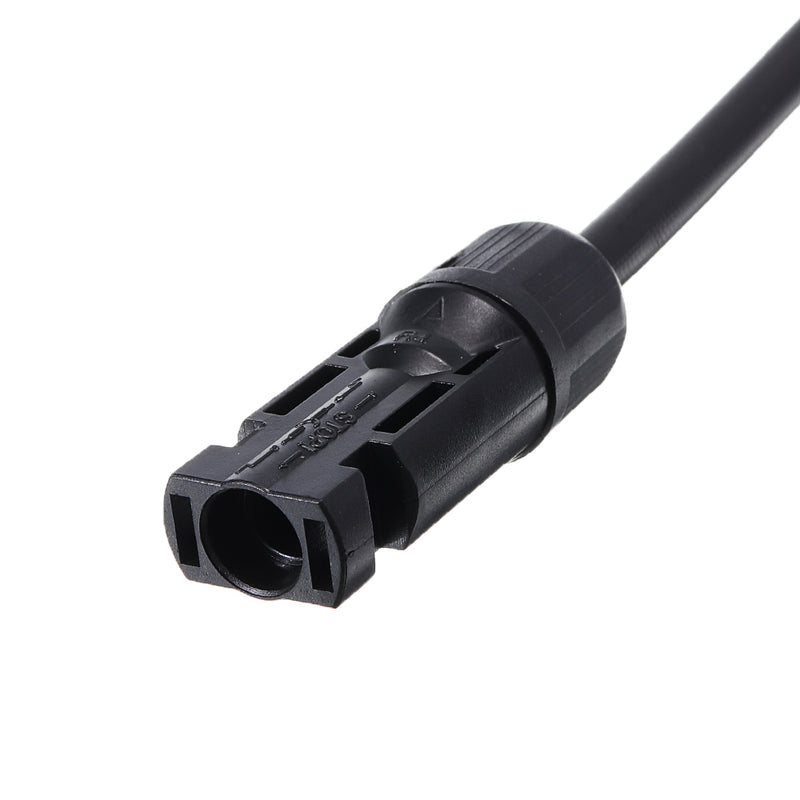

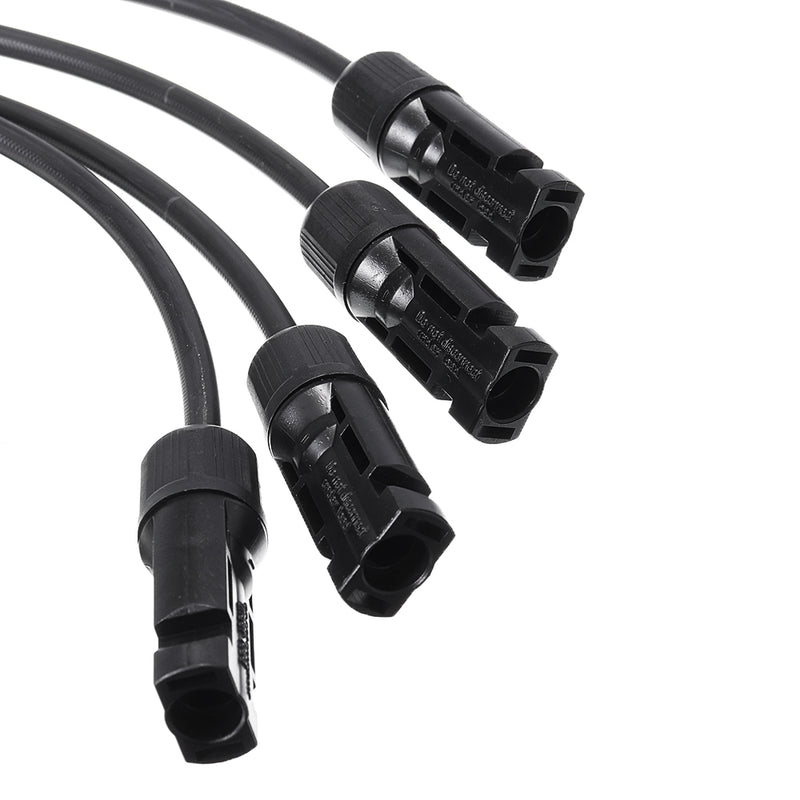

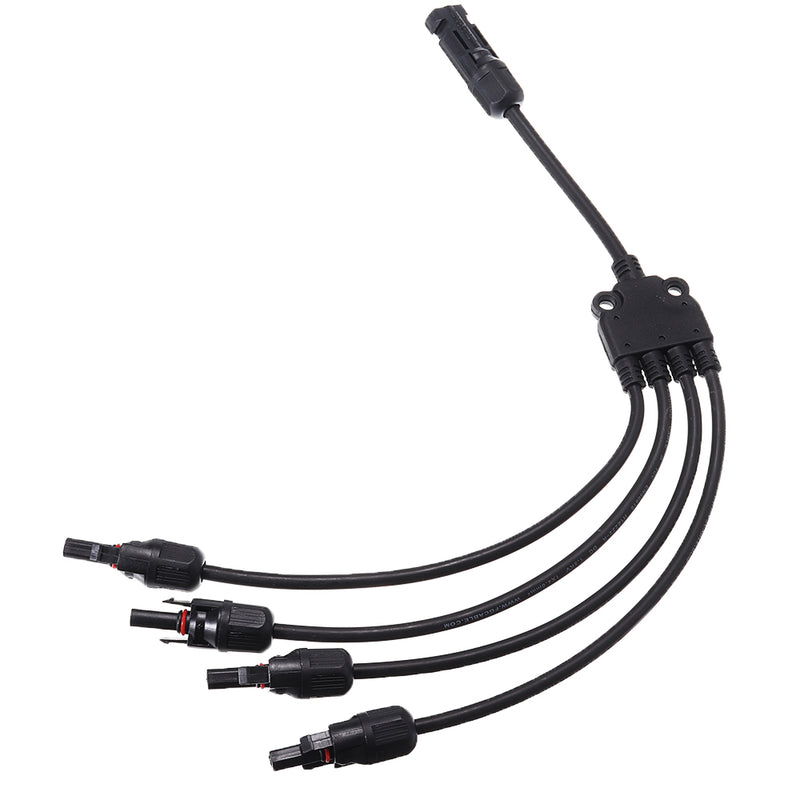

Y Branch MC4 Solar Panel Adaptor Cable Connector(1, M/FFFF and F/MMMM)
Save 0
SKU: U2I-BG-1599895
Share this product
Description
Description:

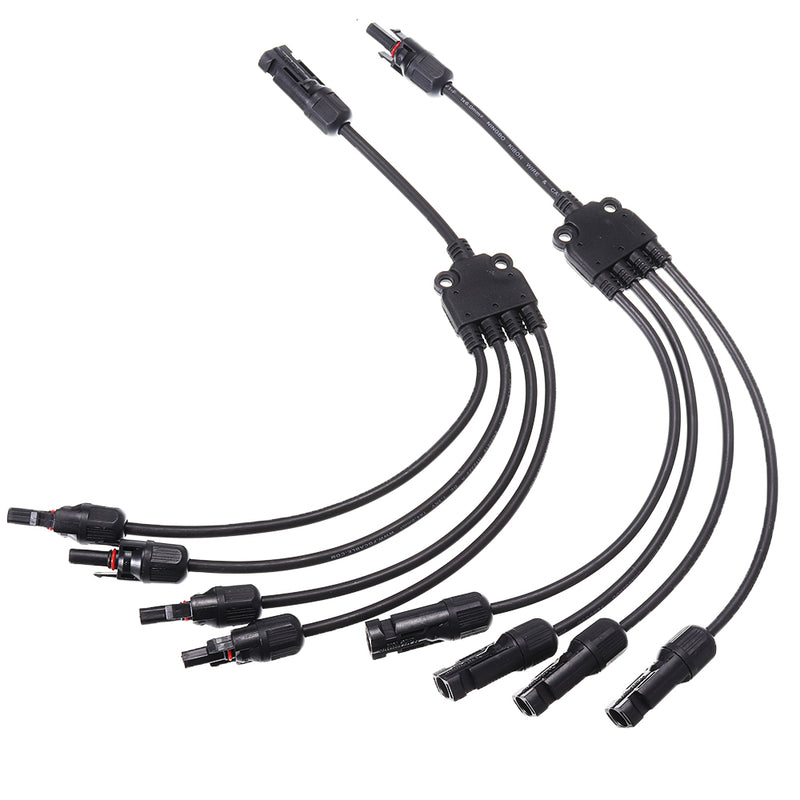

Compatible MC4 Double seal rings for better waterproof effect Compatible with PV cables with different insulation diameters It can be used in harsh environment With excellent aging resistance and UV endurance Created seal, design of dust proof Load capability with big current and high voltage Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument Strong pulling force capability Resistance of extra high & low temperature and fireproof Lower contact resistance Including 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)
Specification:
Insulation material: TPE PPO Rated current: 15A Rated voltage: 1000V(TUV)&600V(UL) Test voltage: 6kV(50Hz,lmin) Typical contact resistance: less than equal 0.2mmΩ Contact material: Copper,Tin plated Degree of protection: IP67 Safety degree: ll Flame class: UL94-V0 Material RTl: 110℃ Ambient temperature range: -40℃ until+85℃ Wire Size:2.5-10mm² Weight: 0.48kg
Package included:
2 x Y Branch MC4 Connector
