Specification
Input voltage: DC 12V/3.0A
Output voltage:DC 4.2V / DC 1.48V
Output current
Lithium battery charging current: 500mA*4 /700mA*4/1000mA *4 2000mA *2
NiMH battery charging current: 500mA*4/700mA*4 /1000mA*4

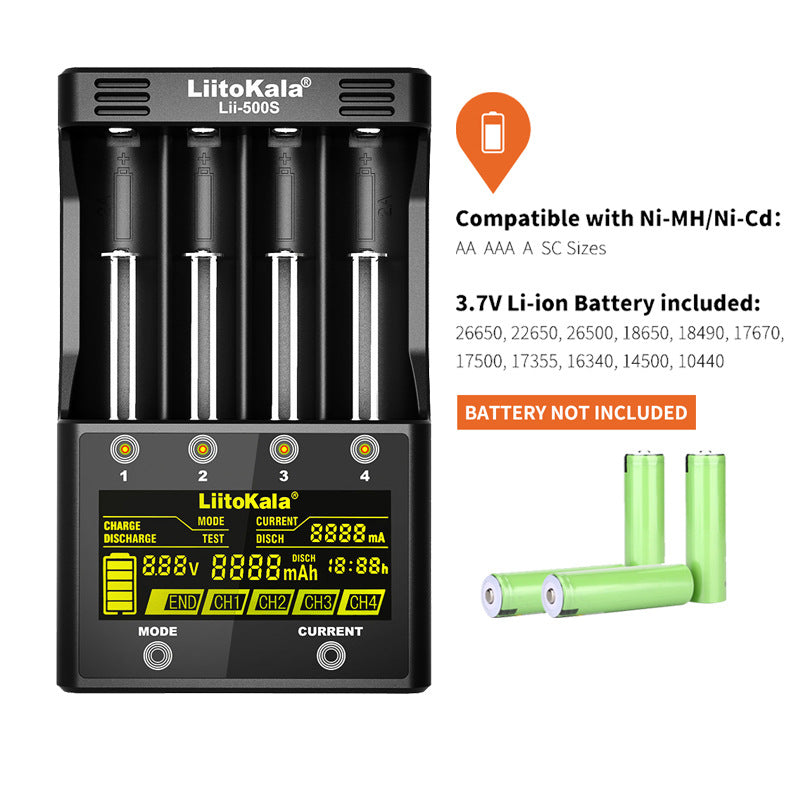

Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc.
Discharge current: 250mA / 500mA
USB output: 5V---1000mA
Termination method: intelligent voltage monitoring
Dimensions: 162mm (length) * 100mm (width) * 36mm (height).
Order description
Lii-500S and adapter:Lii-500S charger + 12V/3A adapter + manual
Lii-500S Full: Lii-500S charger + 12V/3A adapter + 12V Car Cable + manual
Note: The results of the Lii-500S charger test are for reference only and do not make any professional proof.
Features
1. New touch control function;
2. Four optional charging currents: 500mA*4/700mA*4/1000mA *4/2000mA*2;
3. Two discharge currents: 250mA*4/500mA*4;
4. It can charge different batteries of different specifications (18650/26650....../AA/AAA);
5. This product uses a separate LCD display, charge and discharge mode (MODE). Voltage (V).
Current (mA). Time (h). Capacity (mAh) parameters, at a glance;
6. CHARGE, DISCHARGE and TEST modes can work simultaneously; independently set
charge/discharge capacity detection/normal capacity detection function;

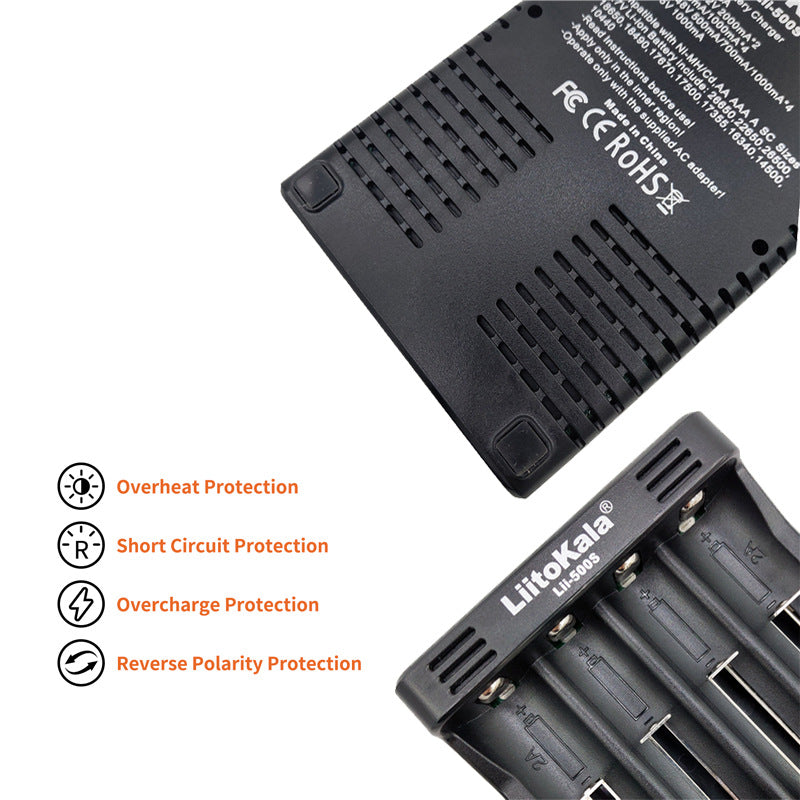

7. A variety of protection functions: overcharge and over discharge, short circuit, temperature,
0V voltage activation function, (-ΔV & 0ΔV), 1.65V-2.2V non-charging function, intelligent identification
of bad battery and reverse battery detection protection;
8. With standard 5V/1000 mA USB output function (only valid when AC power is connected)

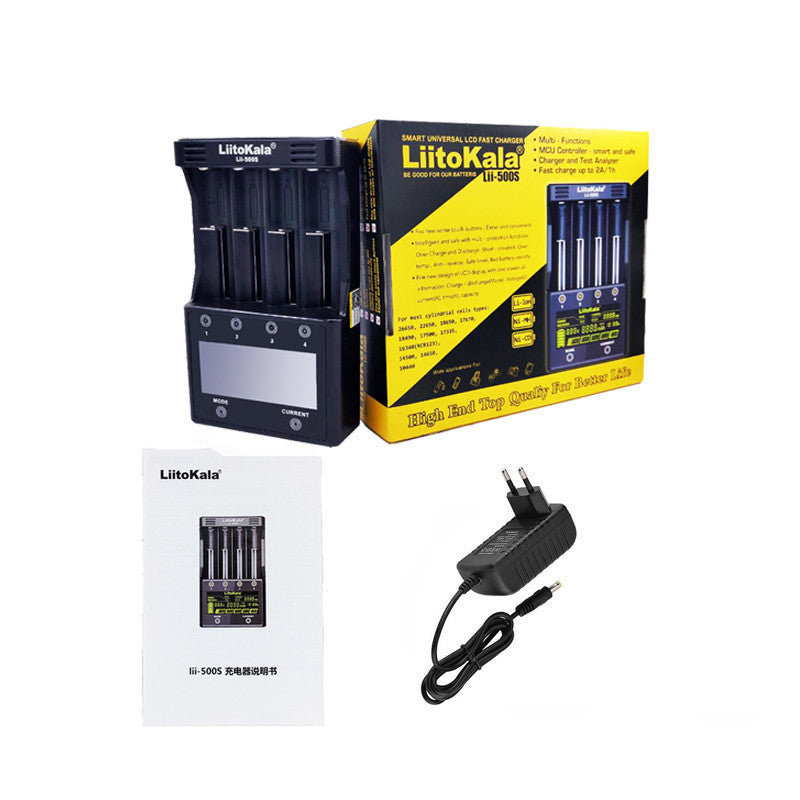

Package included:
1 x charger
1 x plug
