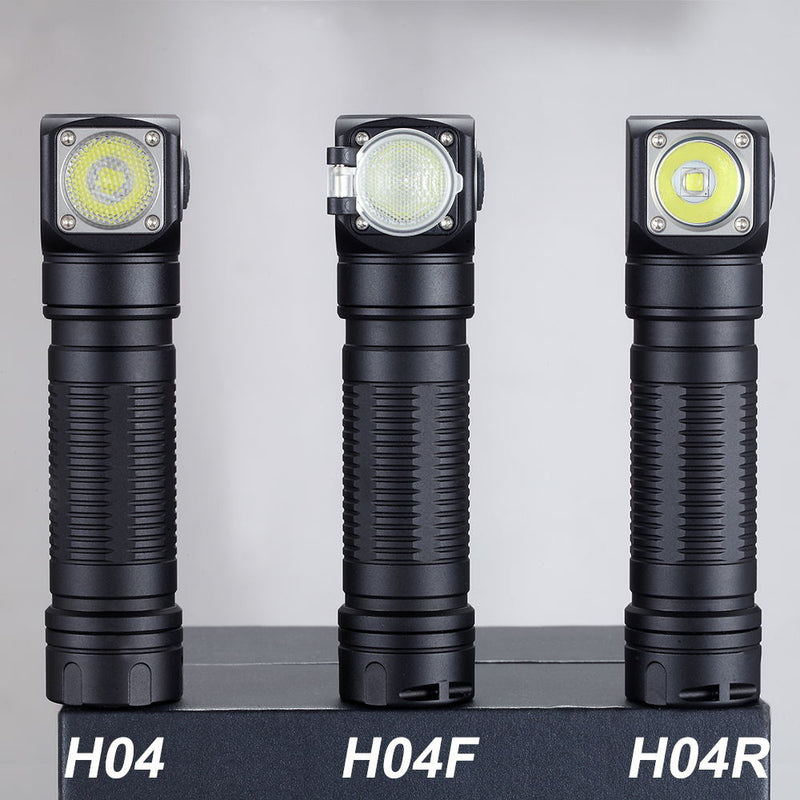

Difference between models (Please refer to the first picture of each model)More detail, please click the links to know.Specification:
| Brand |
SKILHUNT |
| Model |
H04 |
| Max output |
ANSI 1000 Lumens / 1200 LED Lumens |
| Max beam distance |
123 meters |
| Max beam |
3800cd |
| Waterproof |
IPX-8 |
| Impact resistant |
1 Meter |
| Battery |
1×18650 , 2x CR123A , 2x RCR123A (Not inlcuded) |
| Dimension |
99.9mmx 23.5mmx 21.6mm /
3.93'' x 0.93'' x 0.85''
Length x Head diameter x Body diameter
|
| Rated |
2.7V ~ 8.4V |
| Weight |
46g |
| Modes |
Mode group A: Low - Medium - High - Flashing - Low (Main / Sub-levels)
Mode group B: Low2 - Medium2 - High2 - Flashing2 - Low2 (Edit Level)
|
Main Features:
● Super bright
XP-L2 LED, max 1200 lumens, high-performance, high-efficiency, and energy conservation
● U.D.O.C reflector
Increased reflectivity over 10%, excellent structure, and temperature resistance
● Rugged indestructible aluminum body
● Multi-level dissipating heat design, excellent heat dissipation
Using integrated construction features high thermal conductivity
● Side switch button to transferring mode, user-friendly interface to adjust the output
● Two-mode groups plus editable brightness, more use options for choose
● Wide input range provides more choices of batteries
High-efficiency driver circuit, no visible flash in any mode
● Automatic memory function
Remember the last used setting and can be preset to specific output mode for instant access.
● Intelligent temperature control technology for flashlight stable and safe use
● Reverse polarity protection, to protect from improper battery installation
● When turning off, hold press button to activate lockout function, avoid light turn on by unexpected
● When light lockout, location indicator will flash, easily get the light in the dark

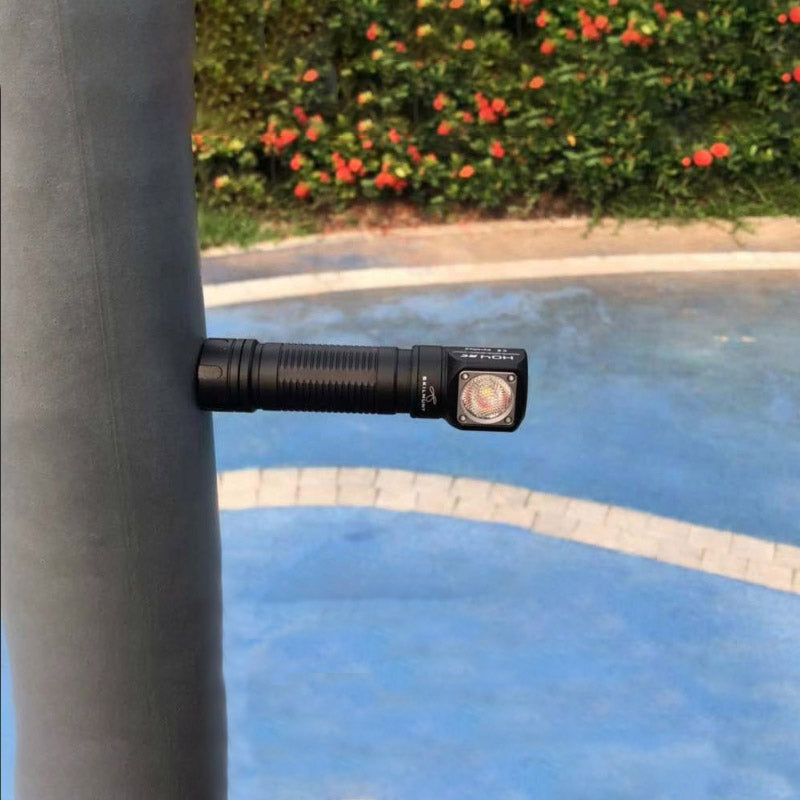

● Magnetic tail, can be used on many special occasions, use as candlelight, etc.
Operation:
● Battery installation and replace the magnet
- Insert the battery into the flashlight, the battery positive pole toward the light head
- Ensure batteries are inserted correctly, the flashlight will not operate with incorrectly inserted batteries
- Ensure when the light turning on, the beam is directed away from the eyes
● When taking the light with bankcards (magnetic) or phone, it should replace the magnet with rubber pad.
● Turn on/off & modes transfer
- Transfer Mode A / Mode B:
When the headlight is turned off without lockout, hold press side switch 5 seconds, the light will flash three times faster than flash three times slower
● Mode Group A
- When the flashlight was off status: click the switch to memorized brightness level, quickly double click switch to Turbo (T1/T2), quickly triple-click switch to Strobe (S1) mode, press switch 0.5 seconds to Low (L1/L2) mode
- When the flashlight was on (any mode) status: press and hold the side switch 0.5 seconds to turn off
- Brightness and mode selection
Brightness level: press side switch to Low-Mid-High-Turbo, cycle, quickly double press the side switch to Sub-level (eg, between L1 and L2), turn off memorized the last brightness, quickly triple press to special modes
- Special modes: quickly triple press the side switch to Strobe (S1), then double-click to switch S1/S2/S3 mode, press side switch back to the previous brightness level
● Mode Group B
- When the flashlight was off status: click the switch to memorized brightness level, press switch 0.5 sec, to L2, quickly double click switch to Turbo (T1) mode, quickly triple press to Special modes (S1)
- When the flashlight was on (any mode) status: click the switch to turn off
- On commonly used levels (editable): hold press switch, brightness levels automatic cycle, and selected mode by button released, click the switch to turn off, quickly triple press enter to edit levels
- On special modes: quickly double click switch to transfer mode S1/S2/S3, click switch to turn off, hold press side switch 1 second to adjust the S1/S2/S3 brightness output level in Low, medium or high, quickly triple press to restore to the factory default flash modes
Edit Levels:
- Support to 2-7 common used levels can be selected
- Enter to edit level, 7 levels circle automatically
- The selected level, side switch indicator is on
- Not selected brightness, side switch indicator is off
- Factory's default levels: L2-M2-H2-T2 (the indicator light on synchronously when levels automatic cycles)
- Click side switch to turn on/off the corresponding indicator.
- All selected finished, hold press 1 second the side switch save selected and quit edit mode
- The light will be flash three times, and back to the lowest selected level
- Restore the factory default levels: enter to edit level, then click side switch three times (light will be turn off after three clicks)
Location Indicator, Lock-out Function:
When turning off the flashlight, press switch 1.5 seconds, location indicator switch on and lock-out function activation at the same time, click double click the switch to turn on/off the indicator, the indicator light flashes every second, locate the flashlight, easy to find the flashlight in the dark quickly
Press switch 1.5 sec, switch unlock and enter into low mode
Power Indicator:
- Every time turn on, the side indicator will be light 5 seconds to display the battery power
- Blink four times: battery power in 100%-80%
- Blink three times: battery power in 80%-50%
- Blink twice: battery power in 50%-20%
- Blink one time: battery power below 20%
Usage And Maintenance:
- Use quality batteries so as not to damage the light due to leaks or other self-destructive possibilities
- Remove batteries when the light will not be used for an extended period or if batteries are discharged
- When using Li-ion batteries, we recommend the use of protected batteries, clean contacts, threads and O-rings of the flashlight with a clean cloth from time to time when necessary
- Should flicker or doesn't light up this the most likely cause
- If the flashlight is used in a wet environment, lubricate O-rings frequently to maintain watertight seal inspected and cleaned if necessary
Package included:
1 x Skilhunt H04 Headlight Flashlight
1 x Operator’s manual
1 x Warranty card
1 x Spare O-ring

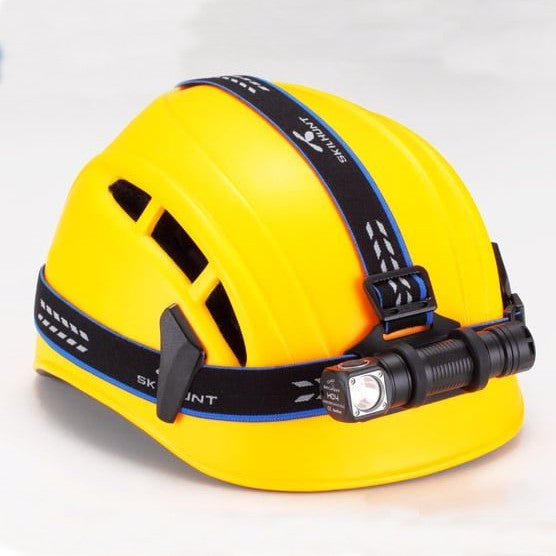

1 x Headband
1 x Lanyard
1 x Clip
