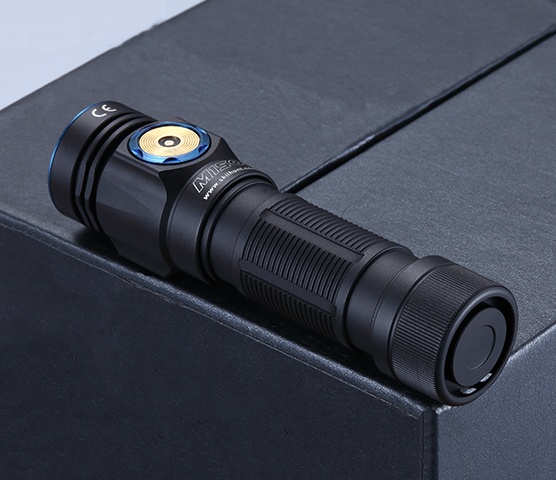

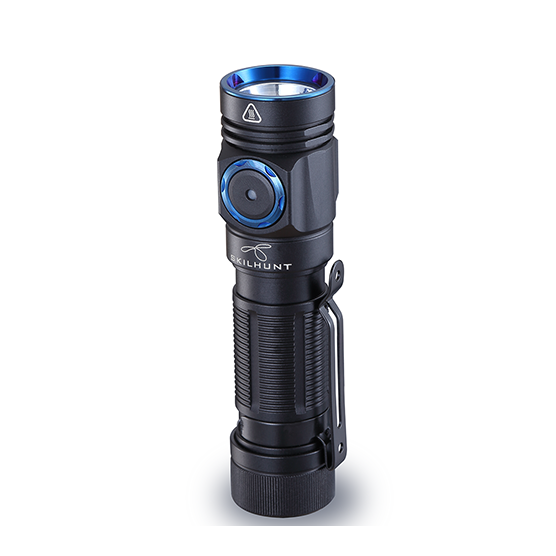

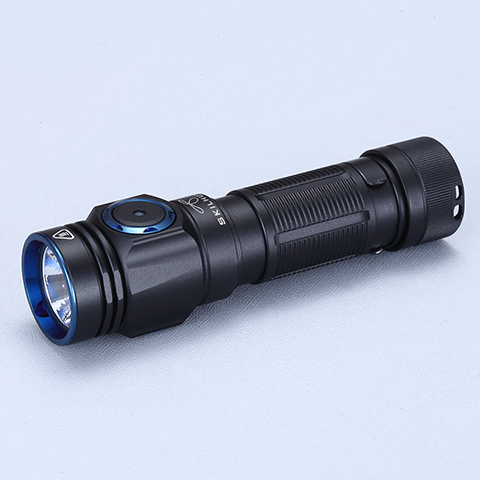

M150 magnetic charging flashlight
LED: XP-L2
Max output: ANSI 750 Lumens
Max runtime: Few months
Max beam distance: 110 m (14500) / 61 m (Ni-MH)
Max peak beam intensity: 3000 cd (14500) / 930 cd (Ni-MH)
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×14500 , 1x AA
Rated Range: 0.8V ~ 4.2V
Dimension:
Length 84.0mm / 3.30 inch
Head diameter 21.0mm / 0.82 inch
Body diameter 18.0mm / 0.71 inch
Weight: 34 g / 1.20 oz (without battery)
Operation
1. Battery installation & Replace magnet:
Insert the battery positive pole toward the light head.,otherwise it will not work. When the light turning on,the beam is directed away from the eyes.When take the light with Bankcards(magnetic) or cellphone, should replaced Magnet with rubber pad.
2. Turn ON/OFF & Mode transfer
Mode Group A (8 output level & 3 strobe)
When the flashlight was OFF status:
Click switch to memorized brightness level before the light was turned off.
Quickly double click switch to Turbo(T1).Quickly triple click switch to Strobe mode.Press switch 0.5 second to Low mode.
When the flashlight was ON(any mode) status:
Press switch 0.5 second to turn off.
Change brightness level: Click switch to L – M – H – T – H – M – L, cycle.
Quickly double click switch to Sub-level(i.e. between L1 & L2),turn off memorized.
Quickly triple click switch to Strobe (S1),then double-click to switch S1/S2/S3 mode.
Click switch back to previous brightness level.
Mode Group B (5 output level & SOS)
When the flashlight was OFF status:
Click switch to memorized brightness level. Press switch 0.5 sec,to L2.
Quickly double click switch to Turbo(T1) mode.
When the flashlight was ON(any mode) status:
Click switch to turn off.
Brightness level:
Press and hold the switch to automatically cycle as L1-M1-H2-H1-T1-H1-H2-M1-L1, the level is selected when the side switch has been released.
Quickly double click switch to SOS mode, click switch to turn off.
3.Location indicator & Lock-out function
When turn off the flashlight, press switch 1.5 second,location indicator switch on and lock-out function activation at same time,click switch only can switch the indicator on/off, the indicator light flash every second, locate the flashlight, Easy find the flashlight in the dark quickly.Press switch 1.5 sec, switch unlock and enter into low mode.
4. Power indicator & Low voltage indication
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue : battery power in 100%~80%; Flashing Blue : battery power in 80%~50%;
Constant Red : battery power in 50%~20%; Flashing Red : battery power below 20%.
When the battery voltage drop down lower than 3.0V,indicator flash 3 times every 2 sec.
5. Charging instructions and notices:
In charging, the red indicator constant light on, when battery almost full charge,indicator change to constant blue light.
Warning: Rechargeable function only for one 14500 (3.6/3.7V) rechargeable lithium battery! Please make sure the battery is correctly insert, otherwise it will damage the charging system.
Features
1.Super bright & latest XP-L2 LED, Max 750 lumens. High-Performance, High-Efficiency and energy conservation.
2.New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.
3.Built-in magnetic charging system, fast charge and convenient.
4.Rugged indestructible aluminum body with anti-scratching type III hard anodization
5.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Side switch button to transferring mode user-friendly interface to adjust output.
7.Two mode groups to meet different use habits, suitable for different environment.
8.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
9.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
10.Intelligent temperature control technology for flashlight stable and safe use.
11.Reverse polarity protection, to protect from improper battery installation.
12.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.
13.When light lockout, location indicator will flash, easy get the light in dark.
14.Magnetic tail, can be used in many special occasions, use as candlelight, etc.
Package Included:1 x SKILHUNT M150 EDC Flashlight
1 x User manual
1 x Spare O-rings
1 x Lanyard
1 x Clip
1 x Magnetic Charging Cable
