Item Name: 5pcs Add2psu ATX 24Pin to SATA Dual PSU Power Supply Sync Adapter (Black). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
1/5/10pcs PC Block Synchronizer Add2psu ATX 24Pin to 4 Pin / SATA Dual PSU Power Supply Sync Adapter Synchronous Connector Riser Cable for Graphics Card BTC Miner Mining
Feature:

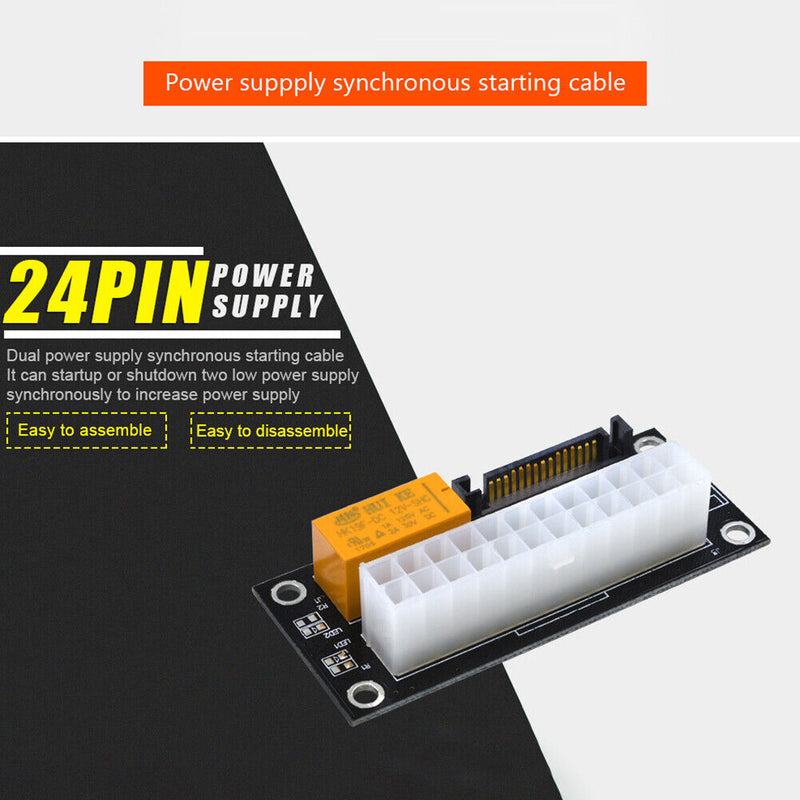

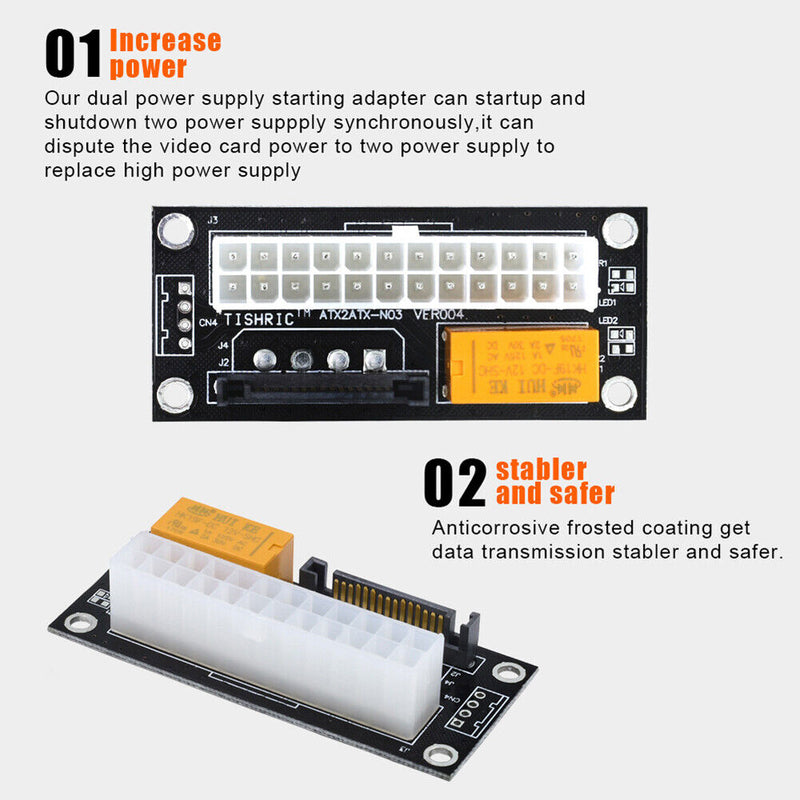

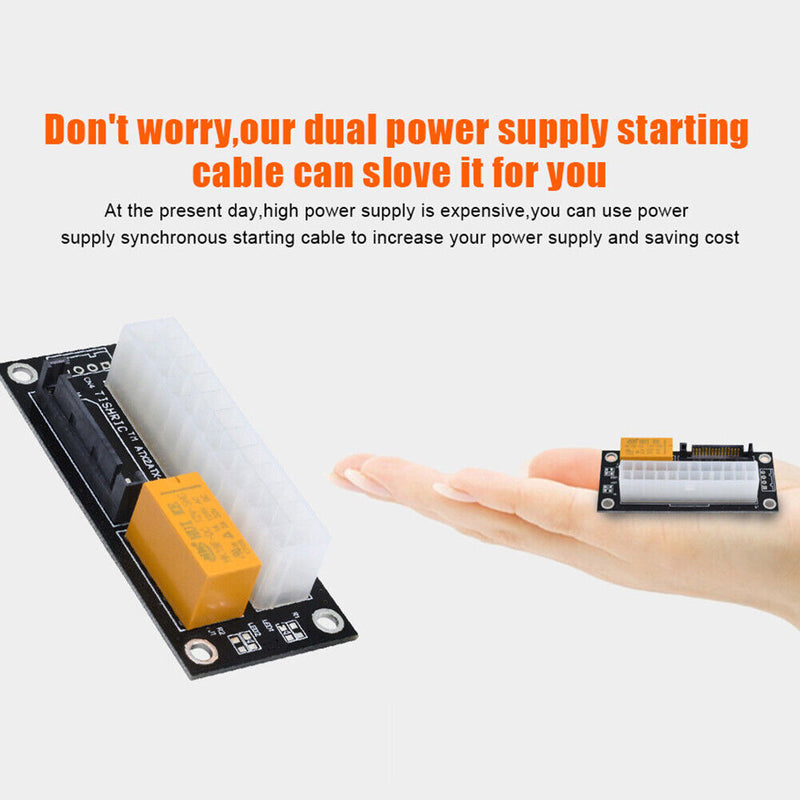

Because the current high-power power supplies are more expensive, using this line now can turn on and off two power supplies with low power at the same time, thereby increasing the power of the power supply.
When 5 graphics cards are connected to swipe coins at the same time, the existing power supply is not enough, the high-power power supply is out of stock and the price is quite expensive, you can use this card to turn on and off the two power supplies at the same time, and distribute the power of the graphics card to the two power supplies, to replace the high-power power supply.
Specification:
Product material: Pce A
Product Quantity: 1/5/10 Pcs (optional)
Product color: Black, Green (optional)
Product specifications: Large 4PIN power supply/SATA (optional)
Product interface: ATX 24PIN
Product performance: Extension cord 6P interface (maximum 16A power supply) enhanced power supply
Product length: 67x30mm/2.64x1.18in
Product weight: 20g
Product packaging: Electrostatic bag
Wiring:

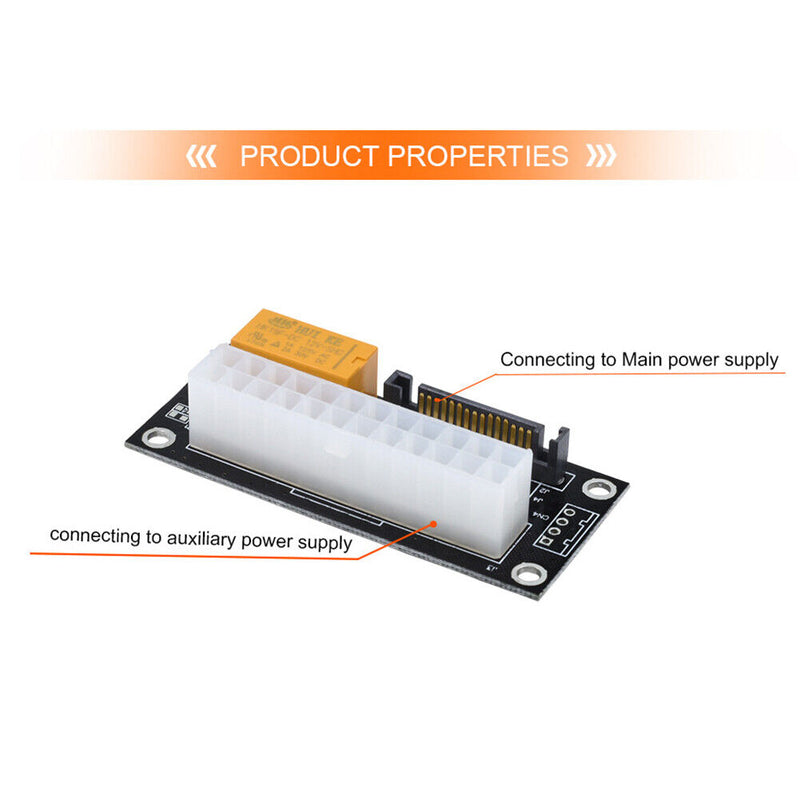

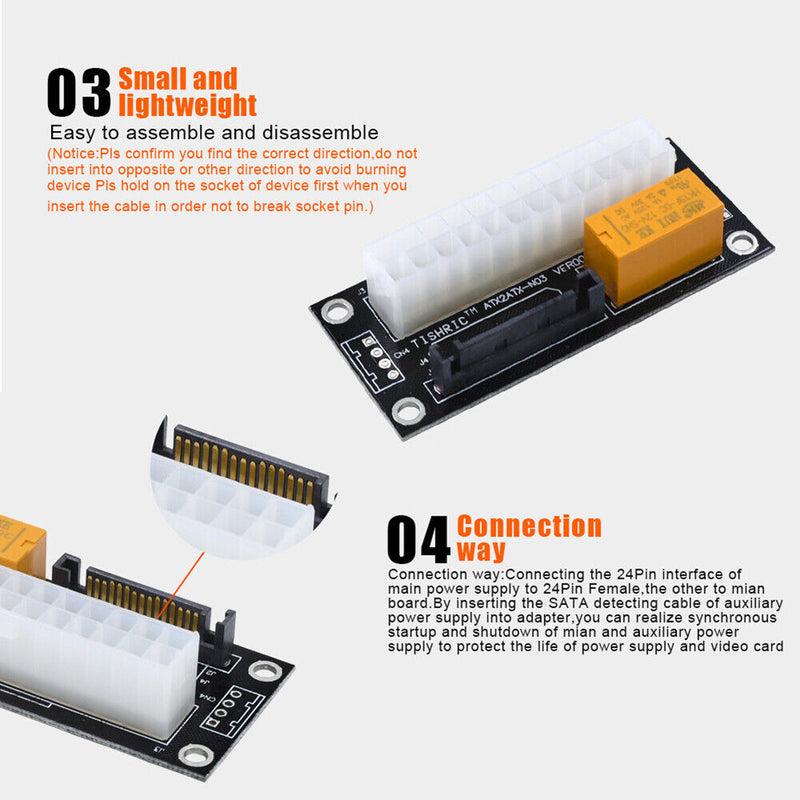

Plug the 24PIN of the main power supply into the 24PIN female connector, and plug the other end into the motherboard.
The secondary power supply detection SATA power cord is plugged into the adapter card, and the secondary power supply and the main power supply can be turned on and off at the same time to protect the power supply and the life of the graphics card.
Precautions:
Be sure to recognize the direction when plugging in, and don't plug it in reverse or offset position to prevent burning the equipment.
When plugging in, first hold the socket of the device before plugging in, to avoid inserting the socket pins with excessive force.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
